GGH35W-NFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )GGH35

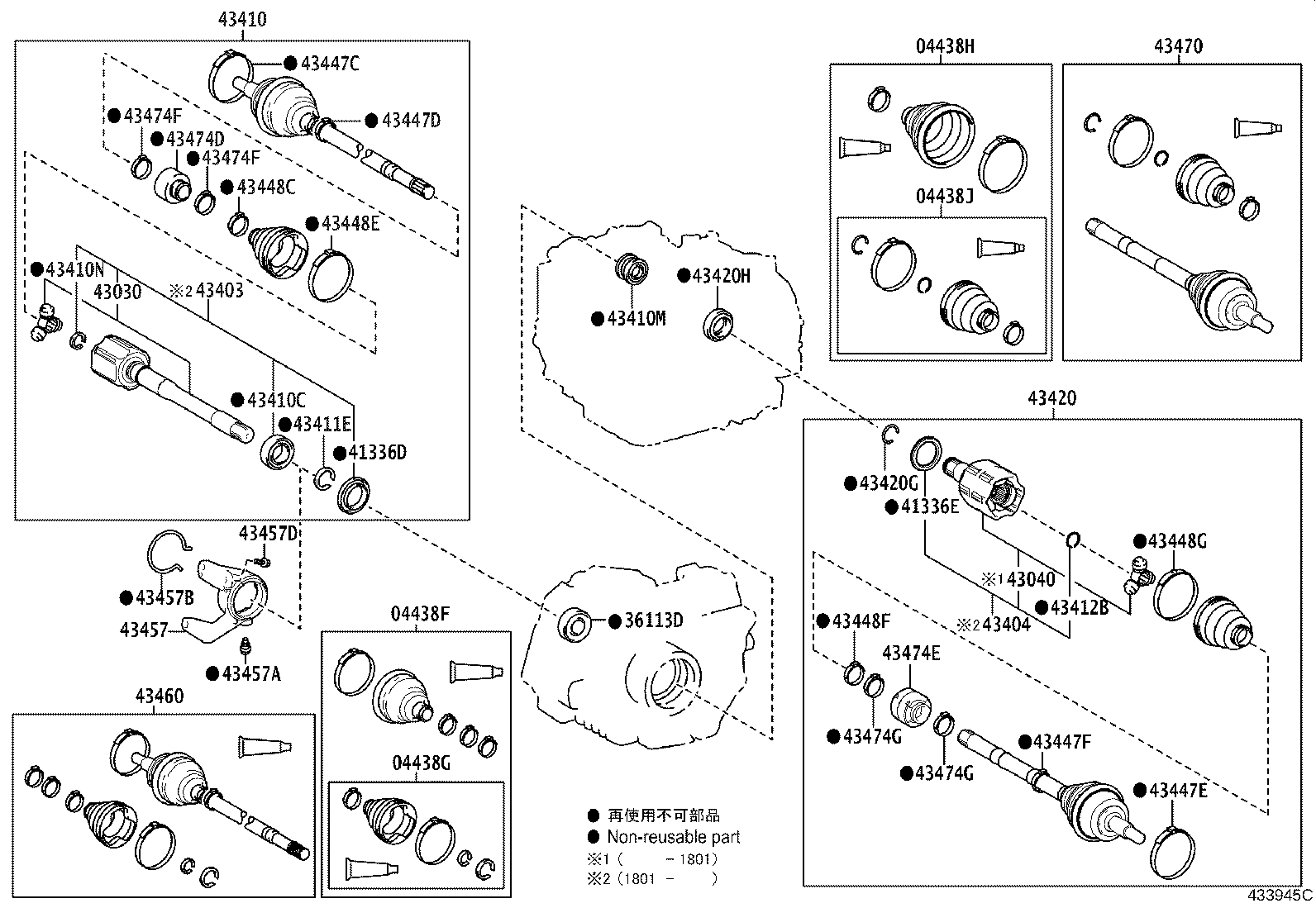

Click highlighted areas on diagram

diagram 04438F 04438G 04438H 04438J 36113D 41336D 41336E 43030 43040 43403 43404 43410 43410C 43410M 43410N 43411E 43412B 43420 43420G 43420H 43447C 43447D 43447E 43447F 43448C 43448E 43448F 43448G 43457 43457A 43457B 43457D 43460 43470 43474D 43474E 43474F 43474F 43474G 43474G
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-58090

GGH35

 1
04427-58091

GGH35

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-58070

GGH35

 1
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-58091

GGH3#

 1
04428-58092

GGH3#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-58060

GGH3#

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

AGH35,GGH35

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-78020

AGH35,GGH35

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-78030

AGH3#,GGH3#

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-58050

GGH35

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-58020

GGH3#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-58060

GGH35

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

AGH35,GGH35

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

AGH35,GGH35

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43425-58030

GGH3#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-78040

AGH35,GGH35

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-58030

GGH3#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-58040

GGH3#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
43425-78050

AGH3#,AYH30,GGH3#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50045

GGH3#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-58140

AGH3#,AYH30,GGH3#

 1
42346-24020

AGH35,GGH35

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-58130

AGH3#,AYH30,GGH3#

 1
42346-24020

AGH3#,AYH30,GGH3#

 1
42345-58020

AGH35,GGH35

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42346-24020

AGH3#,AYH30,GGH3#

 1
42345-58130

AGH3#,AYH30,GGH3#

 1
42345-58020

AGH3#,AYH30,GGH3#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42346-24020

AGH3#,AYH30,GGH3#

 1
42345-58140

AGH3#,AYH30,GGH3#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-58030

GGH3#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-58040

GGH3#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-58030

GGH3#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-58040

GGH3#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42070

GGH35

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

AGH35,AYH30,GGH35

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

AGH35,GGH35

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

AGH3#,AYH30,GGH3#

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-59855

GGH35

 1
43460-59856

GGH35

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59856

GGH3#

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-58010

AGH35,AYH30,GGH35

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-42050

AGH3#,GGH3#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-58050

AGH35,AYH30,GGH35

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-58050

AGH35,AYH30,GGH35

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-78060

AGH3#,GGH3#

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-78060

AGH3#,GGH3#

 2
