GGH30W-PFZRK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

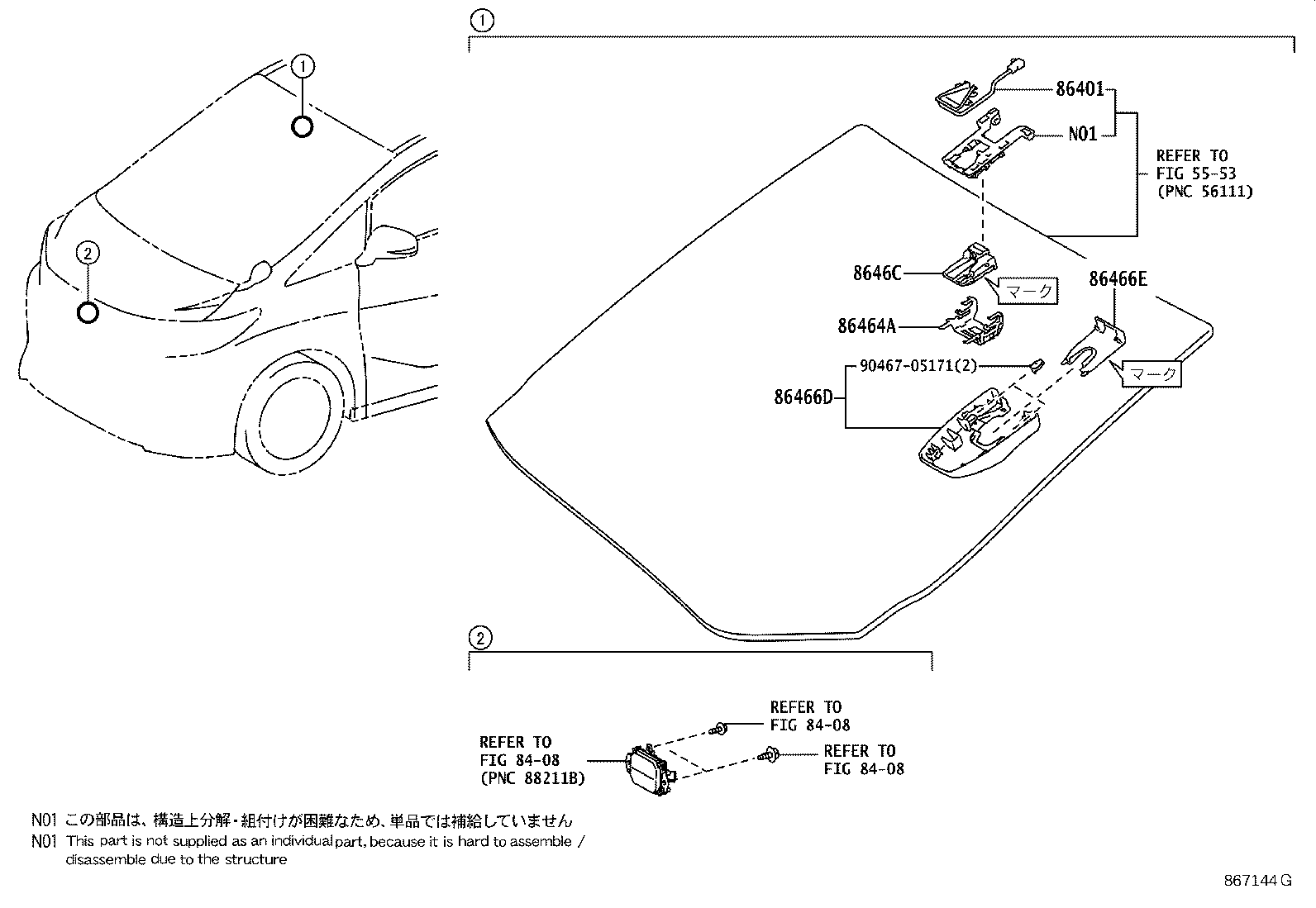

Click highlighted areas on diagram

diagram 5553 8408 8408 8408 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-58010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
86401-58010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ

 1
86401-58020

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

AGH3#,AYH30,GGH3#

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-58010

AGH3#,AYH30,GGH3#

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-58030

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,ﾏｰｸ 86466−58030

 1
86466-58020

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ﾏｰｸ 86466−58020

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-58020

AGH3#,AYH30,GGH3#

ﾏｰｸ 8646C−58020

 1
8646C-58010

AGH3#,AYH30,GGH3#

ﾏｰｸ 8646C−58010

 1
Common parts
90467-05171
Linked diagrams
5553
8408
