GGH30W-PFZRK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )GGH3#

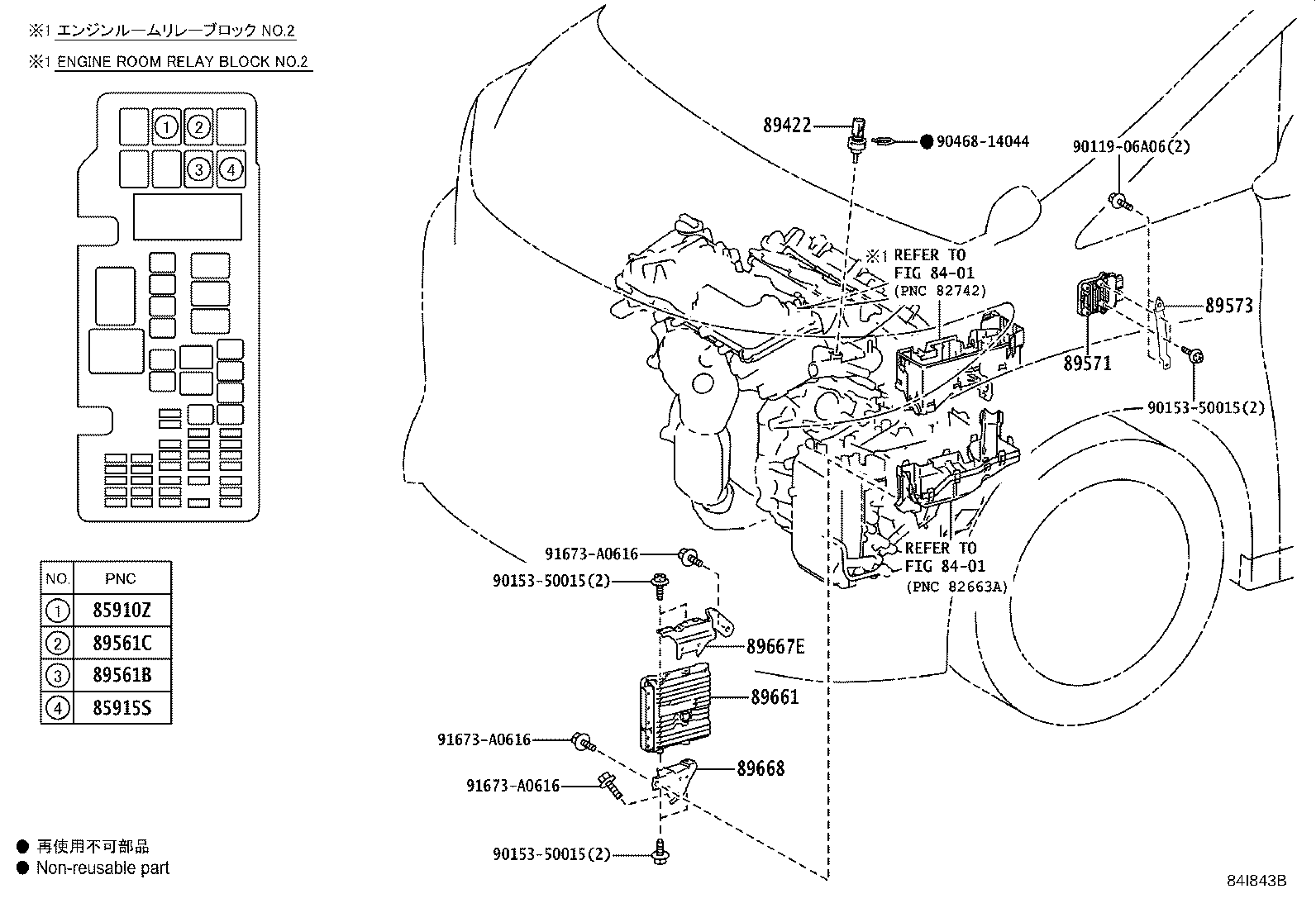

Click highlighted areas on diagram

diagram 8401 8401 85910Z 85915S 89422 89561B 89561C 89571 89573 89661 89667E 89668 9011906A06 9015350015 9015350015 9015350015 9046814044 91673A0616 91673A0616 91673A0616
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

GGH3#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027

GGH3#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-47010

GGH3#

 1
89561B - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
90987-02027

GGH3#

 1
89561C - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90987-02027

GGH3#

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58020

GGH3#

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-58020

GGH3#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-58480

GGH30

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-58060

GGH3#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-58060

GGH3#

 1
Common parts
90119-06A06
90153-50015
90468-14044
91673-A0616
Linked diagrams
8401
