GGH30W-PFZRK (2018)
Toyota Alphard/Vellfire/Hv
ILLUST NO. 1 OF 5(1801- )AGH3#..07S..G,S,V,Z ; (1801- )AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58510C3 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71071-58520A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71071-58520C2 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71071-58600A1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58790C1 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71073-58790A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71073-58780C4 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71073-58870A2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58160 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71511-58130 |
AYH30,GGH3#..EL,ELS,ELZ,SC,ZG |
1 | ||
| 71511-58130 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58210 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 71551-58230 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71551-58210 |
AYH30,GGH3#..EL,ELS,ELZ,SC,ZG |
1 | ||
| 71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-58030A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71705-58030C1 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58332A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71910-58332C0 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71910-58350A1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71910-58280C2 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 74618A - PLUG, FRONT ASSIST GRIP, LH | ||||
| 74618-58010A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74618-58010C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 74690B - GRIP ASSY, SEAT ASSIST, REAR | ||||
| 74690-58020C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 74690-58020A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74F17A - PLUG, ASSIST GRIP | ||||
| 74617-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74617-58050C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 87511C - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-58130 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 87530D - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-58080 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| Common parts | ||||
| 90119-06A50 | ||||
| 91673-J0620 | ||||

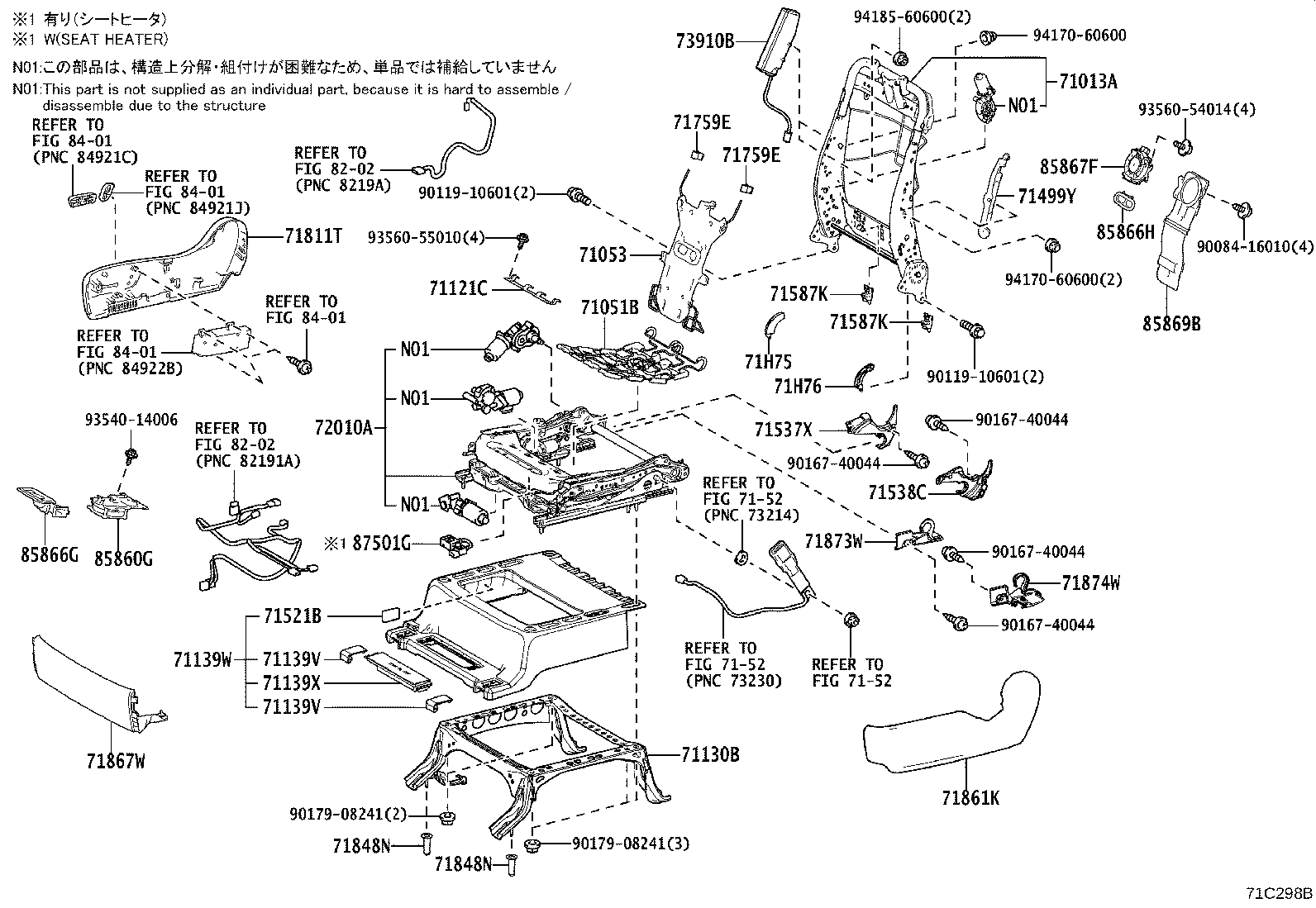

ILLUST NO. 2 OF 5(1801- )AGH3#,GGH3#..07S..EL,ELS,ELZ,G,GF,S,SC,V,VL,Z,ZG
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-58090 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-58020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71121C - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-58040 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58090 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
2 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
2 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58390C0 |
AGH3#,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71139-58390C0 |
AGH3#,GGH3#..ELS,ELZ,S,SC,Z,ZG BLACK,TRIM2# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71499Y - DAMPER, SEAT BACK SPRING, RH | ||||
| 71499-58120 |
AGH3#,GGH3# |
1 | ||
| 71521B - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-V2010 |
AGH3#,GGH3# |
2 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71537-47010A4 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71537-47010C0 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71537-47010A4 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71538C - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71538-47010C0 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71538-47010A4 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71538-47010A4 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58090A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71811-58090C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71811-58090A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71811-58090C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71811-58090A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58090A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71861-58090A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71861-58090A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71861-58090C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71861-58090C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-58060A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71867-58060A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71867-58060C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71867-58060C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71867-58060A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-60030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71874-60110 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71875-60210A3 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-60210C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71876-60210A3 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71876-60210C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-58060 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85860G - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85866G - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-58020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85866H - DUCT, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85866-33020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85867F - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85869B - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 87501G - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-76011 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 93540-14006 | ||||
| 93560-54014 | ||||
| 93560-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(1801- )AGH3#..07S..G,S,V,Z ; (1801- )AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58510C3 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71072-58520A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71072-58520C2 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71072-58600A1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58780C4 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71074-58790A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71074-58790C1 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71074-58860A2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58110 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 71502-58110 |
AYH30,GGH3#..EL,ELS,ELZ,SC,ZG |
1 | ||
| 71502-58120 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58230 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 71552-58230 |
AYH30,GGH3#..EL,ELS,ELZ,SC,ZG |
1 | ||
| 71552-58240 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-58030A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71705-58030C1 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58332C0 |
GGH3#..SC,ZG ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 71910-58280C2 |
GGH3#..SC,ZG BLACK,TRIM2# |
1 | ||
| 71910-58350A1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71910-58332A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 74618A - PLUG, FRONT ASSIST GRIP, LH | ||||
| 74618-58010A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74618-58010C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 74690B - GRIP ASSY, SEAT ASSIST, REAR | ||||
| 74690-58020C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 74690-58020A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74F17A - PLUG, ASSIST GRIP | ||||
| 74617-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
2 | ||
| 74617-58050C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 87511D - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-58140 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 87530E - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-58080 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| Common parts | ||||
| 90119-06A50 | ||||
| 91673-J0620 | ||||

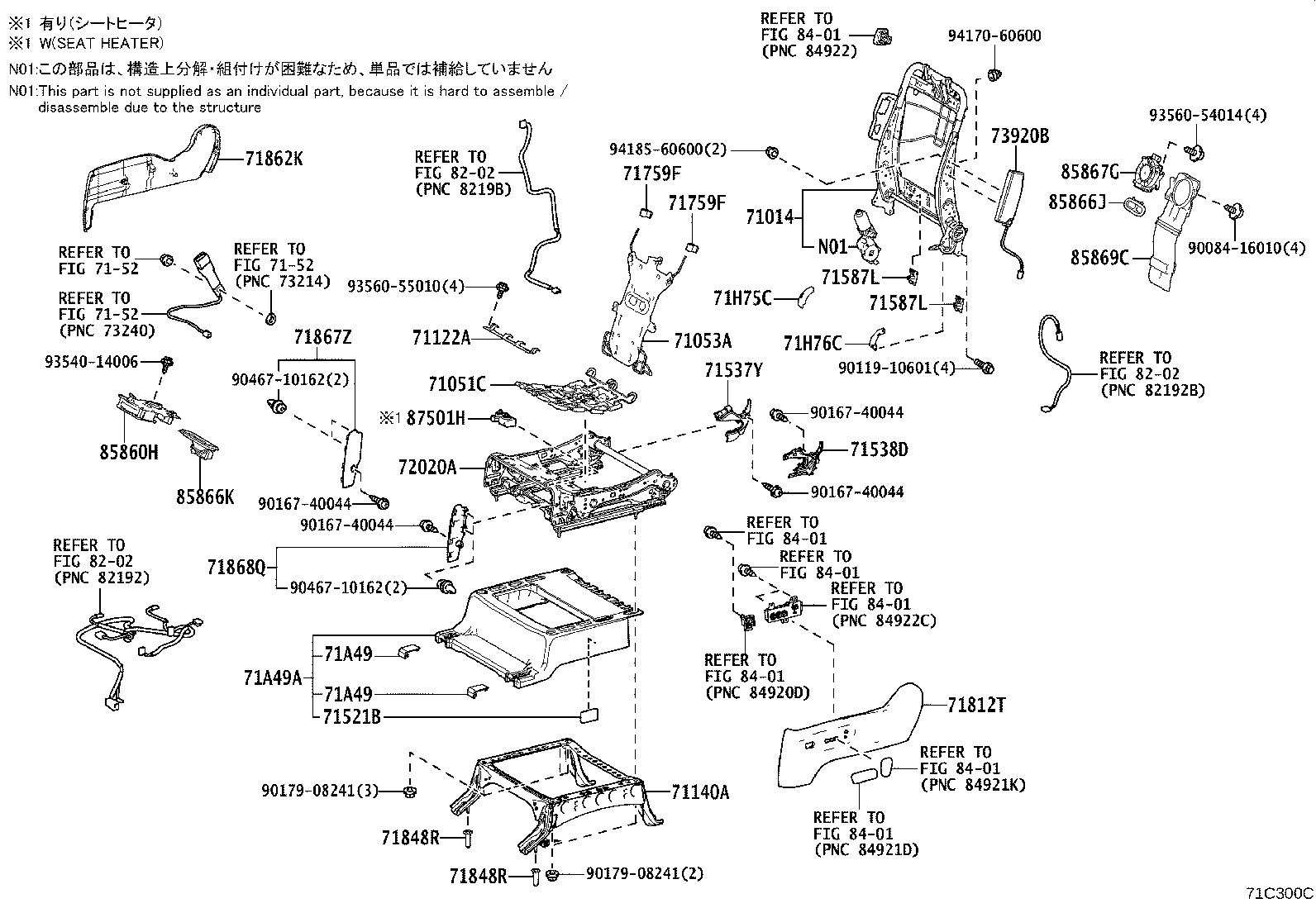

ILLUST NO. 4 OF 5(1801- )AGH3#,GGH3#..07S..EL,ELS,ELZ,G,GF,S,SC,V,VL,Z,ZG
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-58080 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-58020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71122A - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71121-58040 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71521B - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-V2010 |
AGH3#,GGH3# |
2 | ||
| 71537Y - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-22040C0 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71537-22040C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71537-22040A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71537-22040A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-22020C0 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71538-22020C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71538-22020A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71538-22020A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58110A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71812-58110C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71812-58110A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71812-58110C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71812-58110A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58080C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71862-58080A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71862-58080A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71862-58080A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71862-58080C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71867-58070C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71867-58070A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71867-58070A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71867-58070C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71867-58070A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-58060A0 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71868-58060C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71868-58060A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71868-58060C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71868-58060A0 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..ELS,ELZ,S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58260C0 |
AGH3#,GGH3#..ELS,ELZ,S,SC,Z,ZG BLACK,TRIM2# |
1 | ||
| 71149-58260C0 |
AGH3#,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-60210C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71875-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71875-60210A3 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71875-60210C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-60210C0 |
AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM01 |
1 | ||
| 71876-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM01 |
1 | ||
| 71876-60210A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 71876-60210C0 |
AYH30,GGH3#..EL,ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-58020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85860H - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-58040 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85866J - DUCT, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85866-33020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85866K - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85867G - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-33020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 85869C - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 87501H - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-76011 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 90467-10162 | ||||
| 93540-14006 | ||||
| 93560-54014 | ||||
| 93560-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(1801- )AGH3#..07S..G,S,V,Z ; (1801- )AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ, ｵｯﾄﾏﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 71691-50010C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 71691-50020C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 72095-58010C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 72096-58010C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
2 | ||
| 72996-50120C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
2 | ||
| 72996-50120C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
2 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 78988-58020C0 |
AYH30,GGH3#..ELS,ELZ,SC,SR,ZG,ZR BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71769-08010 | ||||
| 78899-50010 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90467-05145 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
