GGH30W-PFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501-2001)

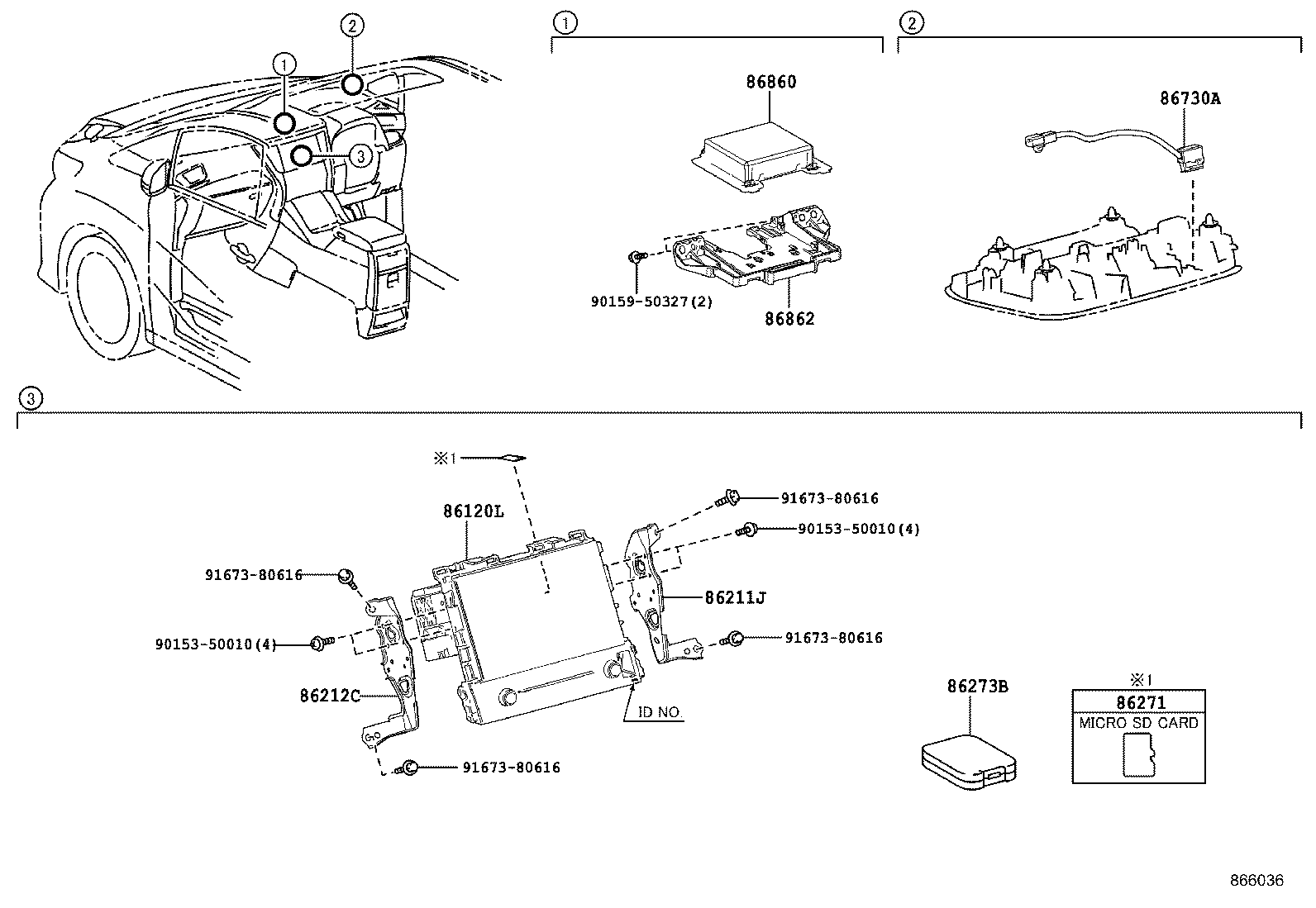

Click highlighted areas on diagram

diagram 86120L 86211J 86212C 86271 86273B 86730A 86860 86862 9015350010 9015350010 9015950327 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86804-58110

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

PANASONIC,ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-58110

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-58110

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86271 - DISC, DISC PLAYER
86271-58132

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,MICRO SDｶｰﾄﾞ

 1
86271-58130

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,MICRO SDｶｰﾄﾞ

 1
86271-58131

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,MICRO SDｶｰﾄﾞ

 1
86271-58133

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86271-58132

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86271-58133

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,MICRO SDｶｰﾄﾞ

 1
86271-58134

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,MICRO SDｶｰﾄﾞ

 1
86273B - ADAPTER, DISC PLAYER
86273-48030

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28060

AGH3#,AYH30,GGH3#

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-78010

AGH3#,AYH30,GGH3#

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

AGH3#,AYH30,GGH3#

 1
Common parts
90153-50010
90159-50327
91673-80616
