GGH30W-PFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )GGH3#

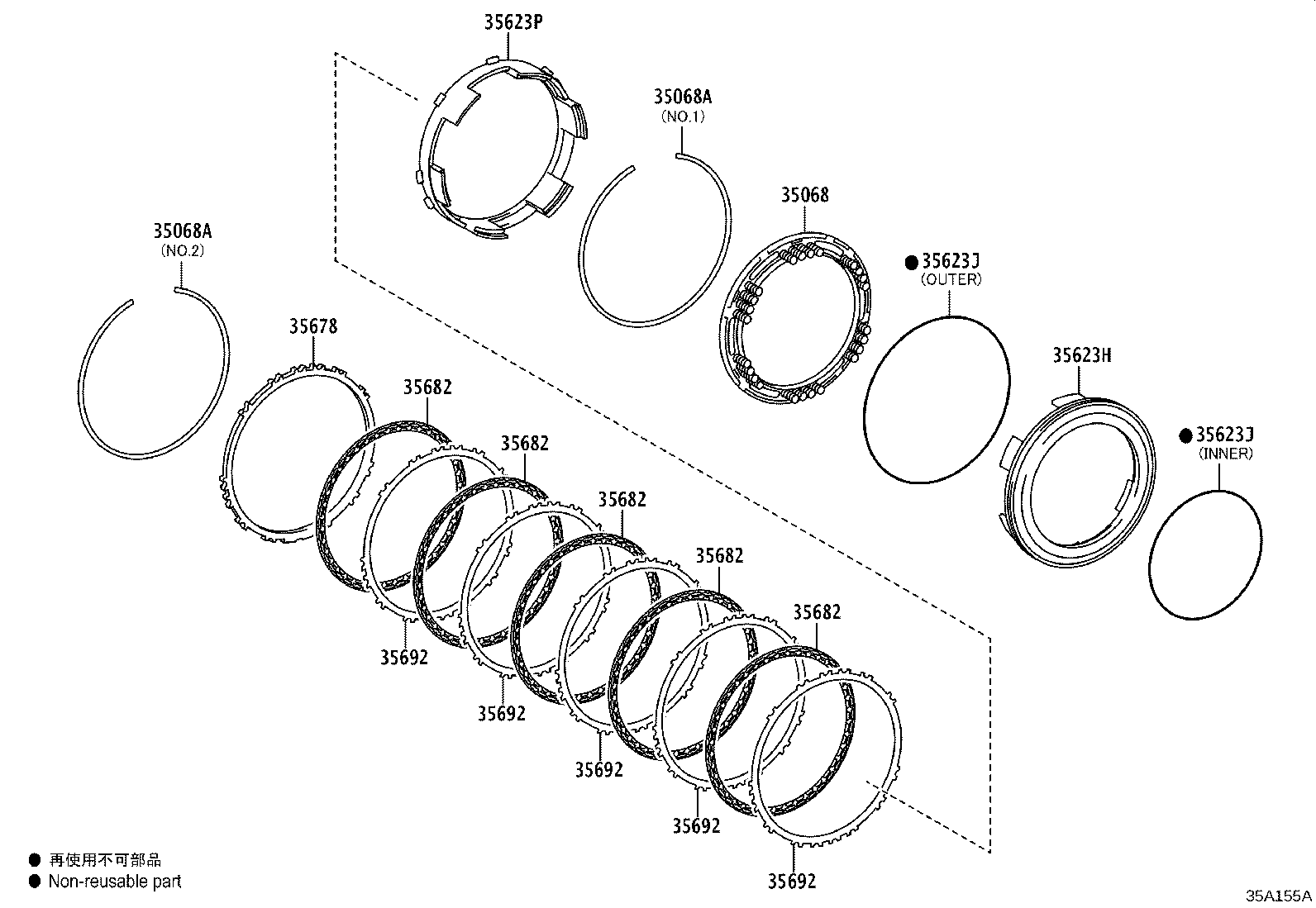

Click highlighted areas on diagram

UA80E,UA80F

diagram 35068 35068A 35068A 35623H 35623J 35623J 35623P 35678 35682 35682 35682 35682 35682 35692 35692 35692 35692 35692
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-48020

GGH3#

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-99175

GGH3#

NO.2

 1
90520-99174

GGH3#

NO.1

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-99175

GGH3#

NO.2

 1
90520-99174

GGH3#

NO.1

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-48040

GGH3#

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99209

GGH3#

外側

 1
90301-99210

GGH3#

内側

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99209

GGH3#

外側

 1
90301-99210

GGH3#

内側

 1
35623P - PISTON, 1ST & REVERSE BRAKE, NO.2
35624-48020

GGH3#

 1
35678 - FLANGE, BRAKE(FOR 2ND BRAKE)
35678-48130

GGH3#

厚さ=5.2,ﾏｰｸ C

 1
35678-48150

GGH3#

厚さ=5.4,ﾏｰｸ E

 1
35678-48170

GGH3#

厚さ=5.6,ﾏｰｸ G

 1
35678-48140

GGH3#

厚さ=5.3,ﾏｰｸ D

 1
35678-48120

GGH3#

厚さ=5.1,ﾏｰｸ B

 1
35678-48160

GGH3#

厚さ=5.5,ﾏｰｸ F

 1
35678-48110

GGH3#

厚さ=5.0,ﾏｰｸ A

 1
35682 - DISC, BRAKE(FOR 2ND BRAKE)
35682-48030

GGH3#

 5
35682 - DISC, BRAKE(FOR 2ND BRAKE)
35682-48030

GGH3#

 5
35682 - DISC, BRAKE(FOR 2ND BRAKE)
35682-48030

GGH3#

 5
35682 - DISC, BRAKE(FOR 2ND BRAKE)
35682-48030

GGH3#

 5
35682 - DISC, BRAKE(FOR 2ND BRAKE)
35682-48030

GGH3#

 5
35692 - PLATE, BRAKE(FOR 2ND BRAKE)
35692-48020

GGH3#

 5
35692 - PLATE, BRAKE(FOR 2ND BRAKE)
35692-48020

GGH3#

 5
35692 - PLATE, BRAKE(FOR 2ND BRAKE)
35692-48020

GGH3#

 5
35692 - PLATE, BRAKE(FOR 2ND BRAKE)
35692-48020

GGH3#

 5
35692 - PLATE, BRAKE(FOR 2ND BRAKE)
35692-48020

GGH3#

 5
