GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

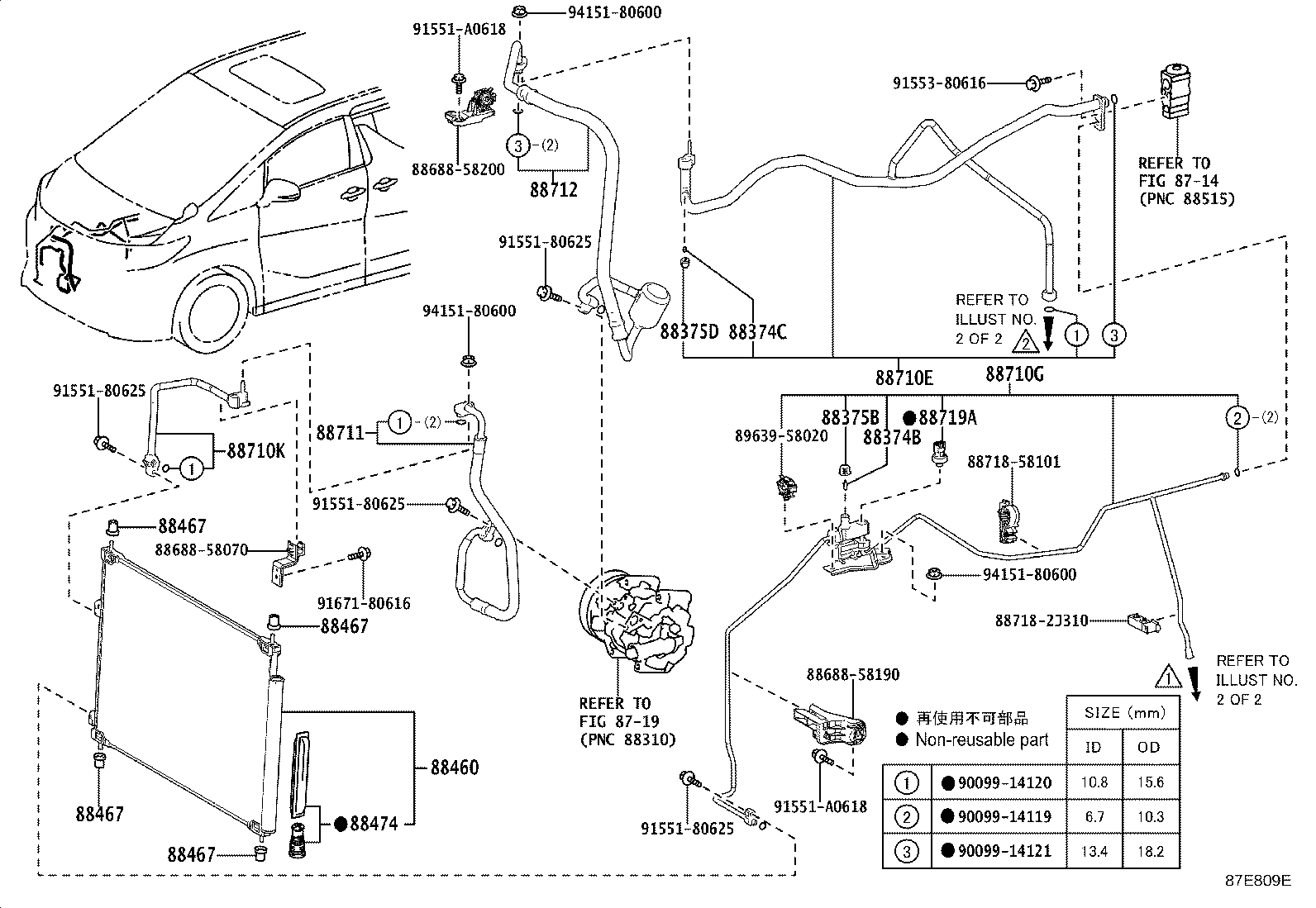

ILLUST NO. 1 OF 2(1501-1801)GGH3#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88467 88467 88474 8868858070 8868858190 8868858200 88710E 88710G 88710K 88711 88712 887182J310 8871858101 88719A 8963958020 9009914119 9009914120 9009914121 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618 9155380616 9167180616 9415180600 9415180600 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AGH3#,AYH30,GGH3#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AGH3#,AYH30,GGH3#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AGH3#,AYH30,GGH3#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AGH3#,AYH30,GGH3#

 1
88460 - CONDENSER ASSY, COOLER
88460-58040

AGH3#,GGH3#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

AGH3#,GGH3#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

AGH3#,GGH3#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

AGH3#,GGH3#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

AGH3#,GGH3#

 4
88474 - DRYER, COOLER
88474-12010

AGH3#,GGH3#

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-58200

AGH3#,AYH30,GGH3#

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-58180

AGH3#,AYH30,GGH3#

 1
88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88710-58220

GGH3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-58140

GGH3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-58080

GGH3#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AGH3#,AYH30,GGH3#

 1
Common parts
88688-58070
88688-58190
88688-58200
88718-2J310
88718-58101
89639-58020
90099-14119
90099-14120
90099-14121
91551-80625
91551-A0618
91553-80616
91671-80616
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(1501-2001)

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 8714 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 886882R060 886882R070 88716C 88716D 88716E 88717A 88717B 88717C 887182D150 8871858120 8871858120 8871858130 9009914119 9009914120 9009914121 91551A0630 91551A0630 9338515012 9415180641 9415180641
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-58260

AGH3#,AYH30,GGH3#

 1
88716-58261

AGH3#,AYH30,GGH3#

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-58270

AGH3#,AYH30,GGH3#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-58220

AGH3#,AYH30,GGH3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-58150

AGH3#,AYH30,GGH3#

 1
88717-58151

AGH3#,AYH30,GGH3#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-58160

AGH3#,AYH30,GGH3#

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-58140

AGH3#,AYH30,GGH3#

 1
Common parts
88688-2R060
88688-2R070
88718-2D150
88718-58120
88718-58130
90099-14119
90099-14120
90099-14121
91551-A0630
93385-15012
94151-80641
Linked diagrams
8714
8716
