GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
ILLUST NO. 1 OF 3(1501-1801)
ｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

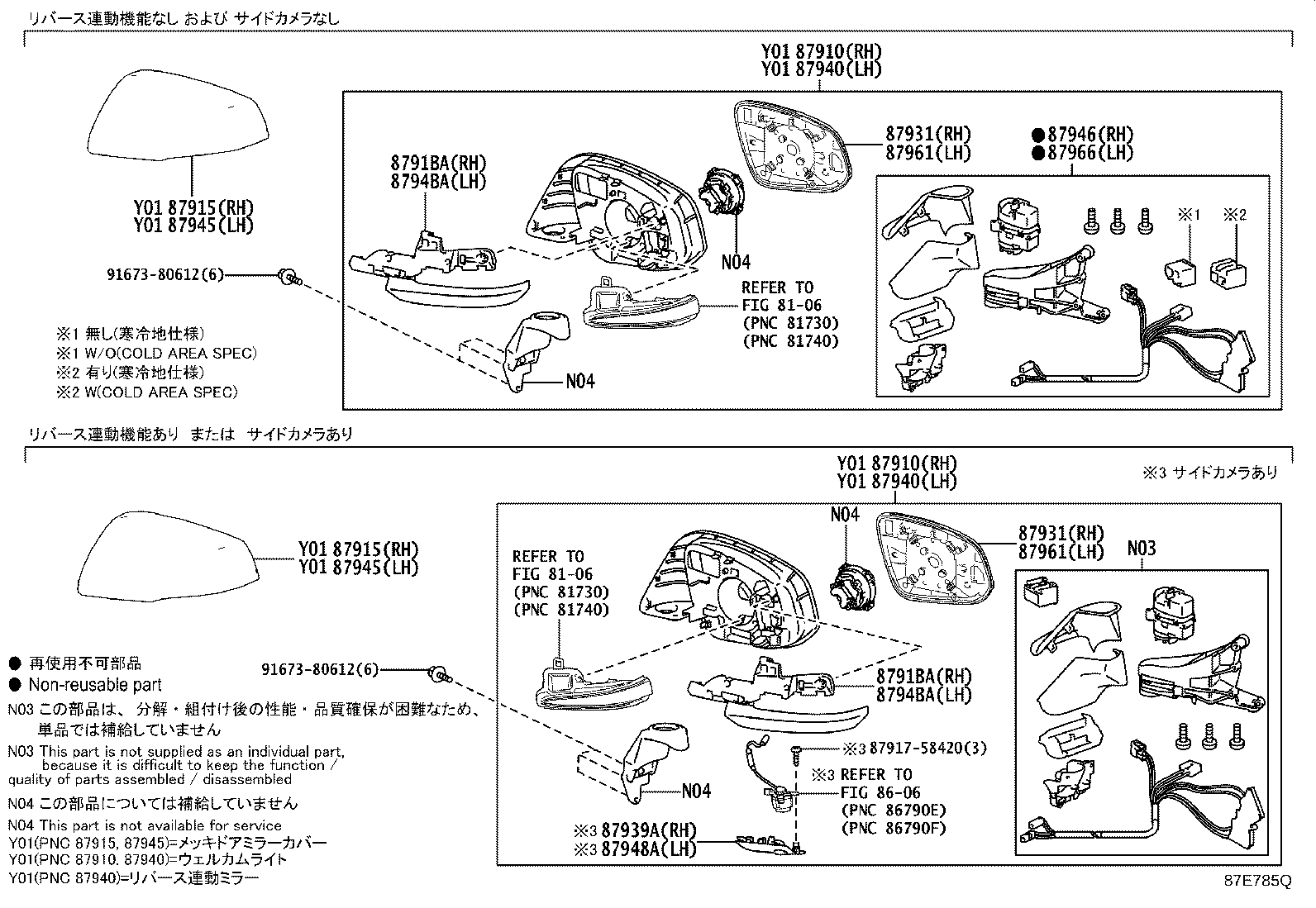

| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-58180 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様 |
1 | ||
| 87910-58170 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87910-58180 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58160 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58150 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要 |
1 | ||
| 87910-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞbｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58170 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要 |
1 | ||
| 87910-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-58180 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様 |
1 | ||
| 87910-58170 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87910-58180 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58160 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58150 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要 |
1 | ||
| 87910-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞbｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58170 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要 |
1 | ||
| 87910-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87915-58010C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 87915-58010A1 |
AGH3#,AYH30,GGH3#..ALPHD LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87915-58010A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 87915-58010B1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 87915-58010B0 |
AGH3#,AYH30,GGH3# SILVER ME.,1F7 |
1 | ||
| 87915-58010J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87915-58010C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 87915-58010A1 |
AGH3#,AYH30,GGH3#..ALPHD LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87915-58010A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 87915-58010B1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 87915-58010B0 |
AGH3#,AYH30,GGH3# SILVER ME.,1F7 |
1 | ||
| 87915-58010J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 8791BA - COVER, OUTER MIRROR, RH NO.3 | ||||
| 8791B-58150 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 8791B-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791BA - COVER, OUTER MIRROR, RH NO.3 | ||||
| 8791B-58150 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 8791B-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-58150 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-58150 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 87931-58160 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様 |
1 | ||
| 87939A - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87939-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87939-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87939-58190 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-58230 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様 |
1 | ||
| 87940-58220 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87940-58210 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58240 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58250 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58220 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要 |
1 | ||
| 87940-58240 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞbｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58230 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要 |
1 | ||
| 87940-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58250 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-58230 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様 |
1 | ||
| 87940-58220 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87940-58210 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58240 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58250 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58220 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要 |
1 | ||
| 87940-58240 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞbｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58230 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要 |
1 | ||
| 87940-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 塗装不要,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒竰n仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58250 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-58010A1 |
AGH3#,AYH30,GGH3#..ALPHD LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87945-58010A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 87945-58010B0 |
AGH3#,AYH30,GGH3# SILVER ME.,1F7 |
1 | ||
| 87945-58010C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 87945-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87945-58010B1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 87945-58010J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-58010A1 |
AGH3#,AYH30,GGH3#..ALPHD LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87945-58010A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 87945-58010B0 |
AGH3#,AYH30,GGH3# SILVER ME.,1F7 |
1 | ||
| 87945-58010C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 87945-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87945-58010B1 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 87945-58010J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 87946-58160 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様,Y当品番なし |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 該当品番なし |
1 | ||
| 87946-58150 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 87948A - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87948-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87948-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87948-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794BA - COVER, OUTER MIRROR, LH NO.3 | ||||
| 8794B-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58200 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 8794B-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794BA - COVER, OUTER MIRROR, LH NO.3 | ||||
| 8794B-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58240 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58200 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 8794B-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58240 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-28B70 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様 |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-28B70 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR 寒冷地仕様 |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 87961-58210 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58210 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様,Y当品番なし |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,該当品番なし |
1 | ||
| 87966-58210 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 00000-00000 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| 87966-58200 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 00000-00000 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),該当品番なし |
1 | ||
| Common parts | ||||
| 87917-58420 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
ILLUST NO. 3 OF 3(1501-2001) ; (2001- )
ﾌﾛﾝﾄﾌｪﾝﾀﾞｻｲﾄﾞﾋﾞｭｰﾐﾗｰ & ﾘﾔｱﾝﾀﾞﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-58030 |
AGH3#,AYH30,GGH3# ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87091A - MIRROR SET, OUTER REAR VIEW, NO.2 | ||||
| 87091-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAY ME.,1G3 |
1 | ||
| 87091-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87091-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,WHITE PEARL CS.,070 |
1 | ||
| 87091-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,BLACK,202 |
1 | ||
| 87091-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87091-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,SILVER ME.,1F7 |
1 | ||
| 87091-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87091-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87091-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87091-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87091-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87091-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,GRAY ME.,1G3 |
1 | ||
| 87091-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87091-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ***,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-58020 |
AGH3#,AYH30,GGH3# ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87917D - CLIP, OUTER MIRROR | ||||
| 62217-13010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 62217-13010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH | ||||
| 87930-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87930-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87930-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) BLACK,202 |
1 | ||
| 87930-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAY ME.,1G3 |
1 | ||
| 87930-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) WHITE PEARL CS.,070 |
1 | ||
| 87930-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) SILVER ME.,1F7 |
1 | ||
| 87930-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87930-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) GRAY ME.,1G3 |
1 | ||
| 87930-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87930-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87930-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87930-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87930-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87930-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH | ||||
| 87944-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) WHITE PEARL CS.,070 |
1 | ||
| 87944-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87944-58040A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87944-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87944-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87944-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 87944-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAY ME.,1G3 |
1 | ||
| 87944-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) BLACK,202 |
1 | ||
| 87944-58040B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) SILVER ME.,1F7 |
1 | ||
| 87944-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87944-58040C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87944-58040B1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) GRAY ME.,1G3 |
1 | ||
| 87944-58040J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 87944-58040C1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-58030 |
AGH3#,AYH30,GGH3# ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87973 - COVER, OUTER UNDER RR VIEW MIRROR | ||||
| 87973-58030 |
AGH3#,AYH30,GGH3# ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| Common parts | ||||
| 90119-06938 | ||||
| 91553-A0625 | ||||
| Linked diagrams | ||||
| 6761 | ||||

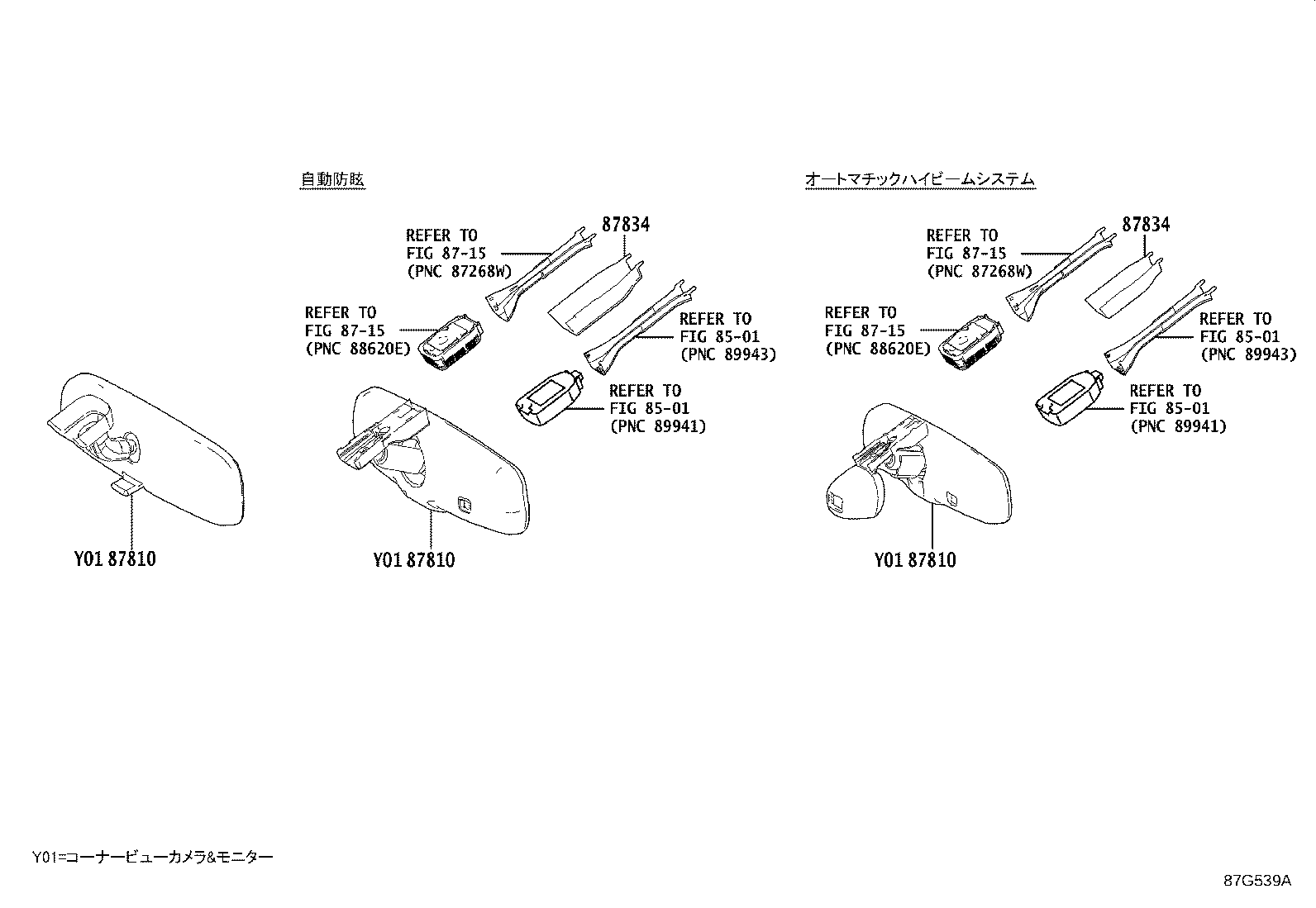

ILLUST NO. 2 OF 3(1501-1801)
ｲﾝﾅﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WE50 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 87810-0WN20 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 87810-52041 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WE50 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 87810-0WN20 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 87810-52041 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WE50 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 87810-0WN20 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 87810-52041 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 87818-0W030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87818-0W010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87818-0W010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 87818-0W030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87818-0W010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 87818-0W010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| Linked diagrams | ||||
| 8501 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
