GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

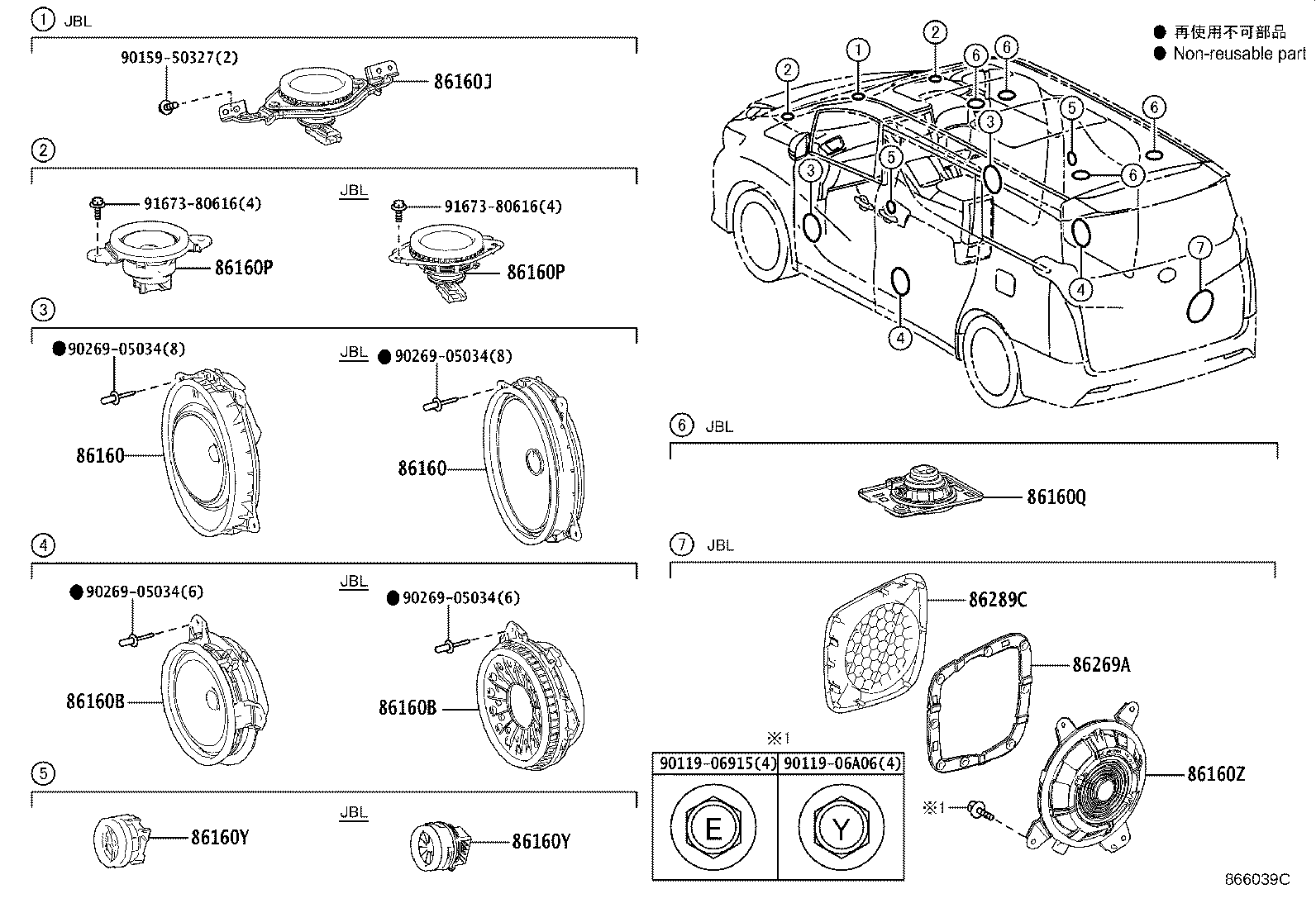

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160J 86160P 86160P 86160Q 86160Y 86160Y 86160Z 86269A 86289C 9011906915 9011906A06 9015950327 9026905034 9026905034 9026905034 9026905034 9167380616 9167380616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0WU60

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-58280

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-0WU60

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-58280

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160B - SPEAKER ASSY, REAR
86160-52331

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160-0R110

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-52330

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160B - SPEAKER ASSY, REAR
86160-52331

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160-0R110

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-52330

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160J - SPEAKER ASSY, FRONT NO.3
86150-0W330

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-58270

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160-0WU50

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-58270

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160-0WU50

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160Q - SPEAKER ASSY, ROOF
86150-0W340

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 4
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WV00

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-52340

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WV00

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 2
86160-52340

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 2
86160Z - SPEAKER ASSY, REAR NO.3
86150-0W350

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86269A - GRILLE, SPEAKER
86269-58030

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86289C - PLATE, SPEAKER GRILLE
86289-58010C0

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0#,2#

 1
Common parts
90119-06915
90119-06A06
90159-50327
90269-05034
91673-80616
