GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501-1705)

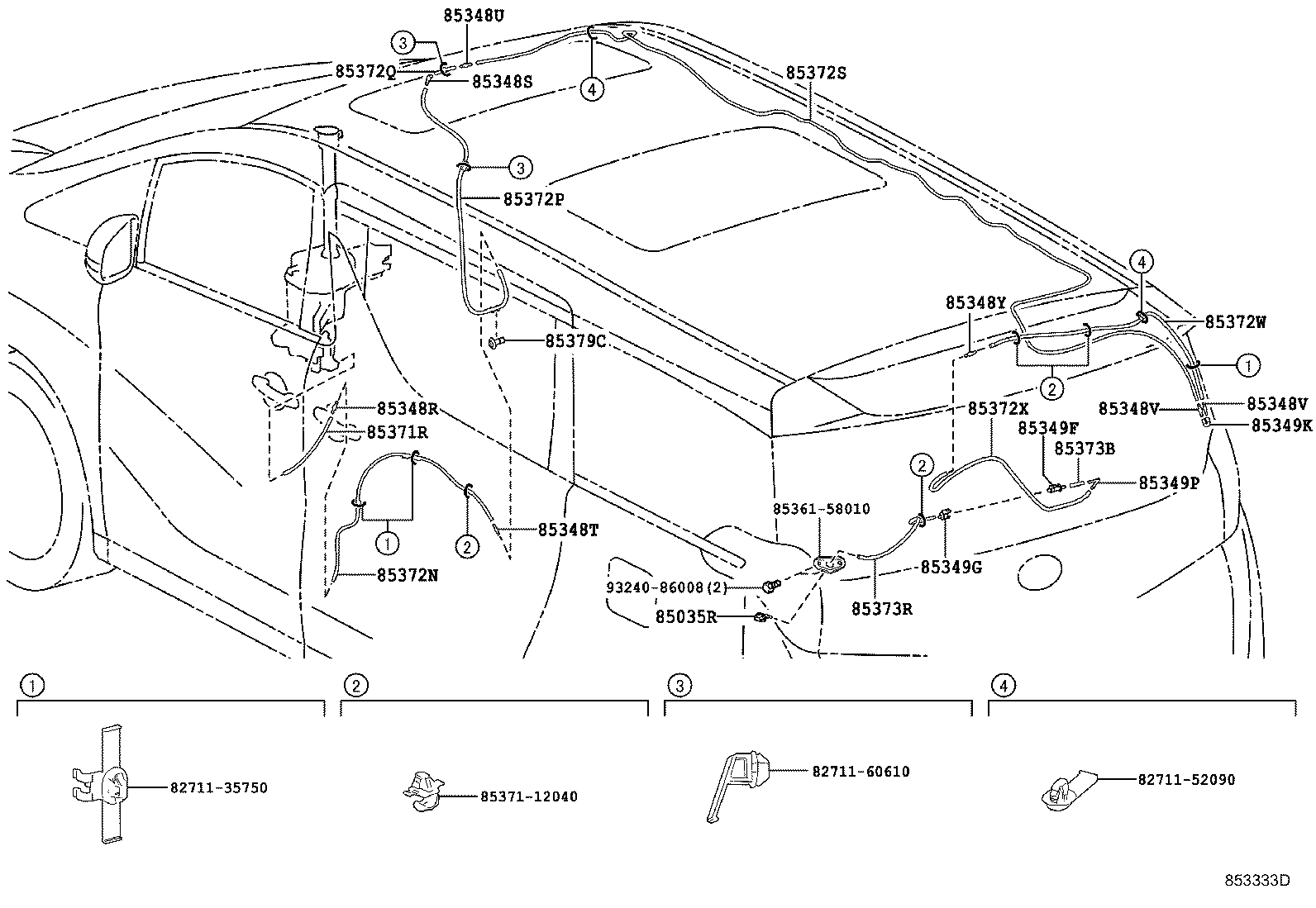

Click highlighted areas on diagram

diagram 8271135750 8271152090 8271160610 85035R 85348R 85348S 85348T 85348U 85348V 85348V 85348Y 85349F 85349G 85349K 85349P 8536158010 8537112040 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373R 85379C 9324086008
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-58020

AGH3#,AYH30,GGH3#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AGH3#,AYH30,GGH3#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

AGH3#,AYH30,GGH3#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AGH3#,AYH30,GGH3#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AGH3#,AYH30,GGH3#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

AGH3#,AYH30,GGH3#

 1
85349-89122

AGH3#,AYH30,GGH3#

 2
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

AGH3#,AYH30,GGH3#

 1
85349-89122

AGH3#,AYH30,GGH3#

 2
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

AGH3#,AYH30,GGH3#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-58270

AGH3#,AYH30,GGH3#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85395-58030

AGH3#,AYH30,GGH3#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-14481

AGH3#,AYH30,GGH3#

 1
85375-33040

AGH3#,AYH30,GGH3#

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-12360

AGH3#,AYH30,GGH3#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62129

AGH3#,AYH30,GGH3#

長さ=200

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62127

AGH3#,AYH30,GGH3#

長さ=960

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62054

AGH3#,AYH30,GGH3#

長さ=716

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62128

AGH3#,AYH30,GGH3#

長さ=125

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-62140

AGH3#,AYH30,GGH3#

長さ=4440

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-62073

AGH3#,AYH30,GGH3#

長さ=710

 1
90099-62173

AGH3#,AYH30,GGH3#

長さ=730

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-62126

AGH3#,AYH30,GGH3#

長さ=600

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90099-62089

AGH3#,AYH30,GGH3#

長さ=30

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62058

AGH3#,AYH30,GGH3#

長さ=390

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85379-16180

AGH3#,AYH30,GGH3#

 1
Common parts
82711-35750
82711-52090
82711-60610
85361-58010
85371-12040
93240-86008

(1705- )

Click highlighted areas on diagram

diagram 8271135750 8271152090 8271160610 85035R 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349G 85349K 85349P 85349W 8536158010 8537112040 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373R 85379C 9324086008
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-58020

AGH3#,AYH30,GGH3#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AGH3#,AYH30,GGH3#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

AGH3#,AYH30,GGH3#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AGH3#,AYH30,GGH3#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AGH3#,AYH30,GGH3#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

AGH3#,AYH30,GGH3#

 1
85349-89122

AGH3#,AYH30,GGH3#

 2
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

AGH3#,AYH30,GGH3#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-58270

AGH3#,AYH30,GGH3#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85395-58030

AGH3#,AYH30,GGH3#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-14481

AGH3#,AYH30,GGH3#

 1
85375-33040

AGH3#,AYH30,GGH3#

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-12360

AGH3#,AYH30,GGH3#

 1
85349W - JOINT, REAR WASHER ELBOW, NO.4
85355-20200

AGH3#,AYH30,GGH3#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62129

AGH3#,AYH30,GGH3#

長さ=200

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62127

AGH3#,AYH30,GGH3#

長さ=960

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-62054

AGH3#,AYH30,GGH3#

長さ=716

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62128

AGH3#,AYH30,GGH3#

長さ=125

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-62140

AGH3#,AYH30,GGH3#

長さ=4440

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-62073

AGH3#,AYH30,GGH3#

長さ=710

 1
90099-62173

AGH3#,AYH30,GGH3#

長さ=730

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-62126

AGH3#,AYH30,GGH3#

長さ=600

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90099-62089

AGH3#,AYH30,GGH3#

長さ=30

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-62058

AGH3#,AYH30,GGH3#

長さ=390

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85379-16180

AGH3#,AYH30,GGH3#

 1
Common parts
82711-35750
82711-52090
82711-60610
85361-58010
85371-12040
93240-86008
