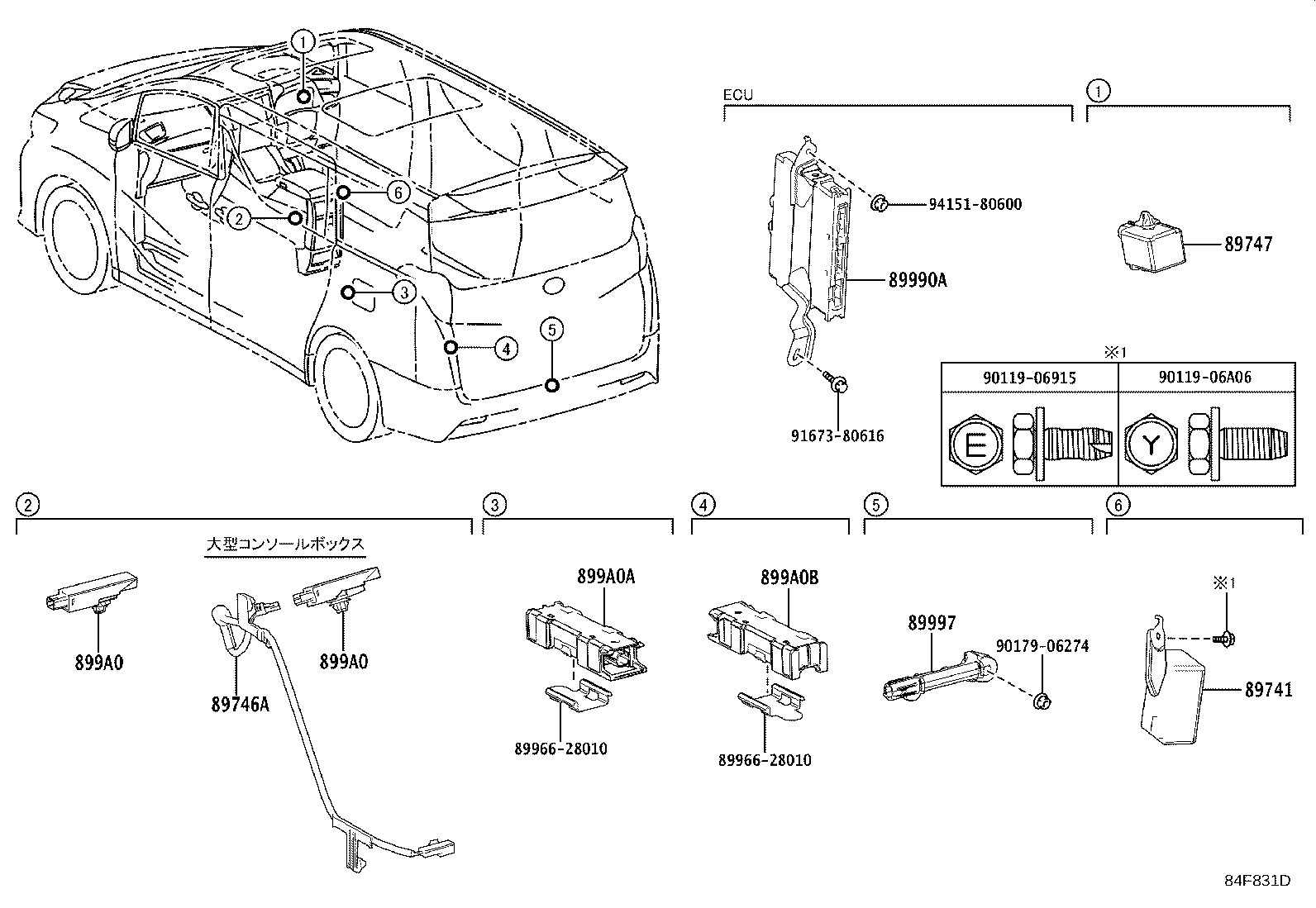

Toyota Alphard/vellfire/hv GGH30 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
89741 - RECEIVER, DOOR CONTROL
89740-58070	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-58040	AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA	01/2015 - 01/2018	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
89990A - COMPUTER ASSY, SMART KEY
89990-58200	AGH3#,GGH3#	01/2015 - 07/2017	1
89990-58201	AGH3#,GGH3#	08/2017 - 01/2018	1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010	GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
899A0-47010	AYH30,GGH3#..EL,G,SR,V,X,ZR	01/2015 - 01/2018	1
899A0-60010	AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA	01/2015 - 01/2018	1
899A0-47010	AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(C)/SRorZR	01/2015 - 01/2018	1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010	GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
899A0-47010	AYH30,GGH3#..EL,G,SR,V,X,ZR	01/2015 - 01/2018	1
899A0-60010	AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA	01/2015 - 01/2018	1
899A0-47010	AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(C)/SRorZR	01/2015 - 01/2018	1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-60020	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60020	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
Common parts
89966-28010
90119-06915
90119-06A06
90179-06274
91673-80616
94151-80600

GGH30W-PFTQK (2015)

(1501- )

Part Price Details
