GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

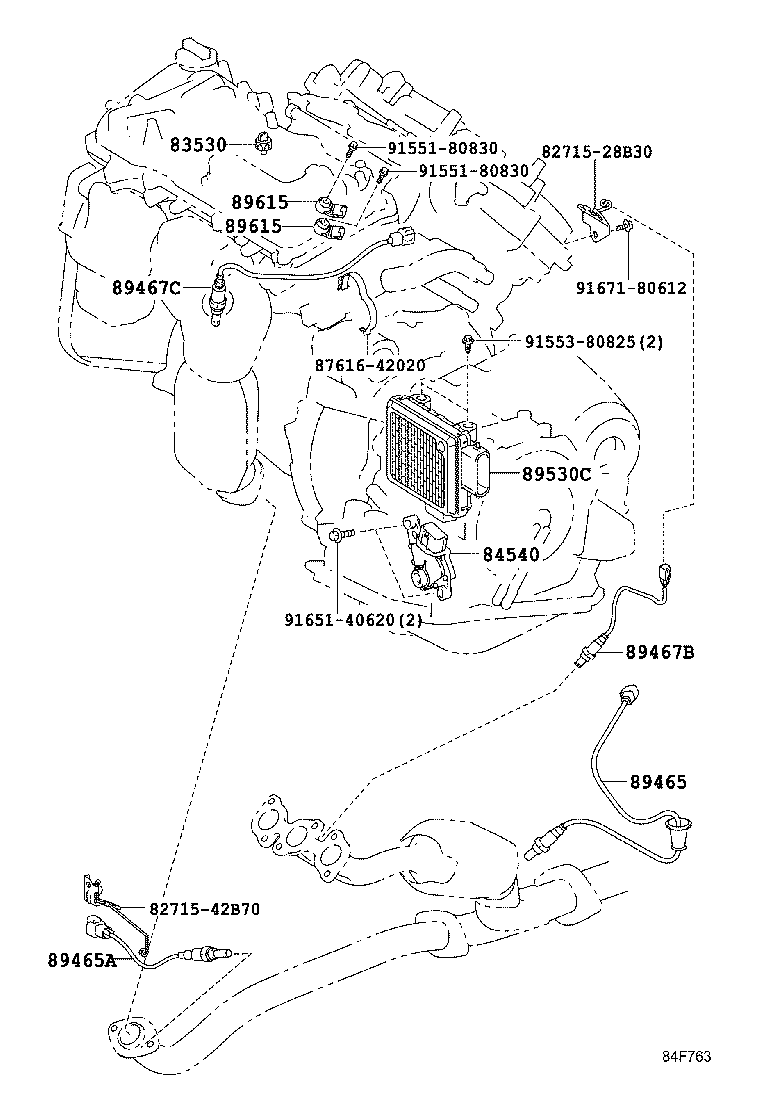

ILLUST NO. 1 OF10(1501-1801)GGH3#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AGH3#,AYH30,GGH3# DENSO |
1 | ||
| 83530-60020 |
AGH3#,AYH30,GGH3# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
GGH3# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-58150 |
GGH3# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-42150 |
GGH3# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-45030 |
GGH3# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-58060 |
GGH3# |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-58080 |
GGH3# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGH3# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGH3# |
2 | ||
| Common parts | ||||
| 82715-28B30 | ||||
| 82715-42B70 | ||||
| 87616-42020 | ||||
| 91551-80830 | ||||
| 91553-80825 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||
ILLUST NO. 3 OF10(1501-1801)
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02025 |
2ARFE,2GRFE..AGH35,GGH30..EL,G,S,V,X,Z;2ARFXE,2GRFE..AYH30,GGH35..EL,GF,SA,VL,ZA |
1 | ||
| 90987-02025 |
2ARFE,2GRFE..AGH30,GGH30..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 90987-02025 |
2AR#,2GRFE..AGH30,AYH30,GGH30..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 90987-02025 |
2ARFXE,2GRFE..AYH30,GGH30..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
AGH3#,AYH30,GGH3# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
AGH3#,AYH30,GGH3# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
AGH3#,AYH30,GGH3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08274 |
AGH3#,AYH30,GGH3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08305 |
AGH3#,AYH30,GGH3# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08286 |
AGH3#,GGH3# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-08304 |
GGH3# 60A,ﾒｽ端子,黄,寒冷地仕様 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,寒冷地仕様 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,寒冷地仕様 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,寒冷地仕様 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,寒冷地仕様 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-58250 |
GGH3# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 90987-02027 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AGH3#,AYH30,GGH3# |
2 | ||
| 85925F - RELAY, PTC HEATER NO.2 | ||||
| 90987-02027 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AYH30,GGH3# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AYH30,GGH3# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| Common parts | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8414 | ||||
ILLUST NO. 5 OF10(1501-1801)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
AGH3#,AYH30,GGH3# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
AGH3#,AYH30,GGH3# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
AGH3#,AYH30,GGH3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08274 |
AGH3#,AYH30,GGH3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08305 |
AGH3#,AYH30,GGH3# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08286 |
AGH3#,GGH3# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
AGH3#,AYH30,GGH3# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
AGH3#,AYH30,GGH3# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
AGH3#,AYH30,GGH3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08274 |
AGH3#,AYH30,GGH3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08305 |
AGH3#,AYH30,GGH3# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08286 |
AGH3#,GGH3# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-08304 |
GGH3# 60A,ﾒｽ端子,黄,寒冷地仕様 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,寒冷地仕様 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,寒冷地仕様 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,寒冷地仕様 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,寒冷地仕様 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-08304 |
GGH3# 60A,ﾒｽ端子,黄,寒冷地仕様 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,寒冷地仕様 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,寒冷地仕様 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,寒冷地仕様 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,寒冷地仕様 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-58090 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-58070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-58150 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82730-58151 |
AGH3#,AYH30,GGH3# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49065 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 85940-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-58010 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-58020 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 89100-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89100-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 89100-58020 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89100-58020 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89100-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 89100-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-58140 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58150 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 89220-58130 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 89220-58131 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 89220-58130 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 89220-58131 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 89220-58141 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58140 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58141 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58151 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 89220-58180 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| Common parts | ||||
| 82715-58410 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 6 OF10(1501-1801)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-48011 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-58011 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84255-58011 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58031 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 84332-58041 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58031 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 84332-58041 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-58011 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-58070 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｼｰﾄ表皮−本革 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-33021 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-35021 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-58011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-58020 |
AGH30,GGH3# |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-58030 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01167 |
AGH3#,AYH30,GGH3# 14V 1.4W,ｷｬｯﾌﾟ付き,ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85515B - BULB, CIGARETTE LIGHTER BEZEL STAY | ||||
| 90010-01168 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-58030 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
AGH3#,GGH3# |
1 | ||
| 89611-42012 |
AGH3#,GGH3# |
1 | ||
| 89611-42010 |
AGH3#,GGH3# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
AGH3#,GGH3# |
1 | ||
| 89611-42012 |
AGH3#,GGH3# |
1 | ||
| 89611-42010 |
AGH3#,GGH3# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 7 OF10(1501- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58060C0 |
AGH3#,GGH3#..S,SA,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..G,GF,V,VL,X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..S,SA,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..G,GF,V,VL,X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58060C0 |
AGH3#,GGH3#..S,SA,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..G,GF,V,VL,X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..S,SA,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..G,GF,V,VL,X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85530-58060C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-44050C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85535-44050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 85535-44050C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM0# |
1 | ||
| 85535-44050C0 |
AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK,TRIM0#,2# |
1 | ||
| 85535-44050C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 85535-44050C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85535-44050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
1 | ||
| 85535-44050C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 85535-44050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
| 8606 | ||||
ILLUST NO. 8 OF10(1501- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33221 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 84140-33231 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-58260C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,TRIM0#,2# |
1 | ||
| 84250-58270C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,TRIM0#,2# |
1 | ||
| 84250-58240C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 84308-30020 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84307-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 84652-58020 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 84652-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 9 OF10(1501- )G,GF,S,SA,SC,SR,V,VL,X,Z,ZA,ZG,ZR
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-58010A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 84920-58010A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 84920-58010A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 84920-58010C0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR BLACK,TRIM2# |
1 | ||
| 84920-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 84920-58010C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
1 | ||
| 84920-58010A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 84920-58010C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 84920-58010A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 84920-58010C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
1 | ||
| 84920-58010C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 84920-58010A1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22070C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22070A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22100A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22080C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22080A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22090A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22090A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22090A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22090A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22090C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84921-22090A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0#,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84920-58040C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 84920-58040A1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 84920-58040A1 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 84920-58040C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58051 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 84070-58050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84070-58051 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84070-58050 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60170 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 84922-60170 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 84922-60170 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84922-60170 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 84922-60170 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 84922-60170 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84923G - SWITCH, REAR POWER SEAT, NO.1, RH | ||||
| 84923-58070A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 84923-58070C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 84923-58070C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ),BLACK,TRIM2# |
1 | ||
| 84923-58070A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ),FLAXEN,TRIM0# |
1 | ||
| 84923-58070A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 84923-58070C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 84923H - SWITCH, REAR POWER SEAT, NO.1, LH | ||||
| 84923-58080A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 84923-58080C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 84923-58080C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 84923-58080C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ),BLACK,TRIM2# |
1 | ||
| 84923-58080A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革,FLAXEN,TRIM0# |
1 | ||
| 84923-58080A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ),FLAXEN,TRIM0# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-58080C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
2 | ||
| 85530-58080A0 |
AYH30,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,FLAXEN,TRIM0# |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-58080C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,BLACK,TRIM2# |
2 | ||
| 85530-58080A0 |
AYH30,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個,FLAXEN,TRIM0# |
2 | ||
| Common parts | ||||
| 93560-14010 | ||||
| 94185-60600 | ||||
ILLUST NO. 9 OF10(1501-1801)AYH30..07S..SR,X,ZR ; (1501-1801)AGH3#,GGH3#..07S..G,GF,S,V,VL,X,Z
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040A2 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040A2 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040A2 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
3 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050A2 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
2 | ||
| 84920-D1050C0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050A2 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
2 | ||
| 84920-D1050C0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-D1320 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8410E - SWITCH ASSY, POWER LIFT CONTROL, NO.1 | ||||
| C8410-D1161 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8545A - RELAY, POWER LIFT CONTROL | ||||
| C8545-D1400 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8560 - RELAY ASSY, LIFTER | ||||
| C8560-D1051 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-1E360 | ||||
| 93260-56008 | ||||
| 93269-63016 | ||||
| 93530-54010 | ||||
| C6565-18010 | ||||
ILLUST NO. 2 OF10(1501-1801)
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2ARFE,2GRFE..AGH30,GGH3# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
GGH3# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
GGH3# |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 91673-80616 | ||||
| 93315-14014 | ||||
| 94151-80801 | ||||
ILLUST NO. 9 OF10(1504- )AYH30..07S..SR,X,ZR ; (1504- )AGH3#,GGH3#..07S..GF,S,VL,X,Z
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ ﾀﾞｯﾁｬｸﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 84290-D1080 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-D1160 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 84920M - SWITCH, POWER SEAT | ||||
| C8410-18010A3 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
2 | ||
| C8410-18010A3 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
2 | ||
| 84920M - SWITCH, POWER SEAT | ||||
| C8410-18010A3 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
2 | ||
| C8410-18010A3 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
2 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C7422B - PIN, WELCAB SEAT ARM GUIDE | ||||
| C7422-D1260 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8410G - SWITCH ASSY, CONTROL, NO.1 | ||||
| C8410-D1100 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8412 - SWITCH, POWER LIFT CONTROL | ||||
| C8412-58010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8412-58010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C8415 - BRACKET, CONTROL SWITCH | ||||
| C8415-D1050 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8417D - SWITCH, LIMIT | ||||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
3 | ||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8417D - SWITCH, LIMIT | ||||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
3 | ||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8417D - SWITCH, LIMIT | ||||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
3 | ||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8417D - SWITCH, LIMIT | ||||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
3 | ||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8417D - SWITCH, LIMIT | ||||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
3 | ||
| C8417-22080 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8418A - PLATE, LIMIT SWITCH | ||||
| C8418-D1100 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8420D - SWITCH ASSY, CONTROL, NO.2 | ||||
| C8420-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8421A - SWITCH, CHANGE | ||||
| C8421-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8422 - JUNCTION, POWER LIFT SEAT CONTROL MALE | ||||
| C8422-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8422-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8422 - JUNCTION, POWER LIFT SEAT CONTROL MALE | ||||
| C8422-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8422-D1010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8530B - RELAY ASSY, POWER LIFT MOTOR | ||||
| C8530-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8530-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8530B - RELAY ASSY, POWER LIFT MOTOR | ||||
| C8530-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C8530-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8531 - BRACKET, CONTROL RELAY | ||||
| C8531-22070 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8531 - BRACKET, CONTROL RELAY | ||||
| C8531-22070 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8570B - RELAY ASSY, DRIVE CONTROL, NO.1 | ||||
| C8570-22020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8570C - RELAY ASSY, DRIVE CONTROL, NO.2 | ||||
| C8570-22030 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C8570C - RELAY ASSY, DRIVE CONTROL, NO.2 | ||||
| C8570-22030 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C9277 - BRACKET, LIFT CONTROL SWITCH | ||||
| C9272-22010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C9272-22010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90189-05131 | ||||
| 90464-00620 | ||||
| 93260-56012 | ||||
| 93269-63016 | ||||
| 93313-13012 | ||||
| 93319-13010 | ||||
| 93530-55020 | ||||
| 94170-60620 | ||||
| C2815-D1020 | ||||
| C5398-D1020 | ||||
| C6565-18010 | ||||
ILLUST NO.10 OF10(1501-2001)
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-58010 |
AGH30,GGH30 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-48160 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84249B - BULB (FOR MAP LAMP SWITCH) | ||||
| 90981-11062 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 12V 8W |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-58020C0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),BLACK,TRIM0#,2# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84811D - KNOB, SWITCH | ||||
| 84811-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84840-47040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84840-28050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-48030 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 84872-62010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84872-62010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 84872-62010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 84927-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 84927-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-58120 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84930-58140 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 84930-58150 |
AGH30..08S..(G,V);AGH30,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84012-58180 |
AGH30..08S..(G,V);AGH30,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84930-58110 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 84012-58170 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84930-58120 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 84930-58150 |
AGH30..07S..(S,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 84930P - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-58080 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-58090 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-58020 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 85965-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 85965-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58060 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,SA,SR,V,X,ZA,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58060 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,SA,SR,V,X,ZA,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-58090 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 右側 |
1 | ||
| 89430-58040 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 左側 |
1 | ||
| 89430-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,右側 |
1 | ||
| 89430-58040 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,左側 |
1 | ||
| 89430-58050 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 右側 |
1 | ||
| 89430-58060 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,左側 |
1 | ||
| 89430-58060 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 左側 |
1 | ||
| 89430-58050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,右側 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 右側 |
1 | ||
| 89430-58040 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 左側 |
1 | ||
| 89430-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,右側 |
1 | ||
| 89430-58040 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,左側 |
1 | ||
| 89430-58050 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 右側 |
1 | ||
| 89430-58060 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,左側 |
1 | ||
| 89430-58060 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 左側 |
1 | ||
| 89430-58050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,右側 |
1 | ||
| 89747A - BUZZER, POWER SLIDE DOOR WARNING, RH | ||||
| 89747-58020 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 89747B - BUZZER, POWER SLIDE DOOR WARNING, LH | ||||
| 89747-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-58020 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08718 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6761 | ||||
| 8715 | ||||
ILLUST NO. 4 OF10(1501-1801)
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
2ARFE,2GRFE..AGH3#,GGH3# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
AGH3#,AYH30,GGH3# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
AGH3#,AYH30,GGH3# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
AGH3#,AYH30,GGH3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08274 |
AGH3#,AYH30,GGH3# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08305 |
AGH3#,AYH30,GGH3# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08286 |
AGH3#,GGH3# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-08304 |
GGH3# 60A,ﾒｽ端子,黄,寒冷地仕様 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,寒冷地仕様 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,寒冷地仕様 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,寒冷地仕様 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,寒冷地仕様 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,寒冷地仕様 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-58020 |
GGH3# |
1 | ||
| 82641-58021 |
GGH3# |
1 | ||
| 82641-58021 |
GGH3# 寒冷地仕様 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-58200 |
GGH3# |
1 | ||
| 82662E - COVER, RELAY BLOCK, UPPER, NO.7 | ||||
| 82661-58030 |
AGH3#,GGH3# |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82661-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82661-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82661-58020 |
AGH3#,GGH3# |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82661-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82661-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AGH3#,AYH30,GGH3# |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GGH3# |
1 | ||
| Common parts | ||||
| 93385-16010 | ||||
| 94151-80601 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8431 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
