GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
ILLUST NO. 1 OF12(1501-1801)AGH3#,GGH3#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58540 |
GGH3# |
1 | ||
| 82111-58560 |
GGH3# 寒冷地仕様 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82113-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82113-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58350 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58330 |
AGH3#,AYH30,GGH3#..S,SA,SR |
1 | ||
| 82114-58340 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82114-58320 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58320 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58310 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82114-58350 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58300 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-58650 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28B20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-58D10 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-28G20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-58G60 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58G80 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58J00 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-58K40 |
AGH3#,GGH3# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12G70 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

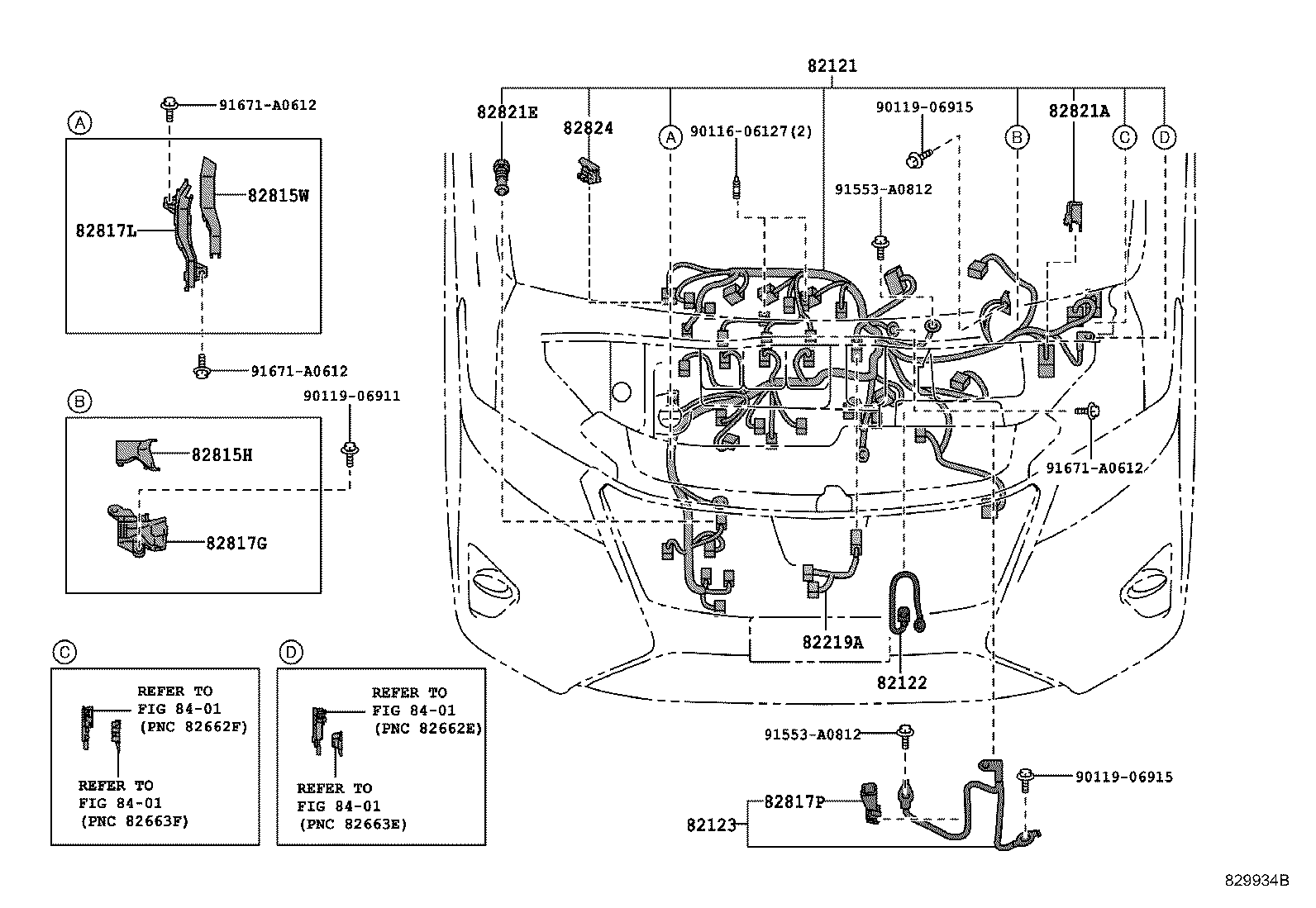

ILLUST NO. 2 OF12(1501-1801)GGH3#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-58120 |
GGH3# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-58070 |
GGH3# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58050 |
GGH3# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-41010 |
GGH3# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-58640 |
AGH3#,GGH3# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-28B30 |
GGH3# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-58D00 |
AGH3#,GGH3# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-28G30 |
GGH3# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-58D30 |
AGH3#,GGH3# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
GGH3# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20370 |
GGH3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
GGH3# |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-06911 | ||||
| 90119-06915 | ||||
| 91553-A0812 | ||||
| 91671-A0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF12(1501-2001)
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 82151-58120 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82151-58110 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 82151-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 82151-58130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58130 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82151-58130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-58110 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 82152-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 82152-58120 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82152-58130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 82152-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82152-58130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58130 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-58060 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-58070 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82054-58060 |
AYH30,GGH3#;AGH3#..08S..X;AGH3#..G,S,V,Z |
1 | ||
| 82054-58070 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82054-58070 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-58130 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR |
1 | ||
| 82182-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82182-58120 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58120 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58110 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82182-58150 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58150 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58100 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-58200 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 82184-58240 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58240 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58230 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82184-58210 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58231 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),品番ﾗﾍﾞﾙ≠W2184−58231 |
1 | ||
| 82184-58241 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58241 |
1 | ||
| 82184-58210 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58211 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58211 |
1 | ||
| 82184-58211 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58211 |
1 | ||
| 82184-58202 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR 品番ﾗﾍﾞﾙ=82184−58202 |
1 | ||
| 82184-58212 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58212 |
1 | ||
| 82184-58241 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58241 |
1 | ||
| 82184-58212 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58212 |
1 | ||
| 82184-58242 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58242 |
1 | ||
| 82184-58201 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR 品番ﾗﾍﾞﾙ=82184−58201 |
1 | ||
| 82184-58232 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),品番ﾗﾍﾞﾙ≠W2184−58232 |
1 | ||
| 82184-58242 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58242 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-58020 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82185-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82505-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82505-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82505-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 82505-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82505-58020 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58280 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58280 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-58E20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-58E20 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 82711-34490 | ||||
| 82712-60550 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91553-80614 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 5 OF12(1501-1801)
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58410 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 82161-58410 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82161-58410 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82161-58430 |
GGH3#..GF,SA,VL,ZA |
1 | ||
| 82161-58480 |
GGH3#..GF,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58450 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58540 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58540 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58540 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58520 |
AGH3#,GGH3#..G,GF,SA,V,VL,ZA |
1 | ||
| 82162-58530 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-58320 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-58360 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-58490 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-58520 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-58310 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-58470 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-58500 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-58810 |
AGH3#,AYH30,GGH3# |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 8826A-58010 | ||||
| 8826A-58020 | ||||
| 90119-06915 | ||||
| 91673-A0616 | ||||
ILLUST NO. 6 OF12(1501- )
ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-58350 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58340 |
AGH3#,GGH3#..EL,G,GF,V,VL |
1 | ||
| 82171-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82171-58350 |
AGH30,GGH3#..EL,G,GF,V,VL ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-58100 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82172-58090 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82172-58120 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82172-58130 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||

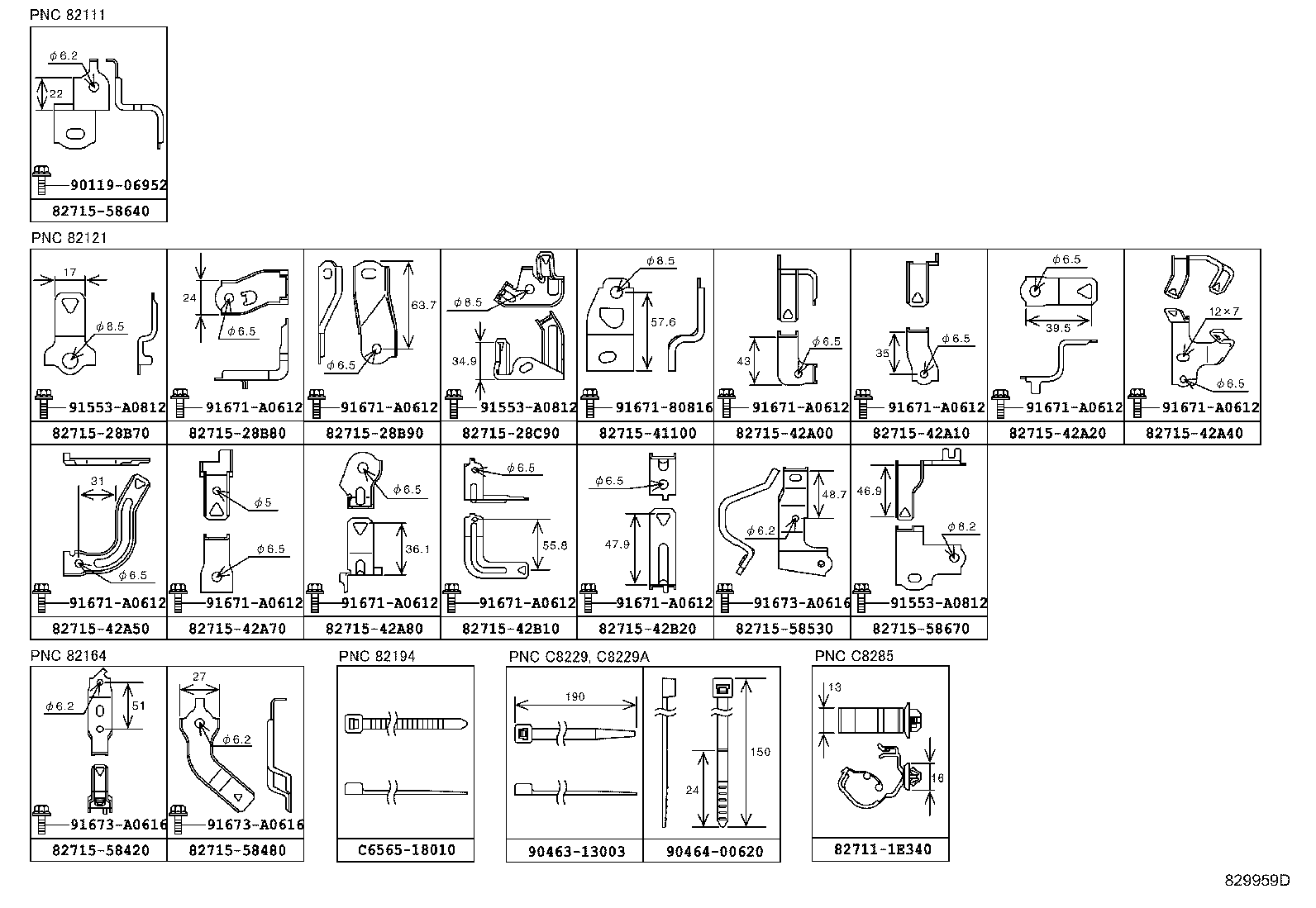

ILLUST NO.10 OF12(1501-1801)GGH3#
ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82715-28B70 | ||||
| 82715-28B80 | ||||
| 82715-28B90 | ||||
| 82715-28C90 | ||||
| 82715-41100 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A50 | ||||
| 82715-42A70 | ||||
| 82715-42A80 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 82715-58420 | ||||
| 82715-58480 | ||||
| 82715-58530 | ||||
| 82715-58640 | ||||
| 82715-58670 | ||||
| 90119-06952 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 91553-A0812 | ||||
| 91671-80816 | ||||
| 91671-A0612 | ||||
| 91673-A0616 | ||||
| C6565-18010 | ||||
ILLUST NO. 3 OF12(1501-1801)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58420 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82133-58480 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82133-58421 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82133-58570 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82133-58480 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58480 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82133-58570 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82133-58570 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58540 |
AGH30,GGH3#..S,SA,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58540 |
AGH30,GGH3#..S,SA,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58540 |
AGH30,GGH3#..S,SA,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58560 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58550 |
AGH30,GGH3#..G,GF,V,VL |
1 | ||
| 82141-58560 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82141-58560 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82141-58560 |
AGH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58560 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58560 |
AGH30,GGH3#..G,GF,V,VL ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58560 |
AGH30,GGH3#..G,GF,V,VL ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58561 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82141-58541 |
AGH30,GGH3#..S,SA,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58541 |
AGH30,GGH3#..S,SA,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58541 |
AGH30,GGH3#..S,SA,X,Z,ZA ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58551 |
AGH30,GGH3#..G,GF,V,VL |
1 | ||
| 82141-58561 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82141-58561 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58561 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58561 |
AGH30,GGH3#..G,GF,V,VL ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58561 |
AGH30,GGH3#..G,GF,V,VL ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58561 |
AGH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58120 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA |
1 | ||
| 82142-58140 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142-58141 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82143-58020 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82143-58040 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82143-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82163-58050 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 82163-58040 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 82163-58050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 82163-58060 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82163-58060 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82163-58110 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 82163-58100 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-58260 |
AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 82166-58260 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82166-58270 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 82166-58260 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82166-58270 |
AYH30,GGH3#..EL,G,SR,V,ZR おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 82166-58270 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-58390 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-58400 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-58410 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-58420 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-58430 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-58440 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF12(1501-1801)
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-58060 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 82167-58060 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82167-58060 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 82167-58060 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 82167-58060 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82167-58060 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82167-58060 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-58190 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 82191-58200 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 82191-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82191-58200 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-58160 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 82192-58150 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82192-58150 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82192-58170 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 82192-58150 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82192-58170 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 82192B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-58020 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 8219B-58020 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 8219B-58020 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 8219B-58020 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 8219B-58020 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-58010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 8219A-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 8219A-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-58030 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-58030 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-58030 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(ﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
ILLUST NO. 9 OF12(1501-1801)
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82168-58040 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 82192-28230 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-58050 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82193-58050 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-58050 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82192-28260 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82194-58050 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82192-28260 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-58050 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82192-28260 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82194-58050 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82192-28260 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82167-58040 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 82167-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-28060 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82219-28060 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C8229 - WIRE, CONNECTOR SWICH, NO.1 | ||||
| C8229-D1030 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8229A - WIRE, CONNECTOR SWICH, NO.2 | ||||
| C8229-D1040 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8285 - WIRE, REEL WIRE TO LIMIT SWITCH | ||||
| C8285-28010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C8285-28020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C8285 - WIRE, REEL WIRE TO LIMIT SWITCH | ||||
| C8285-28010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C8285-28020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| Common parts | ||||
| C8737-22030 | ||||
ILLUST NO.12 OF12(1501- )
ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-11020 | ||||
| 90980-11060 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11292 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
| 90980-12D00 | ||||
ILLUST NO.12 OF12(1501- )
ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-12297 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
ILLUST NO.12 OF12(1501- )
ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12790 | ||||
| 90980-12876 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
