GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#,GGH3#

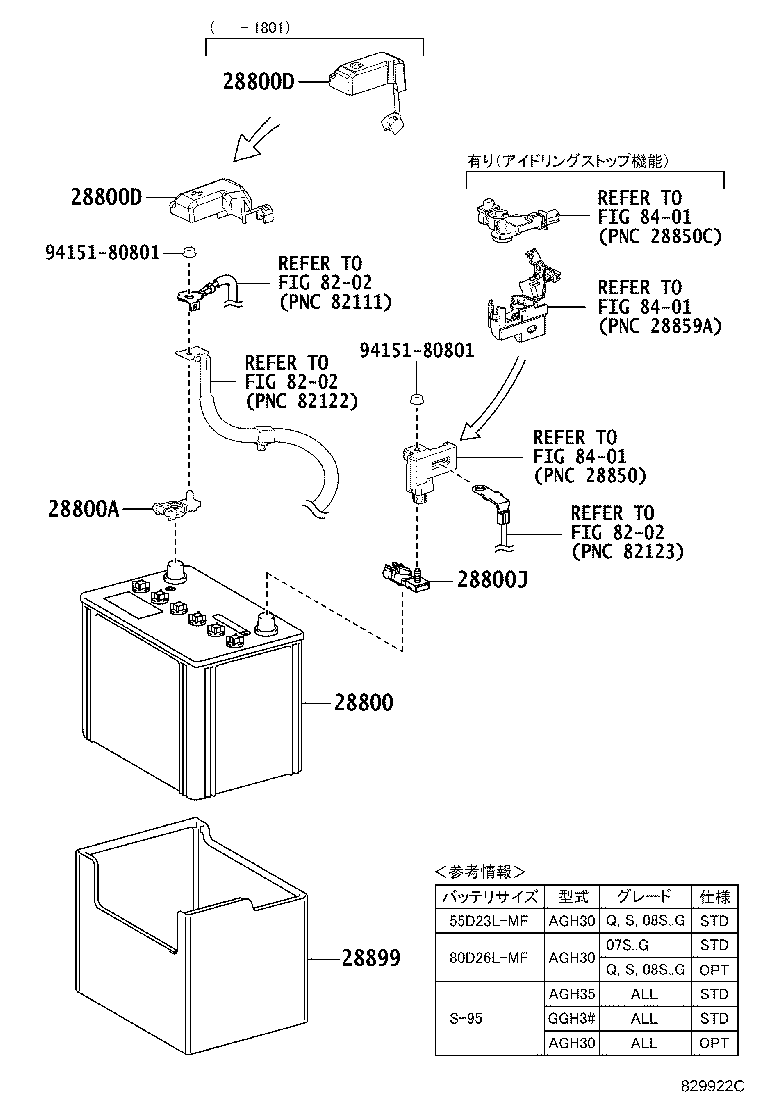

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800D 28800J 28899 8202 8202 8202 8401 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-36110

2ARFE,2GRFE..AGH35,GGH3#

S−95,GS YUASA

 1
28800-36141

2ARFE,2GRFE..AGH35,GGH3#

S−95,PANASONIC

 1
28800-36140

2ARFE,2GRFE..AGH35,GGH3#

S−95,PANASONIC

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2ARFE,2GRFE..AGH3#,GGH3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-28280

2ARFE,2GRFE..AGH3#,GGH3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-28280

2ARFE,2GRFE..AGH3#,GGH3#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2AR#,2GRFE..AGH30,AYH30,GGH3#

 1
28899 - INSULATOR, BATTERY
28899-36080

2ARFE..AGH30..07S..X;2ARFE,2GRFE..AGH35,GGH3#

 1
Common parts
94151-80801
Linked diagrams
8202
8401

(1501- )AYH30..07S..SR,X,ZR ; (1501- )AGH3#,GGH3#..07S..GF,S,VL,X,Z

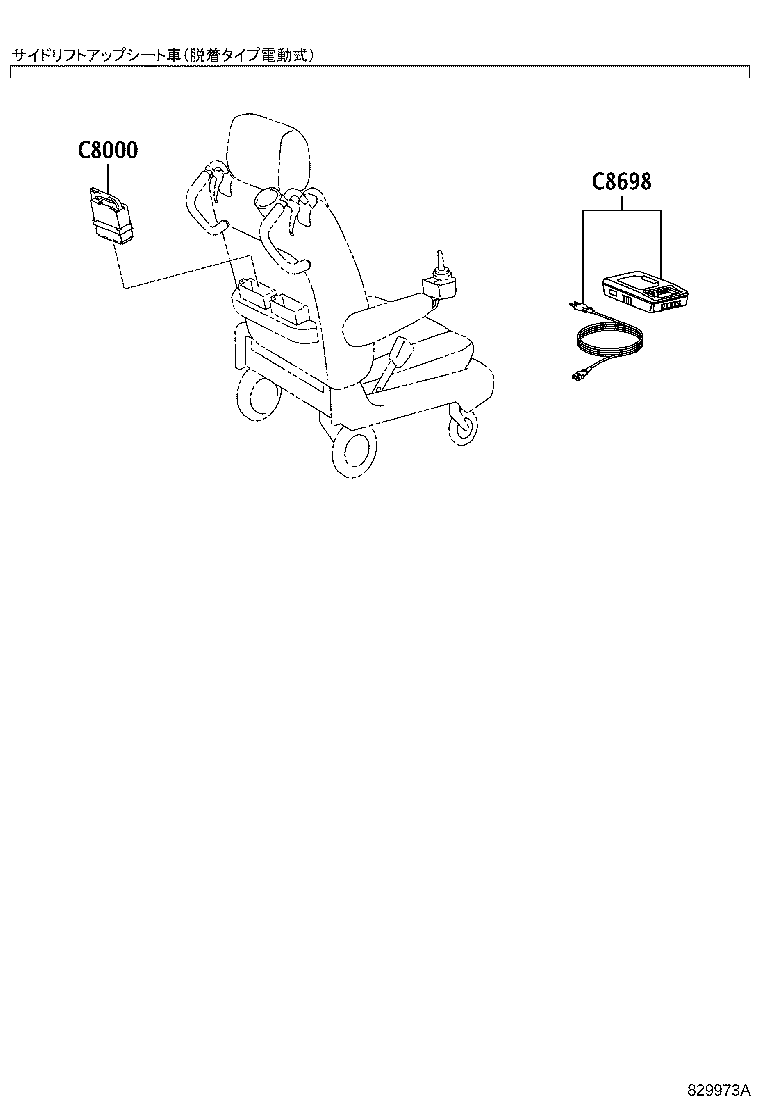

Click highlighted areas on diagram

diagram C8000 C8698
Part # Description Qty Price
C8000 - BATTERY
C8000-22010

AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),ｸﾞﾚｰ

 2
28800-D1010

AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),ﾌﾞﾗｯｸ

 2
C8698 - CHARGER, BATTERY
C8698-22010

AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),ｸﾞﾚｰ

 1
C8698-D1010

AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),ﾌﾞﾗｯｸ

 1
