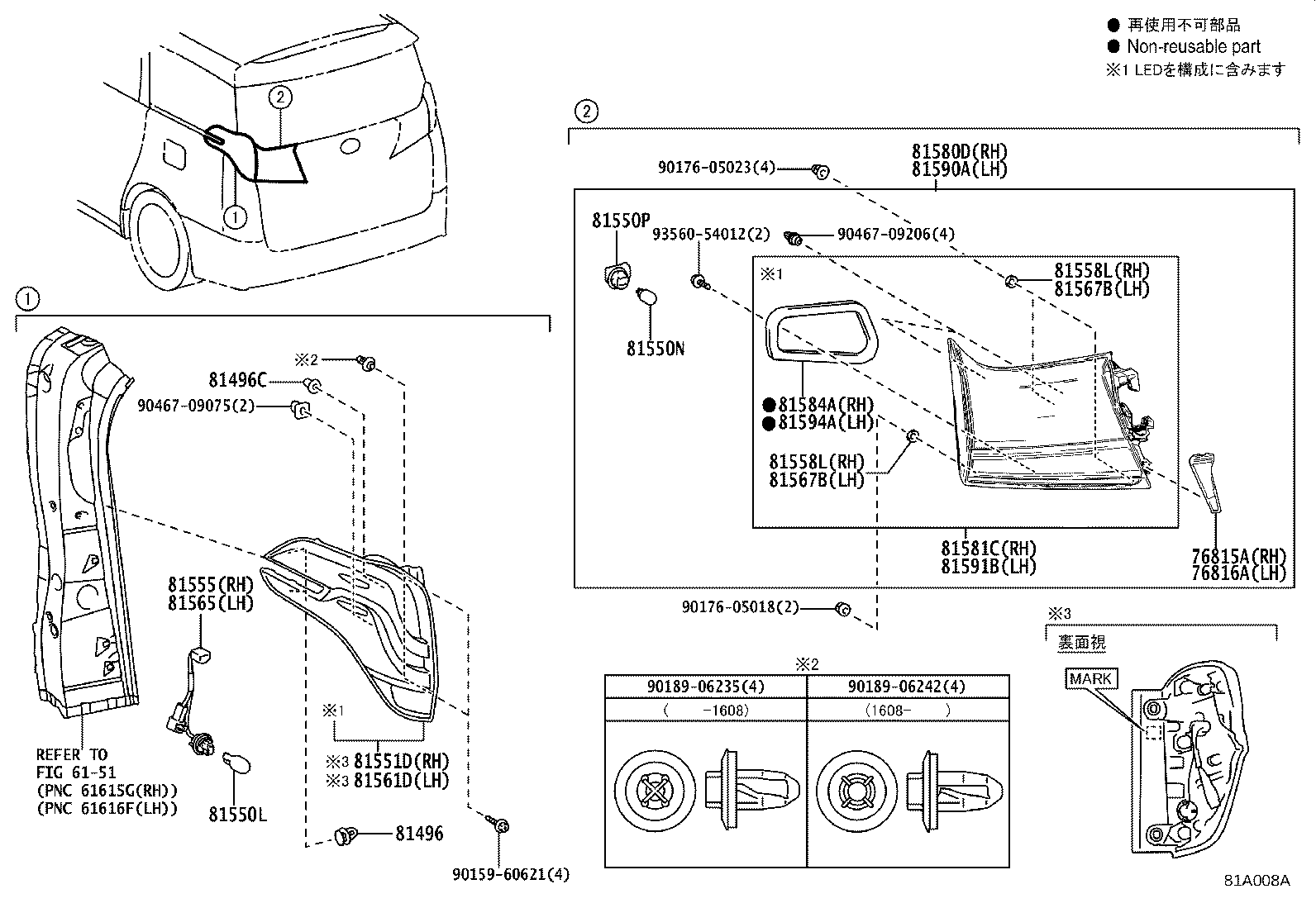

GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
(1501-1801)ALPHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76815A - GARNISH, BACK DOOR, OUTSIDE LOWER RH | ||||
| 76815-58030 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 76815-58010 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 76815-58030 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 76816A - GARNISH, BACK DOOR, OUTSIDE LWR LH | ||||
| 76816-58010 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 76816-58030 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 76816-58030 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-50010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
AGH3#,AYH30,GGH3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
AGH3#,AYH30,GGH3# 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-60065 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-58130 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾏｰｸ=3 |
1 | ||
| 81551-58150 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾏｰｸ=5 |
1 | ||
| 81551-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾏｰｸ=3 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-58130 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-58130 |
AGH3#,AYH30,GGH3#..S,SA,SR |
1 | ||
| 81561-58150 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾏｰｸ=5 |
1 | ||
| 81561-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾏｰｸ=3 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-58130 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81567B - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81567B - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-58280 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81580-58290 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-58270 |
AGH3#,AYH30,GGH3#..S,SA,SR 寒冷地仕様 |
1 | ||
| 81581-58220 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) 寒冷地仕様 |
1 | ||
| 81581-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 81581-58260 |
AGH3#,AYH30,GGH3#..S,SA,SR |
1 | ||
| 81581-58270 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-58230 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-58290 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 81590-58280 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 81591-58220 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) 寒冷地仕様 |
1 | ||
| 81591-58260 |
AGH3#,AYH30,GGH3#..S,SA,SR |
1 | ||
| 81591-58270 |
AGH3#,AYH30,GGH3#..S,SA,SR 寒冷地仕様 |
1 | ||
| 81591-58270 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&寒冷地仕様 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-58230 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90176-05023 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
| 90467-09075 | ||||
| 90467-09206 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
