GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

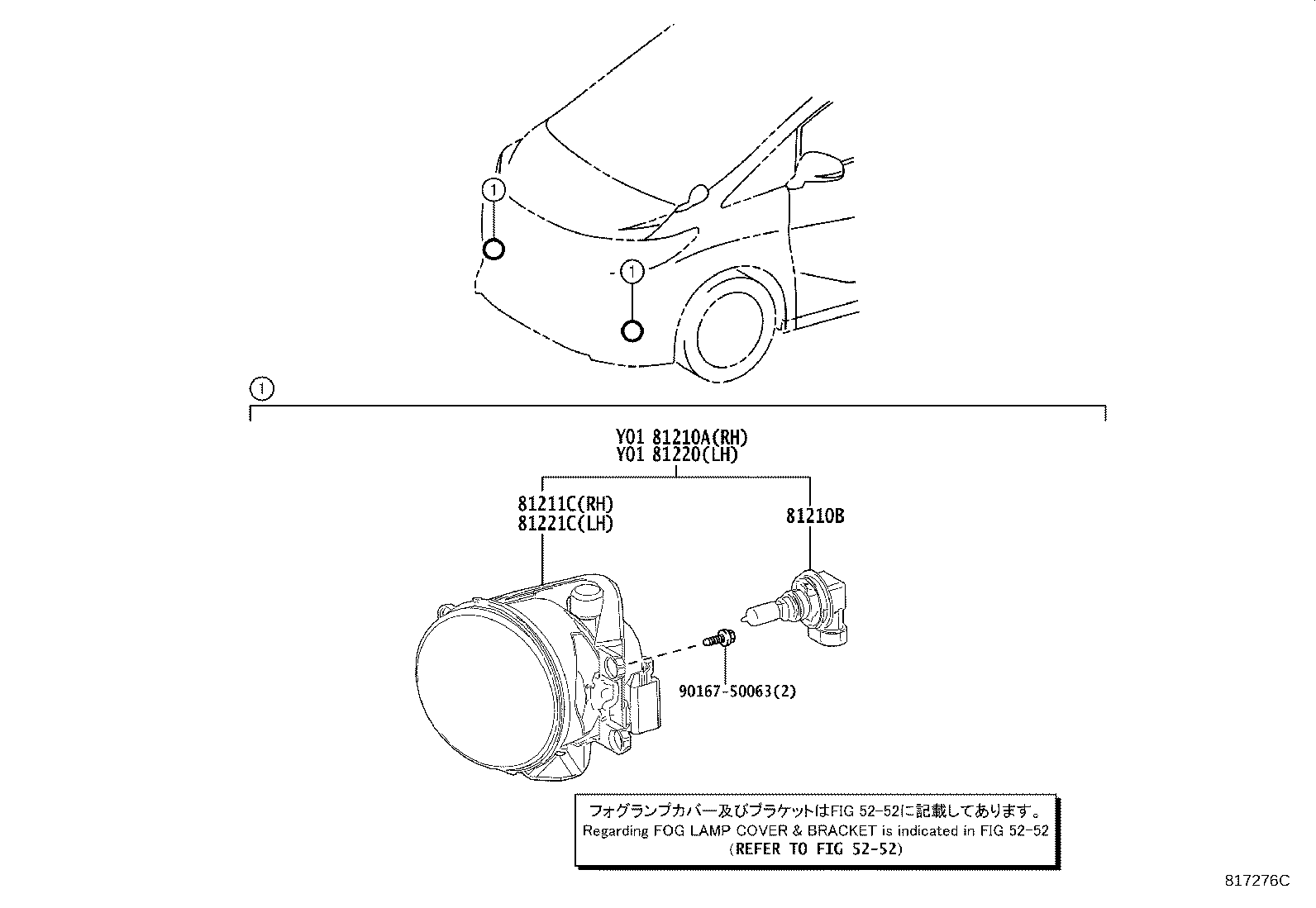

(1501-1801)S,SA,X,Z,ZA

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞﾀｲﾌﾟ

diagram 5252 81210A 81210B 81211C 81220 81221C 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81210-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81210B - BULB, FOG LAMP
90981-13090

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

12V 19W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81211-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81220-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81221-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
Common parts
90167-50063
Linked diagrams
5252

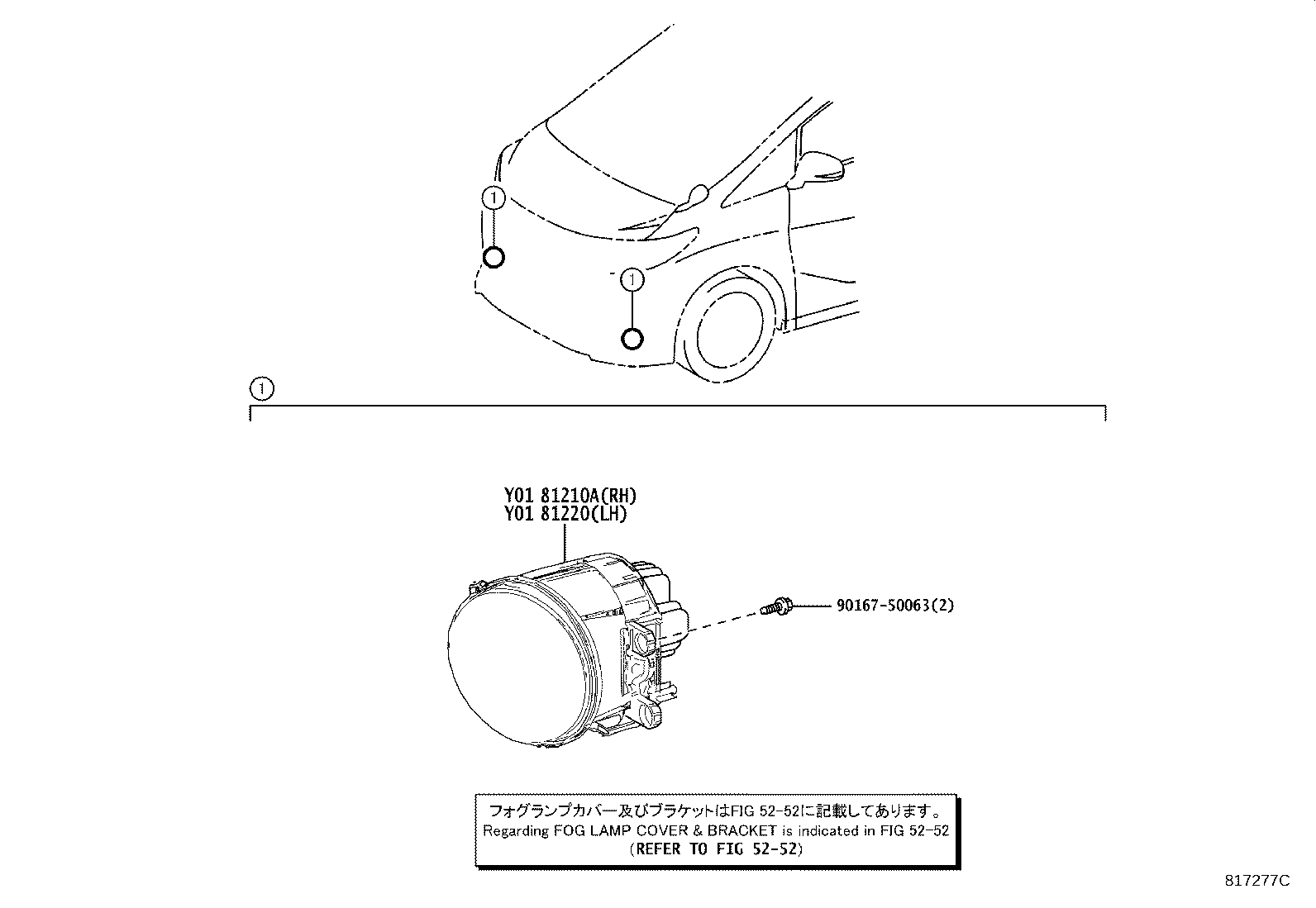

(1501-1604)08S..G,V ; (1501-1604)07S..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR

Click highlighted areas on diagram

LEDﾀｲﾌﾟ

diagram 5252 81210A 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81210-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81220-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
Common parts
90167-50063
Linked diagrams
5252

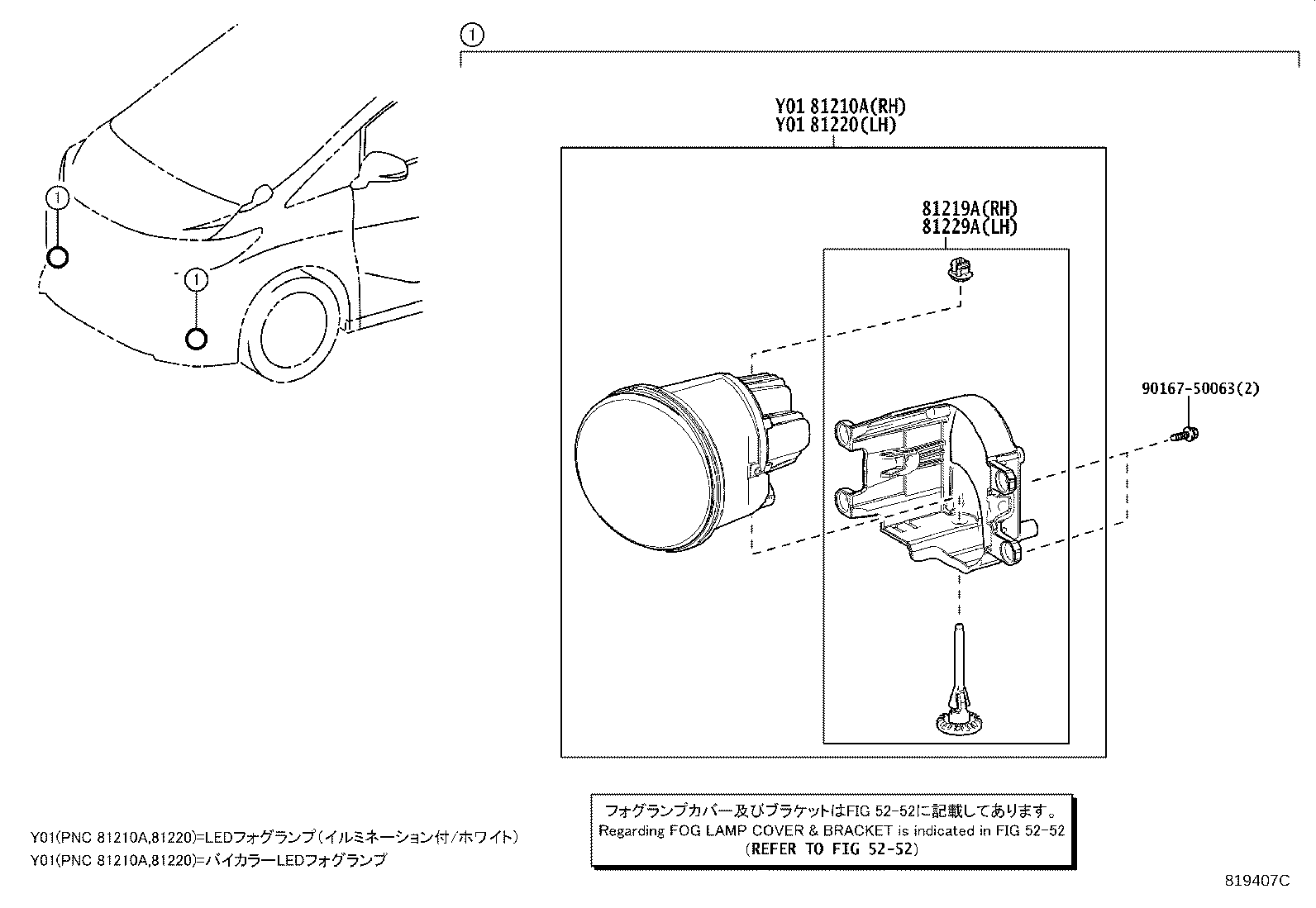

(1604- )

Click highlighted areas on diagram

LEDﾀｲﾌﾟ

diagram 5252 81210A 81219A 81220 81229A 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81210-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81210-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81210-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81219A - BRACKET, FOG LAMP, RH
81219-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81219-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-12230

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

 1
81220-48050

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81220-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
81220-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81229A - BRACKET, FOG LAMP, LH
81229-48051

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

 1
81229-48051

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR

 1
Common parts
90167-50063
Linked diagrams
5252
