GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

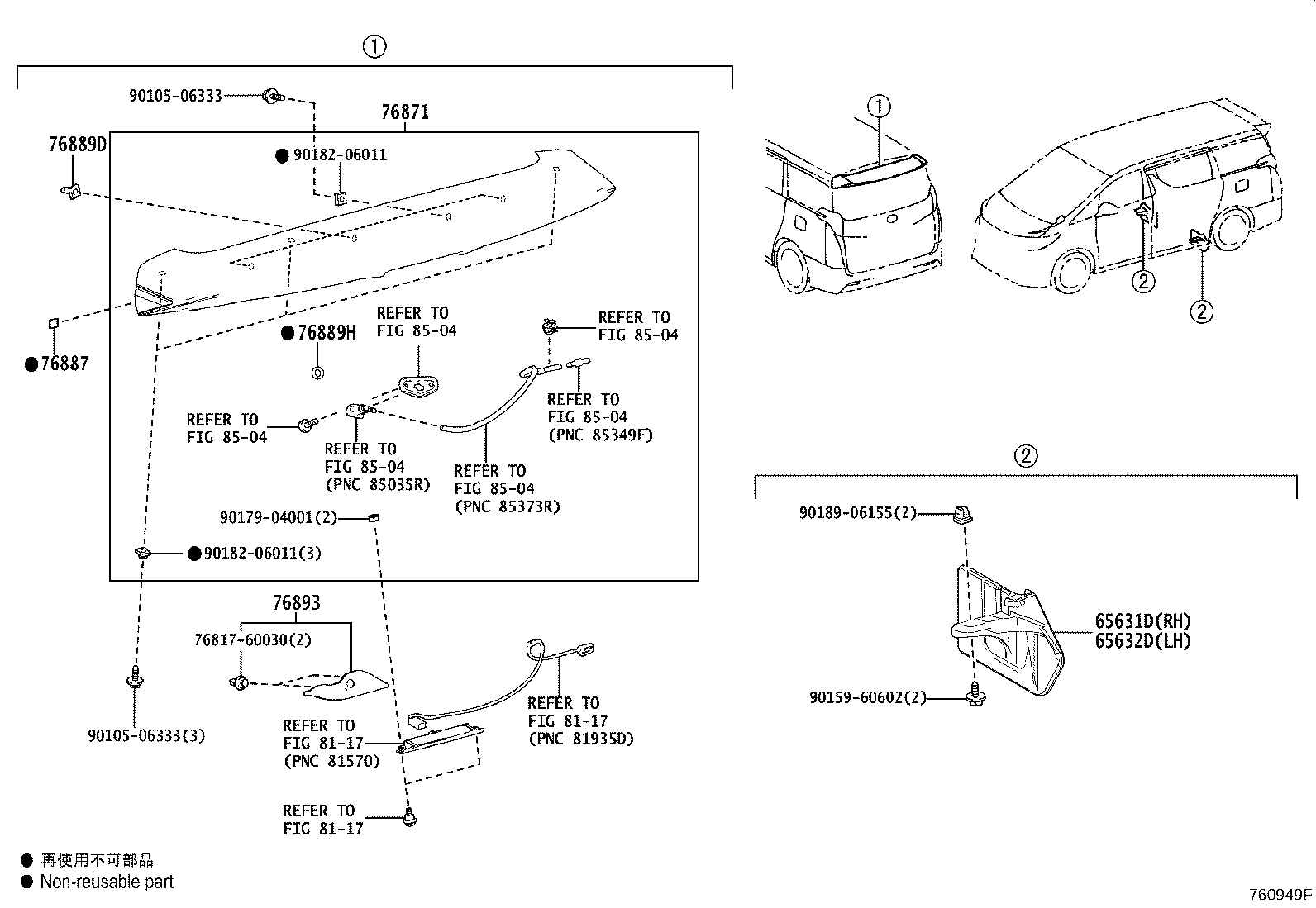

ILLUST NO. 1 OF 2(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 65632-58020 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76085-58900A1 |
AGH3#,AYH30,GGH3#..ALPHD LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76085-58900C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 76085-58900A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 76085-58900C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76085-58900B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76085-58900B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76085-58900J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-58050 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
AGH3#,AYH30,GGH3# |
3 | ||
| 76889H - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-28020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 76817-60030 | ||||
| 90105-06333 | ||||
| 90159-60602 | ||||
| 90179-04001 | ||||
| 90182-06011 | ||||
| 90189-06155 | ||||
| Linked diagrams | ||||
| 8117 | ||||
| 8504 | ||||

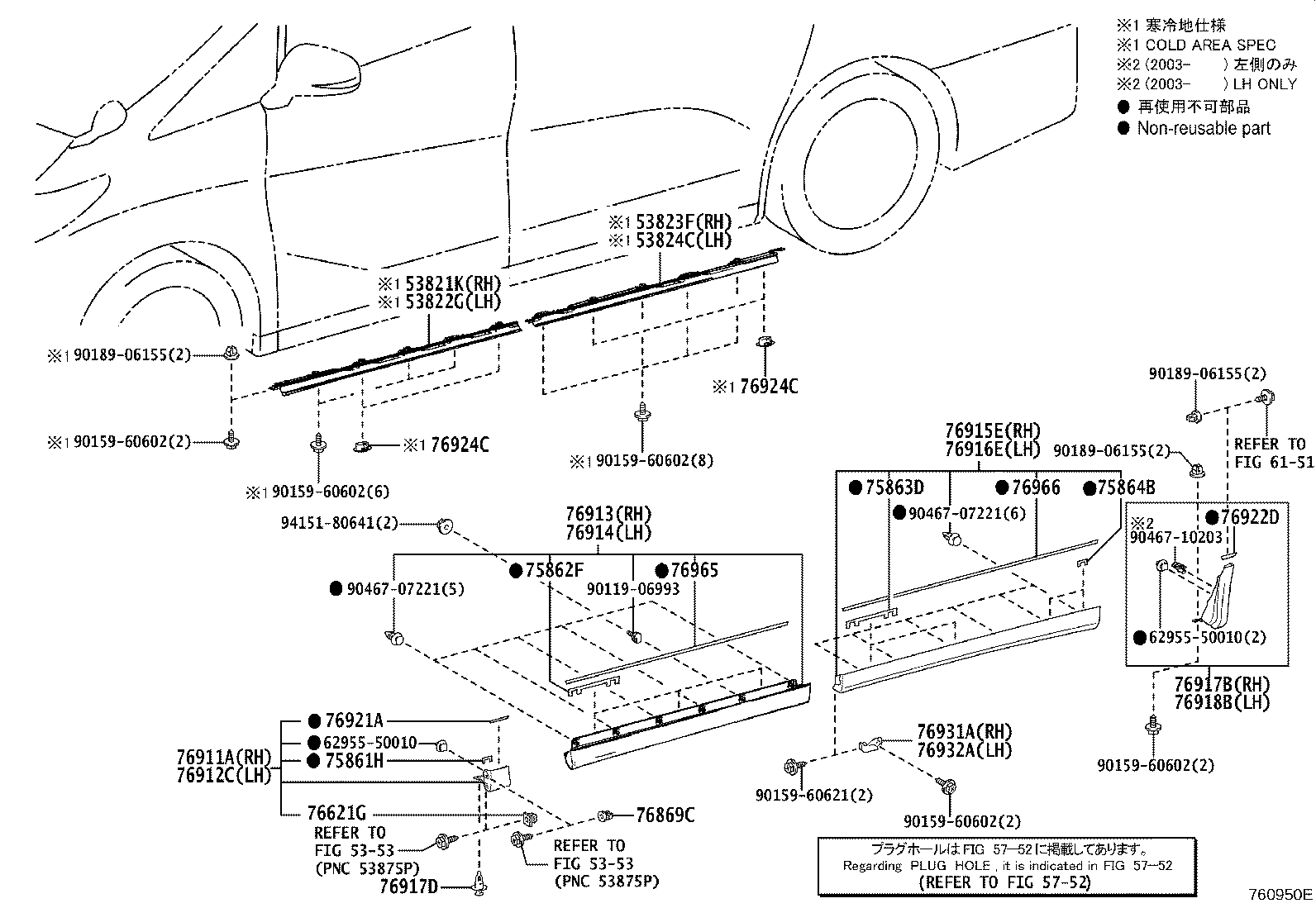

ILLUST NO. 2 OF 2(1501- )EL,G,GF,S,SA,SC,SR,V,VL,X,Z,ZA,ZG,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821K - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-58040 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 53822G - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-58040 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 53823F - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-58040 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 53824C - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-58040 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 75861H - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75864-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 75864-50020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 75862F - PROTECTOR, ROCKER PANEL MOULDING, NO.2 | ||||
| 75861-58010 |
AGH3#,AYH30,GGH3# |
6 | ||
| 75863D - PROTECTOR, ROCKER PANEL MOULDING, NO.3 | ||||
| 75861-58010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4 | ||||
| 75864-58010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 76621G - GROMMET, NO.1 | ||||
| 90189-06237 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76869C - GROMMET, SCREW, NO.1 | ||||
| 90189-06155 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76901-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76901-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76901-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76901-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76901-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76901-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76901-58050B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76901-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76901-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76901-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76901-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76901-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76902-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76902-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76902-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76902-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76902-58040A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76902-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76902-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76902-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76902-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76902-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76902-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76902-58050B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76913 - MUDGUARD, FRONT DOOR, RH | ||||
| 76903-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76903-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76903-58050A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76903-58060B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76903-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76903-58060B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76903-58050B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76903-58060A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76903-58060J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76903-58060A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76903-58050J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76903-58060C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76914 - MUDGUARD, FRONT DOOR, LH | ||||
| 76904-58050B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76904-58050J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76904-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76904-58060B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76904-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76904-58050A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76904-58060A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76904-58060A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76904-58060B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76904-58060C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76904-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76904-58060J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76915E - MUDGUARD, SLIDE DOOR, RH | ||||
| 76905-58050A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76905-58050B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76905-58060A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76905-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76905-58050J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76905-58060A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76905-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76905-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76905-58060B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76905-58060B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76905-58060C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76905-58060J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76906-58050A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76906-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76906-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76906-58060B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76906-58050A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76906-58060A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76906-58060C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76906-58060B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76906-58050J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76906-58050B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76906-58060A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76906-58060J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76917B - MUDGUARD, QUARTER PANEL, RH | ||||
| 76907-58090A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76907-58080C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76907-58080A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76907-58090B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76907-58080A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76907-58090C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76907-58080J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76907-58080B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76907-58090J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76907-58090A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76907-58090B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76907-58090C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76917D - CLIP | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76918B - MUDGUARD, QUARTER PANEL, LH | ||||
| 76908-58080A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76908-58080A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 76908-58080J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76908-58080B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 76908-58090C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 76908-58090A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 76908-58090B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 76908-58080C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 76908-58090C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 76908-58090A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 76908-58090B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SILVER ME.,1F7 |
1 | ||
| 76908-58090J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-58040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-58050 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
8 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
8 | ||
| 76931A - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76931-28040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76931-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76932A - BRACKET, SIDE MUDGUARD, NO.1 LH | ||||
| 76932-28070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-58040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-58040 |
AGH3#,AYH30,GGH3# |
2 | ||
| Common parts | ||||
| 62955-50010 | ||||
| 90119-06993 | ||||
| 90159-60602 | ||||
| 90159-60621 | ||||
| 90189-06155 | ||||
| 90467-07221 | ||||
| 90467-10203 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 5752 | ||||
| 6151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
