GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

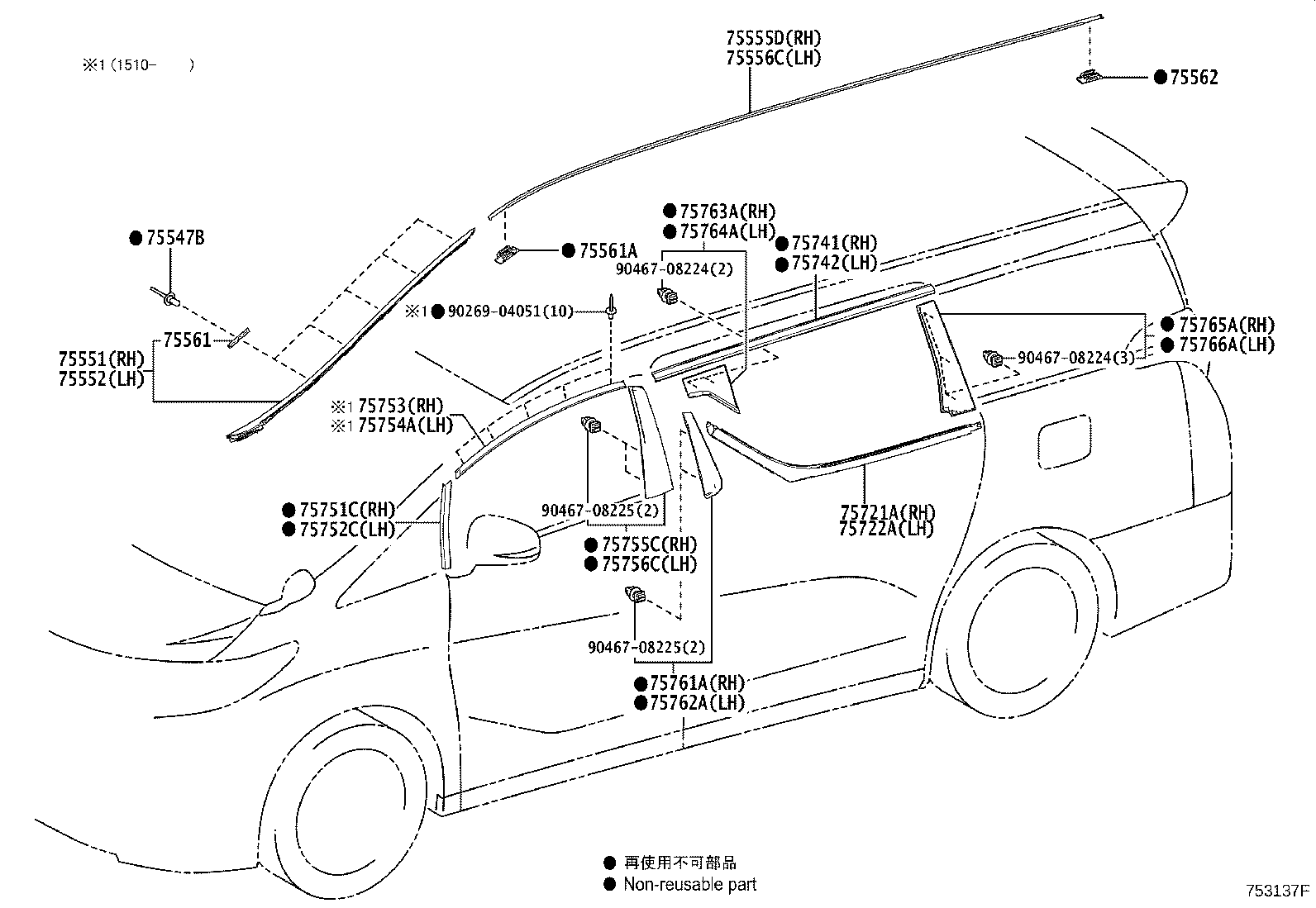

ILLUST NO. 1 OF 2(1501- )

Click highlighted areas on diagram

diagram 75547B 75551 75552 75555D 75556C 75561 75561A 75562 75721A 75722A 75741 75742 75751C 75752C 75753 75754A 75755C 75756C 75761A 75762A 75763A 75764A 75765A 75766A 9026904051 9046708224 9046708224 9046708225 9046708225
Part # Description Qty Price
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

AGH3#,AYH30,GGH3#

 10
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-58030

AGH3#,AYH30,GGH3#

塗装不要

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-58030

AGH3#,AYH30,GGH3#

塗装不要

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-58030

AGH3#,AYH30,GGH3#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-58030

AGH3#,AYH30,GGH3#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75545-30170

AGH3#,AYH30,GGH3#

 10
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

AGH3#,AYH30,GGH3#

 2
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75561-52040

AGH3#,AYH30,GGH3#

 2
75721A - MOULDING, REAR DOOR BELT, RH
75721-58030

AGH3#,AYH30,GGH3#

 1
75721-58031

AGH3#,AYH30,GGH3#

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-58030

AGH3#,AYH30,GGH3#

 1
75722-58031

AGH3#,AYH30,GGH3#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-58030

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-58030

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75751-58011

AGH3#,AYH30,GGH3#

 1
75751-58010

AGH3#,AYH30,GGH3#

 1
75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75752-58011

AGH3#,AYH30,GGH3#

 1
75752-58010

AGH3#,AYH30,GGH3#

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-58010

AGH3#,AYH30,GGH3#

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-58010

AGH3#,AYH30,GGH3#

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-58030

AGH3#,AYH30,GGH3#

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-58030

AGH3#,AYH30,GGH3#

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-58010

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75761-58011

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-58011

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75762-58010

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-58010

AGH3#,AYH30,GGH3#

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-58010

AGH3#,AYH30,GGH3#

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-58030

AGH3#,AYH30,GGH3#

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-58030

AGH3#,AYH30,GGH3#

 1
Common parts
90269-04051
90467-08224
90467-08225

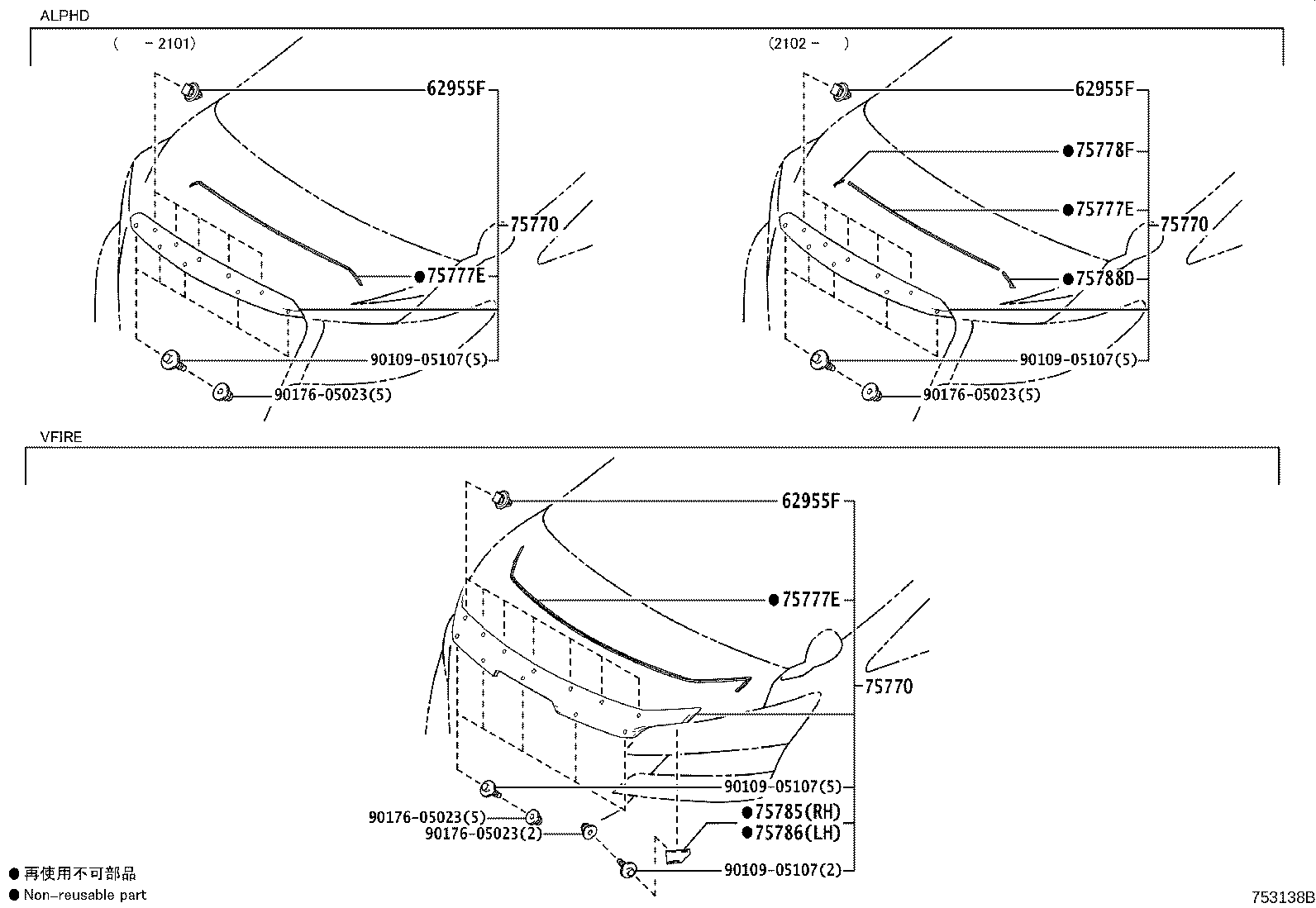

ILLUST NO. 2 OF 2(1501- )

Click highlighted areas on diagram

diagram 62955F 62955F 62955F 75770 75770 75770 75777E 75777E 75777E 75778F 75785 75786 75788D 9010905107 9010905107 9010905107 9010905107 9017605023 9017605023 9017605023 9017605023
Part # Description Qty Price
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010

AGH3#,AYH30,GGH3#..ALPHD

 5
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010

AGH3#,AYH30,GGH3#..ALPHD

 5
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010

AGH3#,AYH30,GGH3#..ALPHD

 5
75770 - MOULDING ASSY, HOOD, FRONT
75770-58060

AGH3#,AYH30,GGH3#..ALPHD

ﾒｯｷ

 1
75770-58090

AGH3#,GGH3#..07S..(S,SA)

ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-58060

AGH3#,AYH30,GGH3#..ALPHD

ﾒｯｷ

 1
75770-58090

AGH3#,GGH3#..07S..(S,SA)

ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-58060

AGH3#,AYH30,GGH3#..ALPHD

ﾒｯｷ

 1
75770-58090

AGH3#,GGH3#..07S..(S,SA)

ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)

 1
75777E - PAD, HOOD FRONT MOULDING
75777-58080

AGH3#,AYH30,GGH3#..ALPHD

 1
75777E - PAD, HOOD FRONT MOULDING
75777-58080

AGH3#,AYH30,GGH3#..ALPHD

 1
75777E - PAD, HOOD FRONT MOULDING
75777-58080

AGH3#,AYH30,GGH3#..ALPHD

 1
Common parts
90109-05107
90176-05023
