GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

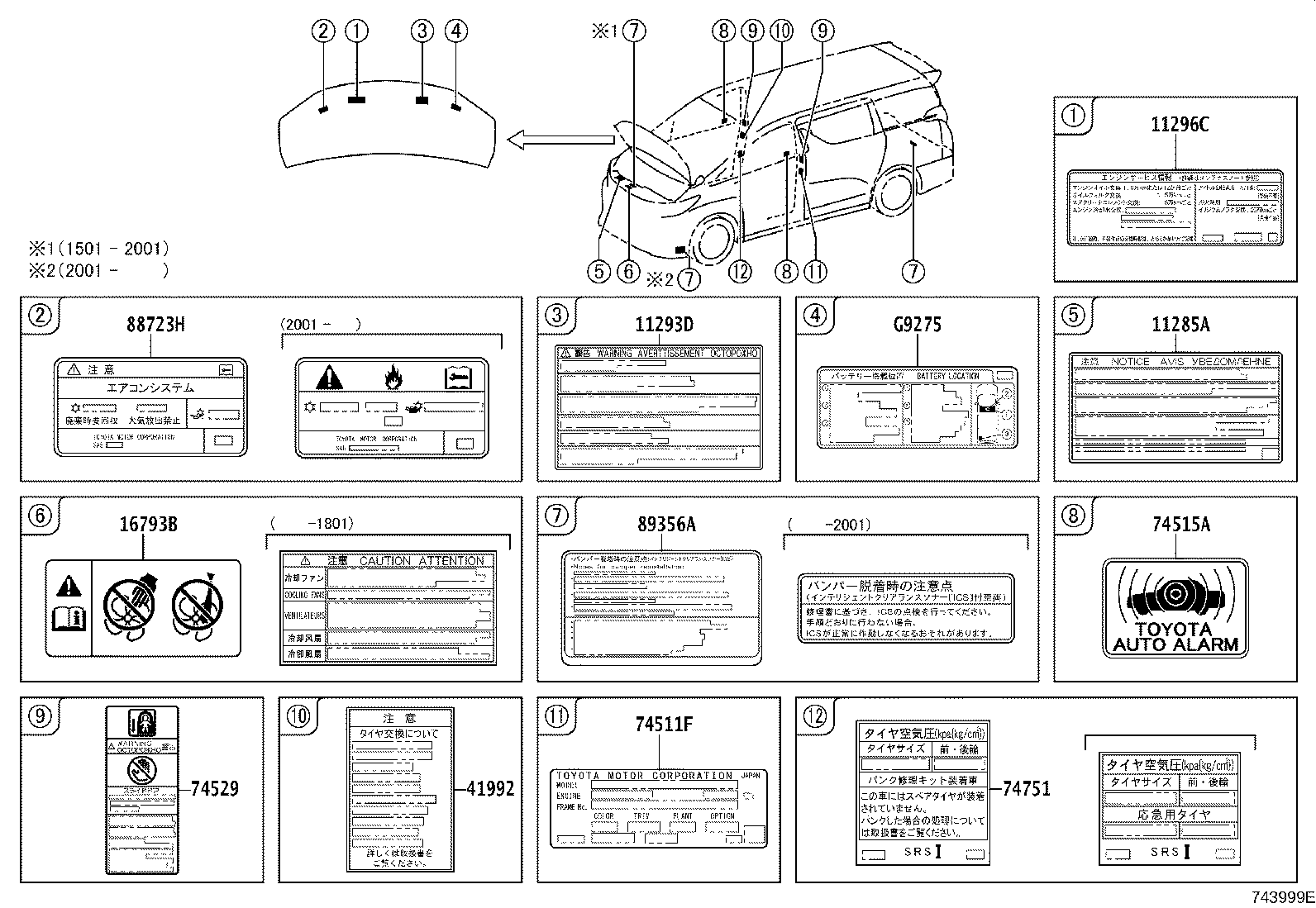

ILLUST NO. 1 OF 5(1501- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285A - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-37060 |
2AR#,2GRFE..AGH3#,AYH30,GGH3# |
1 | ||
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-31080 |
2GRFE..GGH3# |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-28040 |
2AR#,2GRFE..AGH3#,AYH30,GGH3# |
1 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
AGH3#,AYH30,GGH3# *111 |
1 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-33020 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
2 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-28020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-58270 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 42661-58280 |
AGH3#..07S..(G,V);AYH30,GGH3#..GF,VL,X |
1 | ||
| 42661-58310 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ) |
1 | ||
| 42661-58320 |
AGH3#..07S..(G,V);AYH30,GGH3#..GF,VL,X ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ) |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-58080 |
AGH3#,GGH3# |
1 | ||
| 88723-58081 |
AGH3#,GGH3# |
1 | ||
| 88723-58190 |
AGH3#,GGH3# |
1 | ||
| 89356A - LABEL, CLEARANCE WARNING INFORMATION | ||||
| 89356-30060 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89356-30060 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89356-30060 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||

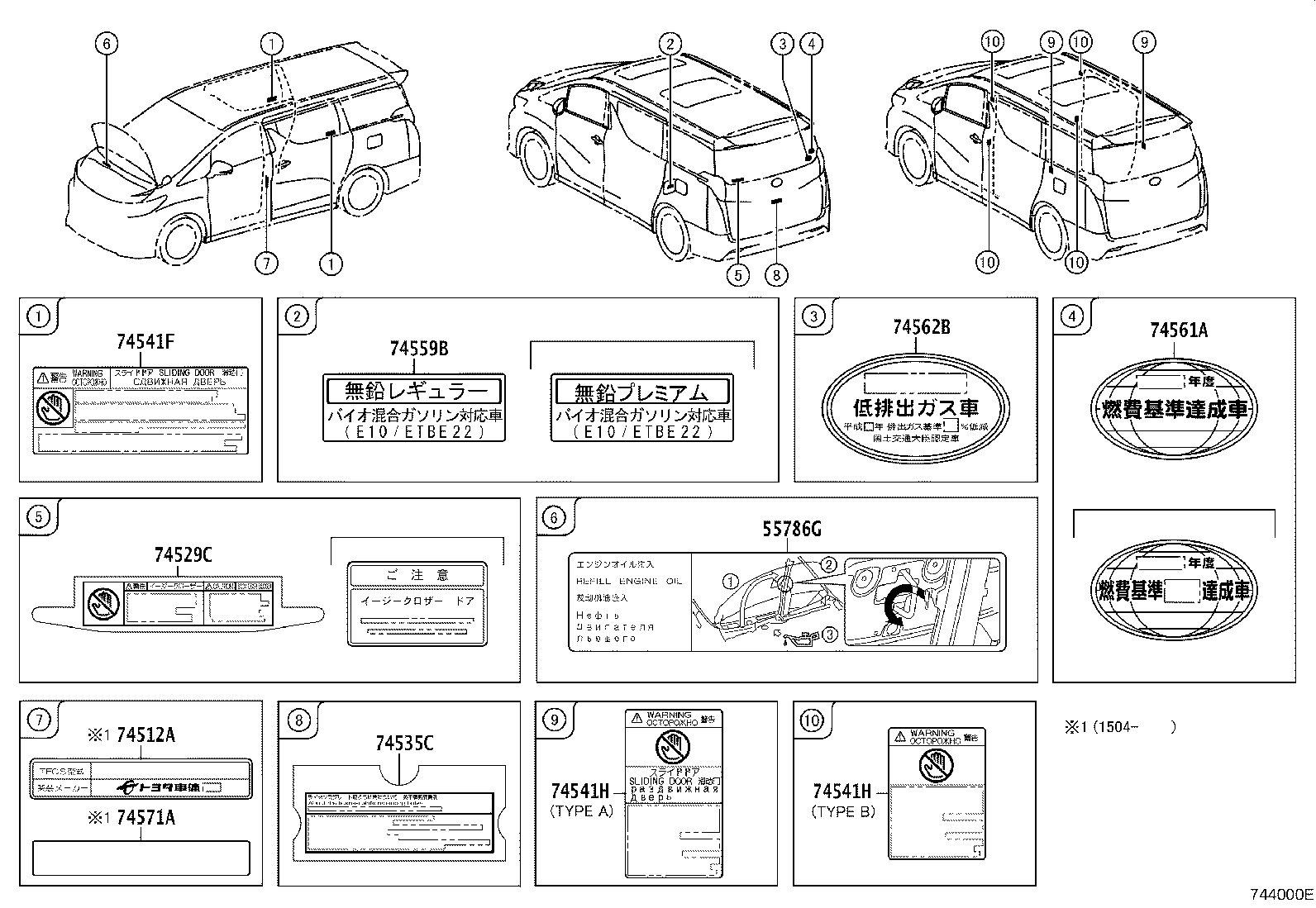

ILLUST NO. 2 OF 5(1501- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55786G - PLATE, COWL TOP VENTILATOR LOUVER | ||||
| 55786-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 74512A - PLATE, IDENTIFICATION NUMBER | ||||
| 74512-28710 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 74512-28710 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 74529C - PLATE, BACK DOOR CAUTION | ||||
| 74528-58130 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 74529-28030 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 74535C - LABEL, TOP COVER CAUTION | ||||
| 74535-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 74541F - LABEL, SLIDE DOOR GLASS CAUTION | ||||
| 74528-28240 |
AGH3#,AYH30,GGH3# |
2 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28130 |
AGH3#,AYH30,GGH3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74541-28140 |
AGH3#,AYH30,GGH3# TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28130 |
AGH3#,AYH30,GGH3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 74541-28140 |
AGH3#,AYH30,GGH3# TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-78010 |
GGH3# |
1 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-13010 |
GGH3# 平成27年度 燃費基準達成車,燃費ｽﾃｯｶ−平成27年度燃費基準達成車 |
1 | ||
| 74561-58030 |
GGH30 平成27年度 燃費基準+5%達成車,燃費ｽﾃｯｶ−平成27年度燃費基準+5%達成車 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-47010 |
AGH3#,AYH30,GGH3# H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74571A - FILM, LABEL COVER | ||||
| C6259-41010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6259-41010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||

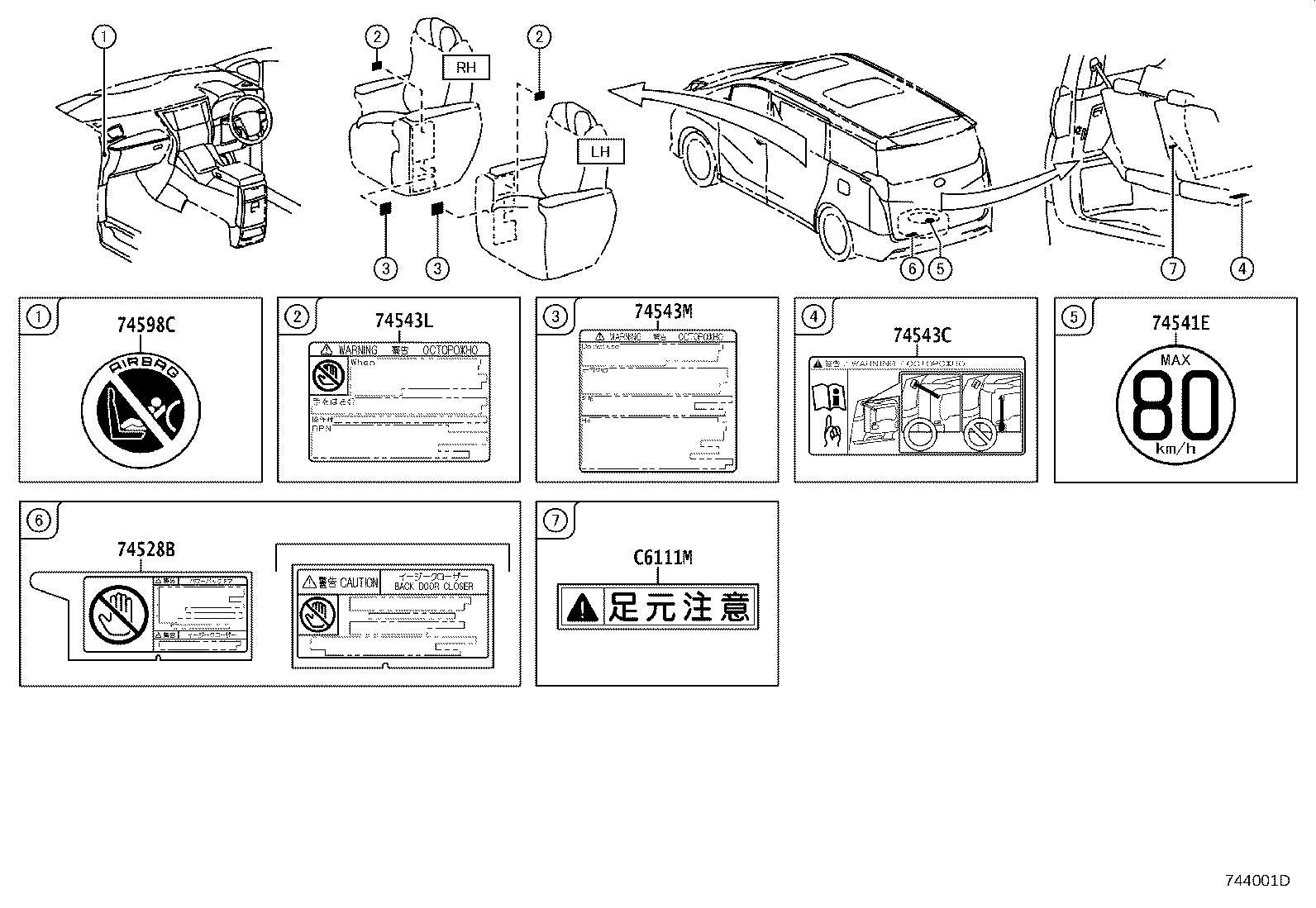

ILLUST NO. 3 OF 5(1501- )
ﾅｲｿｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74528B - LABEL, BACK DOOR CAUTION | ||||
| 74528-58140 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 74528-28230 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
AGH3#,AYH30,GGH3# ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ) |
1 | ||
| 74543C - LABEL, REAR SEAT INFORMATION | ||||
| 74543-58310 |
AGH3#,AYH30,GGH3# |
2 | ||
| 74598C - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
AGH3#,AYH30,GGH3# |
1 | ||

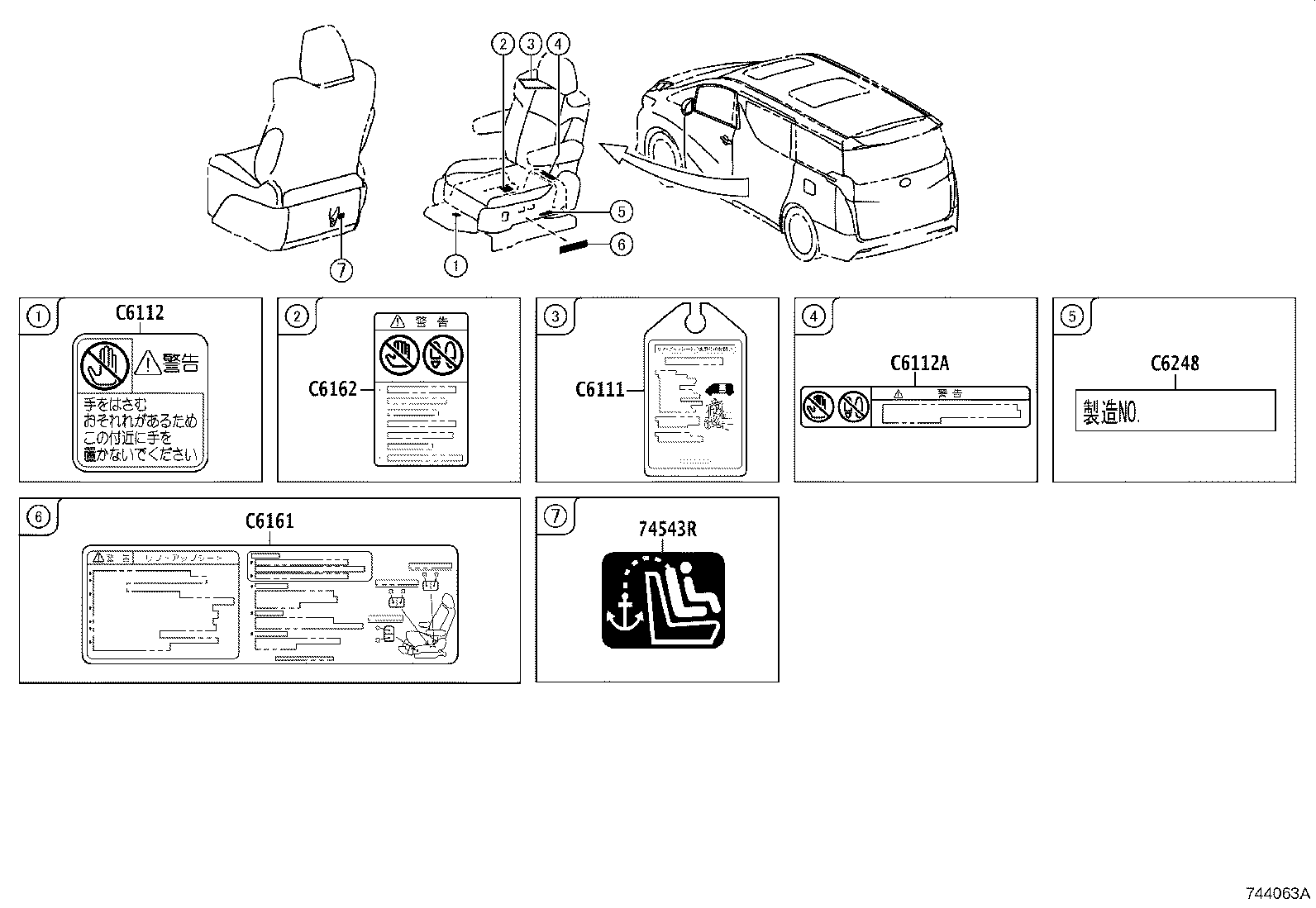

ILLUST NO. 4 OF 5(1501- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ=ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C6111 - PLATE, SAFETY CAUTION | ||||
| C6111-D1390 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6111-D1360 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111-D1360 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6112 - LABEL, SAFETY INFORMATION, NO.2 | ||||
| C6112-28020 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6112A - LABEL, SAFETY INFORMATION | ||||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6161 - LABEL, POWER LIFT CAUTION | ||||
| C6161-28040 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6161-28020 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6161-28040 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6162 - LABEL, POWER LIFT CAUTION, NO.2 | ||||
| C6112-D1211 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6112-D1211 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6112-D1211 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6248 - LABEL, BODY NUMBER | ||||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||

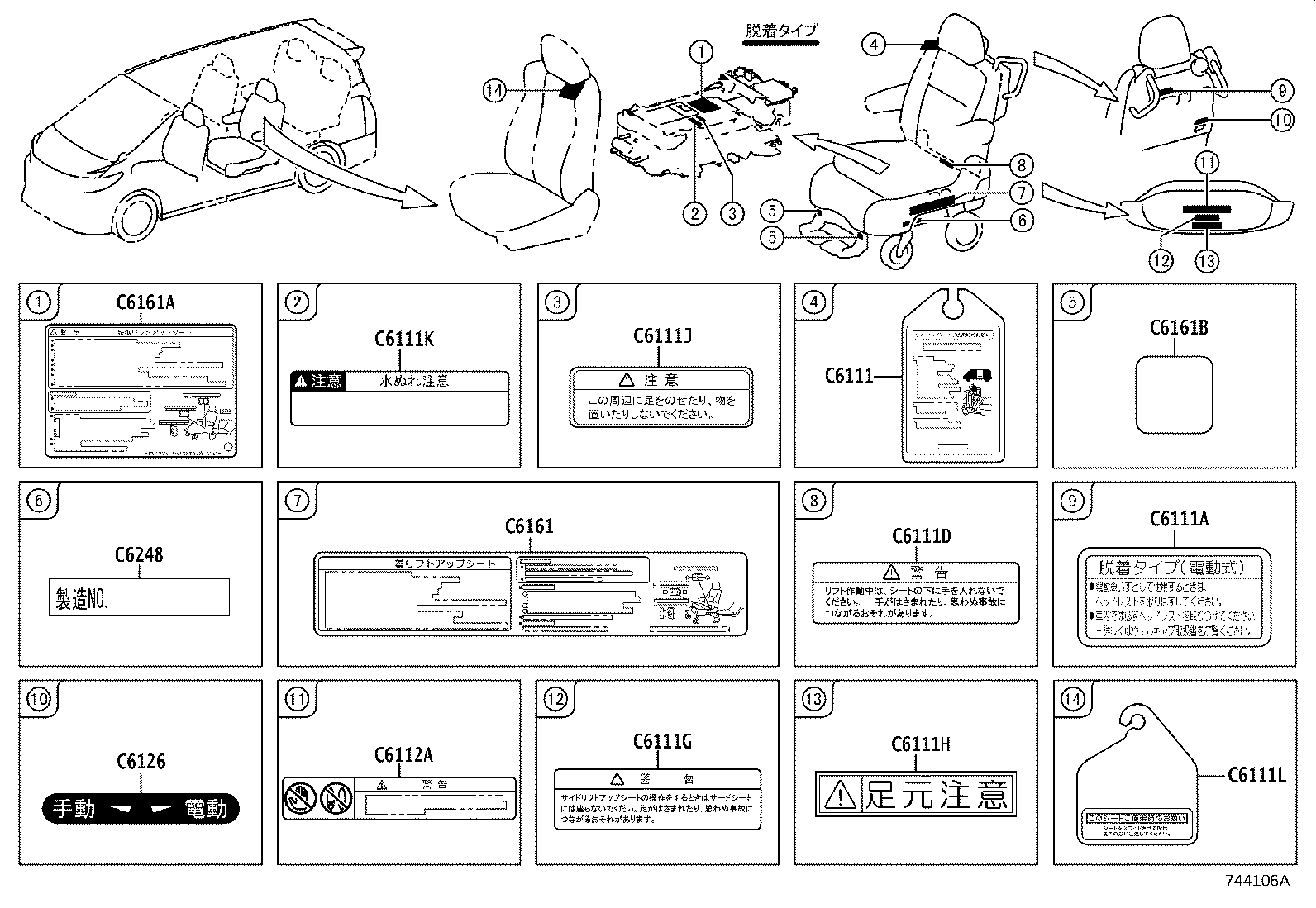

ILLUST NO. 5 OF 5(1504- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ=ﾀﾞｯﾁｬｸﾀﾞｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C6111 - PLATE, SAFETY CAUTION | ||||
| C6111-D1390 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6111-D1360 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111-D1360 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6111A - PLATE, SAFETY CAUTION | ||||
| C6111-D1350 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111D - PLATE, SAFETY CAUTION | ||||
| C6111-D1120 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6111-D1120 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111G - PLATE, SAFETY CAUTION | ||||
| C6111-D1101 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6111-D1101 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111H - PLATE, SAFETY CAUTION | ||||
| C6111-D1430 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6111-D1430 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111J - PLATE, SAFETY CAUTION | ||||
| C6111-D1440 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6111-D1440 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111K - PLATE, SAFETY CAUTION | ||||
| C6111-D1450 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6111-D1450 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6112A - LABEL, SAFETY INFORMATION | ||||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6112-D1201 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6126 - LABEL, SWITCH NOTICE | ||||
| C6126-22010 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6161 - LABEL, POWER LIFT CAUTION | ||||
| C6161-28040 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6161-28020 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6161-28040 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6161A - LABEL, POWER LIFT CAUTION | ||||
| C6161-58020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6161-58020 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C6161B - LABEL, POWER LIFT INFORMATION | ||||
| C6161-D1500 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| C6161-D1500 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| C6248 - LABEL, BODY NUMBER | ||||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C6248-D1170 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
