GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

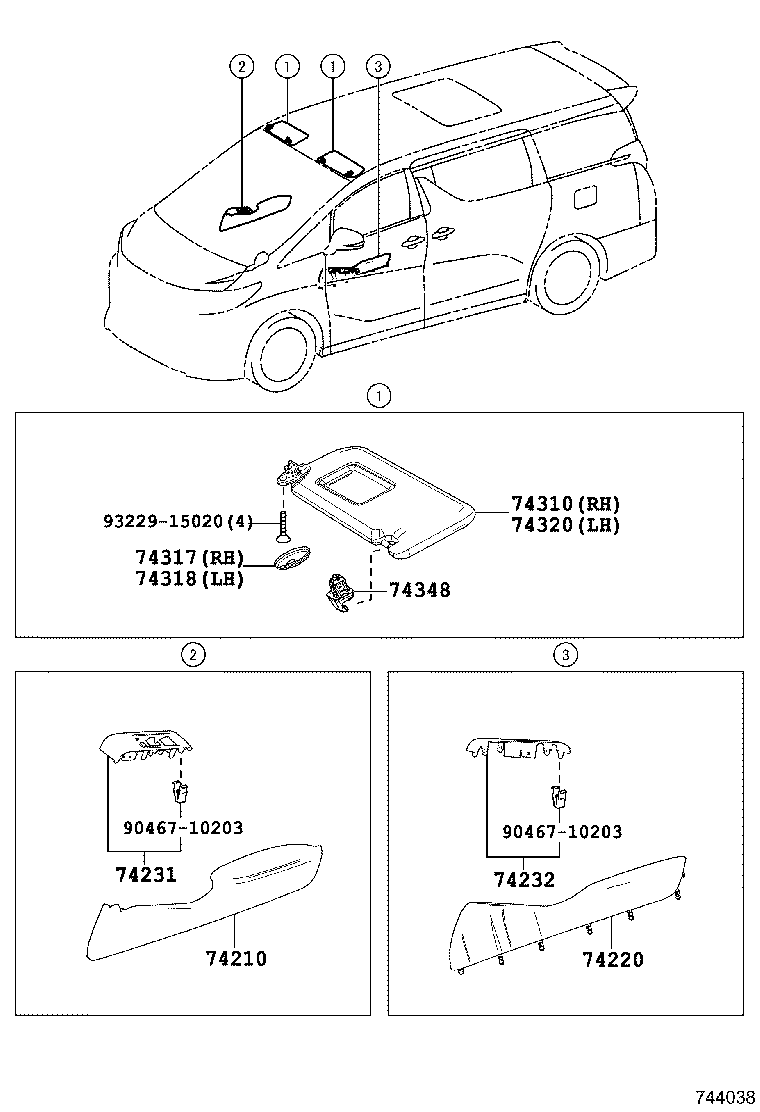

ILLUST NO. 1 OF 2(1501- )
ｱｰﾑﾚｽﾄ & ﾊﾞｲｻﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-58010A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 74210-58010C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-58010A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 74220-58010C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 74231-58340 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-58190 |
AGH3#,AYH30,GGH3# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-58121B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74310-58120A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 74310-58121A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 74310-58120B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74310-58121C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74310-58120C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74317-60020A7 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 74317-60020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
1 | ||
| 74317-60020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74317-60020C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74317-60020A7 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 74317-60020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
1 | ||
| 74317-60020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74317-60020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-58080A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 74320-58080B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74320-58080C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74320-58081B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 74320-58081A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 74320-58081C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74348-33040C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74348-33040A7 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74348-33040C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74348-33040B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 93229-15020 | ||||

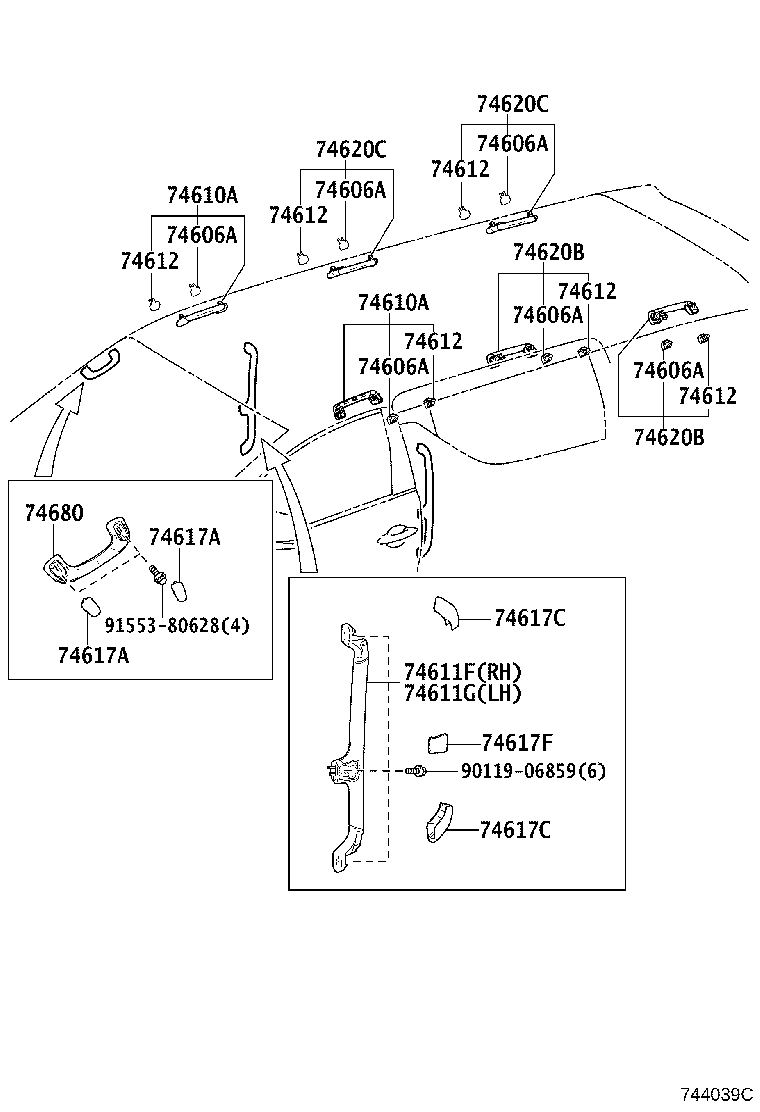

ILLUST NO. 2 OF 2(1501- )
ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74611-33010B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74611-33010B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74611-33010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30340C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74610-30340A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30340B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74610-30340B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30340C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74610-30340A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30340B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74610-30340B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR BLACK,TRIM0#,2# |
1 | ||
| 74680-58020C0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA BLACK,TRIM0#,2# |
1 | ||
| 74680-58040C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74680-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR BLACK,TRIM0#,2# |
1 | ||
| 74680-58030C0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA BLACK,TRIM0#,2# |
1 | ||
| 74680-58050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
6 | ||
| 74612-33020A4 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
6 | ||
| 74612-33020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
6 | ||
| 74612-33020B1 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
6 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
4 | ||
| 74617-58010B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
4 | ||
| 74617-58010A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
4 | ||
| 74617-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
4 | ||
| 74617-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
4 | ||
| 74617-58010B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
4 | ||
| 74617-58010A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
4 | ||
| 74617-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
4 | ||
| 74617-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58030C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58030C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
4 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
2 | ||
| 74617-58040C0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA BLACK,TRIM0#,2# |
2 | ||
| 74617-58060C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-30350A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30350B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74610-30350B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74610-30350C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-30350A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30350B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74610-30350B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74610-30350C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-30360A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30360C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74610-30360B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74610-30360B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-30360A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74610-30360C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74610-30360B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74610-30360B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-58010B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
2 | ||
| 74680-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 74680-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 74680-58010A2 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
2 | ||
| 74680-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 91553-80628 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
