GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

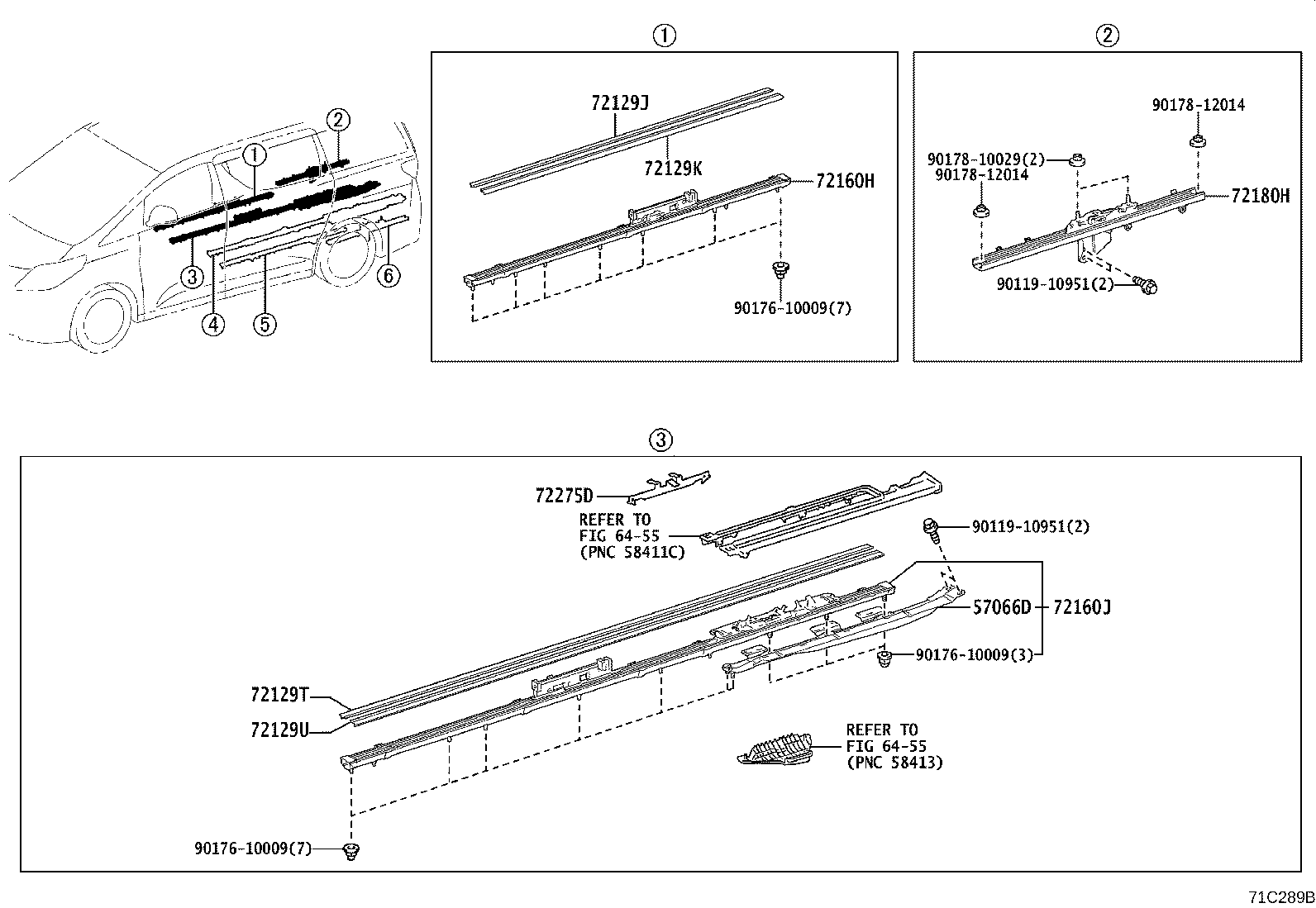

ILLUST NO. 1 OF 2(1501-1801)07S..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ; (1801- )AYH30..07S..SR,X,ZR ; (180
ｳｪﾙｷｬﾌﾞ(ﾗｲﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57066-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58210C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58280 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58280 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58520 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58520 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,V,VL,X) BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) BLACK,TRIM2# |
1 | ||
| 72160-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72160-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58310 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58310 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 6455 | ||||

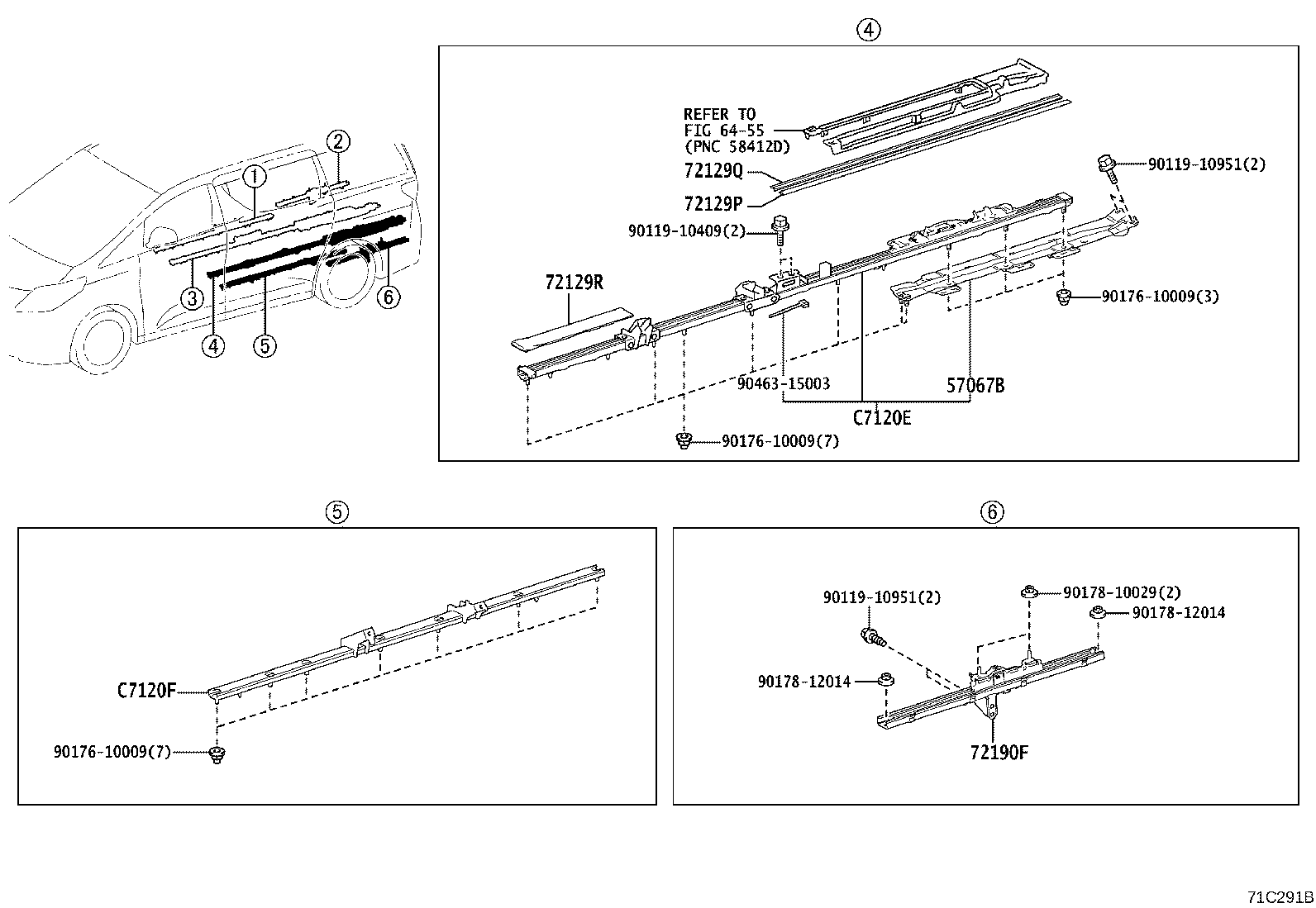

ILLUST NO. 2 OF 2(1501-1801)07S..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ; (1801- )AYH30..07S..SR,X,ZR ; (180
ｳｪﾙｷｬﾌﾞ(ﾚﾌﾄ) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57067-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58400C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| C7120E - LEG ASSY, WELCAB SEAT, LH INNER | ||||
| C7120-58090 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C7120-58120 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| C7120-58120 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C7120F - LEG ASSY, WELCAB SEAT, LH OUTER | ||||
| C7120-58110 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C7120-58130 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C7120-58130 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,X,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| 90463-15003 | ||||
| Linked diagrams | ||||
| 6455 | ||||

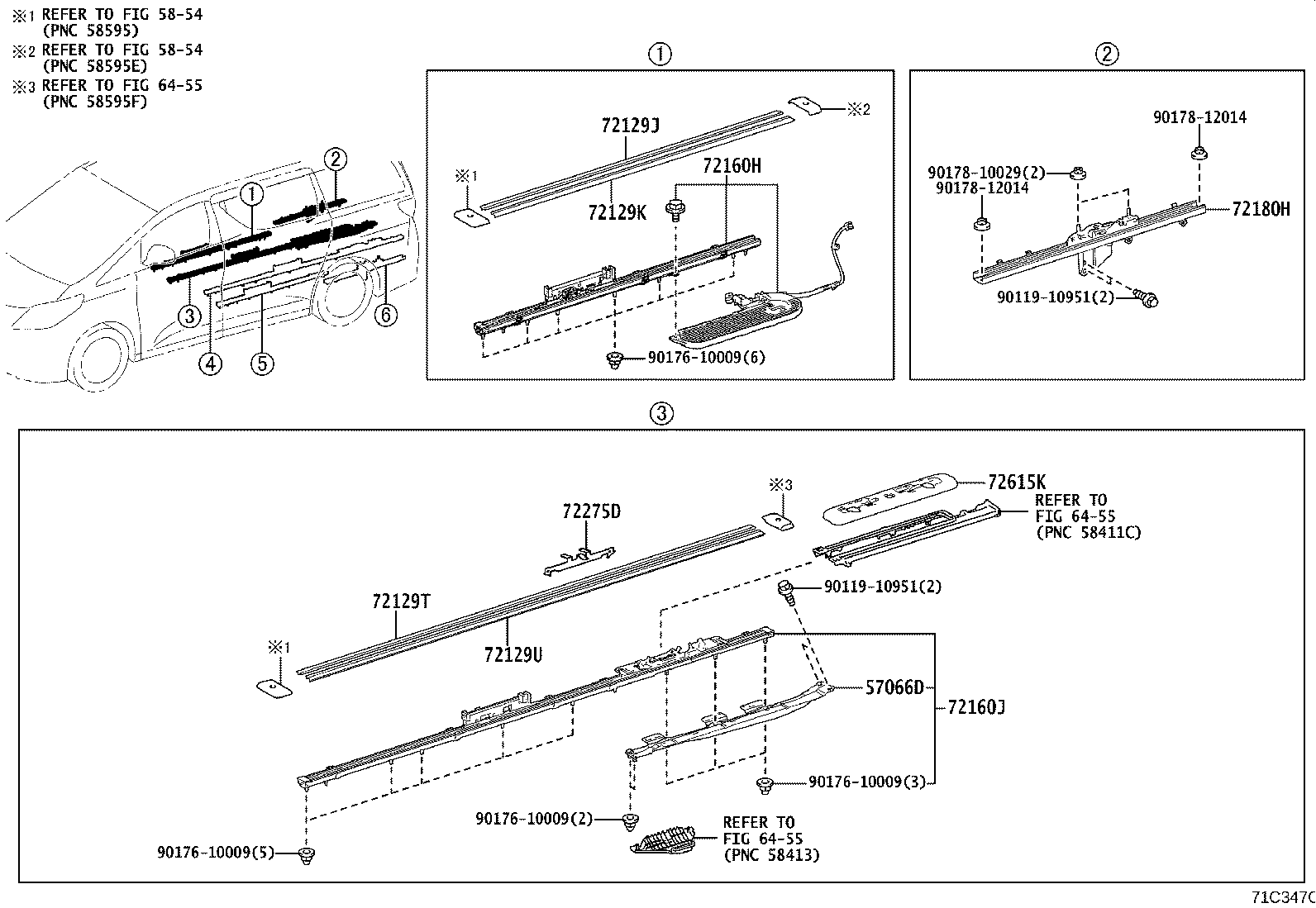

ILLUST NO. 1 OF 2(1501-1801)07S ; (1801- )07S..G,GF,S,SR,V,X,Z,ZR
ﾗｲﾄ ｾｶﾝﾄﾞｼｰﾄ:ﾏﾆｭｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57066-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58210C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58280 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58280 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58520 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58520 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,V,VL,X) BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) BLACK,TRIM2# |
1 | ||
| 72160-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72160-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58310 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58310 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72615K - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-58070C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72615-58090C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58070C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58090C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 6455 | ||||

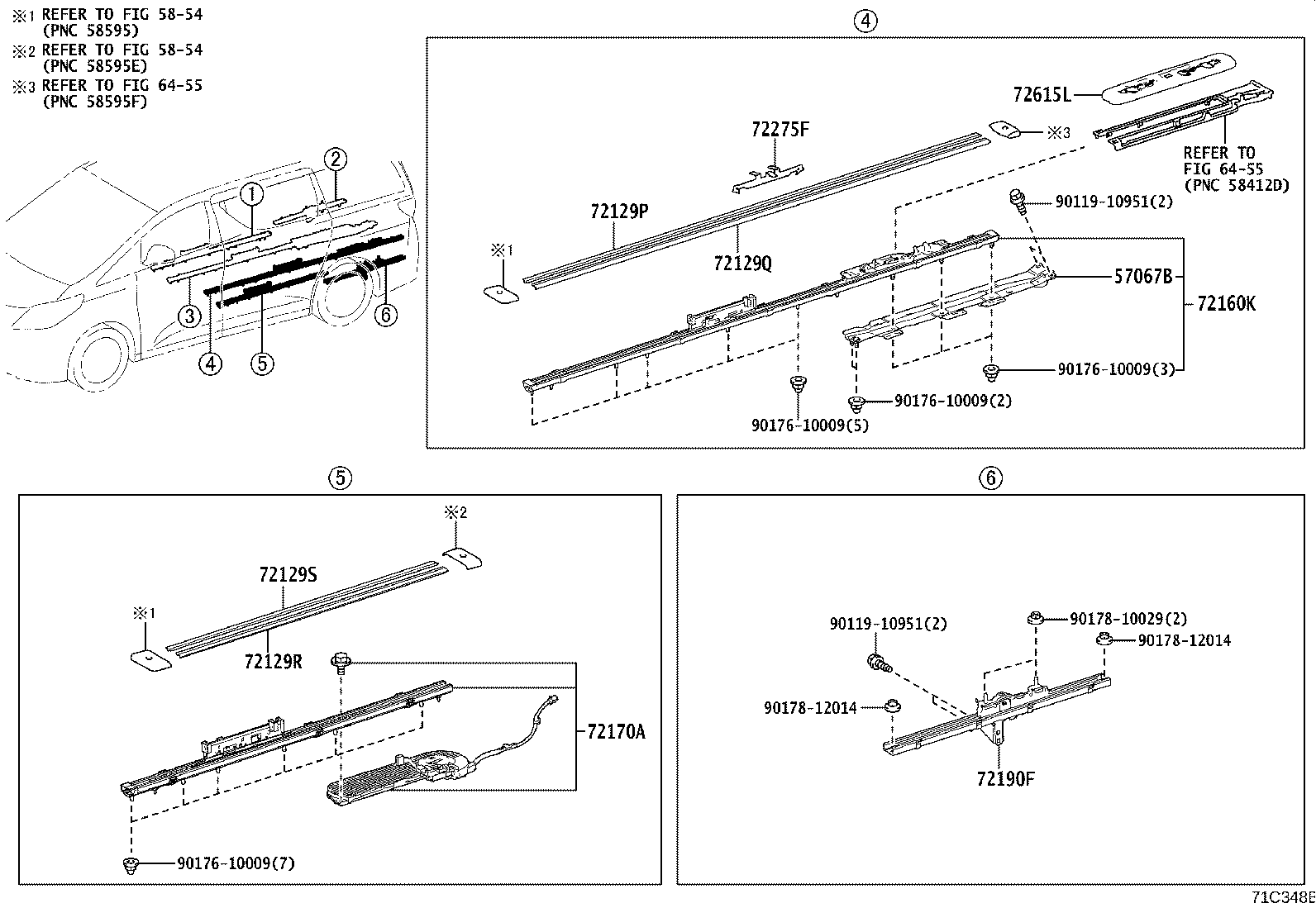

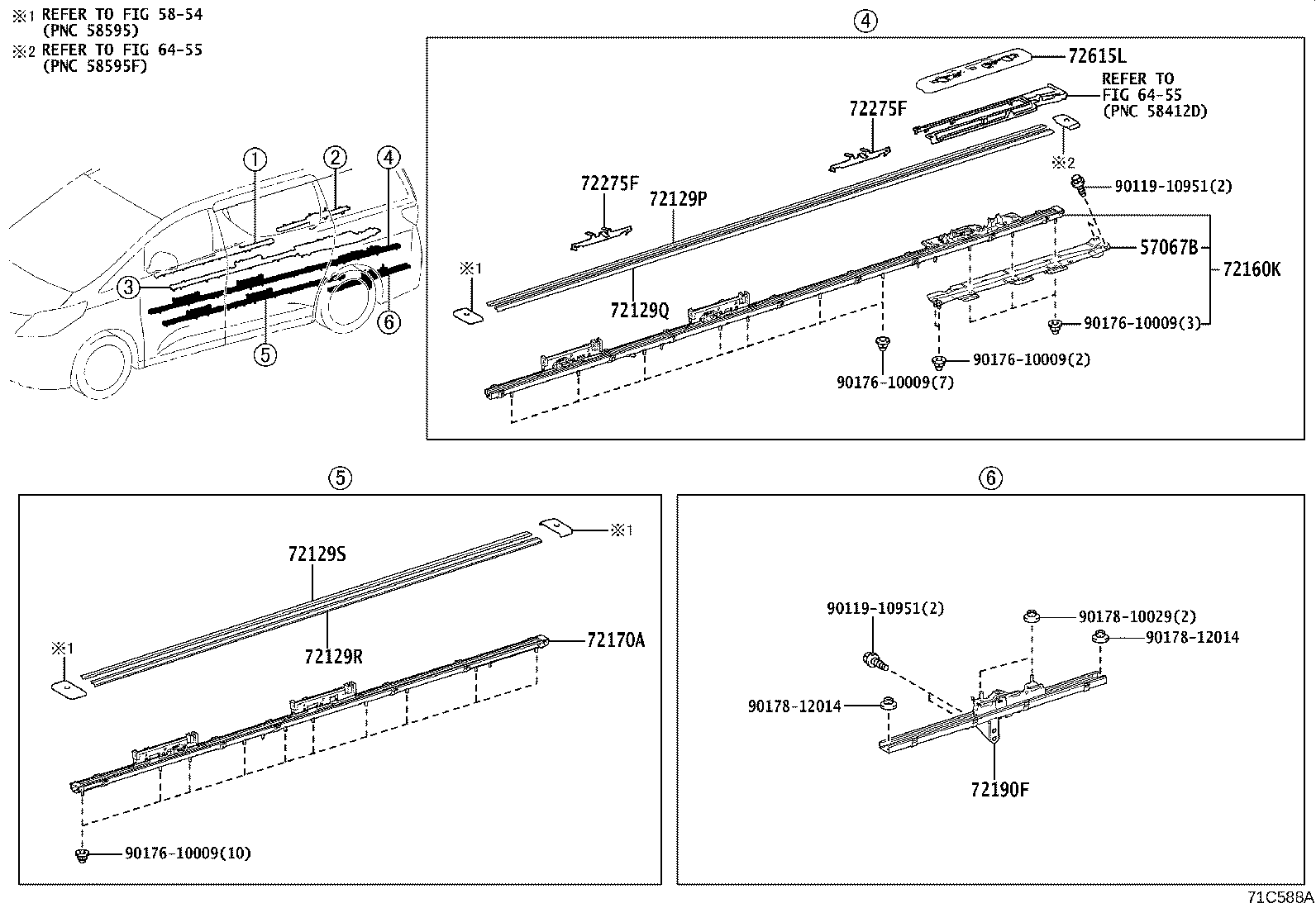

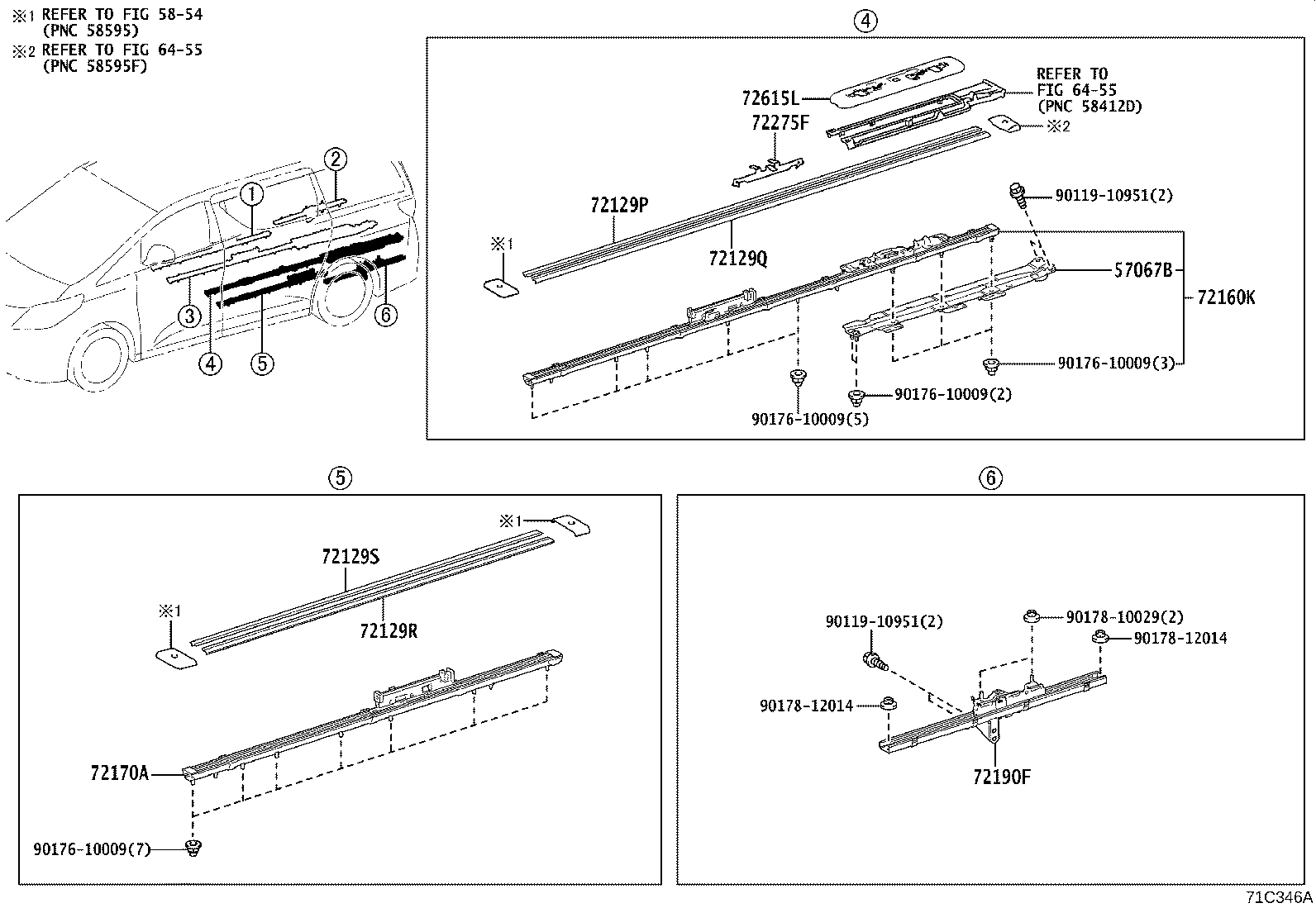

ILLUST NO. 2 OF 2(1501-1801)07S..EL,G,S,SR,V,X,Z,ZR ; (1801- )07S..G,GF,S,SR,V,X,Z,ZR
ﾚﾌﾄ ｾｶﾝﾄﾞｼｰﾄ:ﾏﾆｭｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57067-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58400C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-58340C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1 | ||||
| 72160-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58390C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 72160-58300 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58390 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58300 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-58330 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170-58260 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58530 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58330 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58530 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
2 | ||
| 72275-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72275-58020 |
AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 6455 | ||||

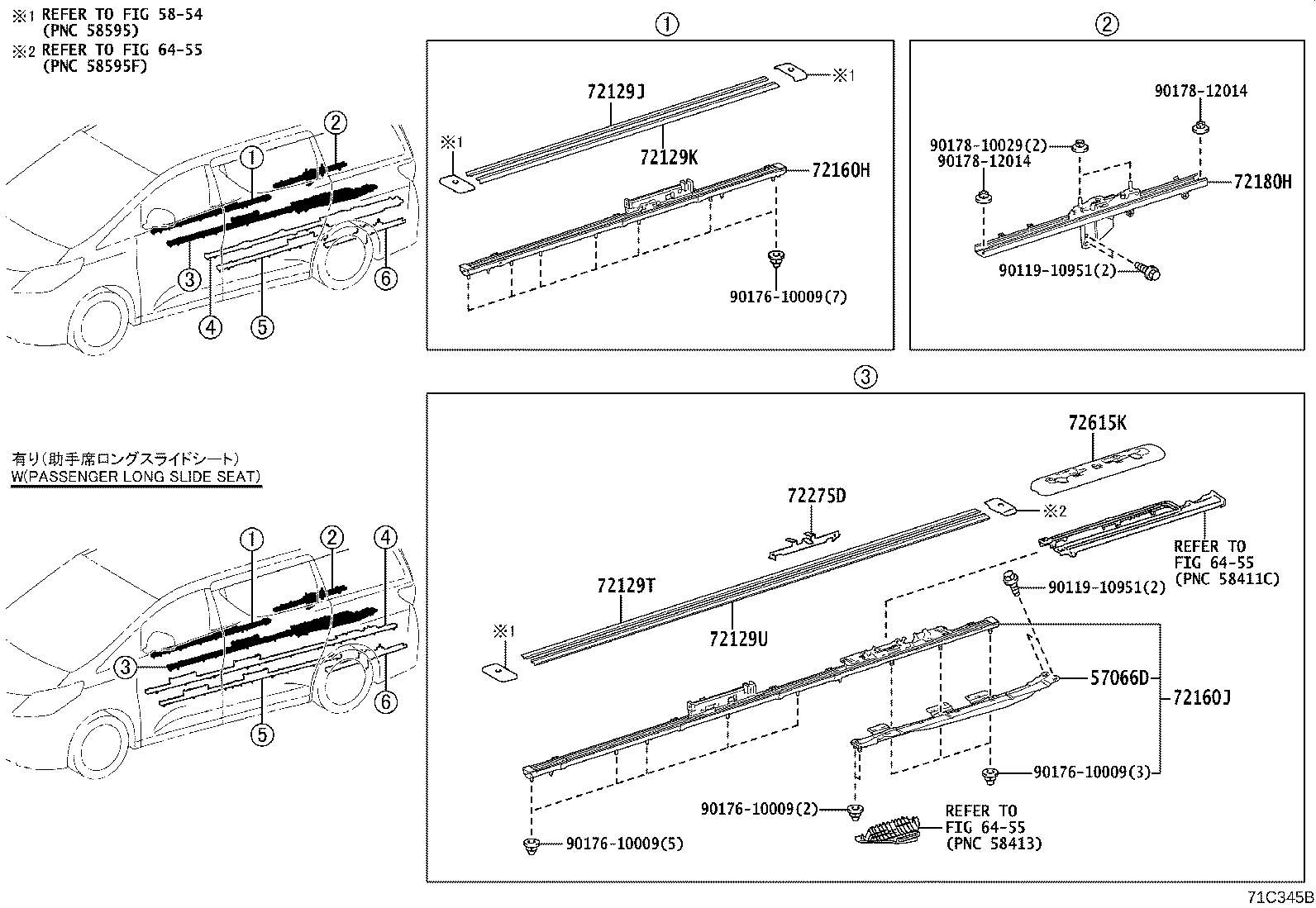

ILLUST NO. 1 OF 2(1501-1801)07S ; (1801- )07S
ﾗｲﾄ ｾｶﾝﾄﾞｼｰﾄ:ﾊﾟﾜｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57066-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58210C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58210C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58220C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58220C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30..07S..(EL,SR,X,ZR);AGH3#,GGH3#..07S..(EL,G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58280 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58280 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58140 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58520 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58520 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,V,VL,X) BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) BLACK,TRIM2# |
1 | ||
| 72160-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58190C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72160-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 72160-58310 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72160-58190 |
AGH3#,AYH30,GGH3#..07S..(GF,S,SR,VL,Z,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72160-58310 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72615K - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-58070C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72615-58090C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58070C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58090C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 6455 | ||||
ILLUST NO. 2 OF 2(1501-1801)07S ; (1801- )07S
ﾚﾌﾄ ｾｶﾝﾄﾞｼｰﾄ:ﾊﾟﾜｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57067-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58400C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-58340C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1 | ||||
| 72160-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58390C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 72160-58300 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58390 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58300 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-58330 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170-58260 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58530 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58330 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58530 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
2 | ||
| 72275-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72275-58020 |
AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 6455 | ||||
ILLUST NO. 2 OF 2(1501-1801)AGH3#,GGH3#..07S..G,GF,S,SA,V,VL,Z,ZA; (1801-2001)AGH3#..07S..S,Z
ﾚﾌﾄ ｱﾘ(ｼﾞｮｼｭｾｷﾛﾝｸﾞｽﾗｲﾄﾞｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57067-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58240C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 72129-58420C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 72129-58330C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72129-58400C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-58340C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1 | ||||
| 72160-58300C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 72160-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72160-58390C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 72160-58300 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58390 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58300 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-58330 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170-58260 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58530 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58330 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58530 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-58330 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170-58260 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 72160-58530 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58330 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 72160-58530 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
2 | ||
| 72275-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72275-58020 |
AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
2 | ||
| 72275-58020 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72275-58020 |
AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72615-58060C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 72615-58080C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 6455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
