GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
(1501- )

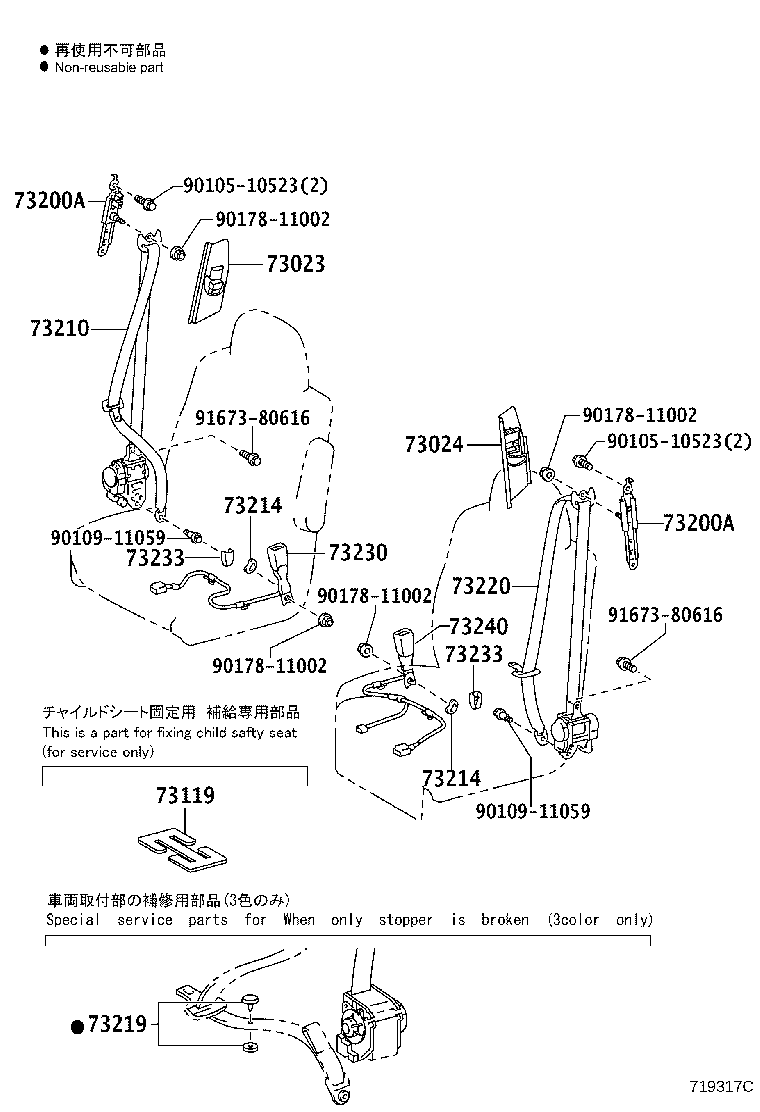

ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,S,SR,V,VL,X,Z,ZR LT.GRAY,TRIM2# |
1 | ||
| 73023-58010A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-58010A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73024-58010A0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 73024-58010A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73024-58010A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73024-58010B0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,LT.GRAY,TRIM2# |
1 | ||
| 73024-58010A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73024-58010B0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),LT.GRAY,TRIM2# |
1 | ||
| 73024-58010B0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),LT.GRAY,TRIM2# |
1 | ||
| 73024-58010B0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),LT.GRAY,TRIM2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73200-12070 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 73200-12070 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 73200-12070 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| 73200-12070 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
2 | ||
| 73200-12070 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73200-12070 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 73200-12070 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 73200-12070 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| 73200-12070 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
2 | ||
| 73200-12070 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-58060A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 73210-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73210-58061A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73210-58061C1 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73214-75010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
2 | ||
| 73214-75010 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 73214-75010 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 73214-75010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| 73214-75010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73214-75010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ｼｰﾄ表皮−本革 |
2 | ||
| 73214-75010 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 73214-75010 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 73214-75010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
2 | ||
| 73214-75010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AGH3#,AYH30,GGH3# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
AGH3#,AYH30,GGH3# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
AGH3#,AYH30,GGH3# ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-58060A0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73220-58070A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73220-58060A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73220-58070C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM2# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58060C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58071A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58061C1 |
AGH3#,AYH30,GGH3#..EL,S,SR,Z,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73220-58061A0 |
AGH3#..X;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V,X FLAXEN,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-58120A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 73230-58120A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73230-58120C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73230-58110C0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 73230-58120C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 73233-60020C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
2 | ||
| 73233-60020C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
2 | ||
| 73233-60020C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 73233-60020C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 73233-60020C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
2 | ||
| 73233-60020C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
2 | ||
| 73233-60020C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
2 | ||
| 73233-60020C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 73233-60020C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM2# |
1 | ||
| 73240-58100A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73240-58120C0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR BLACK,TRIM2# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 91673-80616 | ||||
(1501-1801)AGH3#,GGH3#..07S..G,GF,S,SA,V,VL,Z,ZA; (1801- )AGH3#..07S..S,Z

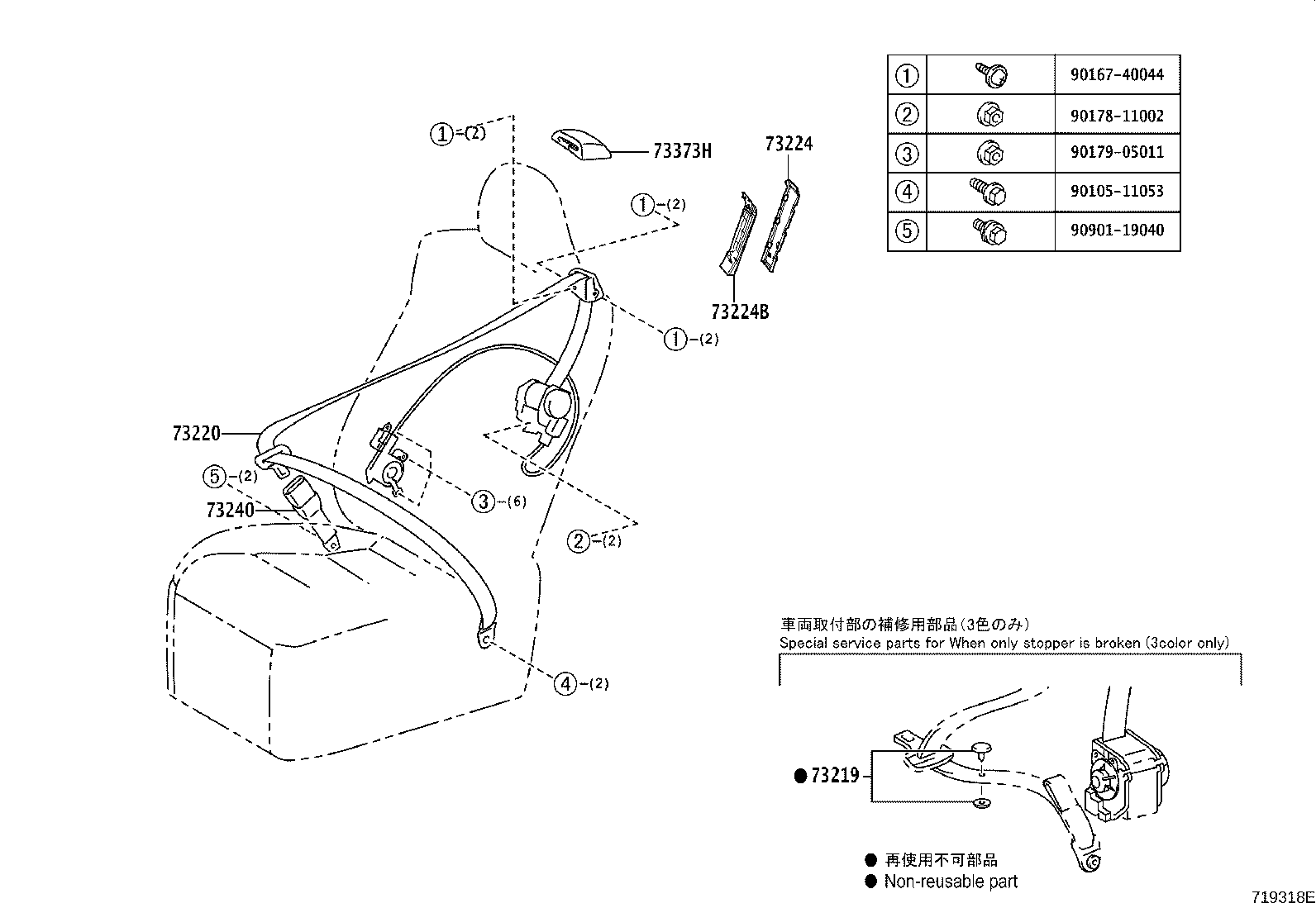

ﾌﾛﾝﾄｼｰﾄ(ｼﾞｮｼｭｾｷ ﾛﾝｸﾞｽﾗｲﾄﾞｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AGH3#,AYH30,GGH3# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
AGH3#,AYH30,GGH3# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
AGH3#,AYH30,GGH3# ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-58060A0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73220-58070A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73220-58060A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73220-58070C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM2# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58060C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58060A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58060C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-58071A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73220-58061A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73220-58061C1 |
AGH3#,AYH30,GGH3#..EL,S,SR,Z,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73220-58061A0 |
AGH3#..X;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V,X FLAXEN,TRIM0# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-58010 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM2# |
1 | ||
| 73240-58100A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 73240-58120A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73240-58120C0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR BLACK,TRIM2# |
1 | ||
| 73240-58120A0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73240-58120C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 73373H - COVER, FRONT SEAT SHOULDER BELT | ||||
| 73375-58020C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM2# |
1 | ||
| 73375-58020A0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90167-40044 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90901-19040 | ||||
(1501- )

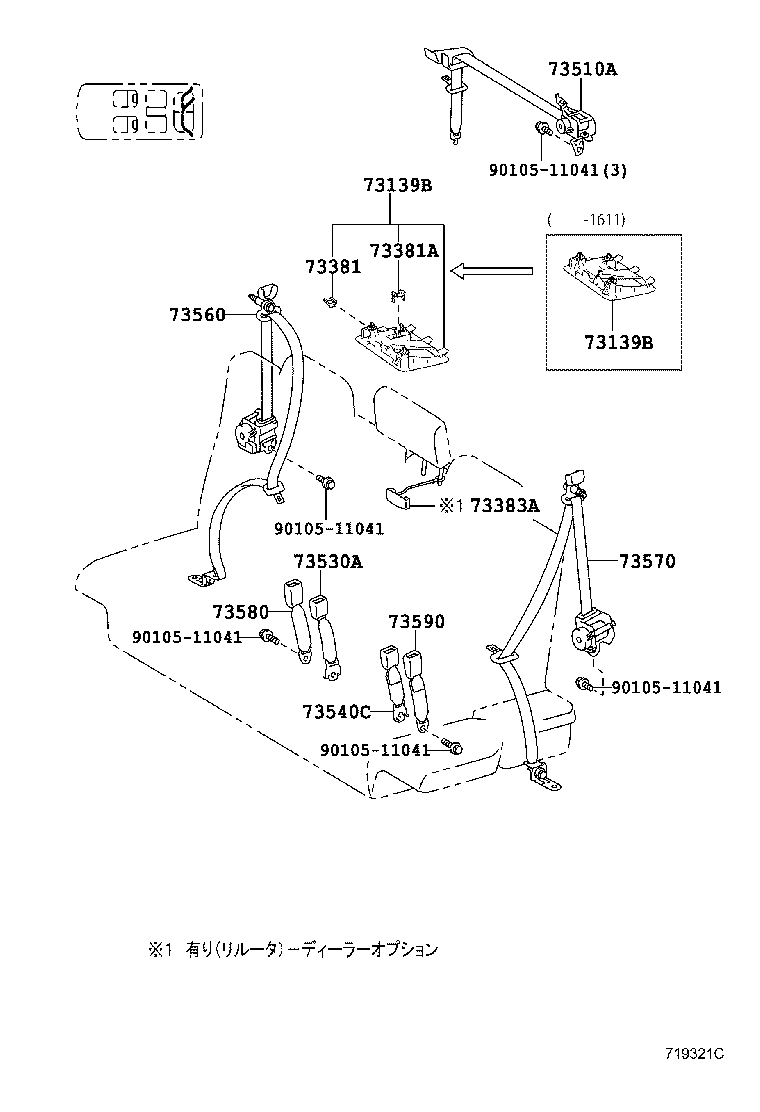

ﾘﾔNO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-58020B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 73139-58020A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73139-58021A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73139-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 73139-58021B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 73139-58020B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
1 | ||
| 73139-58021C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-58020B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 73139-58020A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73139-58021A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73139-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 73139-58021B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 73139-58020B0 |
AGH3#..08S..(S,Z);AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,X,ZR LT.GRAY,TRIM2# |
1 | ||
| 73139-58021C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-0D010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 73381A - HOLDER, REAR SEAT BELT NO.2 | ||||
| 73381-KK010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-58020 |
AGH3#,AYH30,GGH3# ﾘﾔNO.2ｼｰﾄﾍﾞﾙﾄ−3点式&ﾘﾙｰﾀ(DOP) |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-58041A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73510-58041C1 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73510-58040C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73510-58040A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-58010C2 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 73530-58010A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73540C - BELT ASSY, REAR NO.2 SEAT LAP TYPE | ||||
| 73540-58021A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73540-58021C2 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-58061A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73560-58060A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73560-58061C1 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73560-58060C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-58080A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73570-58081A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 73570-58080C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73570-58081C1 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK/BLACK,TRIM2# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-58040A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| 73580-58040C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM2# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-58040C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM2# |
1 | ||
| 73580-58040A0 |
AGH3#,AYH30,GGH3# FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11041 | ||||
(1501- )07S

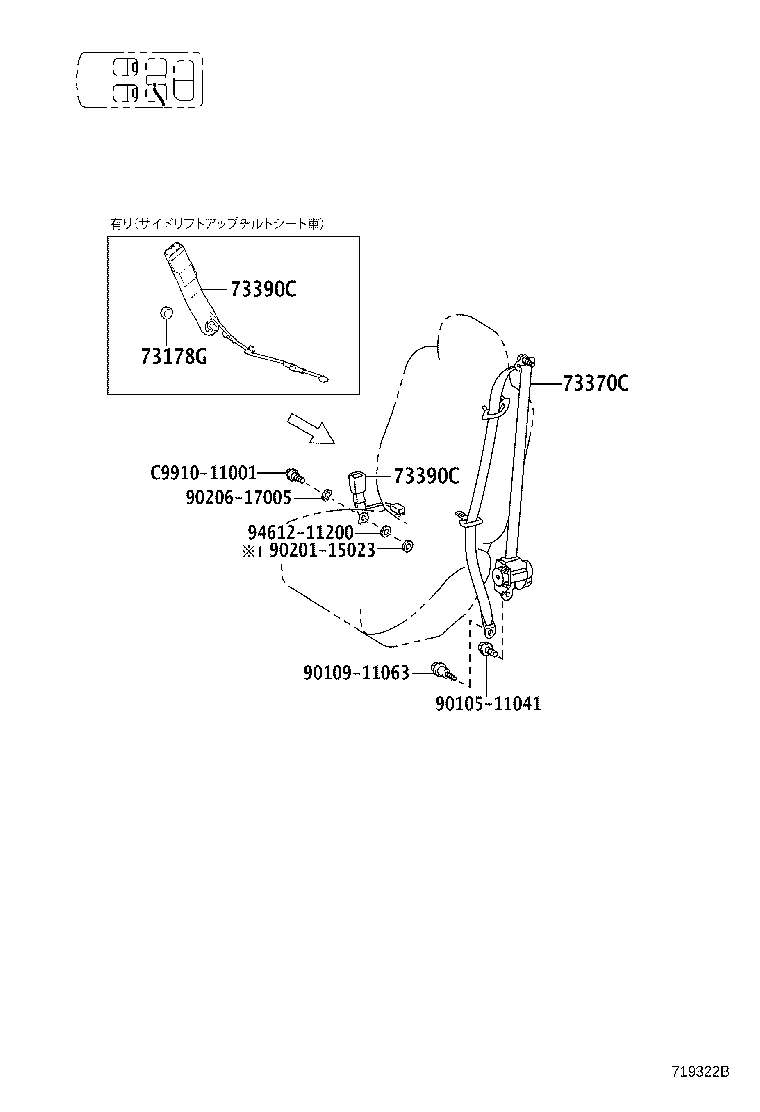

ﾘﾔNO.1ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58050A0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73370-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
1 | ||
| 73370-58050A0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73370-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 73370-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
1 | ||
| 73370-58051A1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73370-58051A1 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73370-58051A1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73370-58050A0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-58050A0 |
AYH30..07S..(G,SR,V,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 73380-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73380-58060A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73380-58060A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73380-58060C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73380-58060C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-58050A0 |
AYH30..07S..(G,SR,V,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 73380-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73380-58060A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73380-58060A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73380-58060C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73380-58060C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11041 | ||||
| 90109-11063 | ||||
| 90201-15023 | ||||
| 90206-17005 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
(1501- )07S

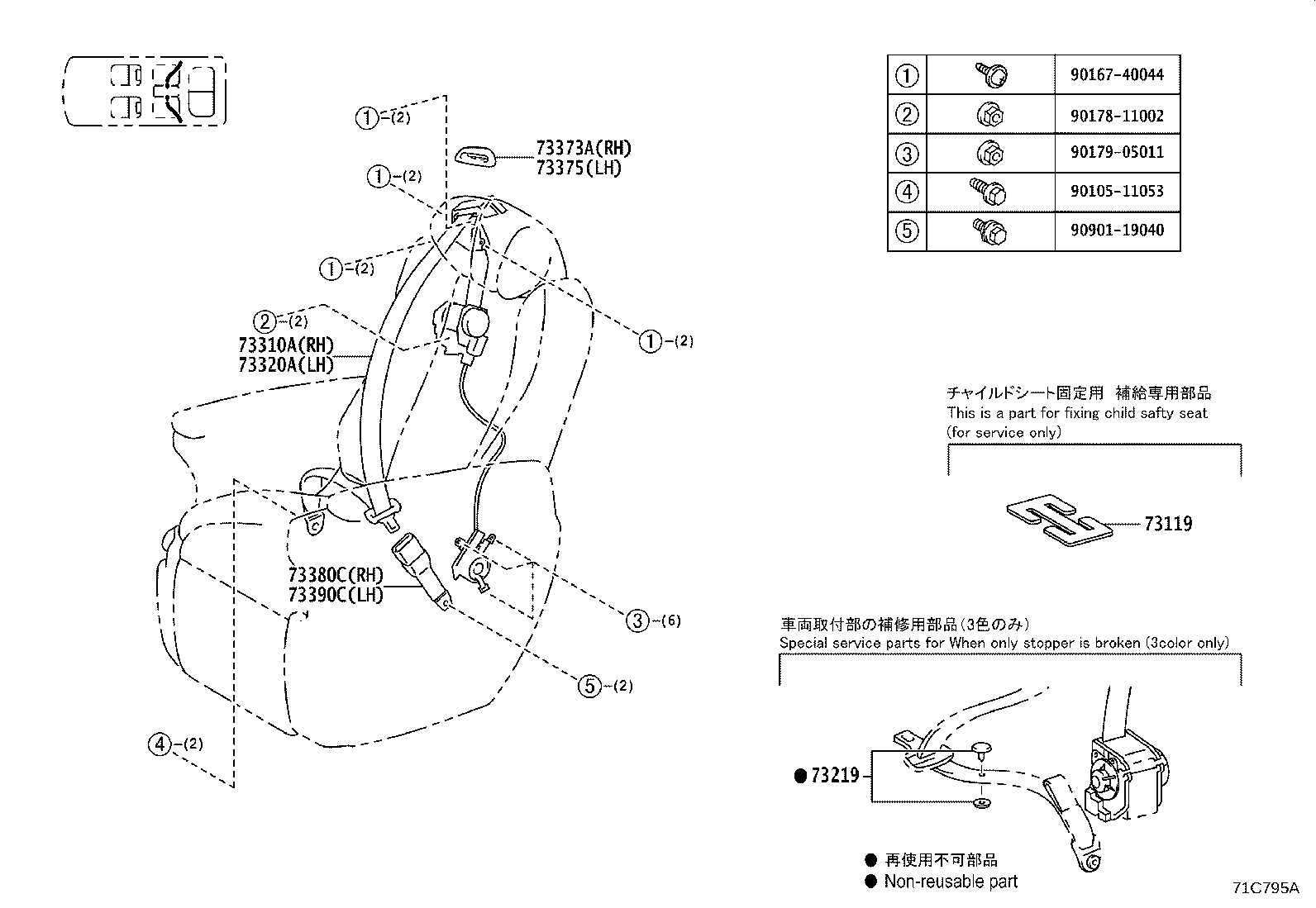

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AGH3#,AYH30,GGH3# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
AGH3#,AYH30,GGH3# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
AGH3#,AYH30,GGH3# ﾍﾞｰｼﾞｭ |
1 | ||
| 73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH | ||||
| 73310-58080A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73310-58080A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73310-58080C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73310-58070A0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) FLAXEN,TRIM0# |
1 | ||
| 73310-58081C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73310-58070C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73310-58081A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73310-58080C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH | ||||
| 73320-58060A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73320-58060C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73320-58060C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73320-58061C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73320-58050A0 |
AYH30..07S..(G,SR,V,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 73320-58061A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73320-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73320-58060A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-58030C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73373-58030A0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) FLAXEN,TRIM0# |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-58020C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73375-58020A0 |
AYH30..07S..(G,SR,V,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-58050A0 |
AGH3#,AYH30,GGH3#..07S..(G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR) FLAXEN,TRIM0# |
1 | ||
| 73380-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73380-58060C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73380-58060A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73380-58060C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 73380-58060A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-58050A0 |
AYH30..07S..(G,SR,V,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 73380-58050C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,Z,ZA) BLACK,TRIM2# |
1 | ||
| 73380-58060A0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 73380-58060A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 73380-58080A0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 73380-58060C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM2# |
1 | ||
| 73380-58060C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90167-40044 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90901-19040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
