GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

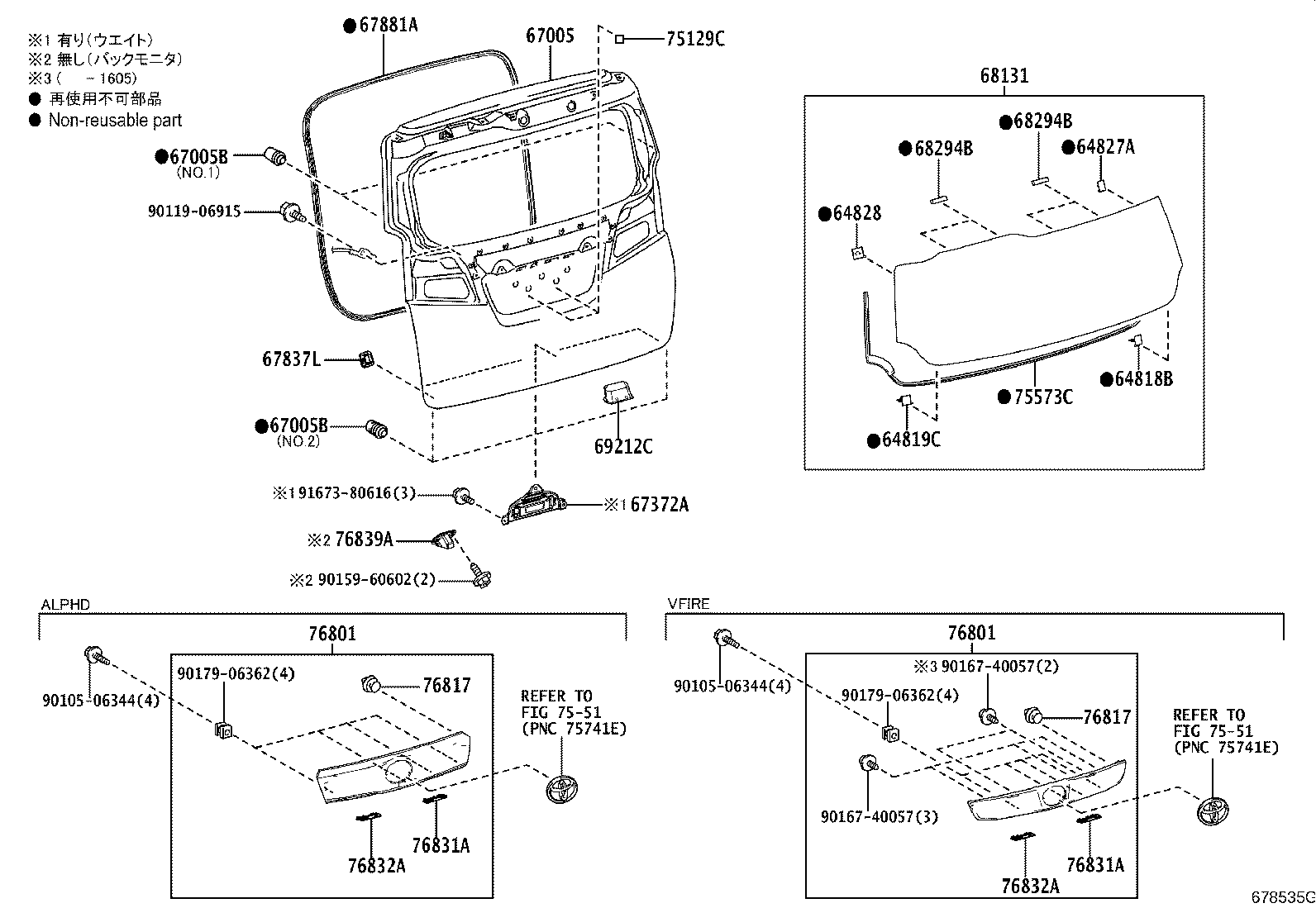

ILLUST NO. 1 OF 2(1501-1801)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-58210 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 67005-58200 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 67005-58160 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 67005-58150 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10034 |
AGH3#,AYH30,GGH3# NO.1 |
2 | ||
| 90541-09148 |
AGH3#,AYH30,GGH3# NO.2 |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10034 |
AGH3#,AYH30,GGH3# NO.1 |
2 | ||
| 90541-09148 |
AGH3#,AYH30,GGH3# NO.2 |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-58110 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AGH3#,AYH30,GGH3# |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AGH3#,AYH30,GGH3# |
4 | ||
| 69212C - HANDLE, BACK DOOR INSIDE | ||||
| 74811-28020C0 |
AYH30..EL;AGH3#,GGH3#..EL,G,S,V,X,Z BLACK,TRIM0#,2# |
1 | ||
| 74811-28020C0 |
AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-28020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-58160 |
AGH3#,AYH30,GGH3#..ALPHD ﾒｯｷ |
1 | ||
| 76801-58200 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-58160 |
AGH3#,AYH30,GGH3#..ALPHD ﾒｯｷ |
1 | ||
| 76801-58200 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
AGH3#,AYH30,GGH3# |
10 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
AGH3#,AYH30,GGH3# |
10 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 76839A - COVER, BACK DOOR GARNISH | ||||
| 76839-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 76839-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀ) |
1 | ||
| 76839-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 76839-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90119-06915 | ||||
| 90159-60602 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7551 | ||||

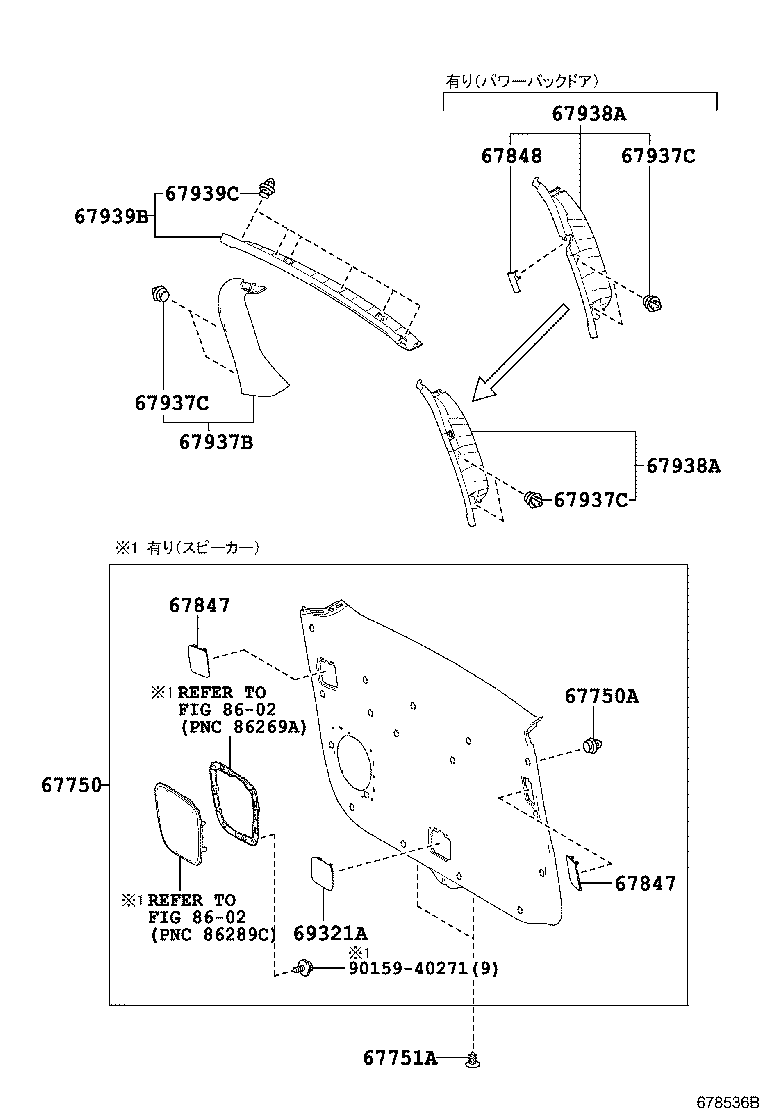

ILLUST NO. 2 OF 2(1501-1801)
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-58110C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0#,2# |
1 | ||
| 67750-58100C0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),BLACK,TRIM0#,2# |
1 | ||
| 67750-58090C0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 67750-58120C0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0#,2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
16 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07076C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 90467-07076C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 90467-07076C7 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 90467-07076C7 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-58020C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
2 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-58020C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
2 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),LT.GRAY,TRIM2# |
1 | ||
| 67848-58040A0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),FLAXEN,TRIM0# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 67937-58010A0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR FLAXEN,TRIM0# |
1 | ||
| 67937-58010A0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),FLAXEN,TRIM0# |
1 | ||
| 67937-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),LT.GRAY,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 67938-58010A0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR FLAXEN,TRIM0# |
1 | ||
| 67938-58020A0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),FLAXEN,TRIM0# |
1 | ||
| 67938-58020B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),LT.GRAY,TRIM2# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 67938-58010A0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR FLAXEN,TRIM0# |
1 | ||
| 67938-58020A0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),FLAXEN,TRIM0# |
1 | ||
| 67938-58020B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),LT.GRAY,TRIM2# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-58040A0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR FLAXEN,TRIM0# |
1 | ||
| 67939-58040A0 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),FLAXEN,TRIM0# |
1 | ||
| 67939-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),LT.GRAY,TRIM2# |
1 | ||
| 67939-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
6 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-58020C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90159-40271 | ||||
| Linked diagrams | ||||
| 8602 | ||||
