GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

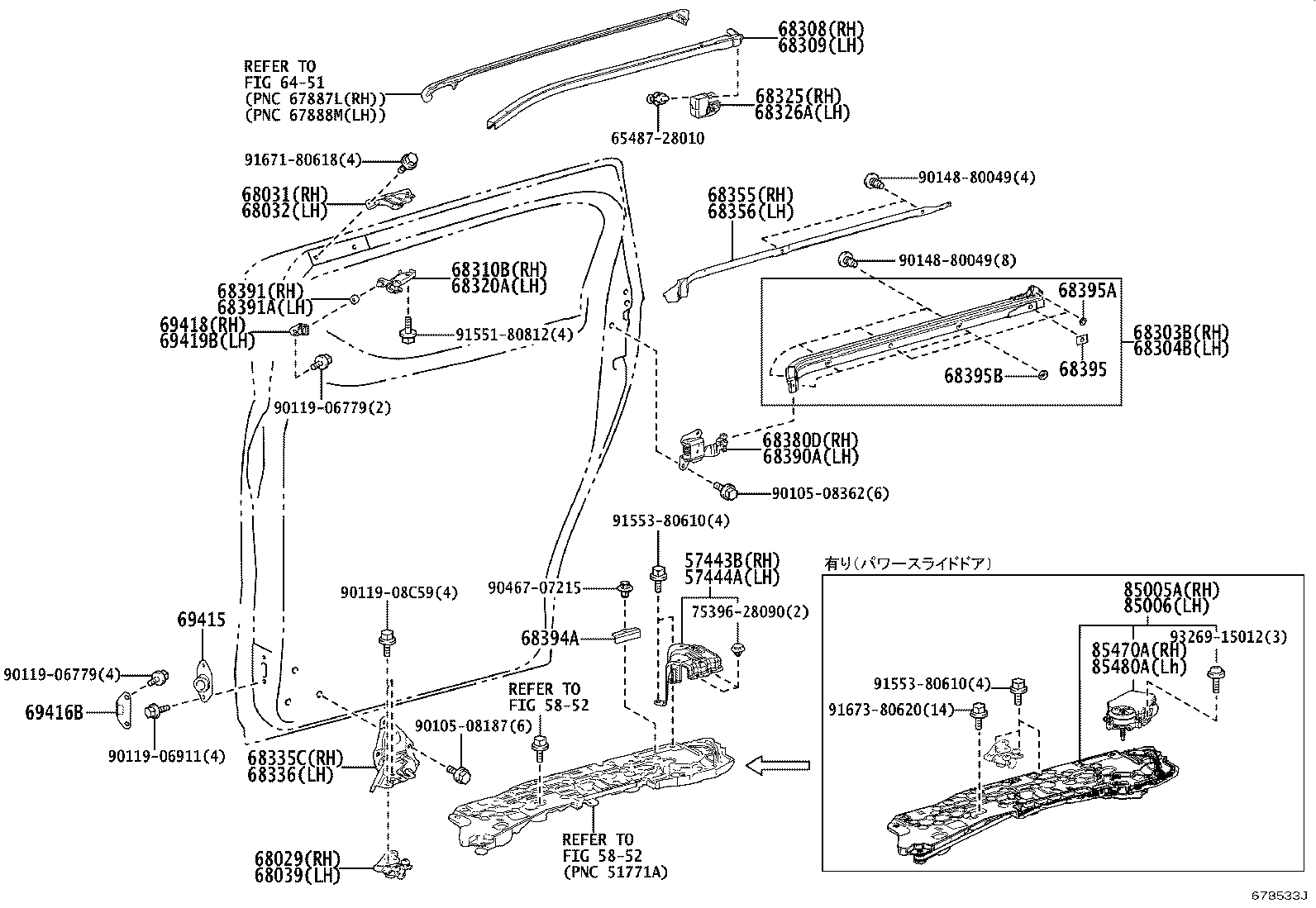

Click highlighted areas on diagram

diagram 57443B 57444A 5852 5852 6451 6548728010 68029 68031 68032 68039 68303B 68304B 68308 68309 68310B 68320A 68325 68326A 68335C 68336 68355 68356 68380D 68390A 68391 68391A 68394A 68395 68395A 68395B 69415 69416B 69418 69419B 7539628090 85005A 85006 85470A 85480A 9010508187 9010508362 9011906779 9011906779 9011906911 9011908C59 9014880049 9014880049 9046707215 9155180812 9155380610 9155380610 9167180618 9167380620 9326915012
Part # Description Qty Price
57443B - SUPPORT, SIDE STEP, REAR RH
51078-58010

AGH3#,AYH30,GGH3#

 1
57444A - SUPPORT, SIDE STEP, REAR LH
51079-58010

AGH3#,AYH30,GGH3#

 1
68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029-58030

AGH3#,AYH30,GGH3#

 1
68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH
68381-58030

AGH3#,AYH30,GGH3#

 1
68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH
68382-58030

AGH3#,AYH30,GGH3#

 1
68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68039-58030

AGH3#,AYH30,GGH3#

 1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-58040

AGH3#,AYH30,GGH3#

 1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-58040

AGH3#,AYH30,GGH3#

 1
68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68308-58030

AGH3#,AYH30,GGH3#

 1
68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68309-58030

AGH3#,AYH30,GGH3#

 1
68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH
68301-58040

AGH3#,AYH30,GGH3#

 1
68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68302-58040

AGH3#,AYH30,GGH3#

 1
68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH
68325-58030

AGH3#,AYH30,GGH3#

 1
68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH
68326-58030

AGH3#,AYH30,GGH3#

 1
68335C - ARM, SLIDE DOOR LOWER ROLLER, RH
68335-58030

AGH3#,AYH30,GGH3#

 1
68336 - ARM, SLIDE DOOR LOWER ROLLER, LH
68336-58030

AGH3#,AYH30,GGH3#

 1
68355 - GARNISH, SLIDE DOOR CENTER RAIL, RH
60835-58030

AGH3#,AYH30,GGH3#

 1
68356 - GARNISH, SLIDE DOOR CENTER RAIL, LH
60836-58030

AGH3#,AYH30,GGH3#

 1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-58030

AGH3#,AYH30,GGH3#

 1
68380-58031

AGH3#,AYH30,GGH3#

 1
68380-58032

AGH3#,AYH30,GGH3#

 1
68380-58033

AGH3#,AYH30,GGH3#

 1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-58042

AGH3#,AYH30,GGH3#

 1
68390-58043

AGH3#,AYH30,GGH3#

 1
68390-58041

AGH3#,AYH30,GGH3#

 1
68390-58040

AGH3#,AYH30,GGH3#

 1
68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391-28040

AGH3#,AYH30,GGH3#

 1
68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH
68391-28040

AGH3#,AYH30,GGH3#

 1
68394A - PLATE, SLIDE DOOR LOWER RAIL, RH
68394-58010

AGH3#,AYH30,GGH3#

 2
68395 - PACKING, SLIDE DOOR CENTER RAIL
68395-28120

AGH3#,AYH30,GGH3#

 1
68395A - PACKING, SLIDE DOOR CENTER RAIL
68395-52020

AGH3#,AYH30,GGH3#

 2
68395B - PACKING, SLIDE DOOR CENTER RAIL
68395-52050

AGH3#,AYH30,GGH3#

 3
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-58020

AGH3#,AYH30,GGH3#

 2
69415-28021

AGH3#,AYH30,GGH3#

 2
69416B - STOPPER, SLIDE DOOR DOWN MALE
69046-28020

AGH3#,AYH30,GGH3#

 2
69418 - STOP, SLIDE DOOR OPEN
69418-58010

AGH3#,AYH30,GGH3#

 1
69418-58011

AGH3#,AYH30,GGH3#

 1
69419B - STOP, SLIDE DOOR OPEN, LH
69419-58011

AGH3#,AYH30,GGH3#

 1
69419-58010

AGH3#,AYH30,GGH3#

 1
85005A - MOTOR UNIT, SLIDE DOOR, RH
85005-58050

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
85005-58051

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
85005-58052

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
85005-58053

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
85006 - MOTOR UNIT, SLIDE DOOR, LH
85006-58042

AGH3#,AYH30,GGH3#

 1
85006-58041

AGH3#,AYH30,GGH3#

 1
85006-58043

AGH3#,AYH30,GGH3#

 1
85006-58040

AGH3#,AYH30,GGH3#

 1
Common parts
65487-28010
75396-28090
90105-08187
90105-08362
90119-06779
90119-06911
90119-08C59
90148-80049
90467-07215
91551-80812
91553-80610
91671-80618
91673-80620
93269-15012
Linked diagrams
5852
6451
