GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

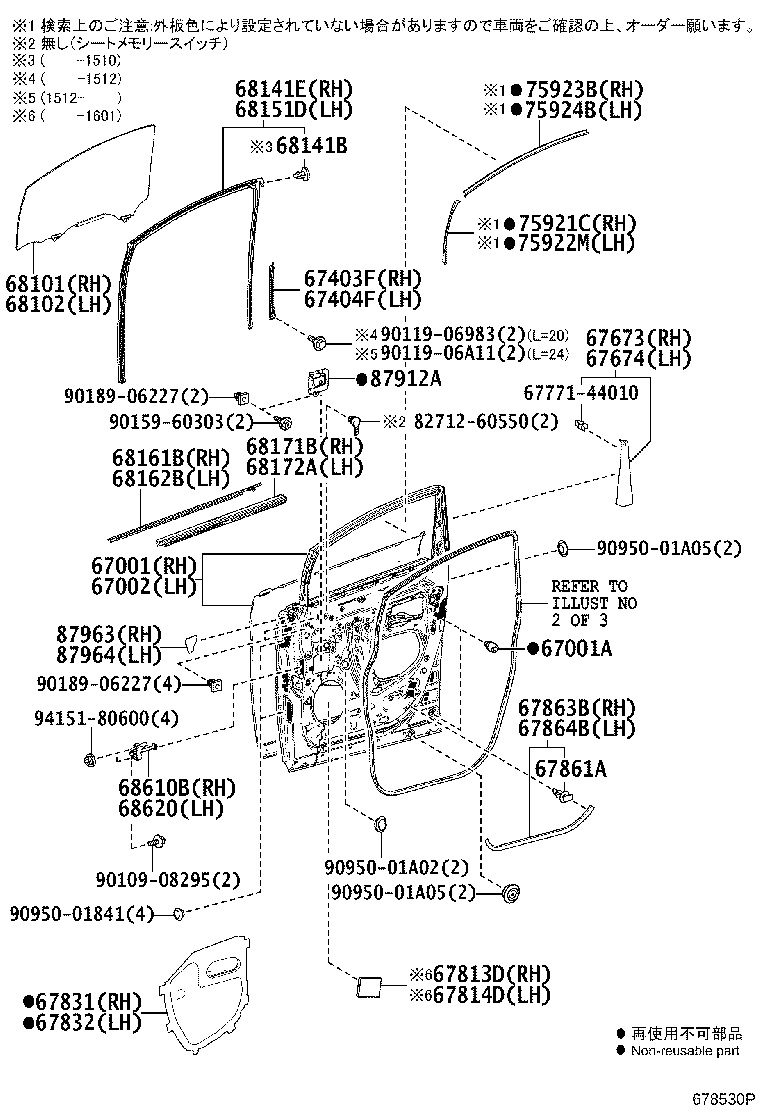

ILLUST NO. 1 OF 3(1501-1801)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67001-58070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
AGH3#,AYH30,GGH3# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67002-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67673 - GARNISH, DOOR FRAME, LOWER RH | ||||
| 67673-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67674 - GARNISH, DOOR FRAME, LOWER LH | ||||
| 67674-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67813D - SHEET, QUARTER PANEL SILENCER, RH | ||||
| 67817-47010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67814D - SHEET, QUARTER PANEL SILENCER, LH | ||||
| 67817-47010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
AGH3#,AYH30,GGH3# |
12 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-58100 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-58090 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 68141B - CLIP, DOOR GLASS RUN | ||||
| 90467-06084 |
AGH3#,AYH30,GGH3# |
2 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68141-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68141-58051 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68151-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68151-58051 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-58010 |
AGH3#,AYH30,GGH3# 右側 |
1 | ||
| 87912-58020 |
AGH3#,AYH30,GGH3# 左側 |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 82712-60550 | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90119-06A11 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01841 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 94151-80600 | ||||

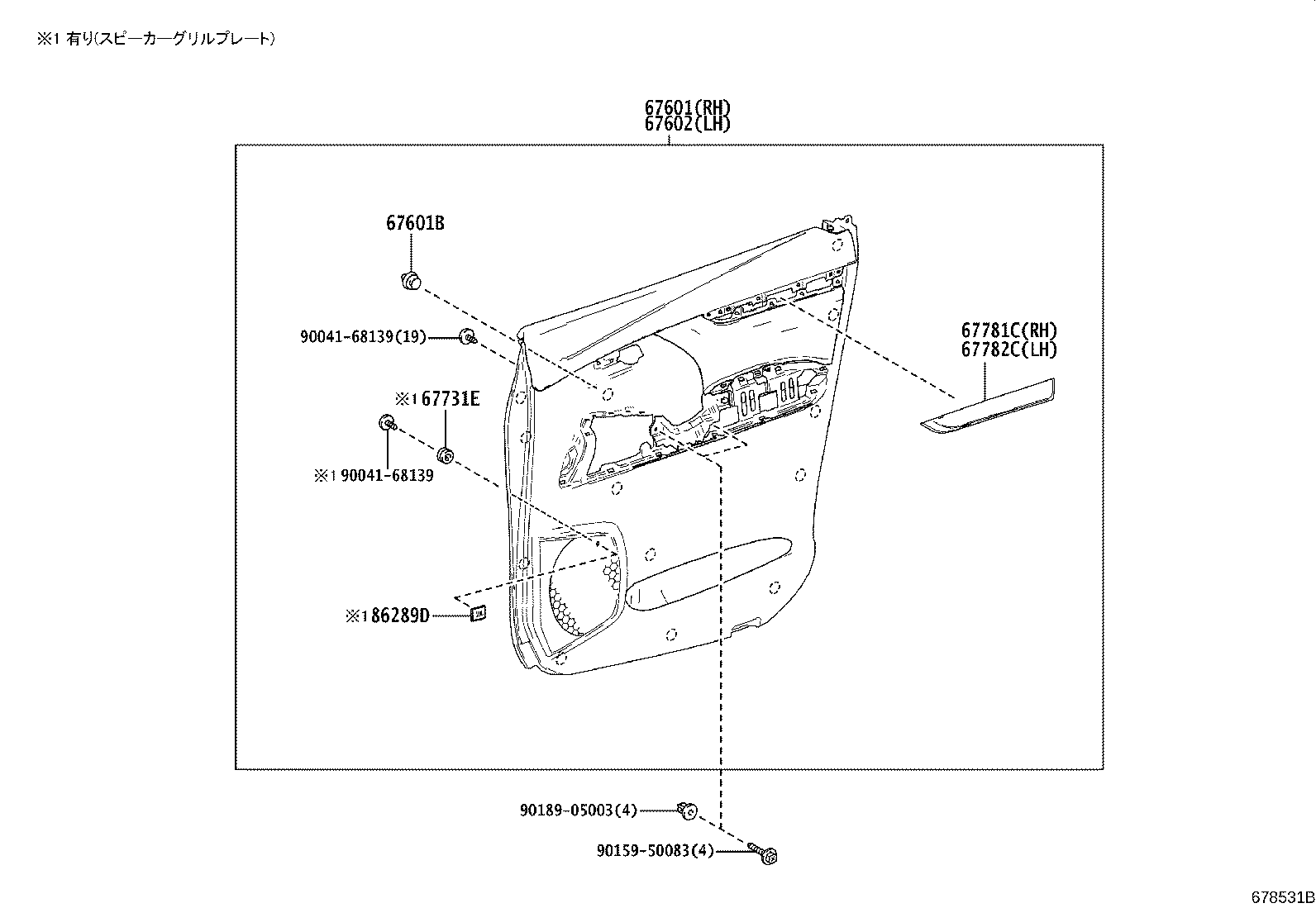

ILLUST NO. 3 OF 3(1501- )S,SA,X,Z,ZA
ﾄﾞｱﾄﾘﾑ(ﾋｮｳｼﾞｭﾝｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-58570C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 67610-58540C3 |
AGH3#,AYH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,FLAXEN,TRIM0# |
1 | ||
| 67610-58590C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67610-58600C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67610-58530C3 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 67610-58580C2 |
AGH3#,GGH3#..S,SA,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AGH3#,AYH30,GGH3# |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-58470C5 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 67620-58520C4 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67620-58570C1 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 67620-58480C5 |
AGH3#,AYH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,FLAXEN,TRIM0# |
1 | ||
| 67620-58510C4 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67620-58580C1 |
AGH3#,GGH3#..S,SA,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
2 | ||
| 67781C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67781-58250C1 |
AGH3#,GGH3#..S,SA,Z,ZA DARK GRAY,TRIM2# |
1 | ||
| 67782C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67782-58250C1 |
AGH3#,GGH3#..S,SA,Z,ZA DARK GRAY,TRIM2# |
1 | ||
| 86289D - PLATE, SPEAKER GRILLE | ||||
| 86289-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
2 | ||
| 86289-58020C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
2 | ||
| 86289-58020C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
2 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||

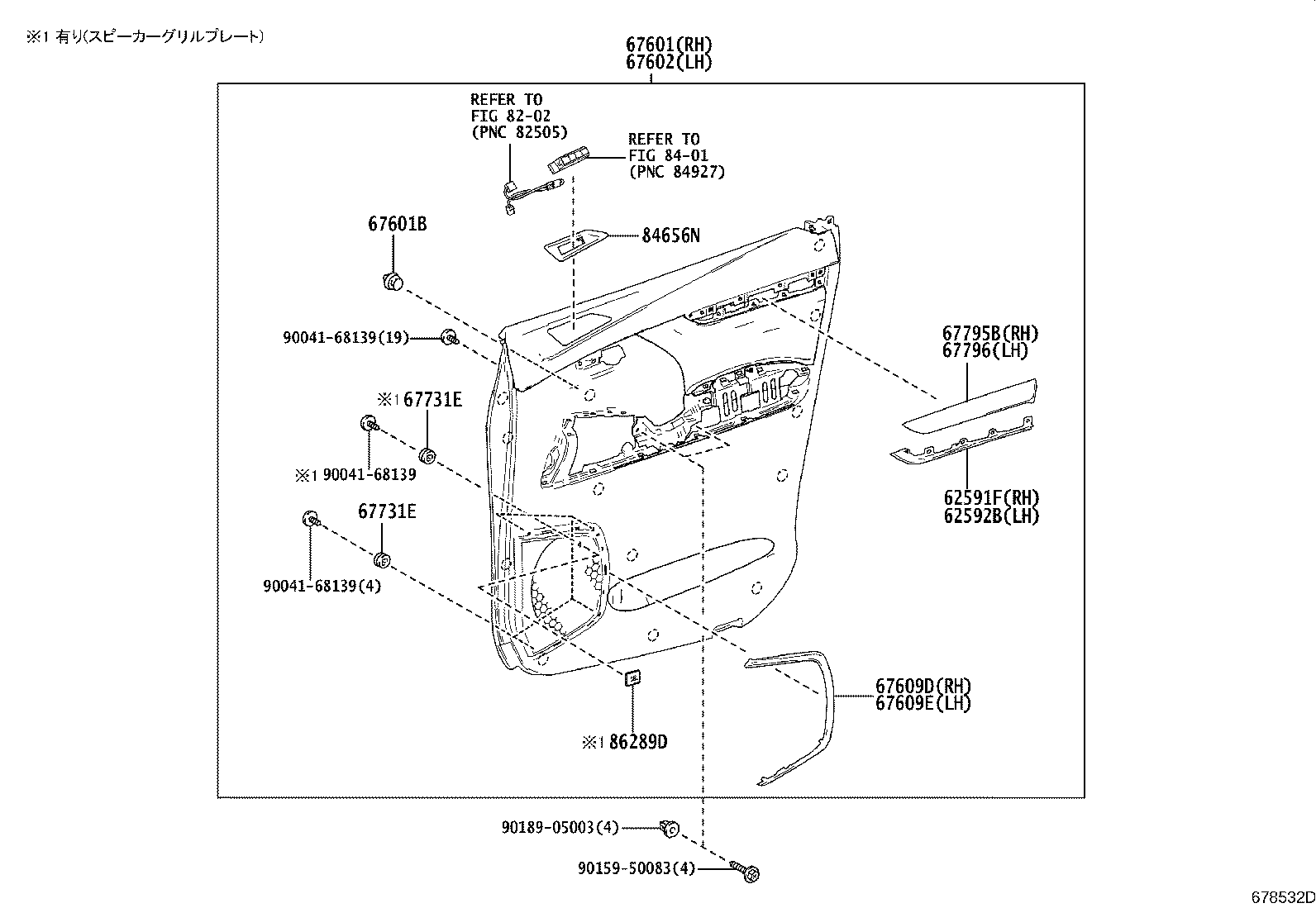

ILLUST NO. 3 OF 3(1501- )08S..G,V ; (1501- )07S..EL,ELS,ELZ,G,GF,S,SA,SC,SR,V,VL,Z,ZA,ZG,ZR
ﾄﾞｱﾄﾘﾑ(ｼﾞｮｳｷｭｳｼﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62591F - PLATE, SIDE TRIM BASE, NO.1 | ||||
| 62591-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL SATIN CHROME,TRIM0# |
1 | ||
| 62591-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,SATIN CHROME,TRIM2# |
1 | ||
| 62591-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,SATIN CHROME,TRIM2# |
1 | ||
| 62592B - PLATE, SIDE TRIM BASE, NO.2 | ||||
| 62592-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,SATIN CHROME,TRIM2# |
1 | ||
| 62592-58010B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,SATIN CHROME,TRIM2# |
1 | ||
| 62592-58010B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL SATIN CHROME,TRIM0# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-58570C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 67610-58540C3 |
AGH3#,AYH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,FLAXEN,TRIM0# |
1 | ||
| 67610-58590C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67610-58600C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67610-58530C3 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 67610-58580C2 |
AGH3#,GGH3#..S,SA,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AGH3#,AYH30,GGH3# |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-58470C5 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 67620-58520C4 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67620-58570C1 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 67620-58480C5 |
AGH3#,AYH30,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,FLAXEN,TRIM0# |
1 | ||
| 67620-58510C4 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67620-58580C1 |
AGH3#,GGH3#..S,SA,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 67609D - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH | ||||
| 67609-58050B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL SATIN CHROME,TRIM0# |
1 | ||
| 67609-58050B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,SATIN CHROME,TRIM2# |
1 | ||
| 67609-58050B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,SATIN CHROME,TRIM2# |
1 | ||
| 67609E - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH | ||||
| 67709-58050B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,SATIN CHROME,TRIM2# |
1 | ||
| 67709-58050B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL SATIN CHROME,TRIM0# |
1 | ||
| 67709-58050B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,SATIN CHROME,TRIM2# |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
2 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
8 | ||
| 67731-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
10 | ||
| 67731-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
2 | ||
| 67795B - BASE, DOOR TRIM ORNAMENT, FRONT NO.1 | ||||
| 67795-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DARK GRAY,TRIM2# |
1 | ||
| 67795-58010E0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL DARK BROWN,TRIM0# |
1 | ||
| 67795-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,DARK GRAY,TRIM2# |
1 | ||
| 67796 - BASE, DOOR TRIM ORNAMENT, FRONT NO.2 | ||||
| 67796-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DARK GRAY,TRIM2# |
1 | ||
| 67796-58010E0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL DARK BROWN,TRIM0# |
1 | ||
| 67796-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,DARK GRAY,TRIM2# |
1 | ||
| 84656N - BEZEL, SWITCH, RH | ||||
| 84656-58050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK |
1 | ||
| 84656-58050C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK |
1 | ||
| 84656-58050C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR BLACK |
1 | ||
| 86289D - PLATE, SPEAKER GRILLE | ||||
| 86289-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
2 | ||
| 86289-58020C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
2 | ||
| 86289-58020C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
2 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

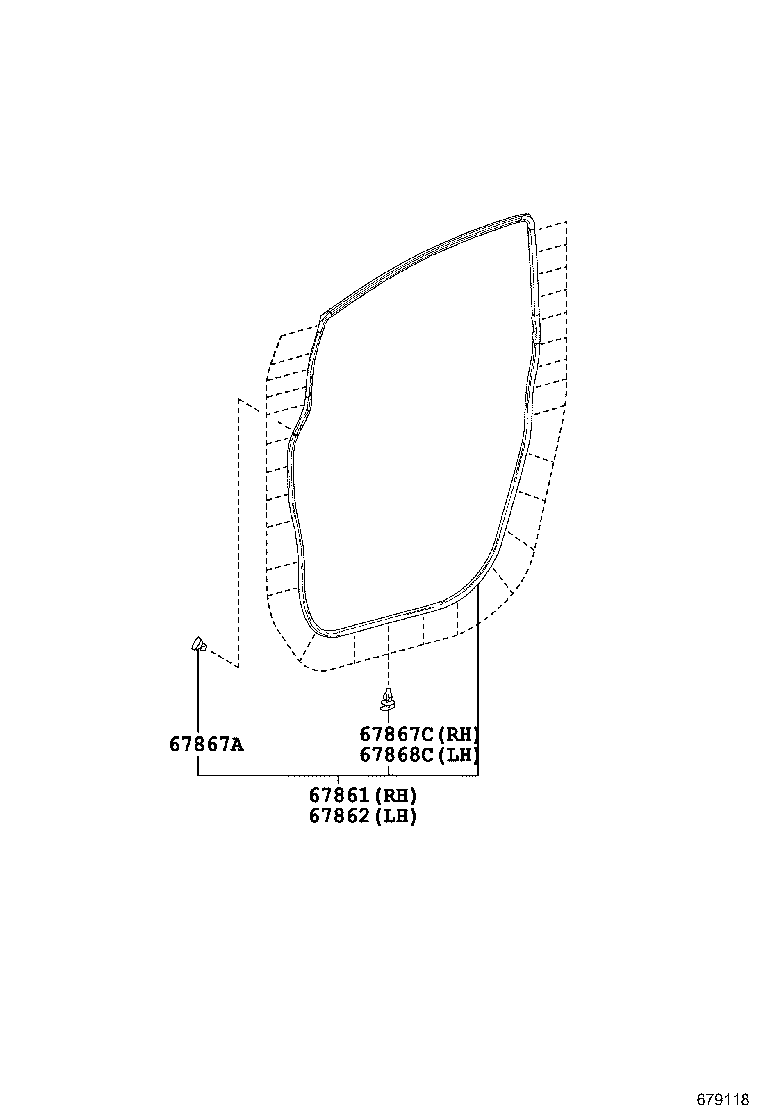

ILLUST NO. 2 OF 3(1501- )
ｳｪｻﾞｽﾄﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67861-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67862-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
AGH3#,AYH30,GGH3# |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AGH3#,AYH30,GGH3# |
29 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AGH3#,AYH30,GGH3# |
29 | ||
Part Price Details
Loading price information...
Part Number:
Price:
