GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
(1501- )

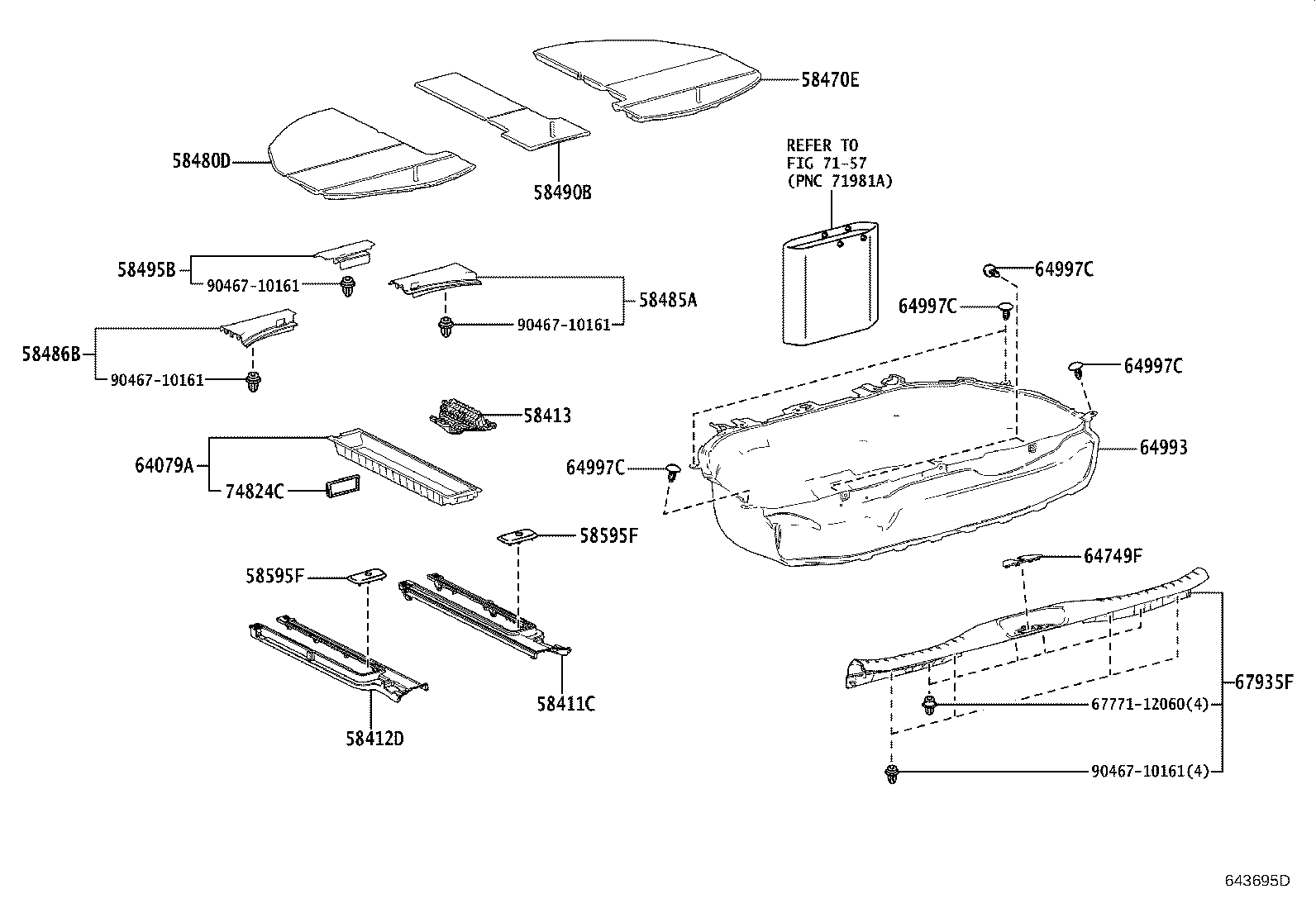

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58411C - COVER, DECK RAIL, NO.1 | ||||
| 58411-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58412D - COVER, DECK RAIL, NO.2 | ||||
| 58412-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58413 - COVER, DECK RAIL | ||||
| 58413-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58470E - BOARD ASSY, REAR FLOOR, NO.1 | ||||
| 58470-58010C2 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 58470-58010C2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 58480D - BOARD ASSY, REAR FLOOR, NO.2 | ||||
| 58480-58010C2 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 58480-58010C2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 58485A - PLATE, REAR FLOOR BOARD, UPPER NO.1 | ||||
| 58485-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58486B - PLATE, REAR FLOOR BOARD, UPPER NO.2 | ||||
| 58486-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58490B - BOARD ASSY, REAR FLOOR, NO.3 | ||||
| 58490-58010C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 58490-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 58495B - PLATE, REAR FLOOR BOARD, UPPER NO.3 | ||||
| 58495-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 58595F - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AGH3#,GGH3#;AYH30..EL,SR,X,ZR BLACK,TRIM0#,2# |
2 | ||
| 58595F - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AGH3#,GGH3#;AYH30..EL,SR,X,ZR BLACK,TRIM0#,2# |
2 | ||
| 64079A - BOX SUB-ASSY, UTILITY | ||||
| 64079-58010C0 |
AGH3#..08S..X;AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR BLACK,TRIM0#,2# |
1 | ||
| 64079-58011C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 64079-58011C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 64749F - COVER, BACK DOOR STRIKER | ||||
| 64749-58020C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 64993-58021 |
AGH3#,AYH30,GGH3# ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ) |
1 | ||
| 64993-58020 |
AGH3#,AYH30,GGH3# ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ) |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 90467-05164C0 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 90467-05164C0 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 90467-05164C0 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 90467-05164C0 |
AGH3#,AYH30,GGH3# BLACK |
7 | ||
| 67935F - PLATE, BACK DOOR SCUFF | ||||
| 67935-58030C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 74824C - PLATE, SEPARATOR BOARD | ||||
| 74824-58010C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 74824-58010C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7157 | ||||
