GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

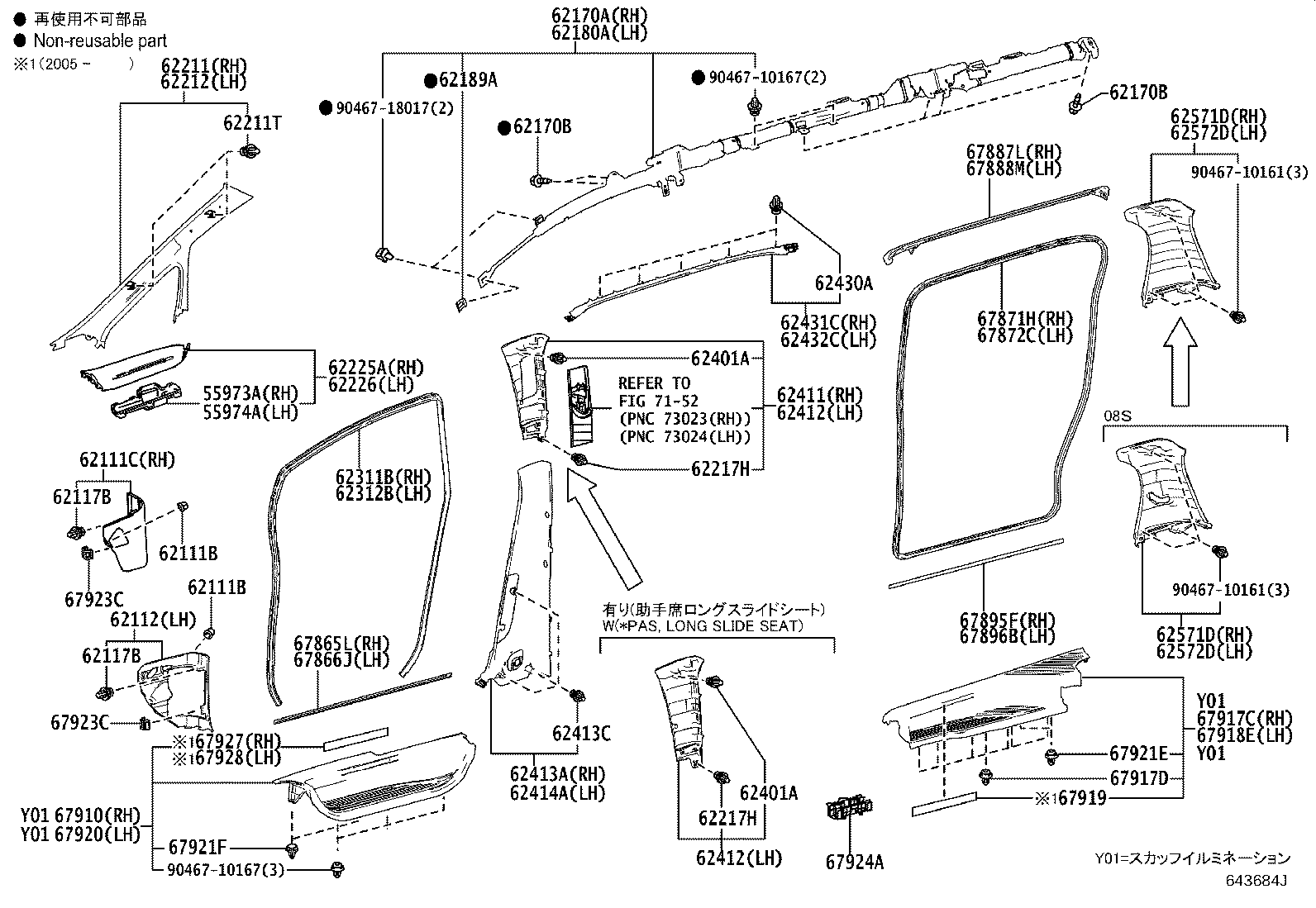

ILLUST NO. 1 OF 3(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-58070C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-58090C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AGH3#,AYH30,GGH3# |
12 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AGH3#,AYH30,GGH3# |
12 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-58070A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62211-58080C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,CHARCOAL,TRIM21 |
1 | ||
| 62211-58080A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 62211-58080B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62211-58070C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62211-58070B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62211-58070B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-58080A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 62212-58070B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62212-58070A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62212-58070B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62212-58080B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62212-58070C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62212-58080C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,CHARCOAL,TRIM21 |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-58050C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-58050C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10188 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10188 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-58060B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62410-58060A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62410-58061A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 62410-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62410-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62410-58061A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62410-58060A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62410-58061A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62410-58061B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62410-58061A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-58060A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62420-58060B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62420-58061A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 62420-58080A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-58060A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62420-58060A1 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V FLAXEN,TRIM0# |
1 | ||
| 62420-58060B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62420-58061A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,FLAXEN,TRIM0# |
1 | ||
| 62420-58080A1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62420-58061A1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62420-58061B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-58030C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-58030C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
1 | ||
| 62414-58030C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
1 | ||
| 62414-58040C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 62414-58030C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK,TRIM0#,2# |
1 | ||
| 62414-58030C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 62414-58030C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-10167 |
AGH3#,AYH30,GGH3# |
10 | ||
| 62431C - GARNISH, ROOF SIDE RAIL, FRONT RH | ||||
| 62430-58020A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,V,VL,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62430-58020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62430-58020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62430-58020C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62432C - GARNISH, ROOF SIDE RAIL, FRONT LH | ||||
| 62440-58020A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SA,V,VL,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62440-58020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62440-58020C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62440-58020B1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62550-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62550-58120A2 |
AGH3#,AYH30,GGH3#..07S..(EL,G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62550-58100A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,X,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 62550-58120C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM21 |
1 | ||
| 62550-58120B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62550-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62550-58100C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62550-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62550-58120A2 |
AGH3#,AYH30,GGH3#..07S..(EL,G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62550-58100A0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,X,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 62550-58120C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM21 |
1 | ||
| 62550-58120B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62550-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62550-58100C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62560-58100A0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(S,SA,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 62560-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62560-58120B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62560-58110A2 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62560-58120A2 |
AGH3#,AYH30,GGH3#..07S..(EL,G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62560-58120C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM21 |
1 | ||
| 62560-58100C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62560-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62560-58110A2 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62560-58110A2 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62560-58100A0 |
AYH30..07S..X;AGH3#,GGH3#..07S..(S,SA,Z,ZA) FLAXEN,TRIM0# |
1 | ||
| 62560-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62560-58120B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM21 |
1 | ||
| 62560-58110A2 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 62560-58120A2 |
AGH3#,AYH30,GGH3#..07S..(EL,G,GF,V,VL) FLAXEN,TRIM0# |
1 | ||
| 62560-58120C2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM21 |
1 | ||
| 62560-58100C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62560-58100B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62560-58110A2 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),FLAXEN,TRIM0# |
1 | ||
| 62560-58110A2 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),FLAXEN,TRIM0# |
1 | ||
| 67865L - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-58100 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67866J - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67872C - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67888M - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67895F - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 67895-58020 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 67895-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67896B - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 67896-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 67896-58020 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-58130C0 |
AGH3#,AYH30,GGH3#..ALPHD..(S,SA,X) BLACK,TRIM0#,2# |
1 | ||
| 67910-58180C1 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 67910-58180C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-58010C0 |
AGH3#,AYH30,GGH3#..ALPHD..(S,SA,X) BLACK,TRIM0#,2# |
1 | ||
| 67930-58030C1 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 67930-58030C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
AGH3#,AYH30,GGH3# |
14 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-58030C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67940-58010C0 |
AGH3#,AYH30,GGH3#..ALPHD..(S,SA,X) BLACK,TRIM0#,2# |
1 | ||
| 67940-58030C1 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-58180C1 |
GGH3#..GF “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 67920-58180C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67920-58180C1 |
GGH3#..GF ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 67920-58180C1 |
AGH3#,GGH3#..07S..(G,GF) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 67920-58180C1 |
GGH3#..GF ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 67920-58220C1 |
AGH3#,GGH3#..07S..(G,GF) BLACK,TRIM0# |
1 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67771-28150 |
AGH3#,AYH30,GGH3# |
4 | ||
| 67921F - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-58030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
4 | ||
| 67771-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
4 | ||
| 67771-58030 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
4 | ||
| 67771-58030 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
4 | ||
| 67771-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
4 | ||
| 67771-58030 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
6 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-28010 |
AGH3#,AYH30,GGH3# |
8 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-18017 | ||||
| Linked diagrams | ||||
| 7152 | ||||

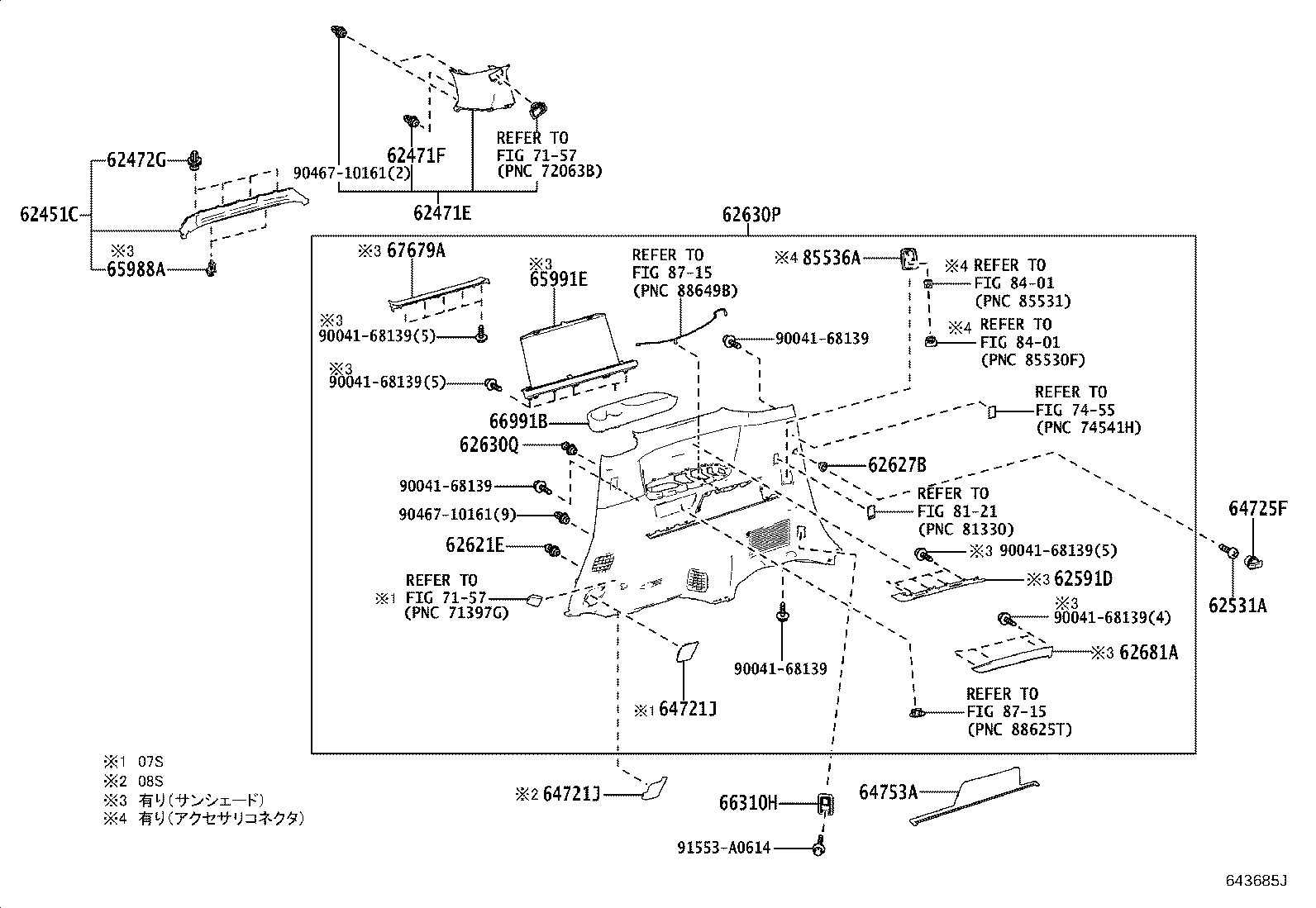

ILLUST NO. 2 OF 3(1501- )
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62450-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
1 | ||
| 62450-58040A2 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 62450-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
1 | ||
| 62450-58040B2 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
1 | ||
| 62450-58030C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
1 | ||
| 62450-58030A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62470-58070A1 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
1 | ||
| 62470-58080A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 62470-58070B1 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA LT.GRAY,TRIM2# |
1 | ||
| 62470-58071B1 |
AGH3#,GGH3#..S,SA,Z,ZA LT.GRAY,TRIM2# |
1 | ||
| 62470-58081A1 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 67771-28150 |
AGH3#,AYH30,GGH3# |
2 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
AGH3#,AYH30,GGH3# |
8 | ||
| 62531A - SPACER, QUARTER TRIM, RH | ||||
| 62531-60010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62591D - PLATE, SIDE TRIM BASE, NO.1 | ||||
| 62595-58020B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL SATIN CHROME,TRIM0# |
1 | ||
| 62595-58020B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,SATIN CHROME,TRIM2# |
1 | ||
| 62621E - CLIP | ||||
| 90467-09236 |
AGH3#,AYH30,GGH3# |
1 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-58B30C3 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM2# |
1 | ||
| 62630-58B80C3 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 62630-58B60C4 |
AGH3#,AYH30,GGH3#..07S..(G,GF,V,VL) BLACK,TRIM0# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-09236 |
AGH3#,AYH30,GGH3# |
5 | ||
| 62681A - ORNAMENT, QUARTER TRIM, RH | ||||
| 62691-58010E0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL DARK BROWN,TRIM0# |
1 | ||
| 62691-58020C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DARK GRAY,TRIM2# |
1 | ||
| 64721J - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-58040C0 |
AGH3#,AYH30,GGH3#..07S BLACK,TRIM0#,2# |
1 | ||
| 64721J - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-58040C0 |
AGH3#,AYH30,GGH3#..07S BLACK,TRIM0#,2# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 64753A - GARNISH, DECK SIDE, REAR, RH | ||||
| 64753-58030C0 |
AGH3#,AYH30,GGH3# BLACK,TRIM0#,2# |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-58010C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
4 | ||
| 65988-58010C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
4 | ||
| 65991E - CURTAIN, REAR WINDOW, RH | ||||
| 65991-58010C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR BLACK,TRIM0#,2# |
1 | ||
| 65991-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 66310-30011C1 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 66991-58040C0 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 67679A - BEZEL, SUNSHADE, RH | ||||
| 67679-58010C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 67679-58010C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90467-10161 | ||||
| 91553-A0614 | ||||
| Linked diagrams | ||||
| 7157 | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
