GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
ILLUST NO. 1 OF 3(1501- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63103-58030 |
AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63111-58080 |
AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63111-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 63111-58070 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63111-58080 |
AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63111-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 63111-58070 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63125-58030 |
AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 91631-B0614 | ||||

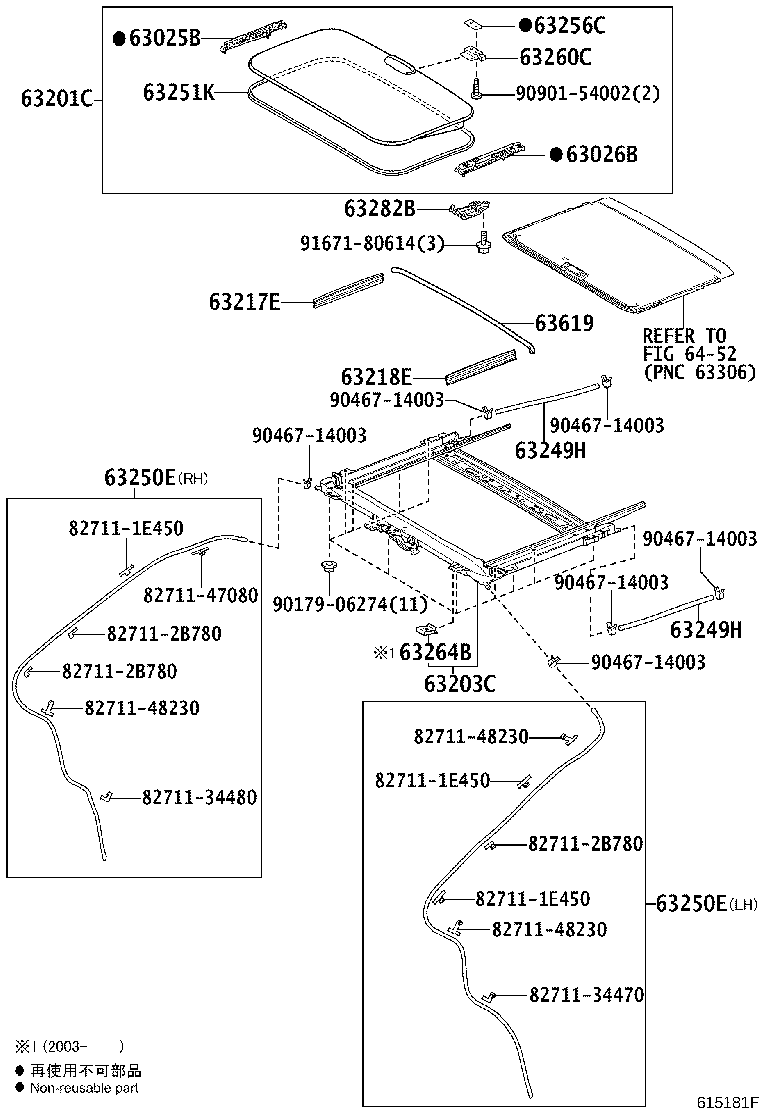

ILLUST NO. 2 OF 3(1501- )AGH30,AYH30,GGH30 ; (1501- )GGH35..EL,ELS,ELZ,GF,VL
ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-58060 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63203-58060 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217E - GARNISH, SLIDING ROOF, FRONT RH | ||||
| 63217-58020 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63218E - GARNISH, SLIDING ROOF, FRONT LH | ||||
| 63217-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217-58020 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63249H - HOSE, SLIDING ROOF DRAIN | ||||
| 63245-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63249H - HOSE, SLIDING ROOF DRAIN | ||||
| 63245-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63250E - HOSE ASSY, TILT ROOF DRAIN | ||||
| 63250-58060 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63250-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63250E - HOSE ASSY, TILT ROOF DRAIN | ||||
| 63250-58060 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63250-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH | ||||
| 63263-60030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63263-60030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| Common parts | ||||
| 82711-1E450 | ||||
| 82711-2B780 | ||||
| 82711-34470 | ||||
| 82711-34480 | ||||
| 82711-47080 | ||||
| 82711-48230 | ||||
| 90179-06274 | ||||
| 90467-14003 | ||||
| 90901-54002 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 6452 | ||||

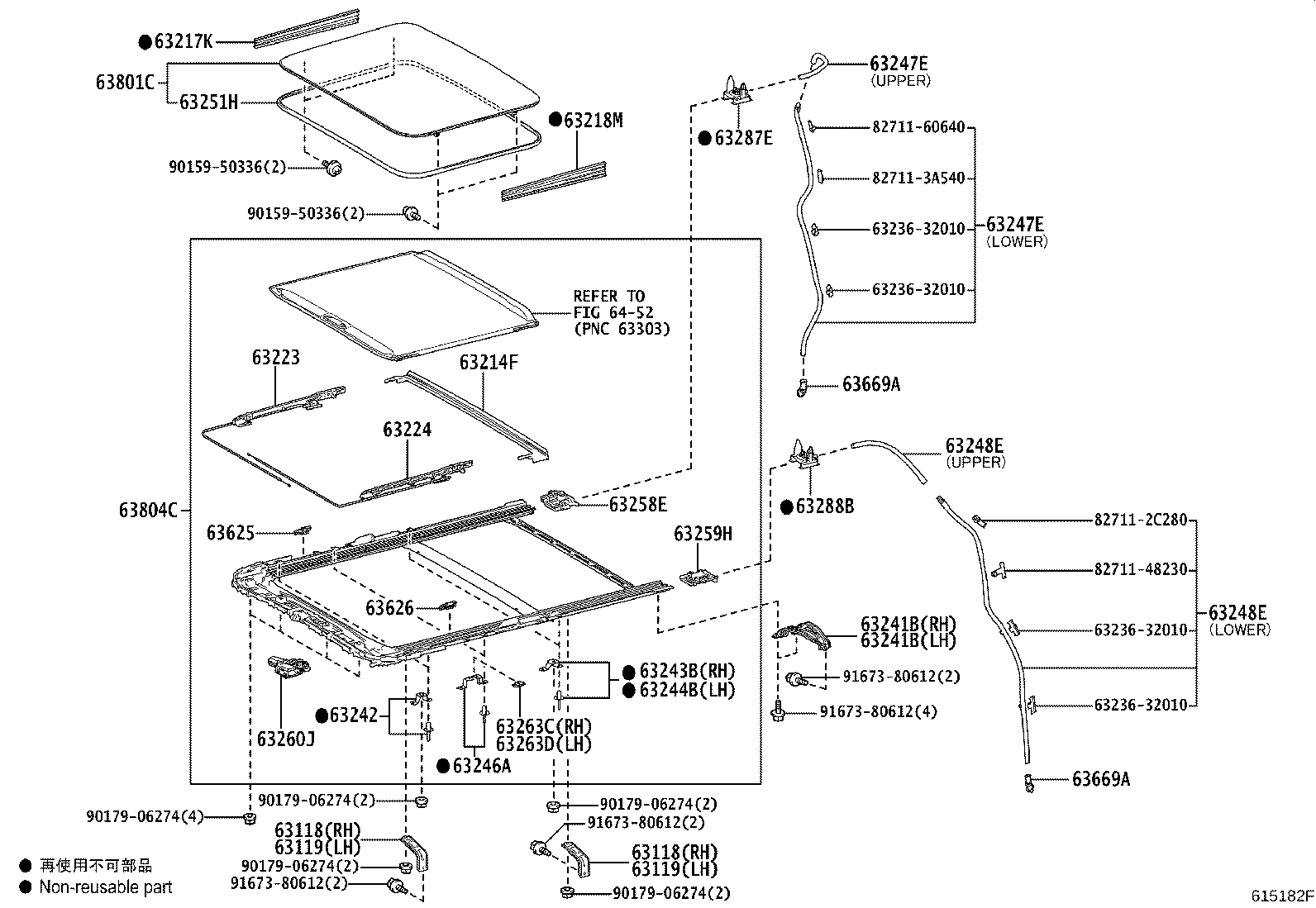

ILLUST NO. 3 OF 3(1501- )AGH30,AYH30,GGH30 ; (1501- )GGH35..EL,ELS,ELZ,GF,VL
ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63118-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63118-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63118-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63118-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-33070 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63214-33070 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63217-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63223-58020 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-58020 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63224-58020 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63241-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63241-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63241-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63241-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63241-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 63241-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 63242 - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63242-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63242-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63243B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH | ||||
| 63243-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63243-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63244B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH | ||||
| 63244-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63244-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63246A - BRACKET, REMOVABLE ROOF, NO.2 | ||||
| 63246-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63246-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63247-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63247-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63247-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63247-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63247-58050 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63247-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63248-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63248-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63248-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63248-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63248-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),下側 |
1 | ||
| 63248-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),上側 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-58050 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63258-58040 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63259H - JOINT, SLIDE ROOF DRAIN HOSE, LH | ||||
| 63259-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63259-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-58030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63260-58030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63263C - PLATE, SLIDING ROOF LOCK CATCH, RH | ||||
| 63263-60030 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63263-60030 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63287E - CAP, SLIDING ROOF HOUSING DRAIN END, RH | ||||
| 63287-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63287-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63288B - CAP, SLIDING ROOF HOUSING DRAIN END, LH | ||||
| 63288-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63288-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63625-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-58010 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63626-58010 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
2 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-58040 |
GGH35..EL,GF,VL;AGH30,AYH30,GGH30 ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF | ||||
| 63804-58050C0 |
AGH30,GGH30..07S..(S,SA,Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),BLACK,TRIM2# |
1 | ||
| 63804-58040A0 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),FLAXEN,TRIM0# |
1 | ||
| 63804-58040B0 |
GGH35..GF,VL;AGH30,AYH30,GGH30..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),LT.GRAY,TRIM2# |
1 | ||
| Common parts | ||||
| 63236-32010 | ||||
| 82711-2C280 | ||||
| 82711-3A540 | ||||
| 82711-48230 | ||||
| 82711-60640 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6452 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
