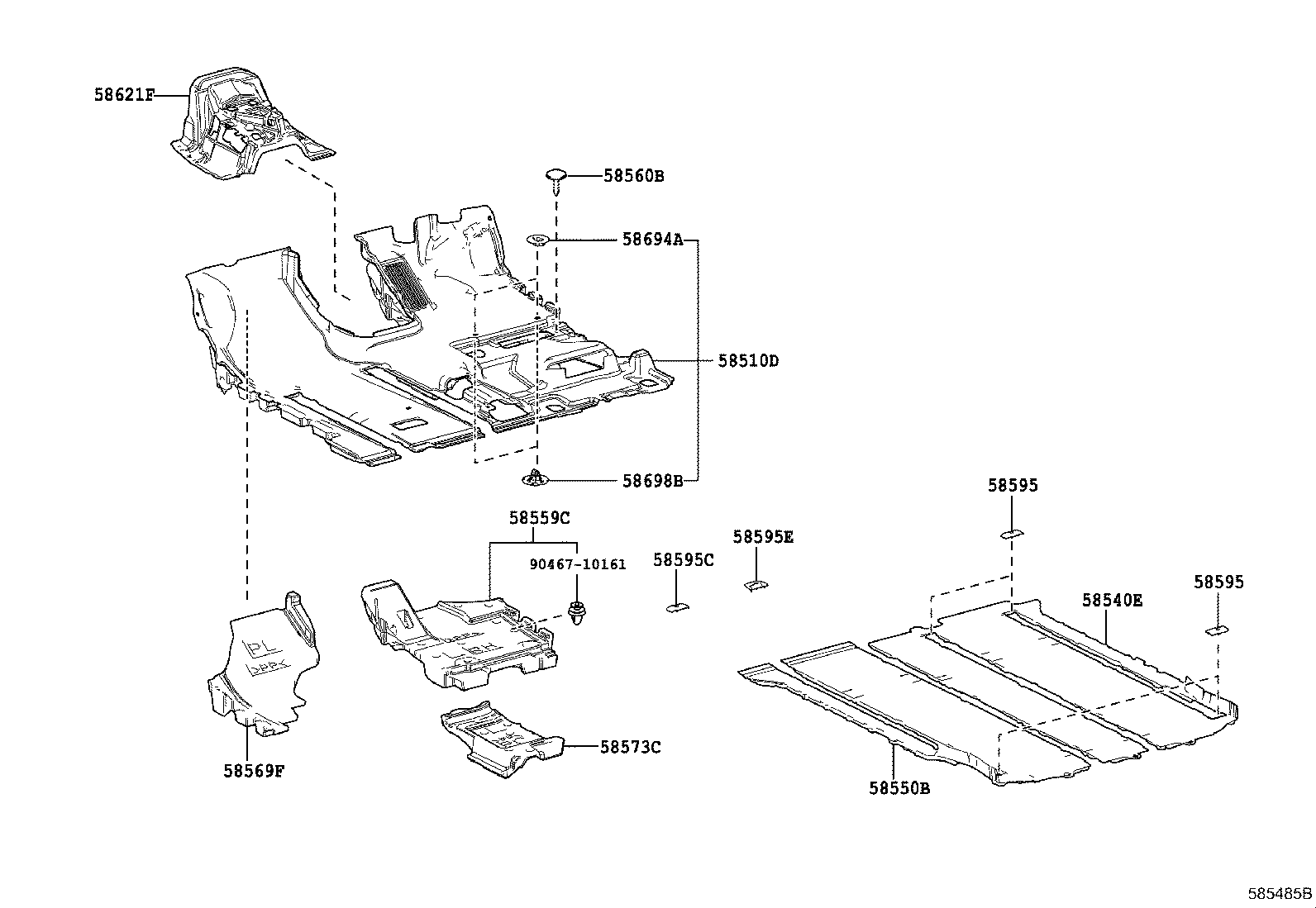

GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
(1501-1801)AGH3#,GGH3#..07S..G,GF,S,SA,V,VL,Z,ZA; (1801-2001)AGH3#..07S..S,Z
ｱﾘ(ｼﾞｮｼｭｾｷ ﾛﾝｸﾞｽﾗｲﾄﾞｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58500-58200C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58500-58200C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0# |
1 | ||
| 58500-58210C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58540E - MAT ASSY, FLOOR, REAR RH | ||||
| 58540-58040B1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) DK. GREY,TRIM0# |
1 | ||
| 58550B - MAT ASSY, FLOOR, REAR LH | ||||
| 58550-58010B1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) DK. GREY,TRIM0# |
1 | ||
| 58559C - PAD, FRONT FLOOR SIDE, RH | ||||
| 58559-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C7 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 58569F - PAD, FRONT FLOOR SIDE, LH | ||||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 58569-58010 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58569-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 58569-58010 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 58569-58010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 58573C - PAD, FRONT FLOOR CENTER | ||||
| 58573-58030 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58573-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 58573-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 58573-58040 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
4 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
5 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
4 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
4 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
5 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
4 | ||
| 58595C - MOULDING, FLOOR CARPET, NO.1 | ||||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-58100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 58595-58090C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
2 | ||
| 58595-58090C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
2 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-58010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| Common parts | ||||
| 90467-10161 | ||||

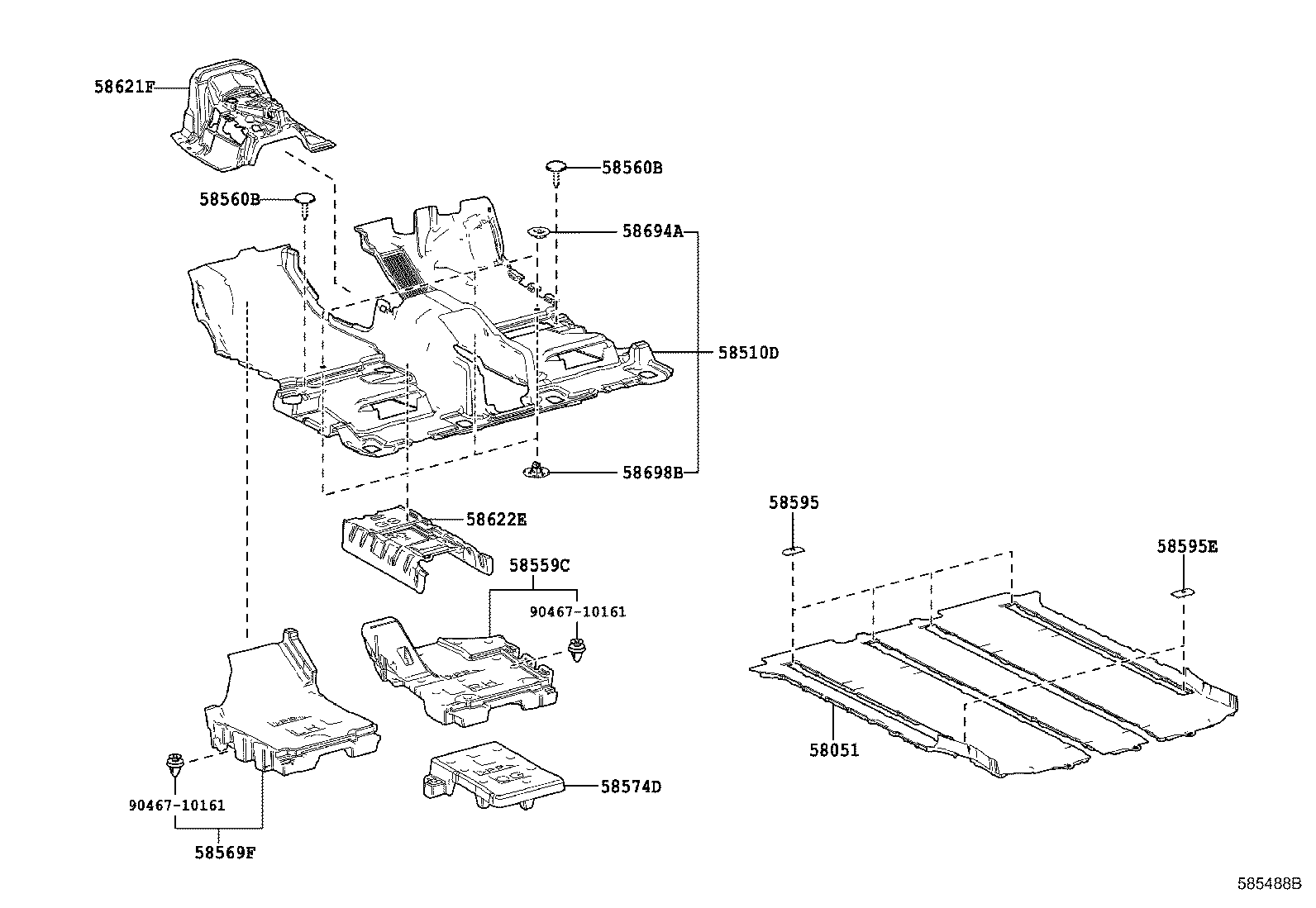

(1501- )AGH3#,GGH3#..07S..G,GF,S,V,VL,X,Z
ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟ ｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58051 - MAT SET, FLOOR | ||||
| 58051-58360B1 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58051-58340B1 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58051-58340B1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0# |
1 | ||
| 58051-58360B1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58051-58360B1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58500-58200C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58500-58200C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0# |
1 | ||
| 58500-58210C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58559C - PAD, FRONT FLOOR SIDE, RH | ||||
| 58559-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C7 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C7 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 58569F - PAD, FRONT FLOOR SIDE, LH | ||||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 58569-58010 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58569-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 58569-58010 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 58569-58010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 58573C - PAD, FRONT FLOOR CENTER | ||||
| 58573-58030 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58573-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 58573-58030 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 58573-58040 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
4 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
5 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
4 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
4 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
5 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
4 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-58010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| Common parts | ||||
| 90467-10161 | ||||

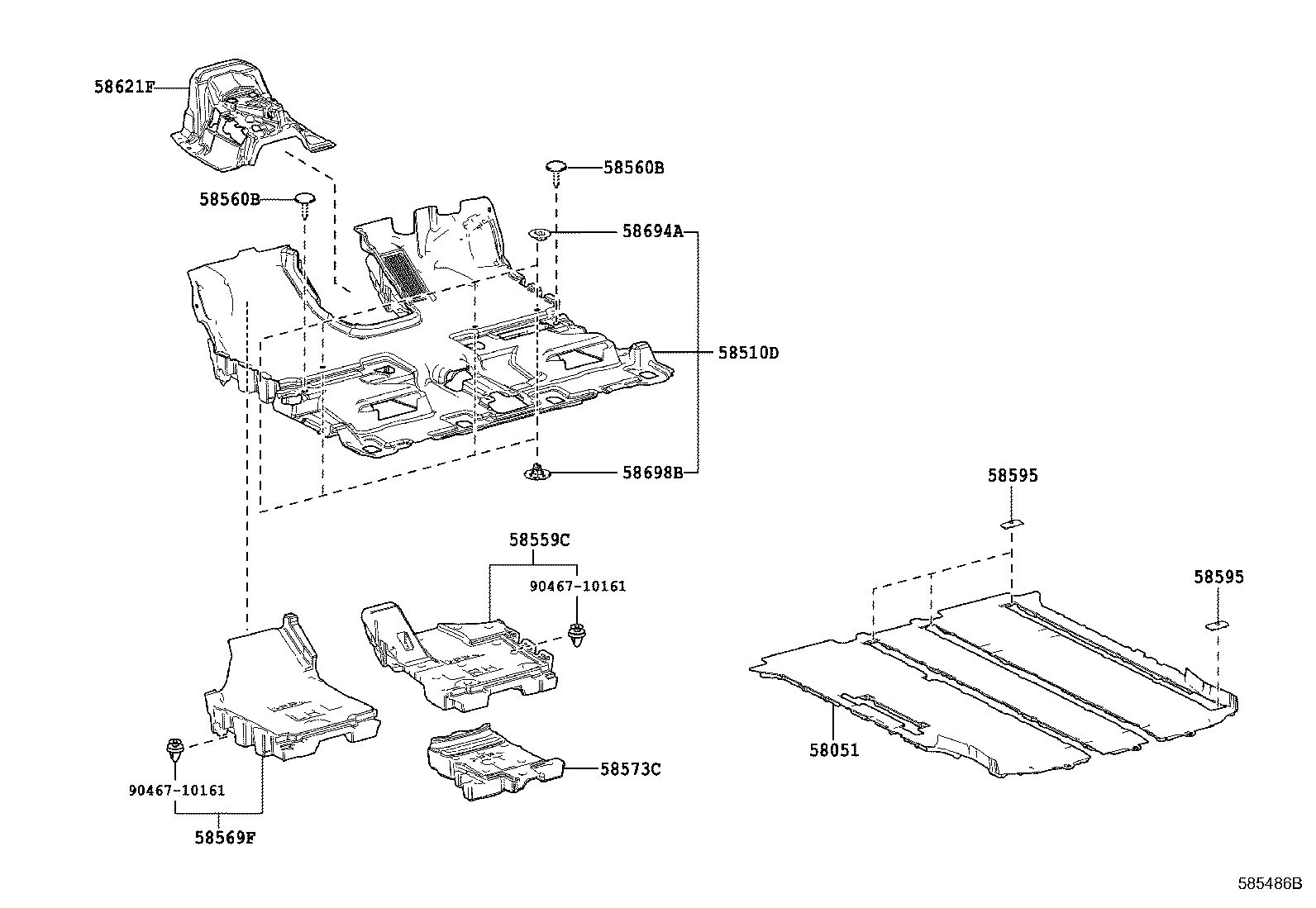

(1501- )AGH3#,GGH3#..07S..EL,ELS,ELZ,GF,S,SA,SC,VL,Z,ZA,ZG
ｱﾘ(ﾘﾔNO.1ｼｰﾄ : ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58051 - MAT SET, FLOOR | ||||
| 58051-58360B1 |
AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58051-58340B1 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58051-58340B1 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0# |
1 | ||
| 58051-58360B1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58051-58360B1 |
AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58500-58200C1 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58500-58200C1 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0# |
1 | ||
| 58500-58210C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58500-58190C1 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58559C - PAD, FRONT FLOOR SIDE, RH | ||||
| 58559-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C7 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C0 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK |
1 | ||
| 90467-05164C0 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK |
2 | ||
| 90467-05164C7 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR BLACK |
2 | ||
| 90467-05164C7 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05164C7 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK |
2 | ||
| 58569F - PAD, FRONT FLOOR SIDE, LH | ||||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 58569-58010 |
AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58569-58020 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) |
1 | ||
| 58569-58010 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 58569-58010 |
GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 58569-58010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 58574D - PAD, FRONT FLOOR, CENTER NO.2 RH | ||||
| 58574-58010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 58574-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
4 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
5 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
4 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-58100C0 |
AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2# |
1 | ||
| 58595-58090C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#,2# |
2 | ||
| 58595-58090C0 |
AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM0#,2# |
2 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-58010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 58622E - SILENCER, CENTER CONSOLE, NO.2 | ||||
| 58622-58010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58622-58010 |
GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| Common parts | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
