GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )GGH3#

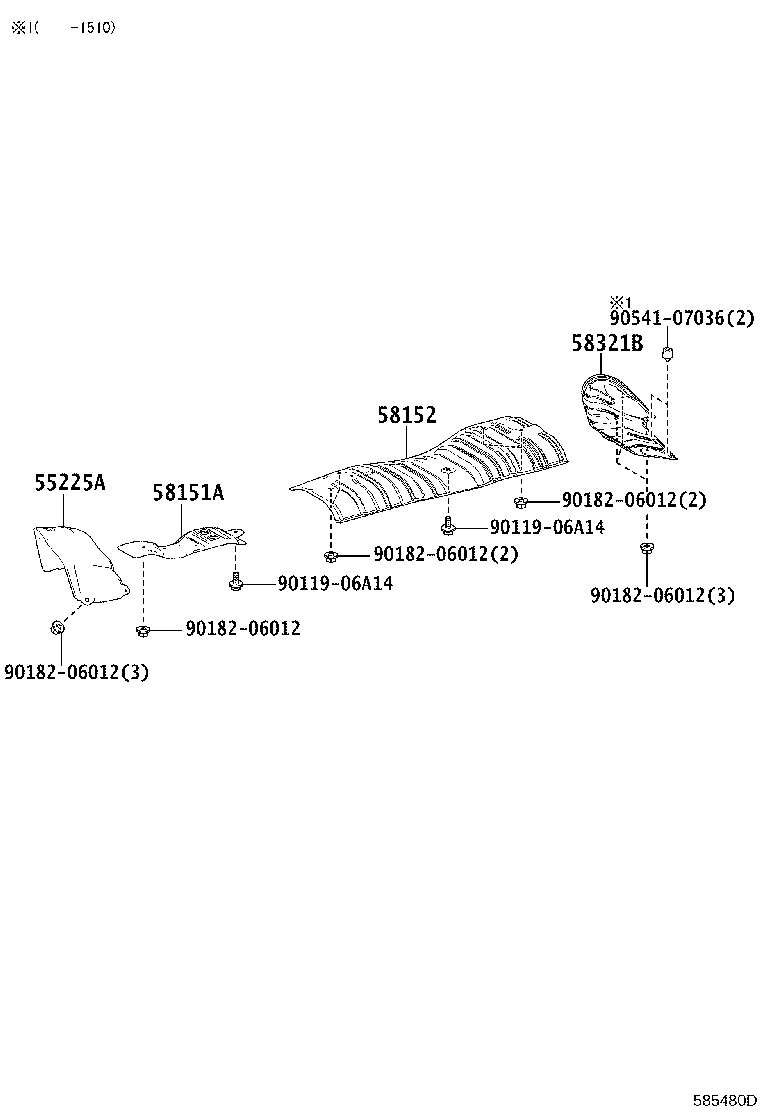

Click highlighted areas on diagram

diagram 55225A 58151A 58152 58321B 9011906A14 9011906A14 9018206012 9018206012 9018206012 9018206012 9018206012 9054107036
Part # Description Qty Price
55225A - INSULATOR, DASH PANEL HEAT, NO.1
55225-28020

GGH3#

 1
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-58050

GGH3#

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-58010

AGH3#,AYH30,GGH3#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-58010

AGH3#,AYH30,GGH3#

 1
Common parts
90119-06A14
90182-06012
90541-07036
