GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

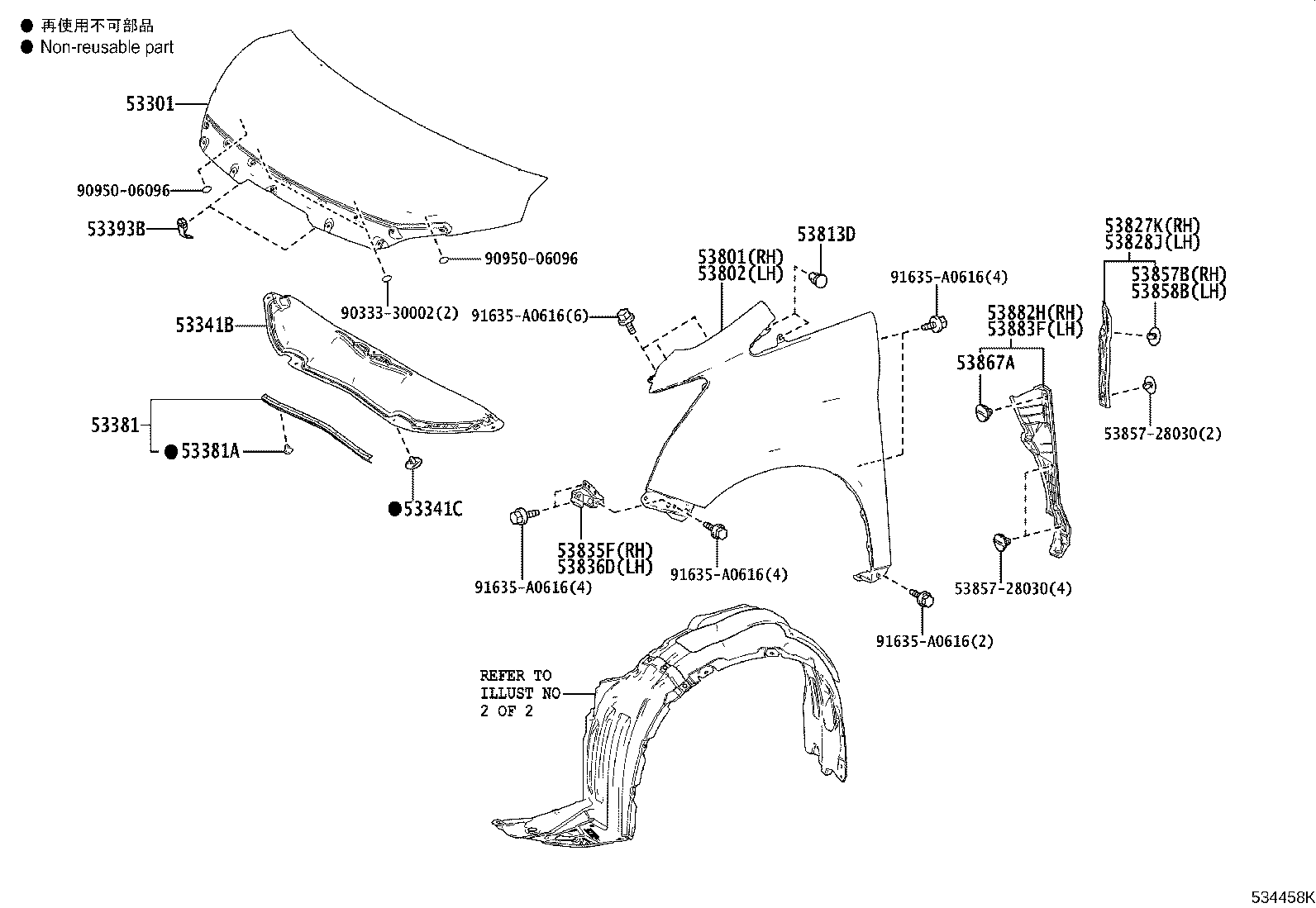

ILLUST NO. 1 OF 2(1501- )ALPHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-58040 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-58060 |
AGH3#,GGH3# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
AGH3#,AYH30,GGH3# |
5 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AGH3#,AYH30,GGH3# |
7 | ||
| 53393B - PROTECTOR, HOOD, FRONT | ||||
| 53393-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-58050 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-58110 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53802-58120 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X) |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-58010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53835F - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-58040 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53836D - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-58040 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53867A - RETAINER, FRONT FENDER | ||||
| 53857-28030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53882-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53883-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 53857-28030 | ||||
| 90333-30002 | ||||
| 90950-06096 | ||||
| 91635-A0616 | ||||

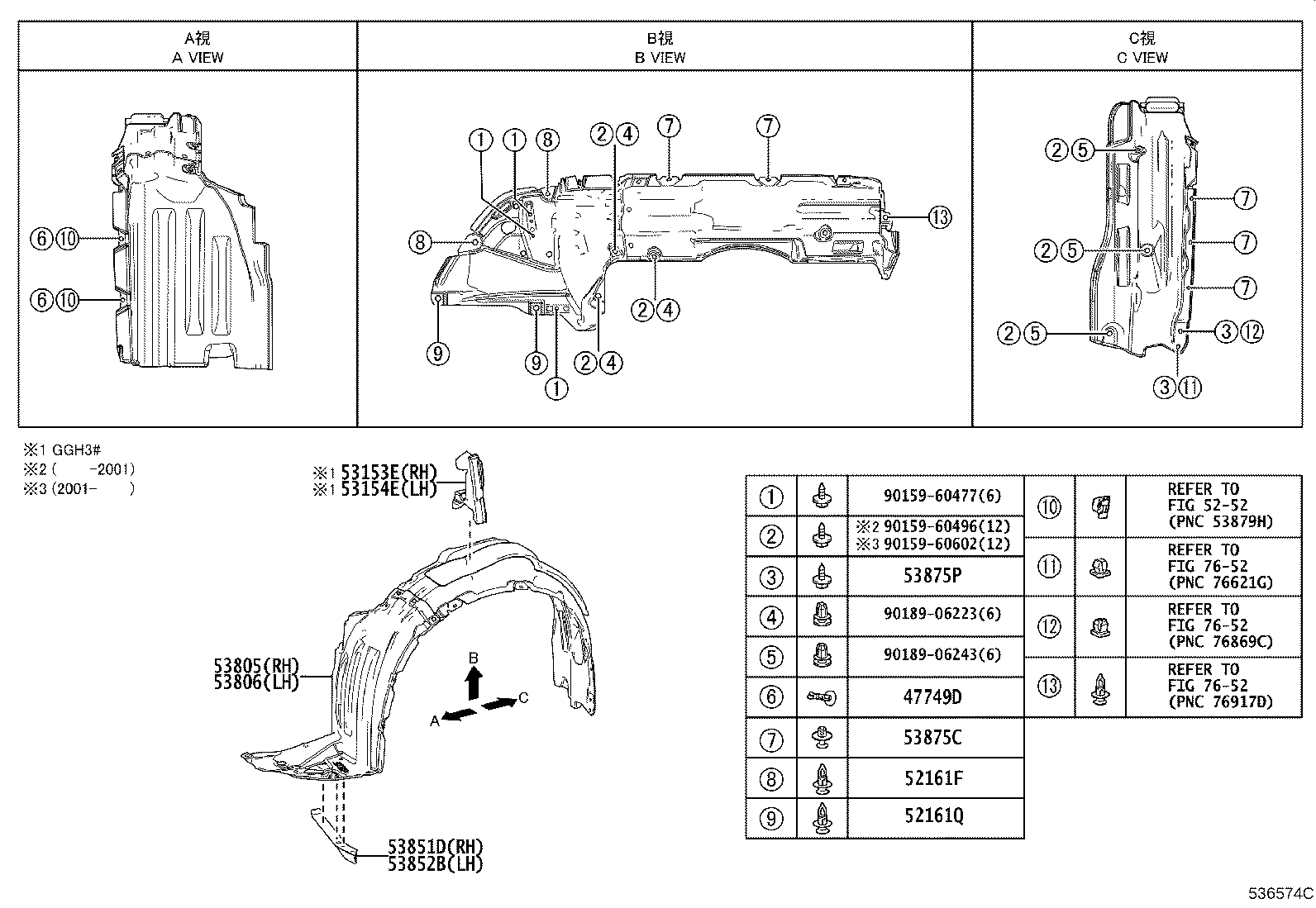

ILLUST NO. 2 OF 2(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
AGH3#,AYH30,GGH3# |
4 | ||
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 52161Q - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 53153E - GUIDE, FRONT SIDE AIR | ||||
| 53153-58010 |
GGH3# |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-58010 |
GGH3# |
1 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-58070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-58090 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
AGH3#,AYH30,GGH3# |
10 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60496 |
AGH3#,AYH30,GGH3# |
4 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90159-60602 | ||||
| 90189-06223 | ||||
| 90189-06243 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7652 | ||||
