GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv

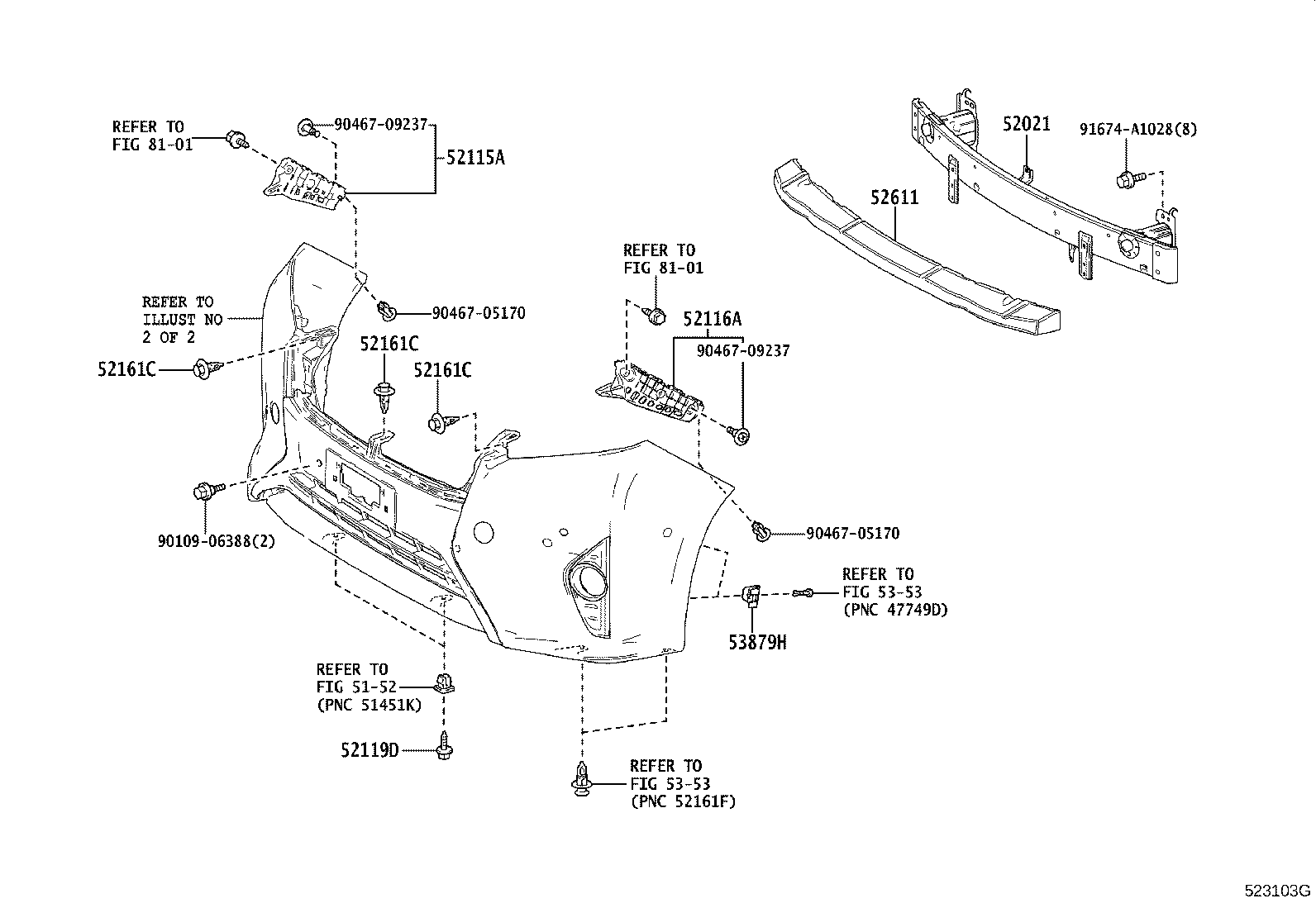

ILLUST NO. 1 OF 2(1501-1801)S,SA,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58060 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58060 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
AGH3#,AYH30,GGH3# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||
ILLUST NO. 1 OF 2(1501-1801)ALPHD..EL,G,GF,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58060 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58060 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
AGH3#,AYH30,GGH3# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

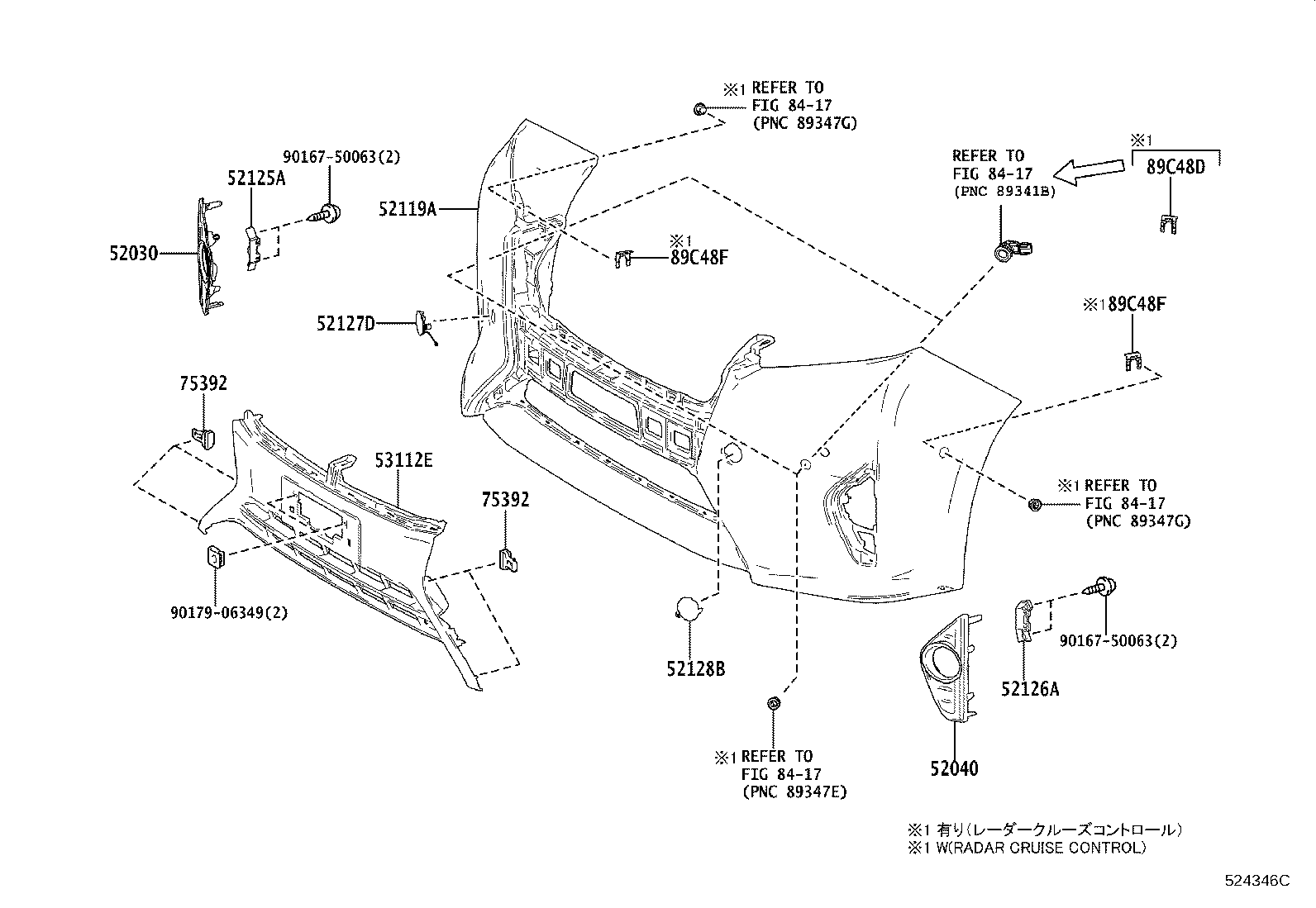

ILLUST NO. 2 OF 2(1501-1801)ALPHD..EL,G,GF,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾒｯｷ |
1 | ||
| 52030-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52030-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き)) |
1 | ||
| 52030-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾒｯｷ |
1 | ||
| 52040-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き)) |
1 | ||
| 52040-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58440J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58440A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58440C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) BLACK,202 |
1 | ||
| 52119-58440A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52119-58440B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52119-58450B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52119-58450C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58450A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58450A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58450J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58470A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58470A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52119-58460B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52119-58460J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58460C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58460B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-58460A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58460A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480A1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480B1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58460C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58470B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52119-58480C0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58480A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58470J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58470C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52119-58480J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58480C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARLCS.GF.,086 |
1 | ||
| 52119-58470C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58480J0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490B1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490J0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58480C0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58480A1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490C0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58480C1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-58110 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-58110 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52127-58250J0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58250A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58250A0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58250C0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) BLACK,202 |
1 | ||
| 52127-58250B0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52127-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52127-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58250A0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52128-58250B0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52128-58250C0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) BLACK,202 |
1 | ||
| 52128-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52128-58250A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52128-58250J0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) 塗装不要 |
1 | ||
| 53112-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AGH3#,AYH30,GGH3#..ALPHD;AGH3#,AYH30,GGH3#..Z,ZA,ZR |
4 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AGH3#,AYH30,GGH3#..ALPHD;AGH3#,AYH30,GGH3#..Z,ZA,ZR |
4 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 2 OF 2(1501-1801)S,SA,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾒｯｷ |
1 | ||
| 52030-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52030-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き)) |
1 | ||
| 52030-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) ﾒｯｷ |
1 | ||
| 52040-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き)) |
1 | ||
| 52040-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040-58150 |
AGH3#,GGH3#..07S..(S,SA) ﾒｯｷ,“TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸ求[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼXﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58440J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58440A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58440C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) BLACK,202 |
1 | ||
| 52119-58440A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52119-58440B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52119-58450B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52119-58450C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58450A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58450A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58450J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58470A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58470A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52119-58460B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52119-58460J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58460C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58460B0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-58460A0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58460A1 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480A1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480B1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58460C0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58470B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52119-58480C0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58480A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58470J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58470C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52119-58480J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58460J0 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58480C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARLCS.GF.,086 |
1 | ||
| 52119-58470C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58480J0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490B1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490J0 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58480C0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58480A1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490C0 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58480C1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,GGH3#..07S..(S,SA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58250C0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) BLACK,202 |
1 | ||
| 52127-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52127-58250J0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58250A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58250A0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58250B0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52127-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52127-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58250A0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) WHITE PEARL CS.,070 |
1 | ||
| 52128-58250B0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) SILVER ME.,1F7 |
1 | ||
| 52128-58250C0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) BLACK,202 |
1 | ||
| 52128-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52128-58250A1 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52128-58250J0 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 53105-58010 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) 塗装不要 |
1 | ||
| 53112-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AGH3#,AYH30,GGH3#..ALPHD;AGH3#,AYH30,GGH3#..Z,ZA,ZR |
4 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AGH3#,AYH30,GGH3#..ALPHD;AGH3#,AYH30,GGH3#..Z,ZA,ZR |
4 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AGH3#,AYH30,GGH3#..ALPHD;AGH3#,AYH30,GGH3#..Z,ZA,ZR |
4 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
