GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

Click highlighted areas on diagram

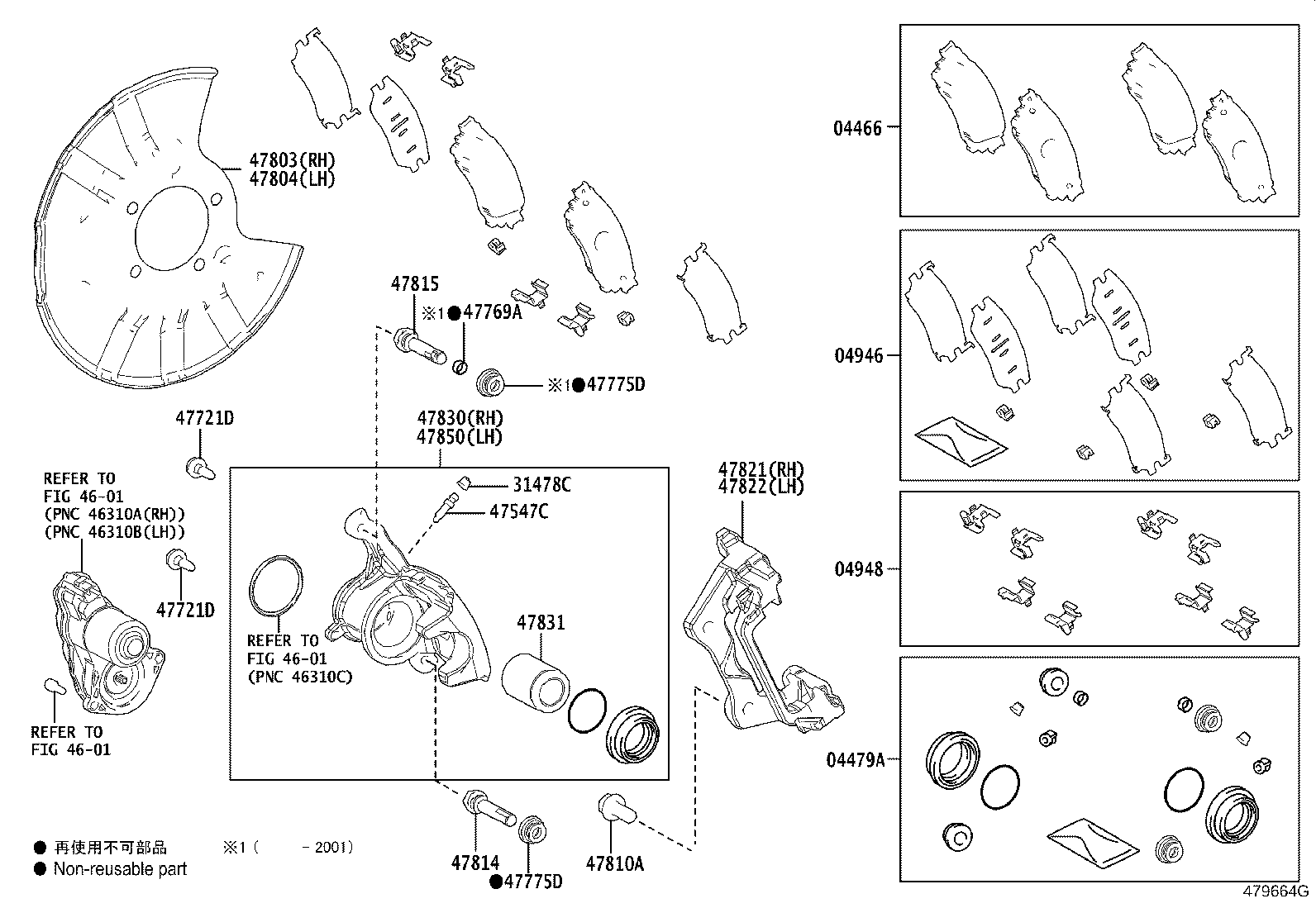

diagram 04466 04479A 04946 04948 31478C 4601 4601 4601 47547C 47721D 47721D 47769A 47775D 47775D 47803 47804 47810A 47814 47815 47821 47822 47830 47831 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-58021

AGH3#,AYH30,GGH3#

ﾏｰｸ NS554−FG

 1
04466-58022

AGH3#,AYH30,GGH3#

ﾏｰｸ NS554−FG

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-58030

AGH3#,AYH30,GGH3#

 1
04479-58031

AGH3#,AYH30,GGH3#

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-58010

AGH3#,AYH30,GGH3#

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-58010

AGH3#,AYH30,GGH3#

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AGH3#,AYH30,GGH3#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

AGH3#,AYH30,GGH3#

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603

AGH3#,AYH30,GGH3#

*8−1.00PX23−12.5

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603

AGH3#,AYH30,GGH3#

*8−1.00PX23−12.5

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-50010

AGH3#,AYH30,GGH3#

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-52190

AGH3#,AYH30,GGH3#

 4
47875-33270

AGH3#,AYH30,GGH3#

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-52190

AGH3#,AYH30,GGH3#

 4
47875-33270

AGH3#,AYH30,GGH3#

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47881-58010

AGH3#,AYH30,GGH3#

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47882-58010

AGH3#,AYH30,GGH3#

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-14196

AGH3#,AYH30,GGH3#

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-78010

AGH3#,AYH30,GGH3#

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-78010

AGH3#,AYH30,GGH3#

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-58030

AGH3#,AYH30,GGH3#

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-58030

AGH3#,AYH30,GGH3#

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-58030

AGH3#,AYH30,GGH3#

 1
47831 - PISTON, REAR DISC BRAKE
47831-58030

AGH3#,AYH30,GGH3#

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-58030

AGH3#,AYH30,GGH3#

 1
