GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

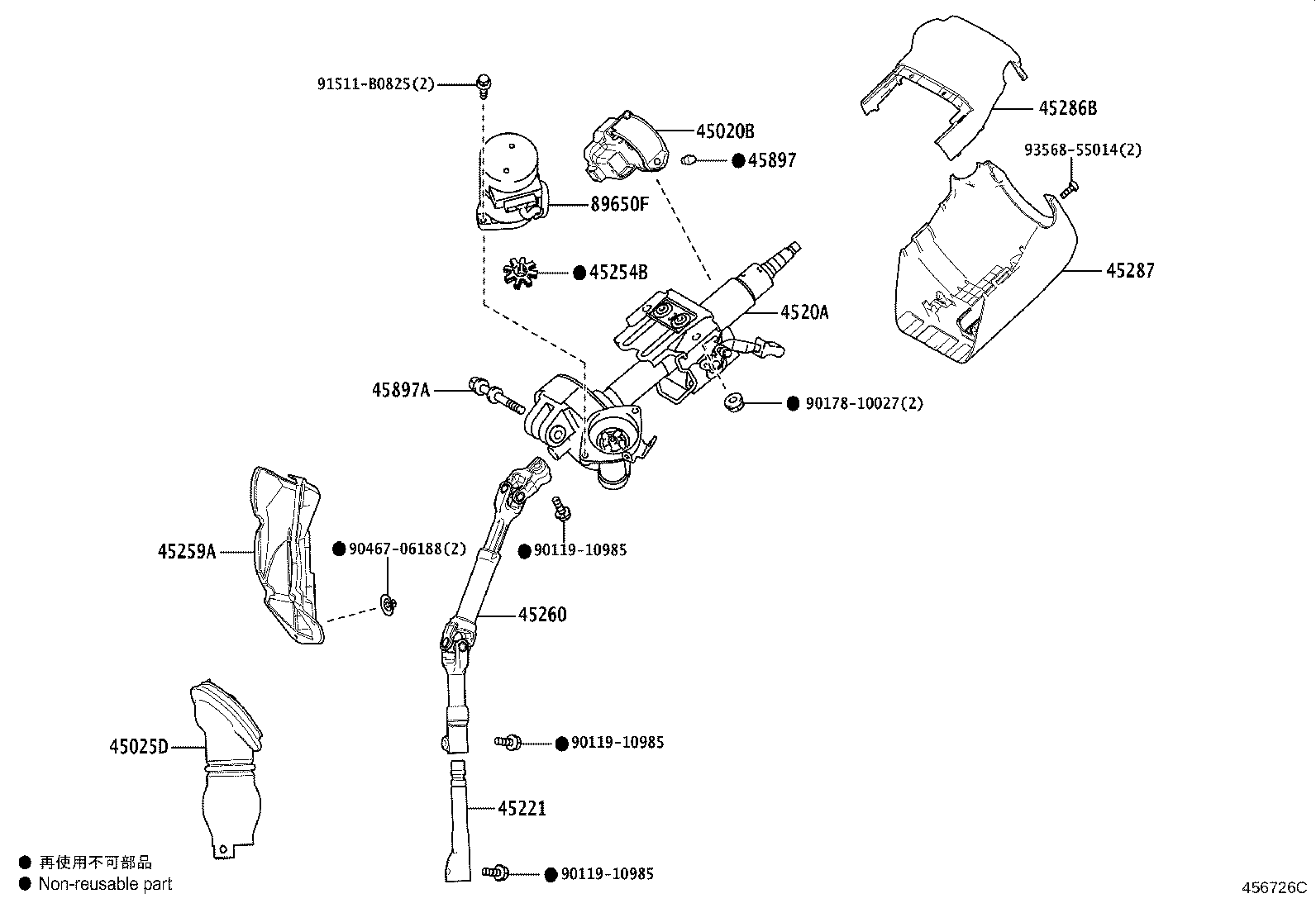

Click highlighted areas on diagram

diagram 45020B 45025D 4520A 45221 45254B 45259A 45260 45286B 45287 45897 45897A 89650F 9011910985 9011910985 9011910985 9017810027 9046706188 91511B0825 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-30B20

AGH3#,AYH30,GGH3#

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-58030

AGH3#,GGH3#

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-58030

AGH3#,AYH30,GGH3#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-58040

AGH3#,GGH3#

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

AGH3#,AYH30,GGH3#

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-58040

AGH3#,GGH3#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-58070

AGH3#,AYH30,GGH3#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-58020C0

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-58030C0

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AGH3#,AYH30,GGH3#

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

AGH3#,AYH30,GGH3#

 1
89650F - COMPUTER ASSY, POWER STEERING W/MOTOR
89650-58020

AGH3#,AYH30,GGH3#

 1
Common parts
90119-10985
90178-10027
90467-06188
91511-B0825
93568-55014
