GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
Production
Jan 2015
-
Jan 2018
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )GGH30

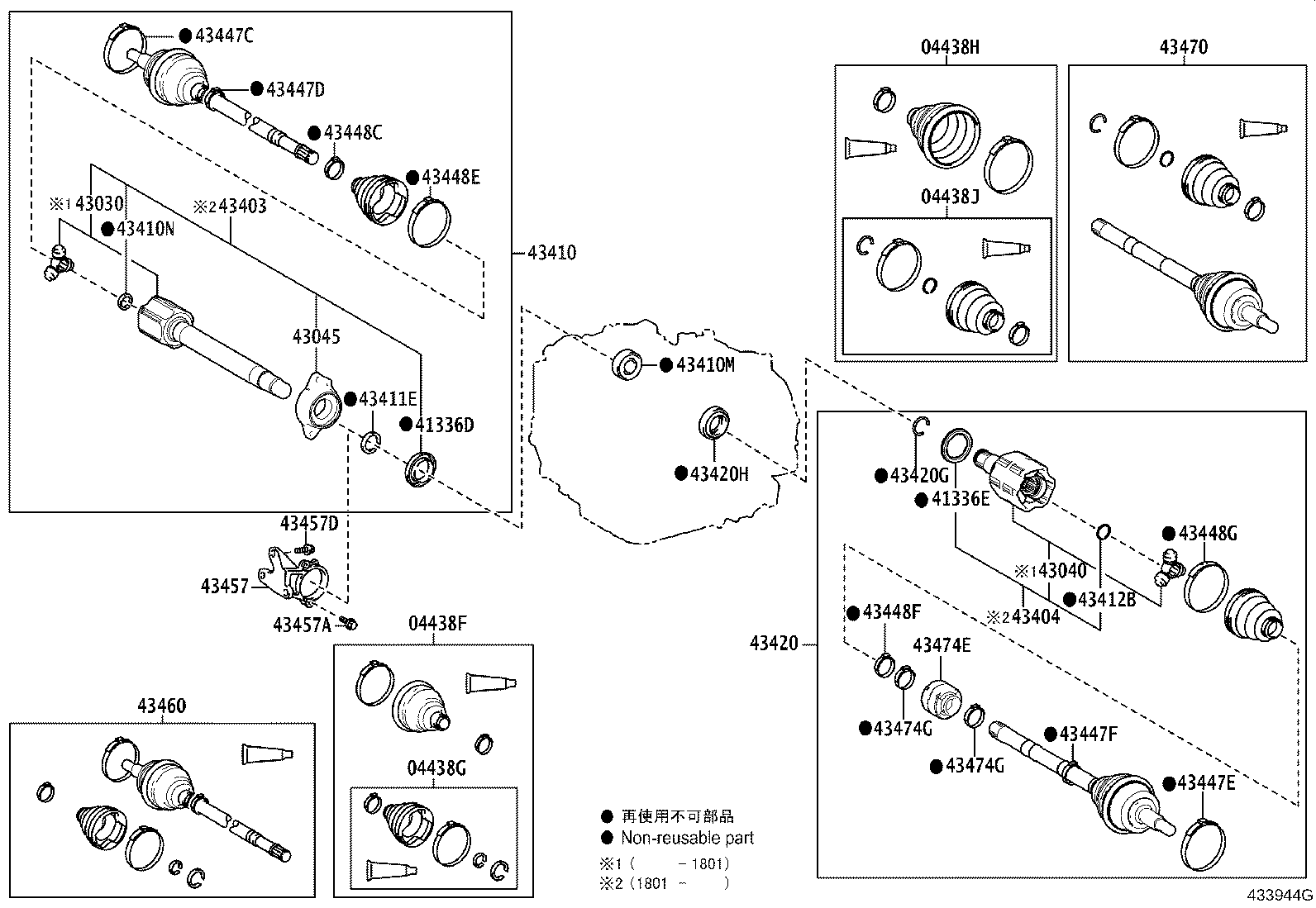

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-58081 |
GGH30 |
1 | ||
| 04427-58080 |
GGH30 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-58060 |
GGH30 |
1 | ||
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-58091 |
GGH3# |
1 | ||
| 04428-58092 |
GGH3# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-58060 |
GGH3# |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-78010 |
AGH30,AYH30,GGH30 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-78030 |
AGH3#,GGH3# |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-58040 |
GGH30 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-58020 |
GGH3# |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-64020 |
AGH30,GGH30 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-58050 |
GGH30 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40038 |
GGH30 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-58030 |
GGH3# |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-78010 |
GGH30 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-58030 |
GGH3# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-58040 |
GGH3# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-78050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50045 |
GGH3# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42346-24020 |
AGH30,AYH30,GGH30 |
1 | ||
| 42345-58140 |
AGH3#,AYH30,GGH3# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-58130 |
AGH3#,AYH30,GGH3# |
1 | ||
| 42346-24020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 42345-58020 |
AGH30,AYH30,GGH30 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42346-24020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 42345-58130 |
AGH3#,AYH30,GGH3# |
1 | ||
| 42345-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42346-24020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 42345-58140 |
AGH3#,AYH30,GGH3# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-58030 |
GGH3# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-58040 |
GGH3# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-58030 |
GGH3# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-58040 |
GGH3# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-42030 |
GGH30 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10361 |
AGH30,GGH30 *10−1.25PX22−19.5 |
2 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-10381 |
AGH3#,AYH30,GGH3# |
3 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-59845 |
GGH30 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-59856 |
GGH3# |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-42050 |
AGH3#,GGH3# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGH3#,GGH3# |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-78060 |
AGH3#,GGH3# |
2 | ||
