GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

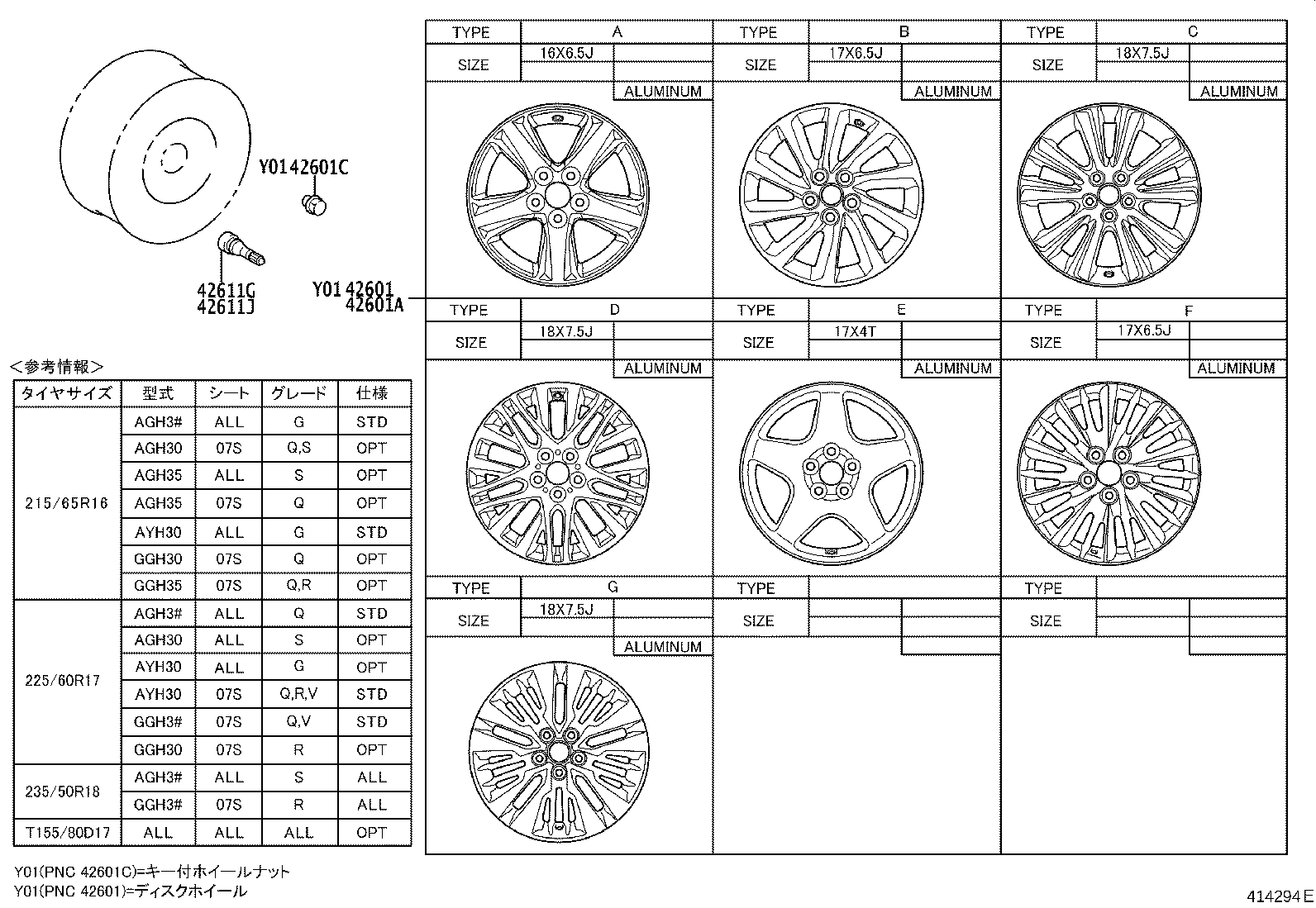

ILLUST NO. 1 OF 3(1501- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-58260

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

17X6.5J,#,TYPE B:ｲﾗｽﾄ参照

 4
42611-58260

AGH30,GGH30..S,SA,Z,ZA

17X6.5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/60R17 ｱﾙﾐ,TYPEB:ｲﾗｽﾄ参照

 4
42611-58270

AGH3#,GGH3#..S,SA,Z,ZA

18X7.5J,#,TYPE C:ｲﾗｽﾄ参照

 4
42611-58240

GGH30..GF,VL

16X6.5J,#,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式),TYPE A:ｲﾗｽﾄ参照

 4
42611-58280

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

18X7.5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/50R18 ｱﾙﾐ(切削光輝j,TYPE D:ｲﾗｽﾄ参照

 4
42611-58240

AGH3#,GGH3#..07S..(G,GF,V,VL)

16X6.5J,#,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),TYPE A:ｲﾗｽﾄ参照

 4
42611-58240

GGH30..GF,VL

16X6.5J,#,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式),TYPE A:ｲﾗｽﾄ参照

 4
42611-58230

AGH30,GGH30..S,SA,Z,ZA

17X6.5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/60R17 ｱﾙﾐ,TYPEB:ｲﾗｽﾄ参照

 4
4261A-58040

AGH3#,GGH3#..07S..(S,SA,Z,ZA)

18X7.5J,ｸﾛﾑ塗装,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−235/50R18 ｱﾙﾐ蒼燗ﾁ別仕様車(ｸﾛﾑ塗装),TYPE C:ｲﾗｽﾄ参照

 4
42611-58230

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

17X6.5J,#,TYPE B:ｲﾗｽﾄ参照

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-58320

AGH3#,AYH30,GGH3#

17X4T,ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ),TYPE E:ｲﾗｽﾄ参照

 1
42611-58300

AGH3#,AYH30,GGH3#

17X4T,ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ),TYPE E:ｲﾗｽﾄ参照

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

AGH3#,AYH30,GGH3#

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AGH3#,AYH30,GGH3#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AGH3#,AYH30,GGH3#

ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ)

 1

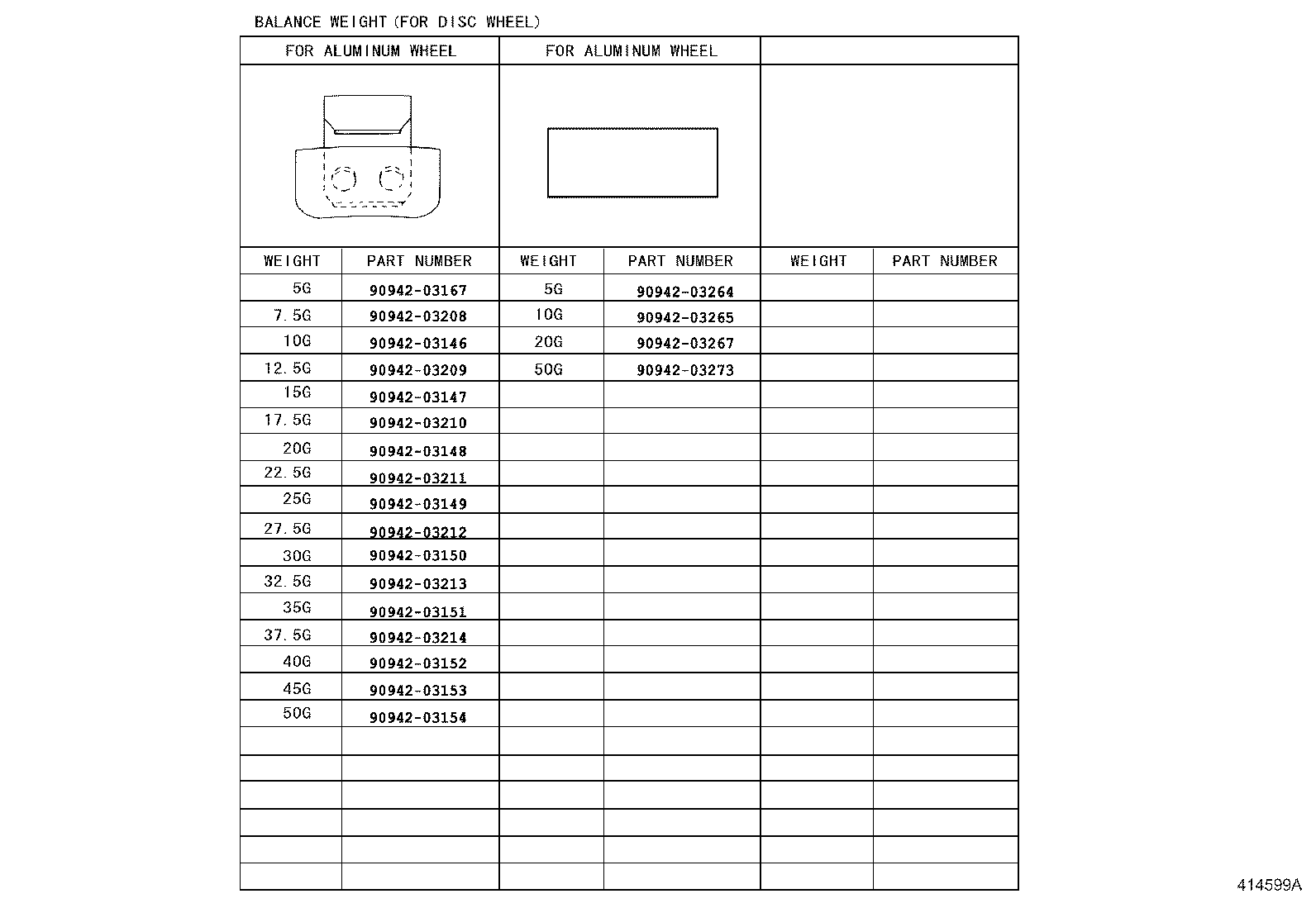

ILLUST NO. 3 OF 3(1501- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

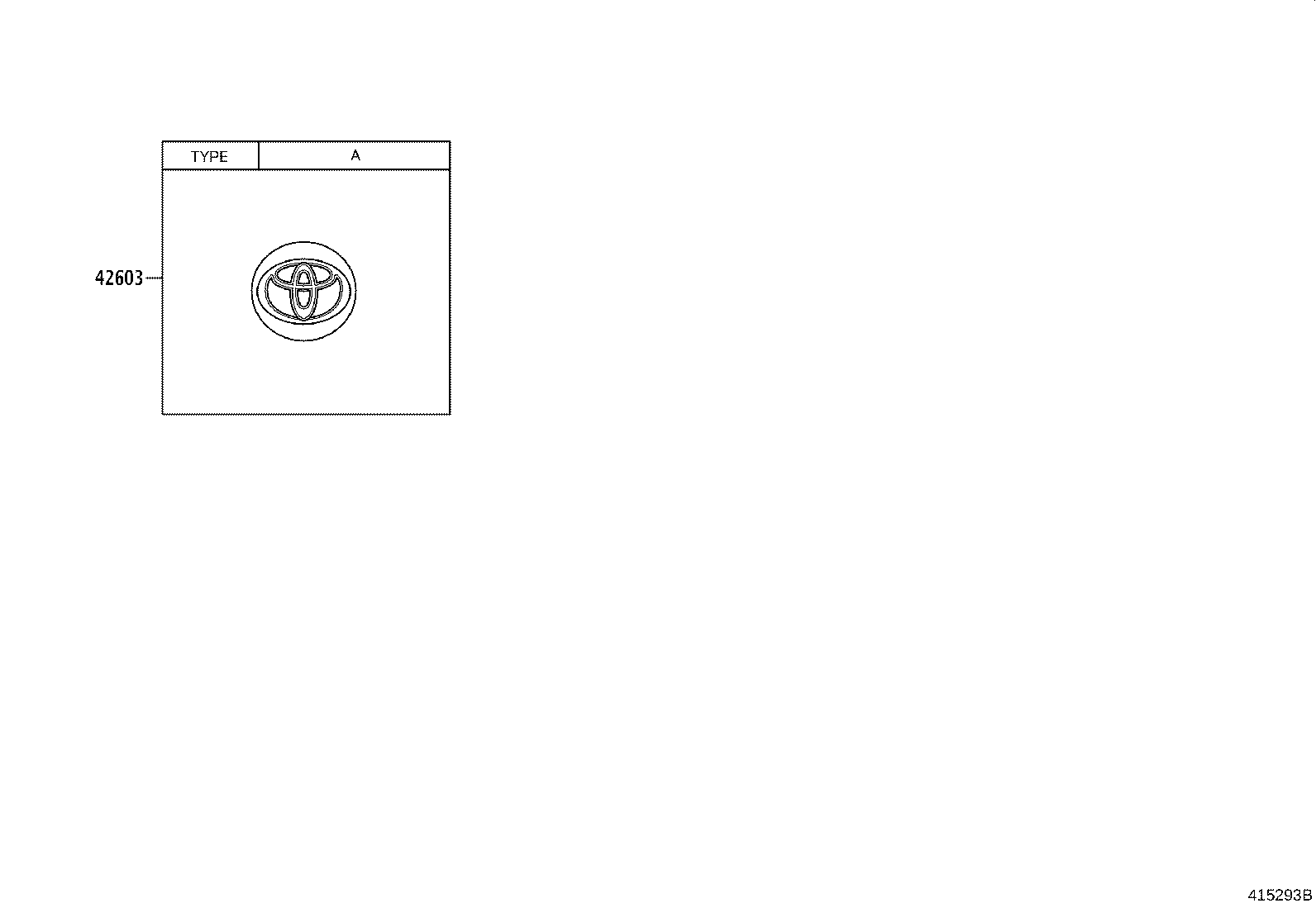

ILLUST NO. 2 OF 3(1501- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-48140

AGH3#,AYH30,GGH3#

*ALU,TYPE A:ｲﾗｽﾄ参照

 4
