GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH30,GGH30

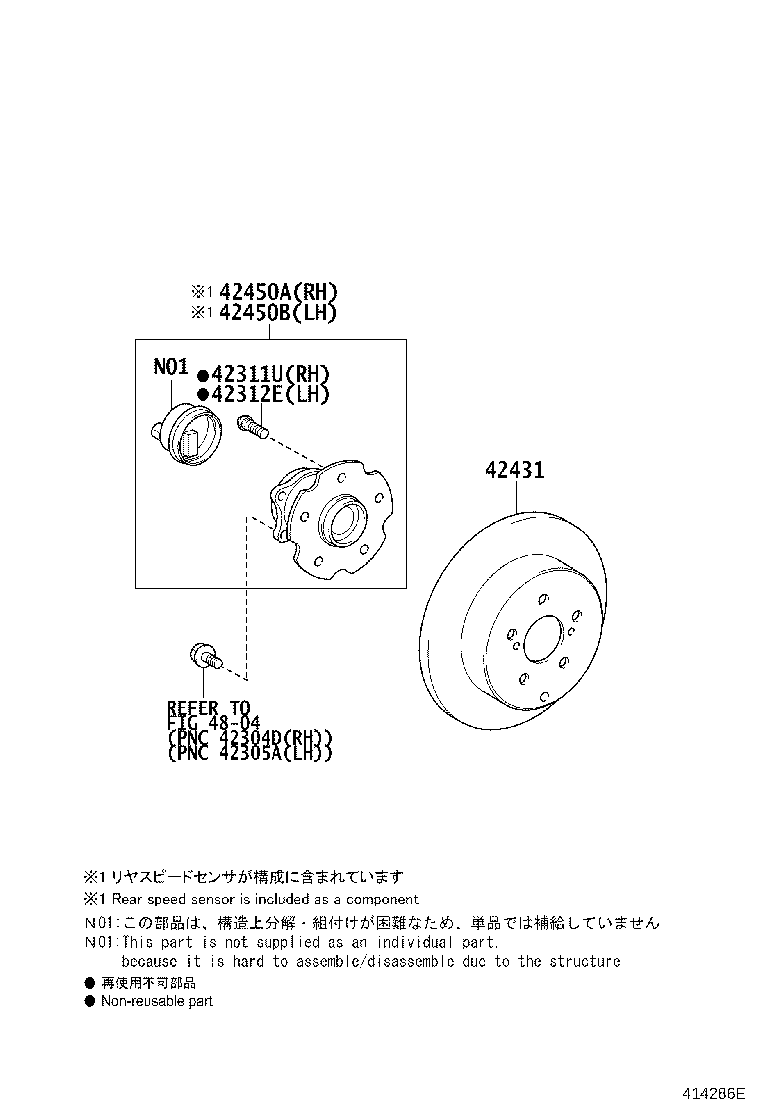

Click highlighted areas on diagram

diagram 42311U 42312E 42431 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

AGH3#,AYH30,GGH3#

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

AGH3#,AYH30,GGH3#

 5
42431 - DISC, REAR
42431-58030

AGH3#,AYH30,GGH3#

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-28030

AGH30,GGH30

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-28030

AGH30,GGH30

 1
Linked diagrams
4804
