GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501-1801)GGH3#

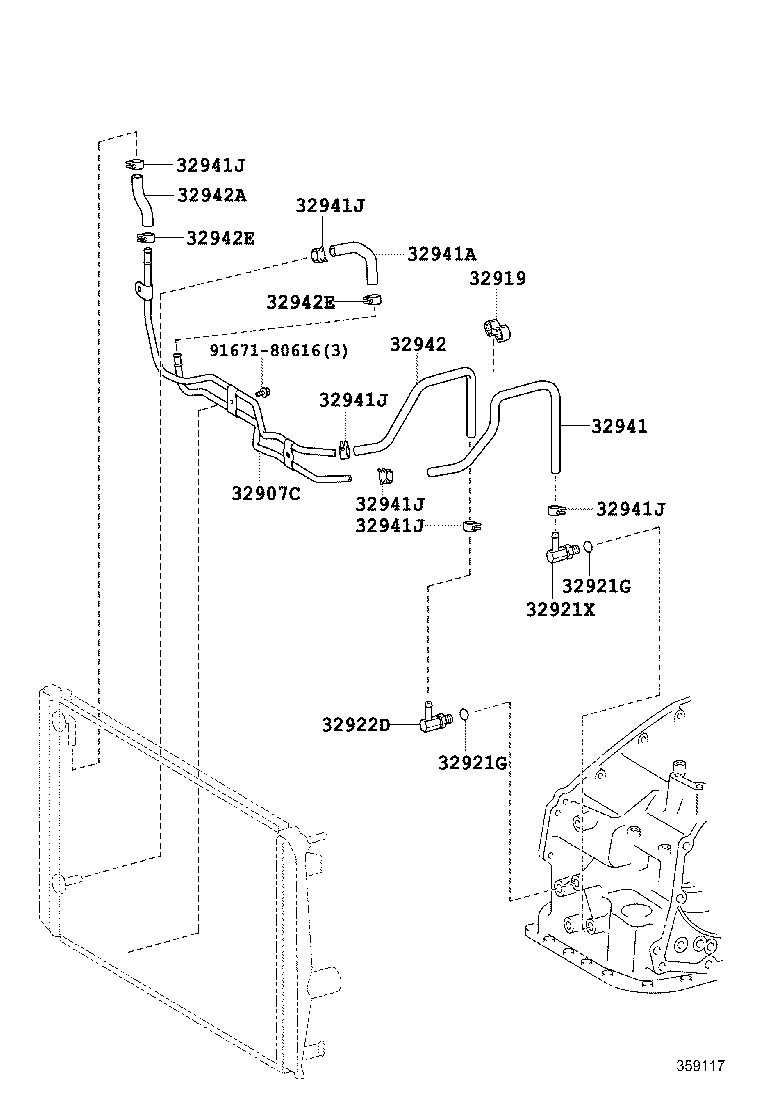

Click highlighted areas on diagram

U660E,U660F

diagram 32907C 32919 32921G 32921G 32921X 32922D 32941 32941A 32941J 32941J 32941J 32941J 32941J 32941J 32942 32942A 32942E 32942E 9167180616
Part # Description Qty Price
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-58070

GGH3#

 1
32919 - HOLDER, OIL COOLER TUBE
32919-58010

GGH3#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

GGH3#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

GGH3#

 2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-14032

GGH3#

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-14032

GGH3#

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-58030

GGH3#

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32942-28270

GGH3#

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 6
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-58020

GGH3#

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-17179

GGH3#

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH3#

 2
Common parts
91671-80616
