GGH30W-PFTQK (2015)
Toyota Alphard/Vellfire/Hv
Production
Jan 2015
-
Jan 2018
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501-1801)2GRFE

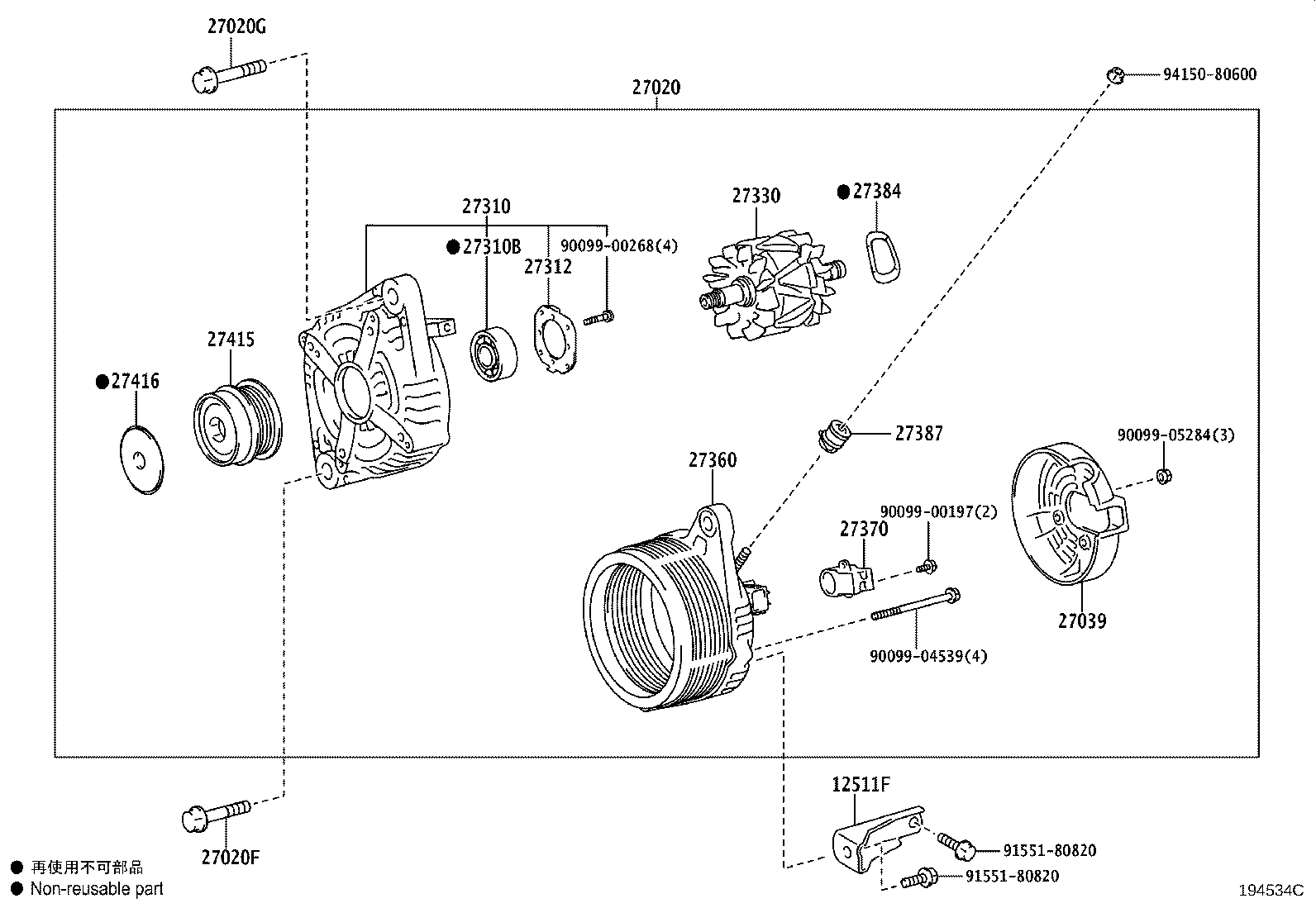

Click highlighted areas on diagram
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12511F - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-31030 |
2GRFE..GGH3# |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31102 |
2GRFE..GGH3# 12V 150A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81040 |
2GRFE..GGH3# |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91552-81070 |
2GRFE..GGH3# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
2GRFE..GGH3# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31290 |
2GRFE..GGH3# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
2GRFE..GGH3# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2GRFE..GGH3# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
2GRFE..GGH3# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31300 |
2GRFE..GGH3# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
2GRFE..GGH3# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2GRFE..GGH3# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
2GRFE..GGH3# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W131 |
2GRFE..GGH3# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
2ARFE,2GRFE..AGH3#,GGH3# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 91551-80820 | ||||
| 94150-80600 | ||||
