GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501-1801)2GRFE

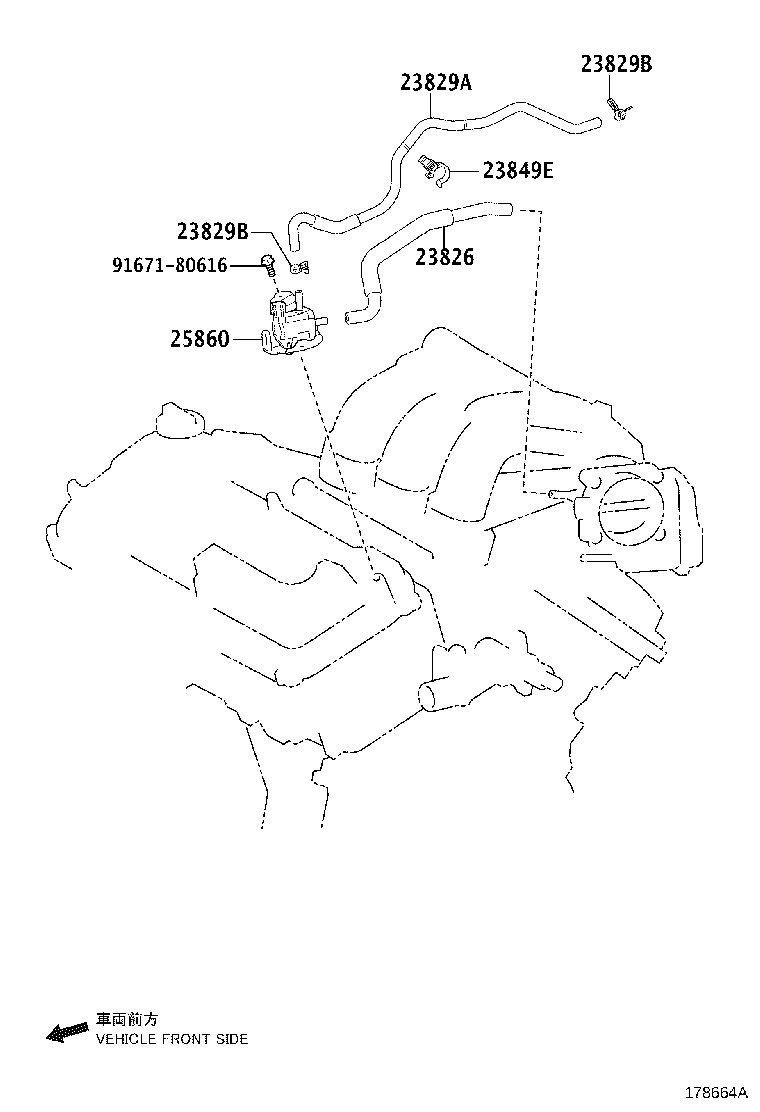

Click highlighted areas on diagram

diagram 23826 23829A 23829B 23829B 23849E 25860 9167180616
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31080

2GRFE..GGH3#

 1
23829A - HOSE, FUEL VAPOR FEED
23826-31300

2GRFE..GGH3#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2GRFE..GGH3#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2GRFE..GGH3#

 2
23849E - SUPPORT, FUEL HOSE CLAMP
23849-31010

2GRFE..GGH3#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31070

2GRFE..GGH3#

 1
Common parts
91671-80616
