GGH30W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1501-1801)2GRFE

Click highlighted areas on diagram

diagram 11101 11102 11102A 11102A 11102A 11102A 11103C 11104A 11115 11116 11117K 11117L 11117P 11117Q 11117T 11117U 11117V 11117W 11119A 11119A 11122C 11122D 11126C 11126D 11131 11131A 11135B 11135C 11151 11151E 11153A 11153D 11155B 11155C 11159F 11159G 11193 11193A 11201 11202 11209 11213 11214 11254 11254 12108 12108A 12281A 12282D 15330A 15330A 15330B 15330B 15340 15340 15340A 15340A 15678D 15678E 1701 9012606029 9012606029 9012608052 9012608052 9012608052 9012608052 9025008028 9025008028 9043010024 9043010024 9048022024 9155180616 9155180616 9155180616 9155180616 9167110825 9167110825 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39537

2GRFE..GGH3#

 1
11102 - HEAD, CYLINDER, LH
11102-39057

2GRFE..GGH3#

 1
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFE..GGH3#

 4
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFE..GGH3#

 4
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFE..GGH3#

 4
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFE..GGH3#

 4
11103C - HOUSING SUB-ASSY, CAMSHAFT, RH
11103-31032

2GRFE..GGH3#

 1
11104A - HOUSING SUB-ASSY, CAMSHAFT, LH
11104-31043

2GRFE..GGH3#

 1
11115 - GASKET, CYLINDER HEAD
11115-31080

2GRFE..GGH3#

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-31060

2GRFE..GGH3#

 1
11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1
90341-20012

2GRFE..GGH3#

 2
11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2
90341-27006

2GRFE..GGH3#

 1
11117P - PLUG, W/HEAD STRAIGHT SCREW, RH NO.1
90341-20012

2GRFE..GGH3#

 2
11117Q - PLUG, W/HEAD STRAIGHT SCREW, RH NO.2
90341-27006

2GRFE..GGH3#

 1
11117T - GASKET(FOR WATER HOLE LH)
90430-20004

2GRFE..GGH3#

 2
11117U - GASKET(FOR WATER HOLE RH)
90430-20004

2GRFE..GGH3#

 2
11117V - GASKET(FOR CYLINDER HEAD SCREW PLUG, LH NO.1)
90430-27005

2GRFE..GGH3#

 1
11117W - GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.1)
90430-27005

2GRFE..GGH3#

 1
11119A - PIN, STRAIGHT, NO.1
90250-05021

2GRFE..GGH3#

長さ=13.8,外径=5.0

 3
11119A - PIN, STRAIGHT, NO.1
90250-05021

2GRFE..GGH3#

長さ=13.8,外径=5.0

 3
11122C - BUSH, INTAKE VALVE GUIDE, RH
11123-31070

2GRFE..GGH3#

O/S 0.05

 6
11122-31070

2GRFE..GGH3#

STD

 6
11122D - BUSH, INTAKE VALVE GUIDE, LH
11123-31070

2GRFE..GGH3#

O/S 0.05

 6
11122-31070

2GRFE..GGH3#

STD

 6
11126C - BUSH, EXHAUST VALVE GUIDE, RH
11127-31030

2GRFE..GGH3#

O/S 0.05

 6
11126-31030

2GRFE..GGH3#

STD

 6
11126D - BUSH, EXHAUST VALVE GUIDE, LH
11127-31030

2GRFE..GGH3#

O/S 0.05

 6
11126-31030

2GRFE..GGH3#

STD

 6
11131 - SEAT, INTAKE VALVE
11131-31050

2GRFE..GGH3#

STD

 6
11132-31050

2GRFE..GGH3#

O/S 0.03

 6
11131A - SEAT, INTAKE VALVE, NO.2
11132-31050

2GRFE..GGH3#

O/S 0.03

 6
11131-31050

2GRFE..GGH3#

STD

 6
11135B - SEAT, EXHAUST VALVE, RH
11135-31080

2GRFE..GGH3#

STD

 6
11136-31080

2GRFE..GGH3#

O/S 0.03

 6
11135C - SEAT, EXHAUST VALVE, LH
11136-31080

2GRFE..GGH3#

O/S 0.03

 6
11135-31080

2GRFE..GGH3#

STD

 6
11151 - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)
90253-11021

2GRFE..GGH3#

 10
11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
90119-07009

2GRFE..GGH3#

 8
11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
90119-07009

2GRFE..GGH3#

 8
11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
90253-11021

2GRFE..GGH3#

 10
11155B - PIN, RING
90253-11021

2GRFE..GGH3#

 2
11155C - PIN, RING NO.2
90253-11021

2GRFE..GGH3#

 2
11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
11159-31010

2GRFE..GGH3#

 2
11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
11159-31010

2GRFE..GGH3#

 2
11193 - GASKET, SPARK PLUG TUBE
11193-70010

2GRFE..GGH3#

 3
11193A - GASKET, SPARK PLUG TUBE, LH
11193-70010

2GRFE..GGH3#

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-31250

2GRFE..GGH3#

 1
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-31030

2GRFE..GGH3#

 1
11209 - COVER SUB-ASSY, V-BANK
11209-31031

2GRFE..GGH3#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-31050

2GRFE..GGH3#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-31020

2GRFE..GGH3#

 1
11254 - BRACKET, V-BANK COVER, NO.1
11254-31020

2GRFE..GGH3#

 2
11254 - BRACKET, V-BANK COVER, NO.1
11254-31020

2GRFE..GGH3#

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-28010

2GRFE..GGH3#

 1
12180-38010

2GRFE..GGH3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

2GRFE..GGH3#

 1
90430-35001

2GRFE..GGH3#

 1
12281A - HANGER, ENGINE, NO.1
12281-31121

2GRFE..GGH3#

 1
12282D - HANGER, ENGINE, NO.2
12282-31100

2GRFE..GGH3#

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

2GRFE..GGH3#

 2
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

2GRFE..GGH3#

 2
15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH
15330-31020

2GRFE..GGH3#

NO.1

 1
15330-31030

2GRFE..GGH3#

NO.2

 1
15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH
15330-31020

2GRFE..GGH3#

NO.1

 1
15330-31030

2GRFE..GGH3#

NO.2

 1
15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340-31020

2GRFE..GGH3#

NO.2

 1
15330-31020

2GRFE..GGH3#

NO.1

 1
15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340-31020

2GRFE..GGH3#

NO.2

 1
15330-31020

2GRFE..GGH3#

NO.1

 1
15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

2GRFE..GGH3#

 2
15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

2GRFE..GGH3#

 2
15678D - FILTER, OIL CONTROL VALVE, RH
15678-46020

2GRFE..GGH3#

 1
15678E - FILTER, OIL CONTROL VALVE, LH
15678-46020

2GRFE..GGH3#

 1
Common parts
90126-06029
90126-08052
90250-08028
90430-10024
90480-22024
91551-80616
91671-10825
91671-80616
Linked diagrams
1701

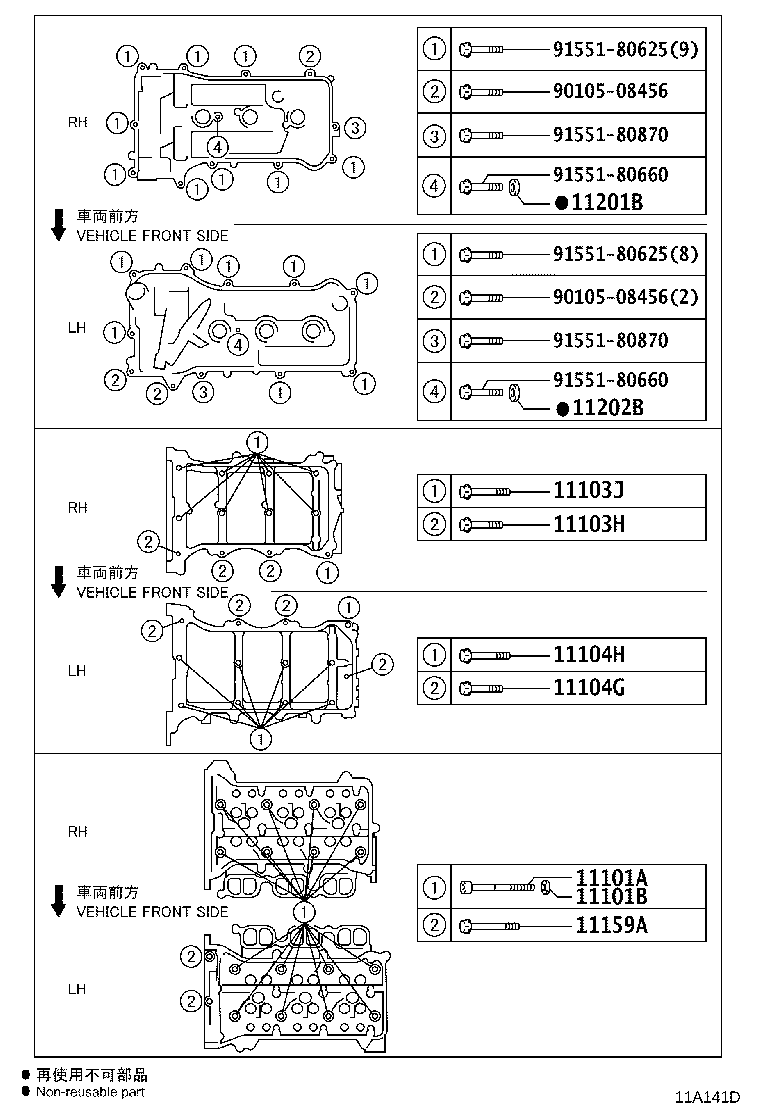

ILLUST NO. 2 OF 2(1501-1801)2GRFE

Click highlighted areas on diagram

diagram 11101A 11101B 11103H 11103J 11104G 11104H 11159A 11201B 11202B 9010508456 9010508456 9155180625 9155180625 9155180660 9155180660 9155180870 9155180870
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02164

2GRFE..GGH3#

 16
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034

2GRFE..GGH3#

 16
11103H - BOLT(FOR CAMSHAFT HOUSING SET, RH NO.1)
90105-08465

2GRFE..GGH3#

 3
11103J - BOLT(FOR CAMSHAFT HOUSING SET, RH NO.2)
90105-08464

2GRFE..GGH3#

 9
11104G - BOLT(FOR CAMSHAFT HOUSING SET, LH NO.1)
90105-08465

2GRFE..GGH3#

 4
11104H - BOLT(FOR CAMSHAFT HOUSING SET, LH NO.2)
90105-08464

2GRFE..GGH3#

 9
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-10521

2GRFE..GGH3#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

2GRFE..GGH3#

 1
11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH)
90210-06013

2GRFE..GGH3#

 1
Common parts
90105-08456
91551-80625
91551-80660
91551-80870
