GGH30W-NFZRK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )GGH3#

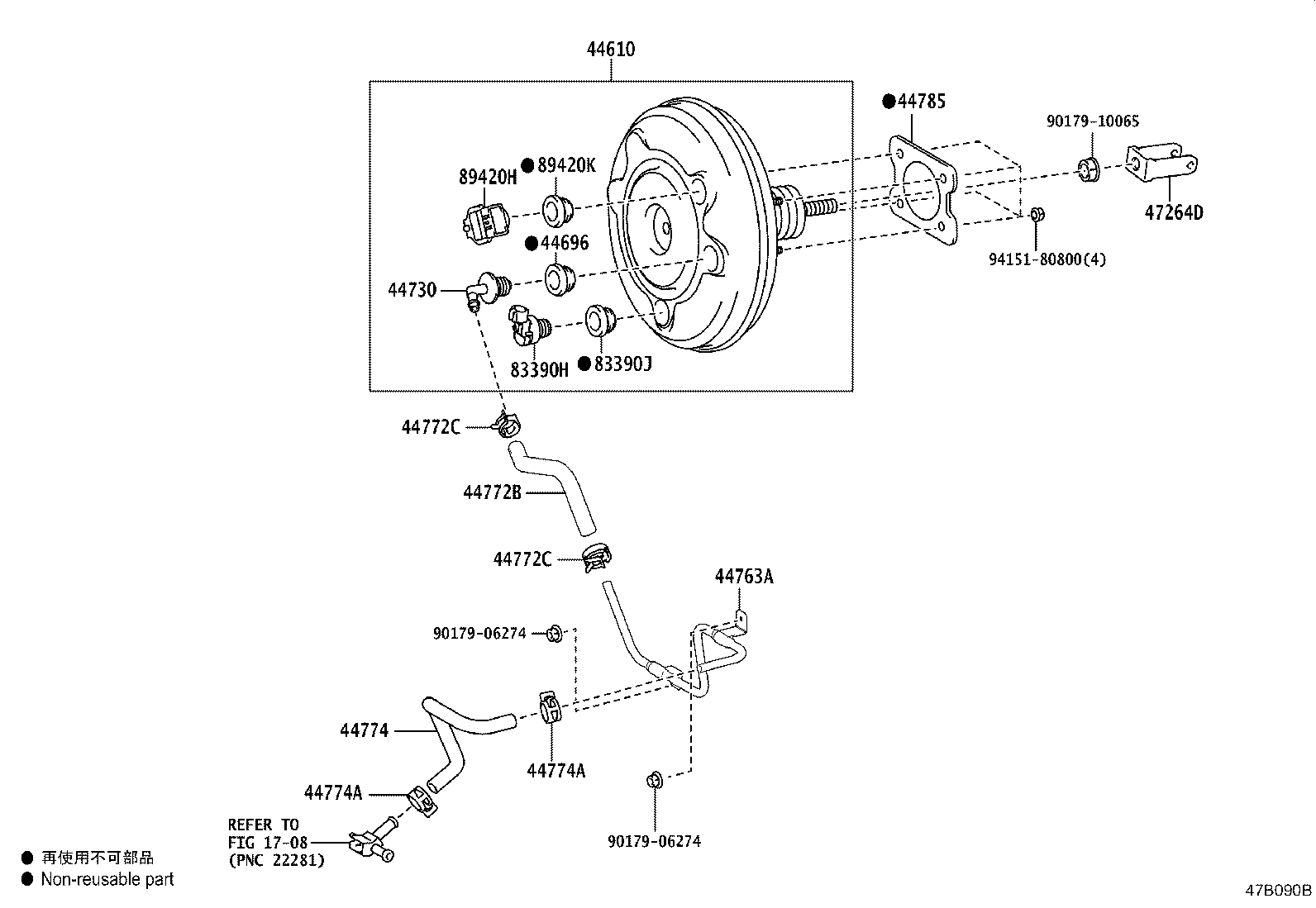

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763A 44772B 44772C 44772C 44774 44774A 44774A 44785 47264D 83390H 83390J 89420H 89420K 9017906274 9017906274 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58120

GGH3#

 1
44696 - GROMMET, CHECK VALVE
90480-24015

AGH3#,GGH3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10020

AGH3#,GGH3#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-58030

GGH3#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-58030

GGH3#

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16014

GGH3#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16014

GGH3#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-58030

GGH3#

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

GGH3#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

GGH3#

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

AGH3#,GGH3#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

AGH3#,GGH3#

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

GGH3#

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24015

GGH3#

 1
90480-24439

GGH3#

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

AGH3#,GGH3#

 1
89420K - GROMMET, VACUUM SENSOR
90480-24439

AGH3#,GGH3#

 1
90480-24015

AGH3#,GGH3#

 1
Common parts
90179-06274
90179-10065
94151-80800
Linked diagrams
1708
