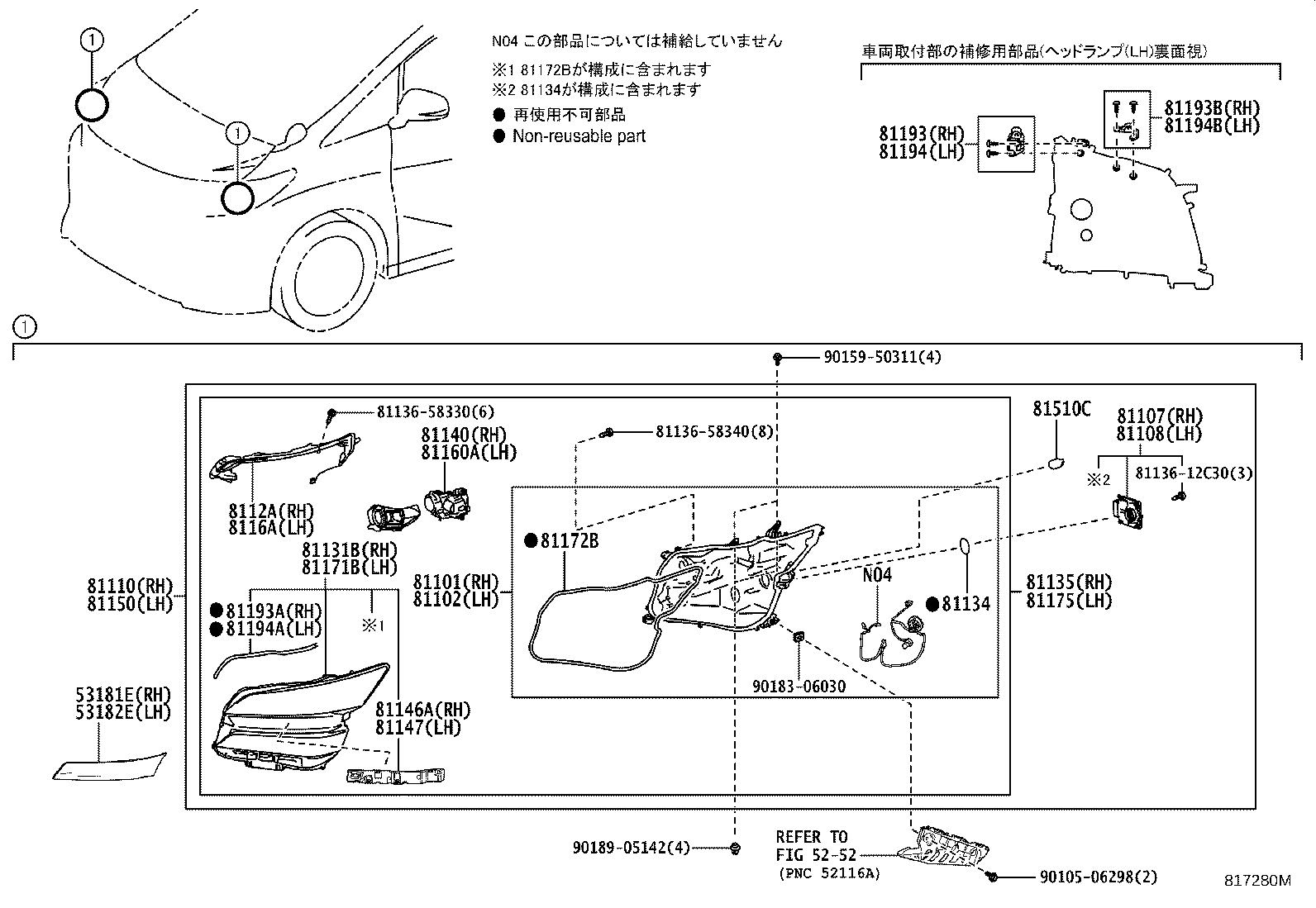

GGH30W-NFTRK (2015)
Toyota Alphard/Vellfire/Hv
(1501-1801)VFIRE..X,Z,ZA
ﾅｼ(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58060C0 |
AGH3#,AYH30,GGH3#..VFIRE BLACK,202 |
1 | ||
| 53181-58060A0 |
AGH3#,AYH30,GGH3#..VFIRE WHITE PEARL CS.,070 |
1 | ||
| 53181-58060B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 53181-58060J0 |
AGH3#,AYH30,GGH3#..VFIRE GRAYISH BLUE M.M.,8V5 |
1 | ||
| 53181-58060B1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) GRAY ME.,1G3 |
1 | ||
| 53181-58060C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 53181-58060C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58060B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 53182-58060B1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) GRAY ME.,1G3 |
1 | ||
| 53182-58060C0 |
AGH3#,AYH30,GGH3#..VFIRE BLACK,202 |
1 | ||
| 53182-58060C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53182-58060A0 |
AGH3#,AYH30,GGH3#..VFIRE WHITE PEARL CS.,070 |
1 | ||
| 53182-58060J0 |
AGH3#,AYH30,GGH3#..VFIRE GRAYISH BLUE M.M.,8V5 |
1 | ||
| 53182-58060C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 8111B-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8111B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8111B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8111B-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 8115B-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 8115B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8115B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8115B-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-58330 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81107-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81107-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81108-58330 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81108-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81108-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81110-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81110-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81110-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81110-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8112A-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 8112A-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8112A-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81131-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81131-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81131-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81131-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81145-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81145-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81145-58391 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81145-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58401 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58401 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81145-58381 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58441 |
AGH3#,GGH3#..07S..(Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81145-58371 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81150-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81150-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81150-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81150-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8116A-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8116A-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8116A-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81171-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81171-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81171-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81171-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81172B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81185-58381 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81185-58371 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81185-58401 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81185-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81185-58391 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81185-58441 |
AGH3#,GGH3#..07S..(Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81185-58401 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58391 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81117-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58100 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81157-58391 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58100 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
AGH3#,AYH30,GGH3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58340 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||

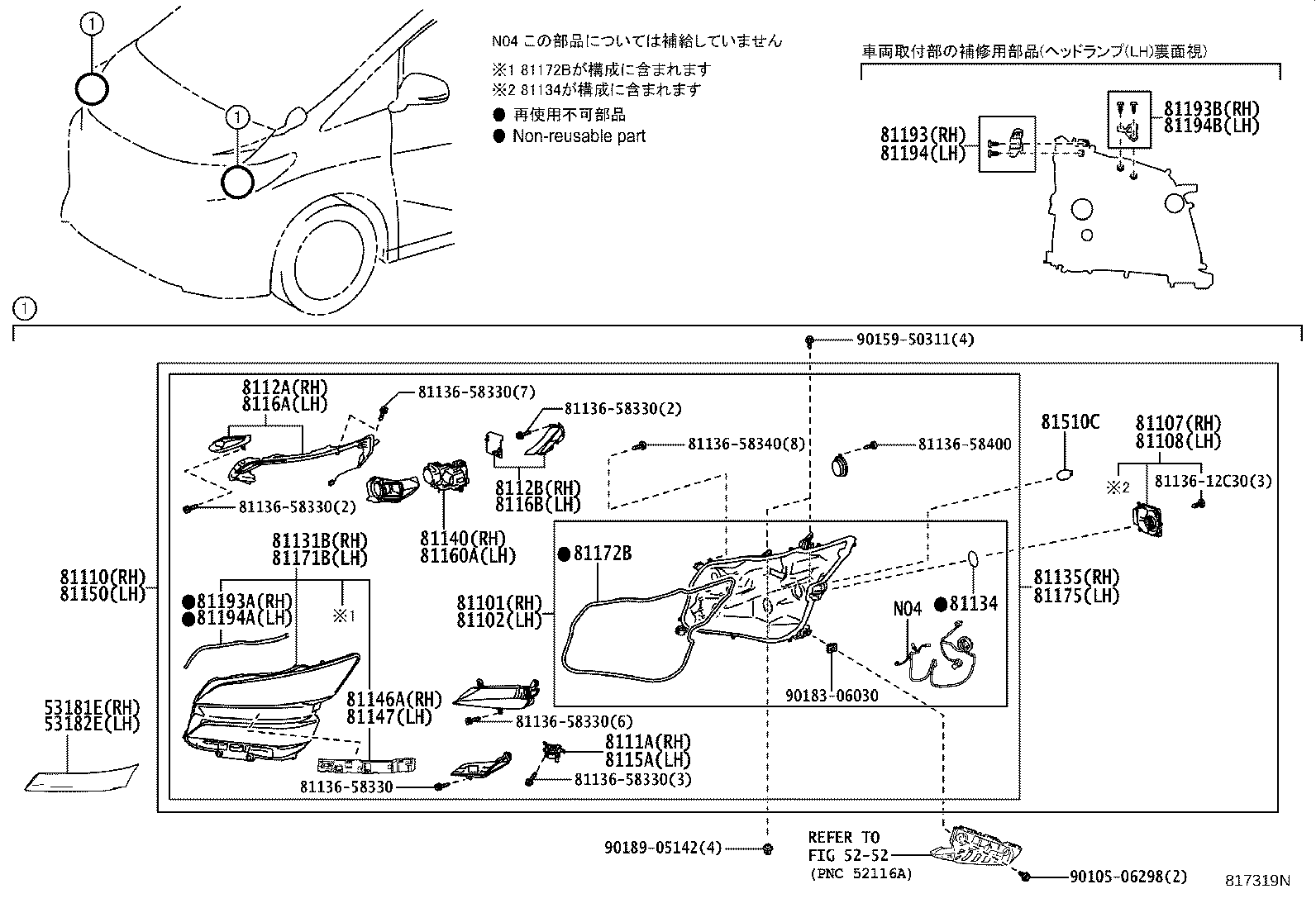

(1501-1801)08S..V ; (1501-1801)VFIRE..07S..EL,V,VL,Z,ZA,ZR
ｱﾘ(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58060C0 |
AGH3#,AYH30,GGH3#..VFIRE BLACK,202 |
1 | ||
| 53181-58060A0 |
AGH3#,AYH30,GGH3#..VFIRE WHITE PEARL CS.,070 |
1 | ||
| 53181-58060B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 53181-58060J0 |
AGH3#,AYH30,GGH3#..VFIRE GRAYISH BLUE M.M.,8V5 |
1 | ||
| 53181-58060B1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) GRAY ME.,1G3 |
1 | ||
| 53181-58060C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 53181-58060C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58060B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 53182-58060B1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) GRAY ME.,1G3 |
1 | ||
| 53182-58060C0 |
AGH3#,AYH30,GGH3#..VFIRE BLACK,202 |
1 | ||
| 53182-58060C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53182-58060A0 |
AGH3#,AYH30,GGH3#..VFIRE WHITE PEARL CS.,070 |
1 | ||
| 53182-58060J0 |
AGH3#,AYH30,GGH3#..VFIRE GRAYISH BLUE M.M.,8V5 |
1 | ||
| 53182-58060C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 8111B-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8111B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8111B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8111B-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 8115B-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 8115B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8115B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8115B-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-58330 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81107-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81107-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81108-58330 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81108-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81108-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81110-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81110-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81110-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81110-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 8111A - UNIT, HEADLAMP CORNERING LED, RH | ||||
| 8111A-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8111A-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8112A-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 8112A-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8112A-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8112B - UNIT, HEADLAMP CLEARANCE LED, NO.2 RH | ||||
| 8112B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8112B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81131-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81131-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81131-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81131-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81145-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81145-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81145-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58391 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81145-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58401 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58401 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81145-58381 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81145-58441 |
AGH3#,GGH3#..07S..(Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81145-58371 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81150-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81150-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81150-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81150-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8115A - UNIT, HEADLAMP CORNERING LED, LH | ||||
| 8115A-58340 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8115A-58340 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8116A-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 8116A-58340 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8116A-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 8116B - UNIT, HEADLAMP CLEARANCE LED, NO.2 LH | ||||
| 8116B-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 8116B-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81171-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81171-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81171-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81171-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81172B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58400 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58400 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81185-58381 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58370 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81185-58371 |
AGH3#,GGH3#..S,SA |
1 | ||
| 81185-58401 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,ZR) |
1 | ||
| 81185-58380 |
AGH3#,GGH3#..07S..(S,SA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81185-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81185-58391 |
AGH3#,AYH30,GGH3#..VFIRE..(X,Z,ZA) |
1 | ||
| 81185-58441 |
AGH3#,GGH3#..07S..(Z,ZA) “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81185-58401 |
AGH3#,GGH3#..07S..(Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58391 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81117-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58100 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58390 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81157-58391 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58100 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
AGH3#,AYH30,GGH3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58340 | ||||
| 81136-58400 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
