GGH30W-NFTRK (2015)
Toyota Alphard/Vellfire/Hv

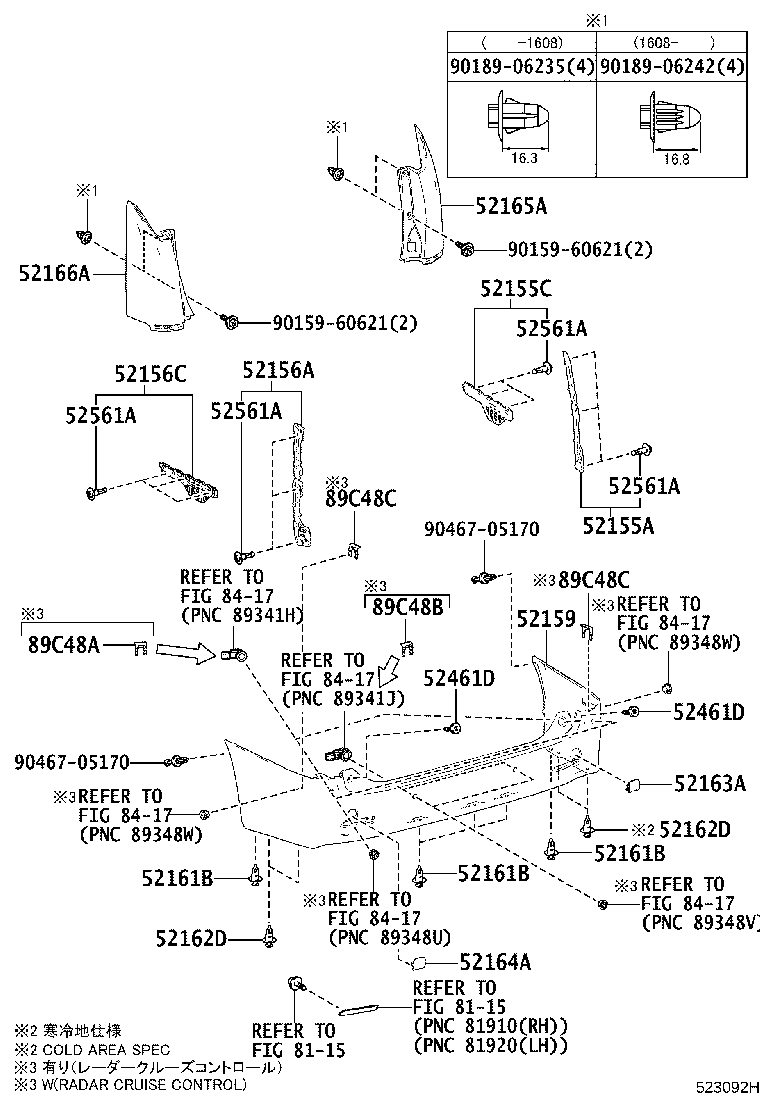

(1501-1801)EL,G,GF,V,VL,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-58160A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52159-58160C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,202 |
1 | ||
| 52159-58160C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58170A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52159-58190C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58160J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58160B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52159-58170C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52159-58170C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58170B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52159-58180B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52159-58180C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58180A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58180C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58180C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58180B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52159-58180C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58180A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58170J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58180J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58190C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52159-58200C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52159-58190B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52159-58190C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58190A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58190J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58200B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52159-58190A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52159-58210A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58200A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52159-58210B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52159-58180J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58200C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58210A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58210A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58210C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58210A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58210C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58210B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52159-58210C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58210J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58210C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
4 | ||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
4 | ||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52163-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 52163-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52163-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52163-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52163-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52163-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52163-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52163-58040C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52163-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52163-58050C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52163-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52164-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52164-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52164-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 52164-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52164-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52164-58050C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52164-58040C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52164-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52164-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52164-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52164-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-58030C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 52165-58030B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52165-58030C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52165-58030B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52165-58030A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 52165-58030J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52165-58030C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-58030C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 52166-58030A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 52166-58030B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52166-58030B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52166-58030J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52166-58030C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 52166-58030C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89C48C - RETAINER, ULTRASONIC SENSOR, REAR SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48C - RETAINER, ULTRASONIC SENSOR, REAR SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8417 | ||||

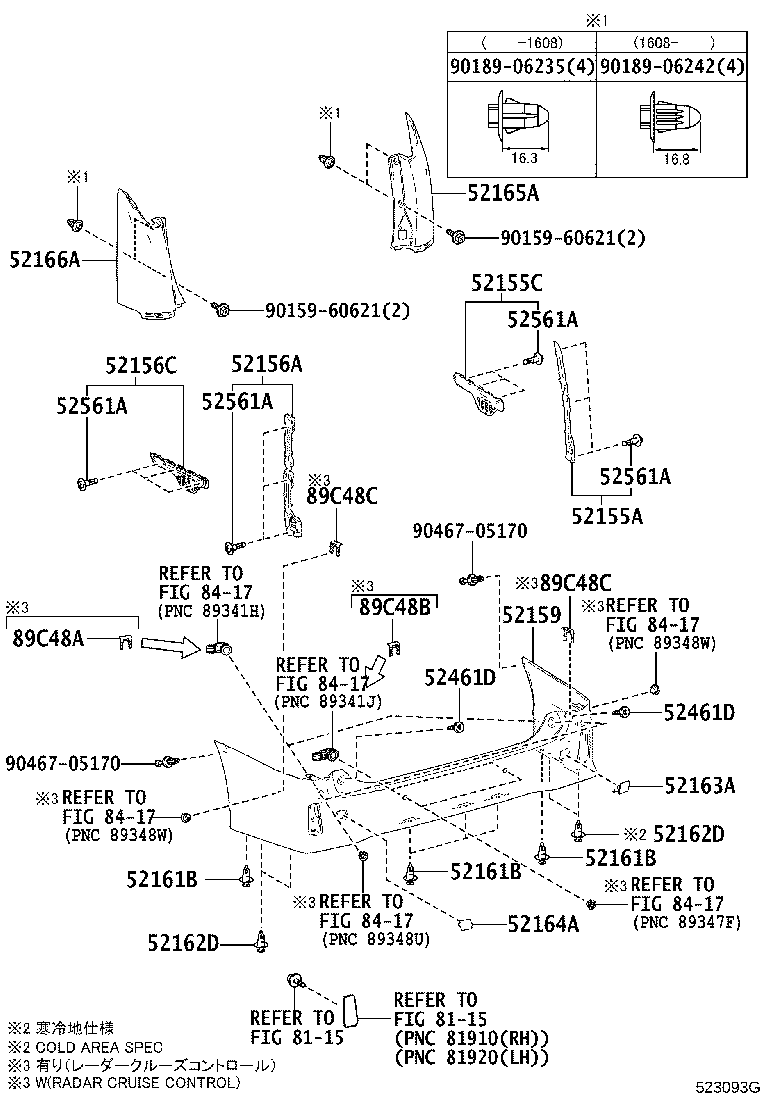

(1501-1801)S,SA,SR,Z,ZA,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-58160A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52159-58160C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,202 |
1 | ||
| 52159-58160C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58170A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52159-58160J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58160B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52159-58170C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52159-58170C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58190C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58170B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52159-58180B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52159-58180C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58180A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58180C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58180C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58180B0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52159-58180C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58180A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58170J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58180J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58190C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52159-58200C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52159-58190B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52159-58190C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58190A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58190J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58200B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52159-58190A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52159-58210A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58200A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52159-58210B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52159-58180J0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58200C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58210A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58200J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58210A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52159-58210C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-58210A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52159-58210C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58210B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52159-58210C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52159-58210J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52159-58210C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52159-58210J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
5 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
4 | ||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
4 | ||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52163-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 52163-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52163-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52163-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52163-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52163-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52163-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52163-58040C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52163-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52163-58050C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52163-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X WHITE PEARL CS.,070 |
1 | ||
| 52164-58050A0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR WHITE PEARL CS.,070 |
1 | ||
| 52164-58040B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52164-58040C0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X BLACK,202 |
1 | ||
| 52164-58040J0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52164-58050A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52164-58050C2 |
AGH3#,AYH30,GGH3#..Z,ZA,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 52164-58040C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52164-58050B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52164-58050J0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52164-58050C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52164-58050C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,202 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-58030C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 52165-58030B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52165-58030C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52165-58030B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52165-58030A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 52165-58030J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52165-58030C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-58030C0 |
AGH3#,AYH30,GGH3# BLACK,202 |
1 | ||
| 52166-58030A0 |
AGH3#,AYH30,GGH3# WHITE PEARL CS.,070 |
1 | ||
| 52166-58030B0 |
AGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X SILVER ME.,1F7 |
1 | ||
| 52166-58030B1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR GRAY ME.,1G3 |
1 | ||
| 52166-58030J0 |
AGH3#,AYH30,GGH3# GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52166-58030C2 |
AGH3#,AYH30,GGH3#..VFIRE BURNING BLACK CS.GF,222 |
1 | ||
| 52166-58030C1 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
AGH3#,AYH30,GGH3# |
12 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89C48C - RETAINER, ULTRASONIC SENSOR, REAR SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48C - RETAINER, ULTRASONIC SENSOR, REAR SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
