GGH30W-NFTQK (2015)
Toyota Alphard/Vellfire/Hv

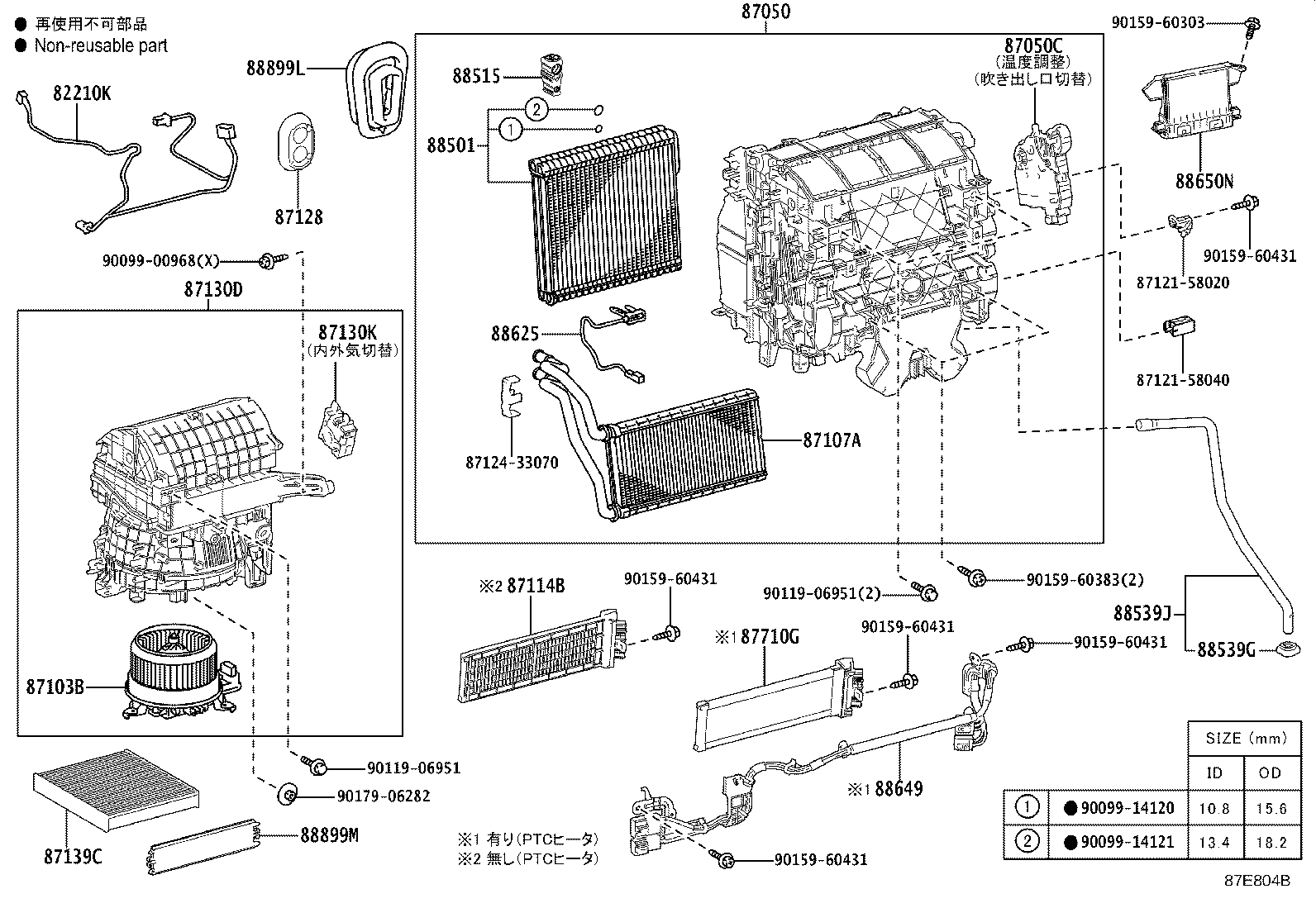

ILLUST NO. 1 OF 2(1501-2001)AGH3#,GGH3#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-58030 |
AGH3#,GGH3# |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-58080 |
AGH30,GGH3# |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58060 |
AGH3#,GGH3# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-58080 |
AGH3#,GGH3# |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-28240 |
AGH3#,GGH3# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-58010 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-58050 |
AGH30,GGH3# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26022 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
AGH30,AYH30,GGH3# |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88649-58030 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-58210 |
AGH35;AGH30,GGH3#..EL,G,GF,SA,V,VL,X,ZA |
1 | ||
| 88650-58211 |
AGH35;AGH30,GGH3#..EL,G,GF,SA,V,VL,X,ZA |
1 | ||
| 88650-58240 |
AGH35;AGH30,GGH3#..EL,G,GF,SA,V,VL,X,ZA |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-28620 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88899-47120 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 87121-58020 | ||||
| 87121-58040 | ||||
| 87124-33070 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

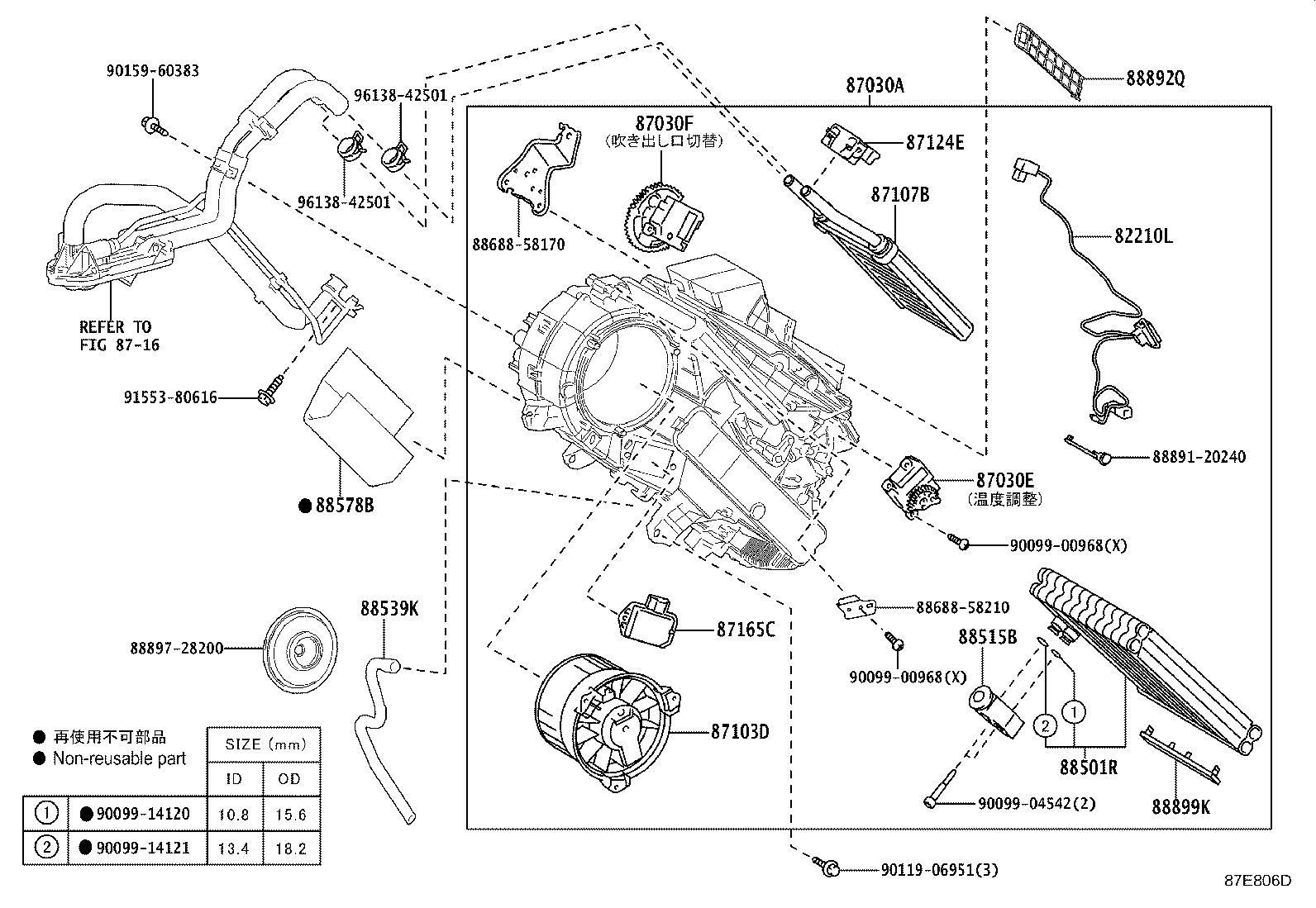

ILLUST NO. 2 OF 2(1501-2001)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-58030 |
AGH3#,GGH3# |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-28170 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28300 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87124E - CLAMP, HEATER | ||||
| 87124-28540 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
AGH3#,GGH3# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28210 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-58070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-28490 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-28020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60450 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 88688-58170 | ||||
| 88688-58210 | ||||
| 88891-20240 | ||||
| 88897-28200 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 91553-80616 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 8716 | ||||
