GGH30W-NFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

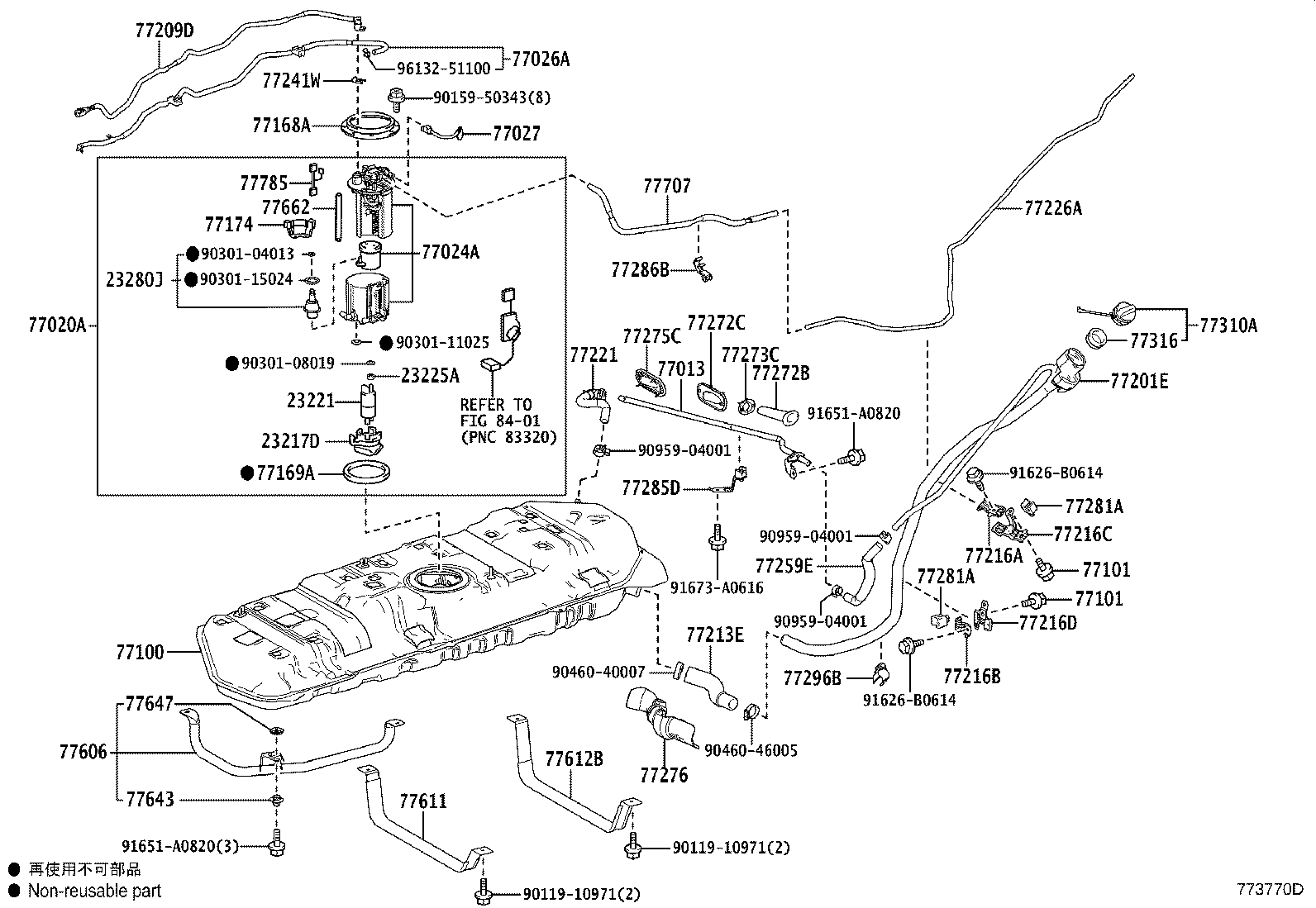

ILLUST NO. 1 OF 3(1501-1801)GGH3#

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

diagram 23217D 23221 23225A 23280J 77013 77020A 77024A 77026A 77027 77100 77101 77101 77168A 77169A 77174 77201E 77209D 77213E 77216A 77216B 77216C 77216D 77221 77226A 77241W 77259E 77272B 77272C 77273C 77275C 77276 77281A 77281A 77285D 77286B 77296B 77310A 77316 77606 77611 77612B 77643 77647 77662 77707 77785 8401 9011910971 9011910971 9015950343 9030104013 9030108019 9030111025 9030115024 9046040007 9046046005 9095904001 9095904001 9095904001 91626B0614 91626B0614 91651A0820 91651A0820 91673A0616 9613251100
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-31070

2GRFE..GGH3#

 1
23221 - PUMP, FUEL
23221-31130

2GRFE..GGH3#

 1
23225A - SPACER, FUEL PUMP
23225-31010

2GRFE..GGH3#

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-31070

2GRFE..GGH3#

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-58010

AGH3#,AYH30,GGH3#

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-58040

GGH30

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-58020

GGH30

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-58010

GGH30

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-58010

AGH3#,AYH30,GGH3#

 1
77100 - TANK ASSY, FUEL
77001-58040

AGH30,GGH30

 1
77001-58010

AGH30,GGH30

 1
77101 - PLUG(FOR FUEL SUB-TANK)
90105-08158

AGH3#,AYH30,GGH3#

 2
77101 - PLUG(FOR FUEL SUB-TANK)
90105-08158

AGH3#,AYH30,GGH3#

 2
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

AGH3#,AYH30,GGH3#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-53010

GGH3#

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-28010

GGH3#

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-58050

AGH3#,AYH30,GGH3#

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-58010

AGH30,GGH30

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-58030

AGH3#,AYH30,GGH3#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-58030

AGH3#,AYH30,GGH3#

 1
77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77216-58040

AGH3#,AYH30,GGH3#

 1
77216C - SUPPORT, FUEL TANK FILLER PIPE NO.3
77217-58030

AGH3#,AYH30,GGH3#

 1
77216D - SUPPORT, FUEL TANK FILLER PIPE NO.4
77217-58040

AGH3#,AYH30,GGH3#

 1
77221 - TUBE, FUEL TANK BREATHER, NO.1
77221-58010

AGH3#,AYH30,GGH3#

 1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-58010

AGH3#,AYH30,GGH3#

 1
77241W - CLIP, TUBE JOINT
77241-33011

AGH3#,AYH30,GGH3#

 1
77259E - HOSE, FUEL
77259-58040

AGH3#,AYH30,GGH3#

 1
77272B - SUPPORT, BREATHER TUBE, NO.1
77272-58010

AGH3#,AYH30,GGH3#

 1
77272C - SUPPORT, BREATHER TUBE, NO.3
77272-58020

AGH3#,AYH30,GGH3#

 1
77273C - SUPPORT, BREATHER TUBE, NO.2
77273-58010

AGH3#,AYH30,GGH3#

 1
77275C - SUPPORT, BREATHER TUBE, NO.4
77273-58020

AGH3#,AYH30,GGH3#

 1
77276 - PROTECTOR, FUEL HOSE
77276-58020

AGH3#,AYH30,GGH3#

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-30110

AGH3#,AYH30,GGH3#

 2
77281A - CLAMP, FUEL FILLER PIPE
77281-30110

AGH3#,AYH30,GGH3#

 2
77285D - CLAMP, FUEL TUBE, NO.1
77285-58030

AGH3#,AYH30,GGH3#

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-28040

AGH3#,AYH30,GGH3#

 1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-58010

AGH3#,AYH30,GGH3#

 1
77310A - CAP ASSY, FUEL TANK
77300-12020

AGH3#,AYH30,GGH3#

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

AGH3#,AYH30,GGH3#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-58010

AGH3#,AYH30,GGH3#

 1
77611 - BAND, FUEL TANK
77601-58020

AGH30,GGH30

 1
77612B - BAND, FUEL TANK, NO.2
77602-58020

AGH30,GGH30

 1
77643 - RETAINER, FUEL TANK PROTECTOR
51489-28020

AGH3#,AYH30,GGH3#

 1
77647 - RETAINER, FUEL TANK PROTECTOR, SIDE
51499-28030

AGH3#,AYH30,GGH3#

 1
77662 - COVER, FUEL TANK GAGE
77662-53010

AGH3#,AYH30,GGH3#

 1
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-58010

AGH3#,AYH30,GGH3#

 1
77785 - HARNESS, FUEL PUMP
77785-58010

GGH3#

 1
Common parts
90119-10971
90159-50343
90301-04013
90301-08019
90301-11025
90301-15024
90460-40007
90460-46005
90959-04001
91626-B0614
91651-A0820
91673-A0616
96132-51100
Linked diagrams
8401

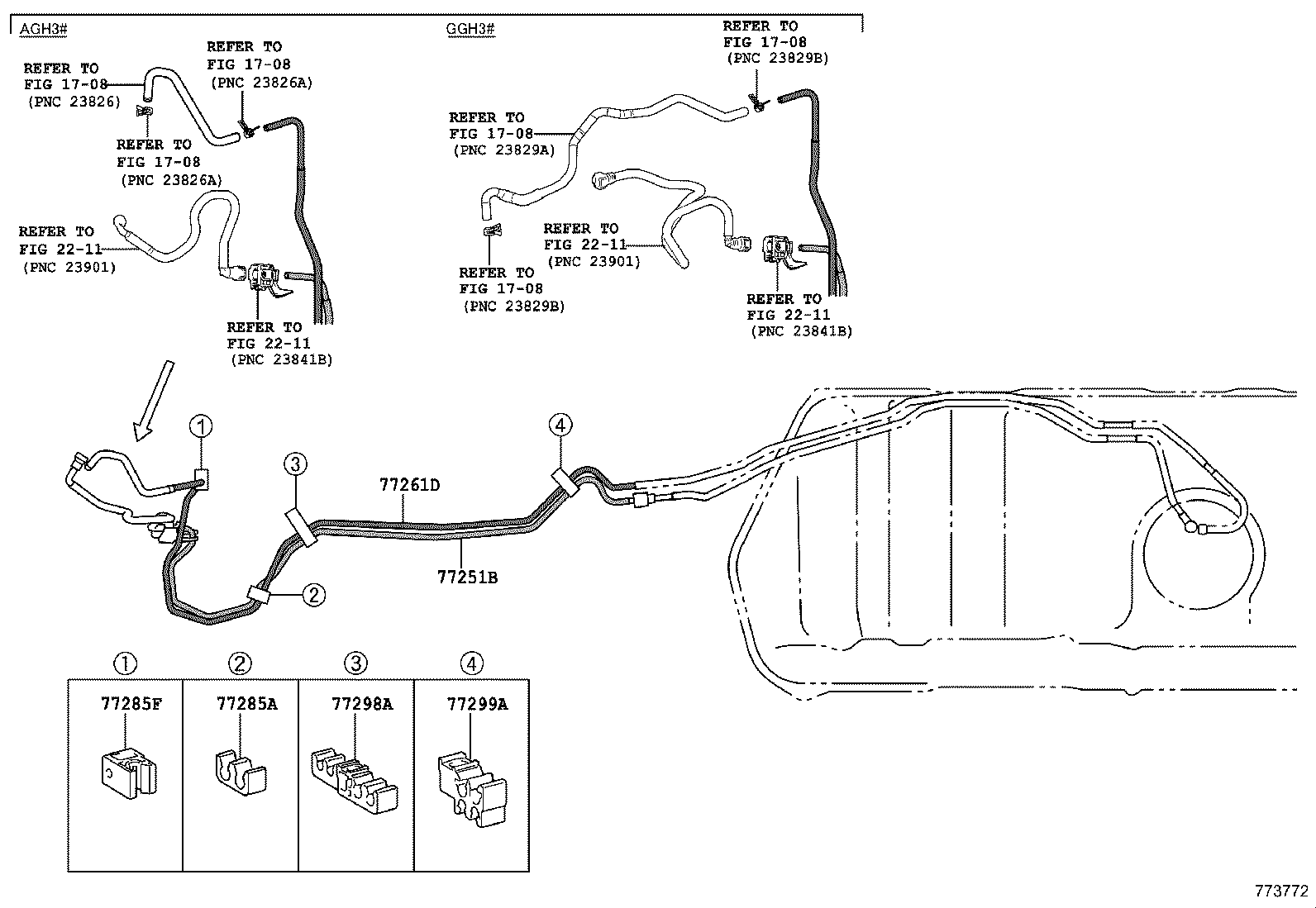

ILLUST NO. 2 OF 3(1501-1801)GGH3# ; (1501- )AGH3#

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 1708 1708 1708 1708 1708 1708 2211 2211 2211 2211 77251B 77261D 77285A 77285F 77298A 77299A
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-58040

AGH3#,GGH3#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-58031

AGH3#,GGH3#

 1
77261-58030

AGH3#,GGH3#

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-42110

AGH3#,GGH3#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-52010

AGH3#,AYH30,GGH3#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070

AGH3#,AYH30,GGH3#

 1
77299A - CLAMP, FUEL TUBE, NO.5
77299-52040

AGH3#,AYH30,GGH3#

 1
Linked diagrams
1708
2211

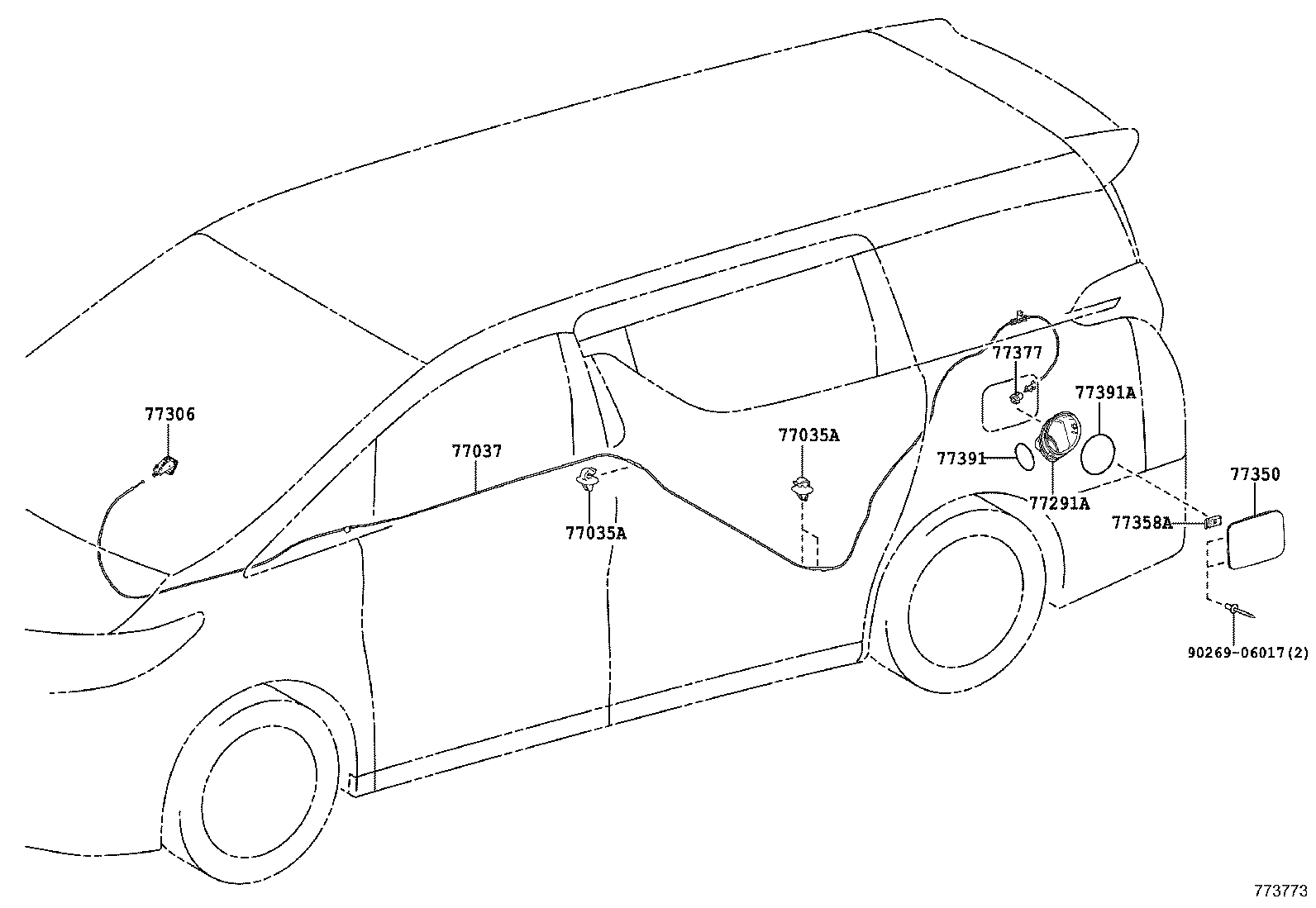

ILLUST NO. 3 OF 3(1501- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ

diagram 77035A 77035A 77037 77291A 77306 77350 77358A 77377 77391 77391A 9026906017
Part # Description Qty Price
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

AGH3#,AYH30,GGH3#

 3
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

AGH3#,AYH30,GGH3#

 3
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-58040

AGH3#,AYH30,GGH3#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-58020

AGH3#,AYH30,GGH3#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-58020C0

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-58030

AGH3#,AYH30,GGH3#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-30060

AGH3#,AYH30,GGH3#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

AGH3#,AYH30,GGH3#

 1
77391 - RING, FUEL INLET BOX
77391-28020

AGH3#,AYH30,GGH3#

 1
77391A - RING, FUEL INLET BOX
77391-58010

AGH3#,AYH30,GGH3#

 1
Common parts
90269-06017
