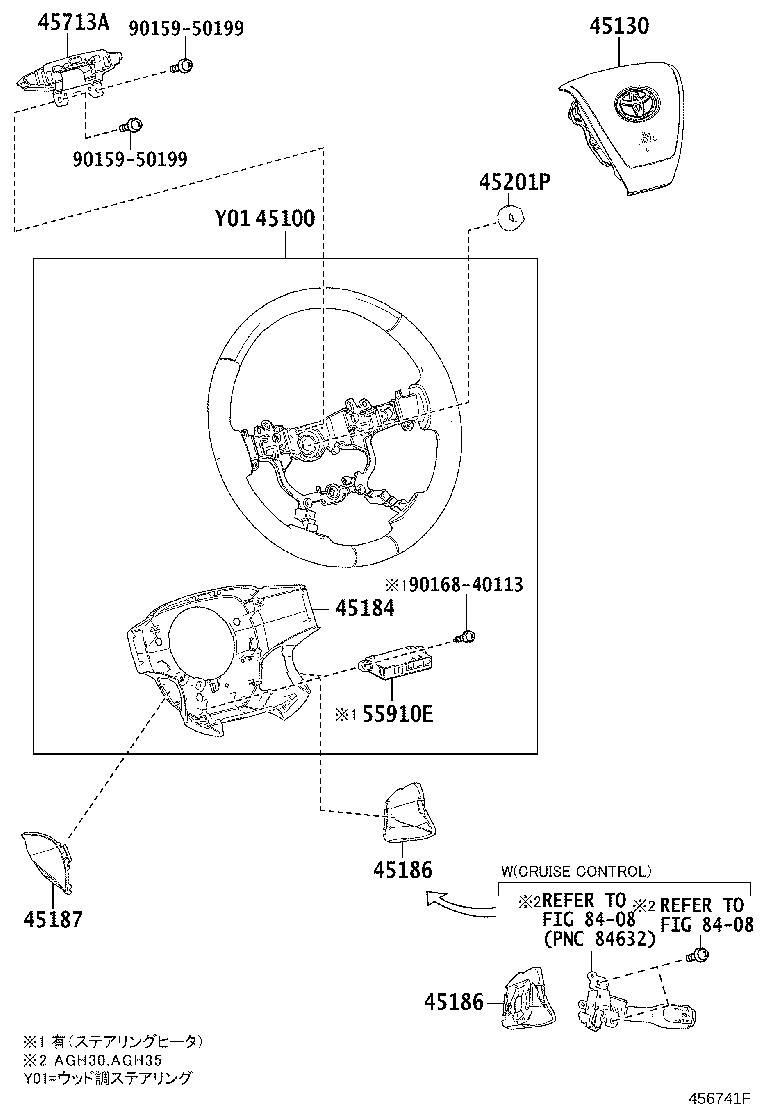

Toyota Alphard/vellfire/hv GGH30 STEERING WHEEL

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-58110C0	AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,BLACK & DARK GRAY,TRIM2#	01/2015 - 07/2016	1
45100-58130C0	AGH3#,GGH3#..S,SA,Z,ZA 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	01/2015 - 01/2018	1
45100-58120C0	AYH30,GGH3#..G,GF,V,VL 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(Bj/GForVL,BLACK & DARK GRAY,TRIM2#	01/2015 - 07/2016	1
45100-58140C0	AGH3#,GGH3#..07S..(S,SA,Z,ZA) 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“TYPE BLACK”(E)or“GOLDENdYES″(E),BLACK & DARK GRAY,TRIM2#	07/2016 - 01/2018	1
45100-58120C2	AYH30,GGH3#..G,GF,V,VL 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(Bj/GForVL,BLACK & DARK BROWN,TRIM0#	01/2015 - 07/2016	1
45100-58120C2	AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(Cj/SRorZR,BLACK & DARK BROWN,TRIM0#	01/2015 - 07/2016	1
45100-58110C1	AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,BLACK & DARK BROWN,TRIM0#	01/2015 - 07/2016	1
45100-58120C0	AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(Cj/SRorZR,BLACK & DARK GRAY,TRIM2#	01/2015 - 07/2016	1
45100-30B31C4	AYH30,GGH3#..G,GF,V,VL 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(Bj/GForVL,BLACK & DARK BROWN,TRIM0#	07/2016 - 01/2018	1
45100-30B31C2	AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,“Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(Cj/SRorZR,BLACK & DARK GRAY,TRIM2#	07/2016 - 01/2018	1
45100-58140C1	AGH3#,AYH30,GGH3#..G,GF,V,VL 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,BLACK & DARK BROWN,TRIM0#	07/2016 - 01/2018	1
45130 - BUTTON ASSY, HORN
45130-58040C0	AGH3#,AYH30,GGH3# BLACK,TRIM0#,2#	01/2015 - 01/2018	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-30400C0	AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR BLACK,TRIM0#,2#	01/2015 - 07/2016	1
45184-30400C0	AGH3#,AYH30,GGH3#..G,GF,V,VL BLACK,TRIM0#	07/2016 - 01/2018	1
45184-30400C0	AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2#	01/2015 - 01/2018	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30180C0	AYH30;AGH3#,GGH3#..EL,G,GF,SA,V,VL,ZA BLACK,TRIM0#,2#	01/2015 - 01/2018	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30180C0	AYH30;AGH3#,GGH3#..EL,G,GF,SA,V,VL,ZA BLACK,TRIM0#,2#	01/2015 - 01/2018	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30100C0	AGH3#,AYH30,GGH3# BLACK,TRIM0#,2#	01/2015 - 01/2018	1
45201P - NUT, STEERING WHEEL SET
90179-12071	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
45713A - DAMPER, STEERING SHAKE
45713-58010	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
55910E - CONTROL ASSY, STEERING WHEEL HEATER
55910-60280	AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
55910-60280	AGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR) “Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(C)/SRorZR	01/2015 - 01/2018	1
Common parts
90159-50199
90168-40113
Linked diagrams
8408

GGH30W-NFTQK (2015)

(1501- )
