GGH30W-NFTQK (2015)
Toyota Alphard/Vellfire/Hv

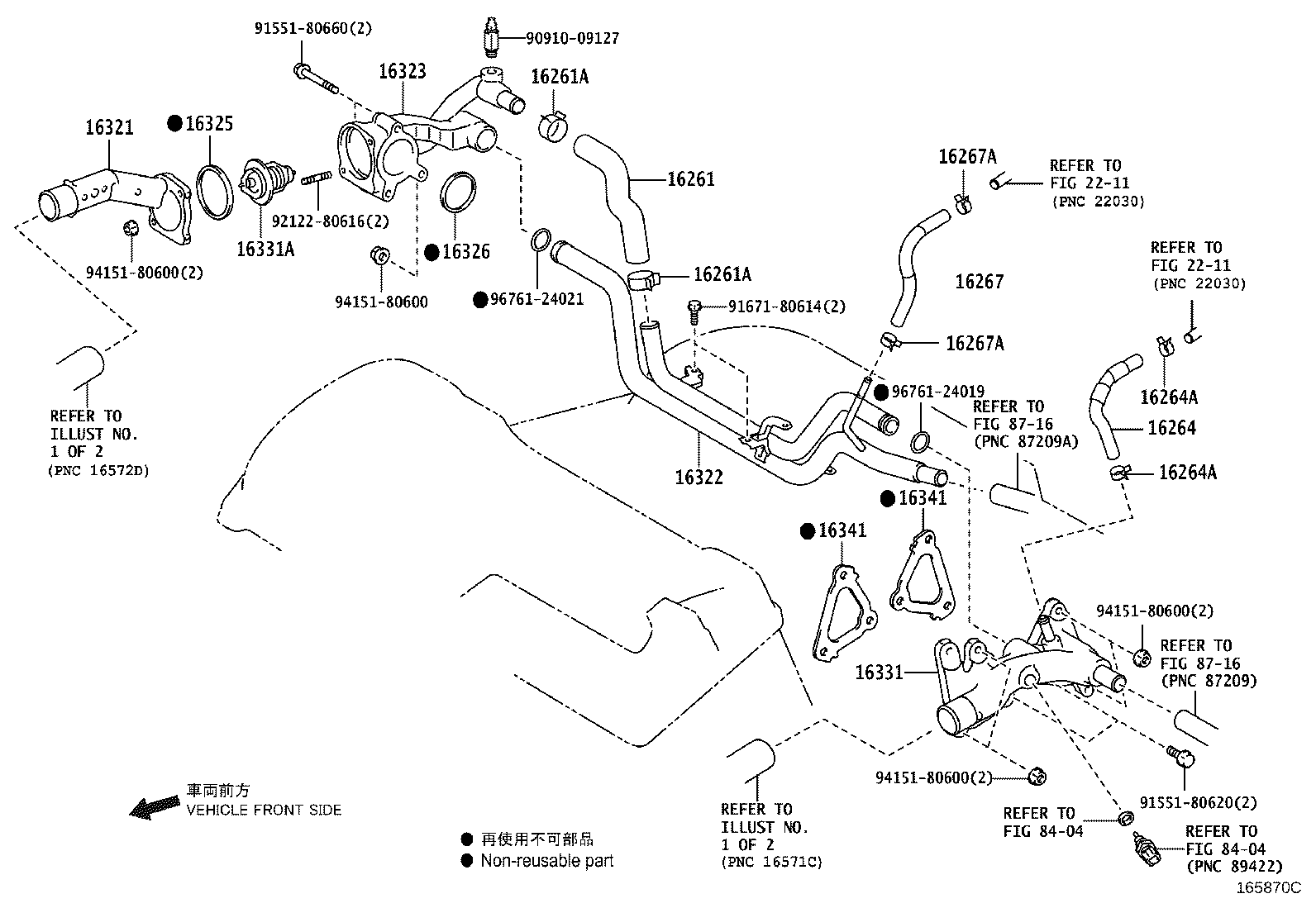

ILLUST NO. 2 OF 2(1501-1801)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GGH3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GGH3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GGH3# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GGH3# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GGH3# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GGH3# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GRFE..GGH3# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GGH3# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GGH3# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31030 |
2GRFE..GGH3# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31010 |
2GRFE..GGH3# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31040 |
2GRFE..GGH3# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GGH3# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GGH3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31140 |
2GRFE..GGH3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GGH3# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GGH3# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GGH3# |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||

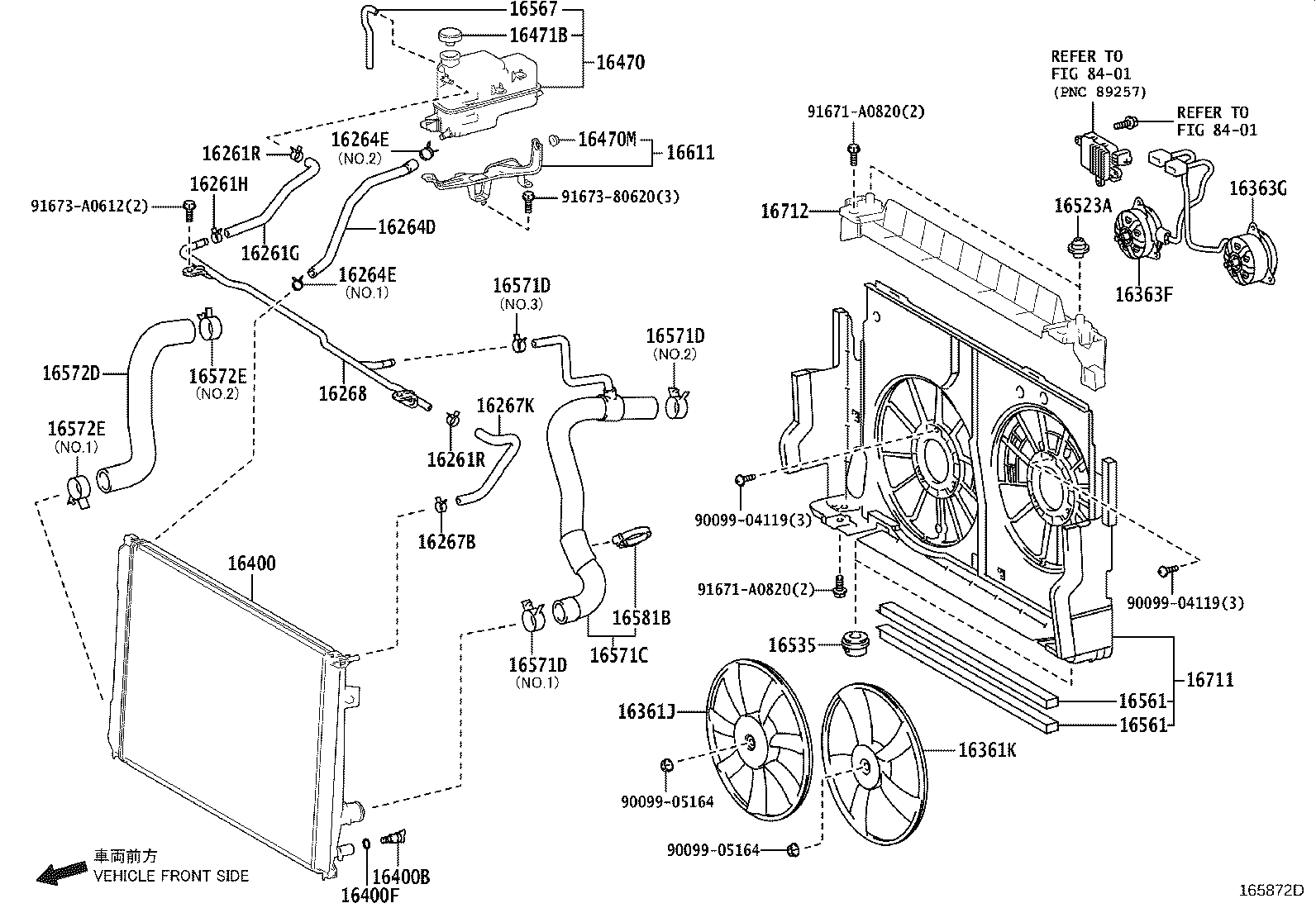

ILLUST NO. 1 OF 2(1501-1801)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36120 |
2GRFE..GGH3# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2GRFE..GGH3# |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-51701 |
2GRFE..GGH3# |
2 | ||
| 90467-15022 |
2GRFE..GGH3# |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-51701 |
2GRFE..GGH3# |
2 | ||
| 90467-15022 |
2GRFE..GGH3# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31140 |
2GRFE..GGH3# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2GRFE..GGH3# NO.2 |
1 | ||
| 90467-18008 |
2GRFE..GGH3# NO.1 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2GRFE..GGH3# NO.2 |
1 | ||
| 90467-18008 |
2GRFE..GGH3# NO.1 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-18008 |
2GRFE..GGH3# |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36130 |
2GRFE..GGH3# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-36200 |
2GRFE..GGH3# |
1 | ||
| 16361J - FAN, RH | ||||
| 16361-31200 |
2GRFE..GGH3# |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-31190 |
2GRFE..GGH3# |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-31460 |
2GRFE..GGH3# |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-31450 |
2GRFE..GGH3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31591 |
2GRFE..GGH3# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2GRFE..GGH3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2GRFE..GGH3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28152 |
2GRFE..GGH3# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-16044 |
2GRFE..GGH3# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37011 |
2GRFE..GGH3# |
1 | ||
| 16475-28140 |
2GRFE..GGH3# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
2GRFE..GGH3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-36020 |
2GRFE..GGH3# |
2 | ||
| 16535-20030 |
2GRFE..GGH3# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31020 |
2GRFE..GGH3# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31020 |
2GRFE..GGH3# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-28150 |
2GRFE..GGH3# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31250 |
2GRFE..GGH3# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41005 |
2GRFE..GGH3# NO.1 |
1 | ||
| 96136-44301 |
2GRFE..GGH3# NO.2 |
1 | ||
| 96136-41501 |
2GRFE..GGH3# NO.3 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41005 |
2GRFE..GGH3# NO.1 |
1 | ||
| 96136-44301 |
2GRFE..GGH3# NO.2 |
1 | ||
| 96136-41501 |
2GRFE..GGH3# NO.3 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41005 |
2GRFE..GGH3# NO.1 |
1 | ||
| 96136-44301 |
2GRFE..GGH3# NO.2 |
1 | ||
| 96136-41501 |
2GRFE..GGH3# NO.3 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31220 |
2GRFE..GGH3# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41005 |
2GRFE..GGH3# NO.1 |
1 | ||
| 96136-44301 |
2GRFE..GGH3# NO.2 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41005 |
2GRFE..GGH3# NO.1 |
1 | ||
| 96136-44301 |
2GRFE..GGH3# NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-26040 |
2GRFE..GGH3# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-36020 |
2GRFE..GGH3# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31420 |
2GRFE..GGH3# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-31120 |
2GRFE..GGH3# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91671-A0820 | ||||
| 91673-80620 | ||||
| 91673-A0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
