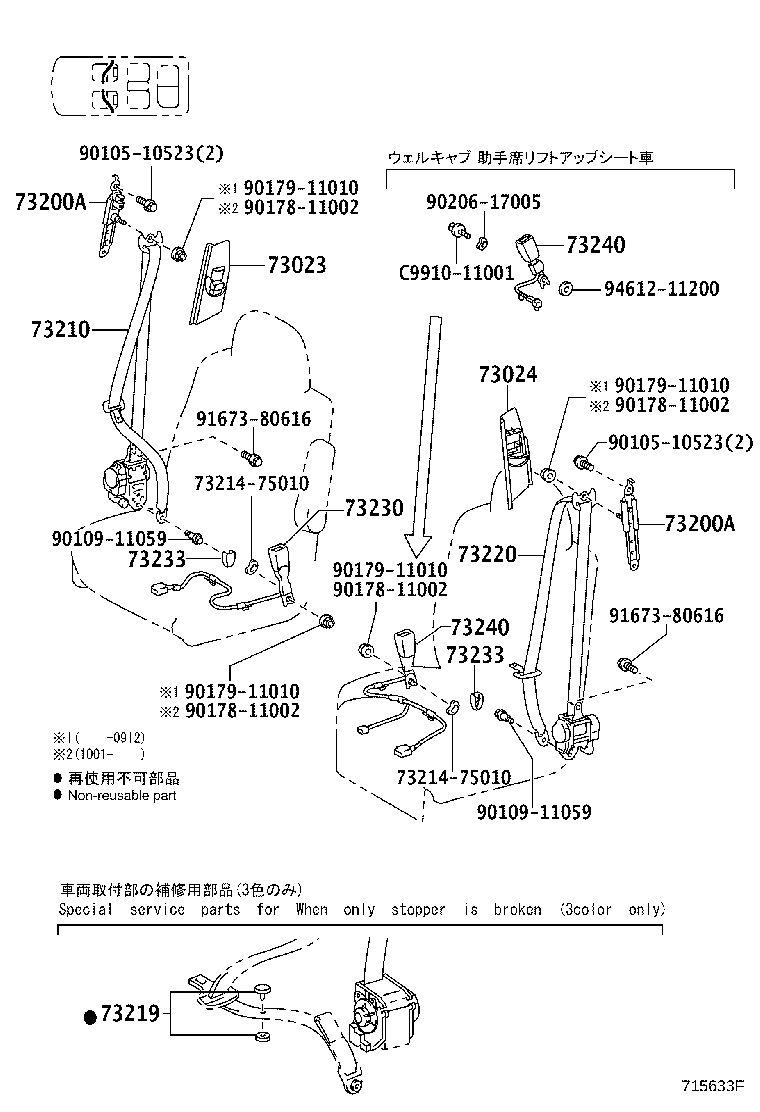

GGH25W-PRTQK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
ﾌﾛﾝﾄ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-58030A0 |
ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73210-58020A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73210-58031A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73210-58021A1 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANH2#,GGH2#..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
ANH2#,GGH2#..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ANH2#,GGH2#..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-58021A1 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73220-58020A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73220-58030A0 |
ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73220-58031A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73230-58050A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73230-58051A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73230-58071A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020A1 |
ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020A1 |
ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58020A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73240-58041A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73240-58021A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58020A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73240-58041A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 73240-58021A0 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91673-80616 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

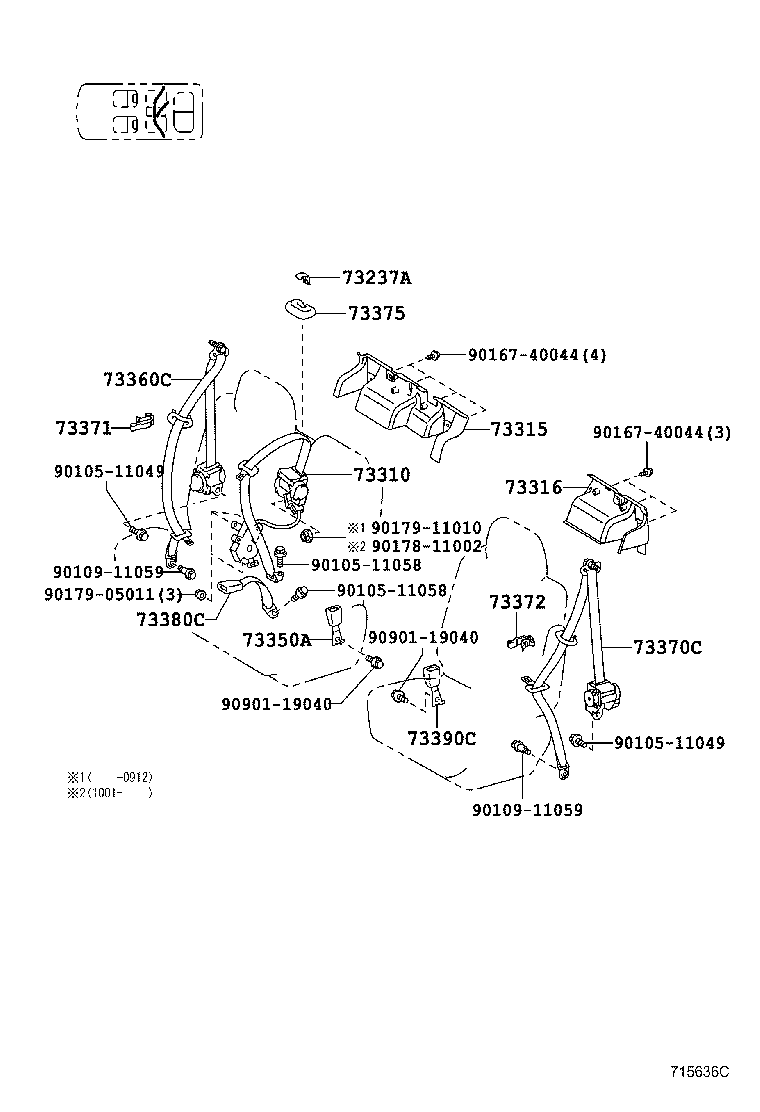

(0804- )08S
ﾘﾔ NO.1 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-28020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH | ||||
| 73310-58012A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73310-58010A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73310-58011A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73315 - COVER, RR SEAT BELT, INNER RH | ||||
| 73315-58010A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73316 - COVER, RR SEAT BELT, INNER LH | ||||
| 73316-58010A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-58020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-58020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73360-58022A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73360-58021A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58031A0 |
ANH20..(240X,24X)..CBU;ANH25..07S..(240X,24X)..CBU;ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..08S..(240G,24V,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73370-58030A0 |
ANH20..(240X,24X)..CBU;ANH25..07S..(240X,24X)..CBU;ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..08S..(240G,24V,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73370-58032A1 |
ANH20..(240X,24X)..CBU;ANH25..07S..(240X,24X)..CBU;ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..08S..(240G,24V,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-58010A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-58010A0 |
ANH20..(240X,24X)..CBU;ANH25..07S..(240X,24X)..CBU;ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..08S..(240G,24V,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-28020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-58020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-58020A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90167-40044 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90179-11010 | ||||
| 90901-19040 | ||||

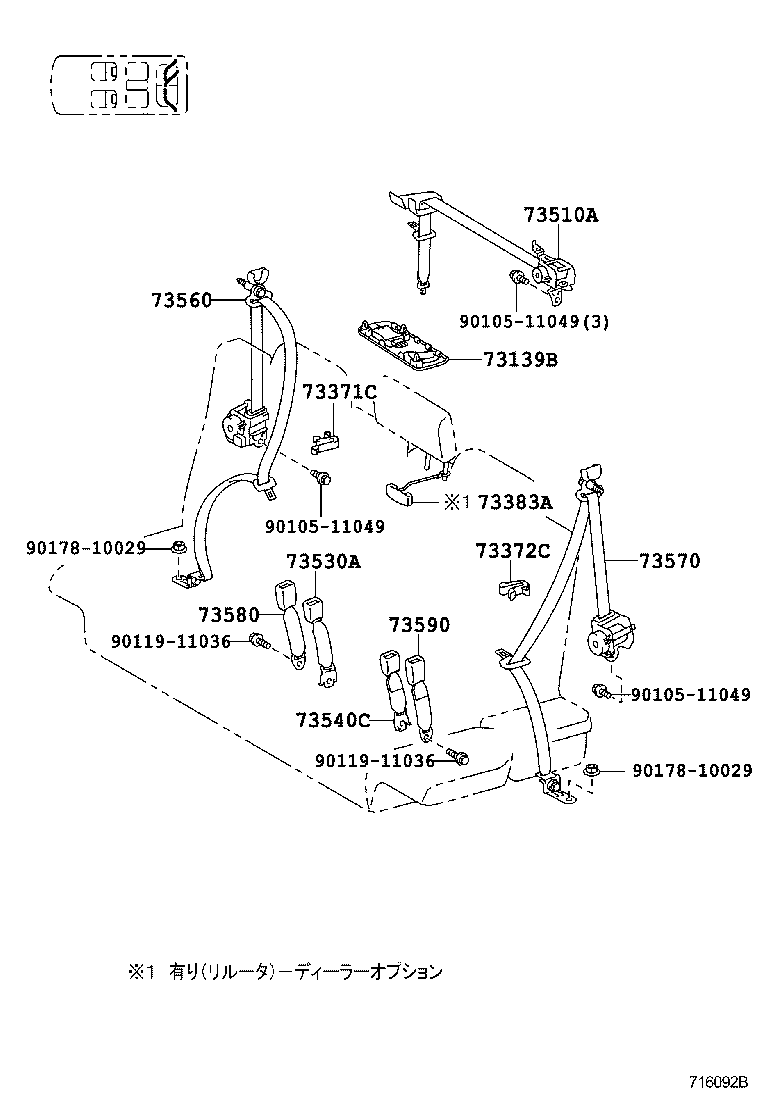

(0804- )
ﾘﾔ NO.2 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-16050A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371-52010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-16050A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371-52010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-58020 |
ANH2#,GGH2#..CBU 有り(ﾘﾙｰﾀ) DOP |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73540C - BELT ASSY, REAR NO.2 SEAT LAP TYPE | ||||
| 73540-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73540-58021A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU IVORY,TRIM0# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73560-58021A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-58030A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73570-58031A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90119-11036 | ||||
| 90178-10029 | ||||
