GGH25W-PRTQK (2008)
Toyota Alphard/Vellfire/Hv

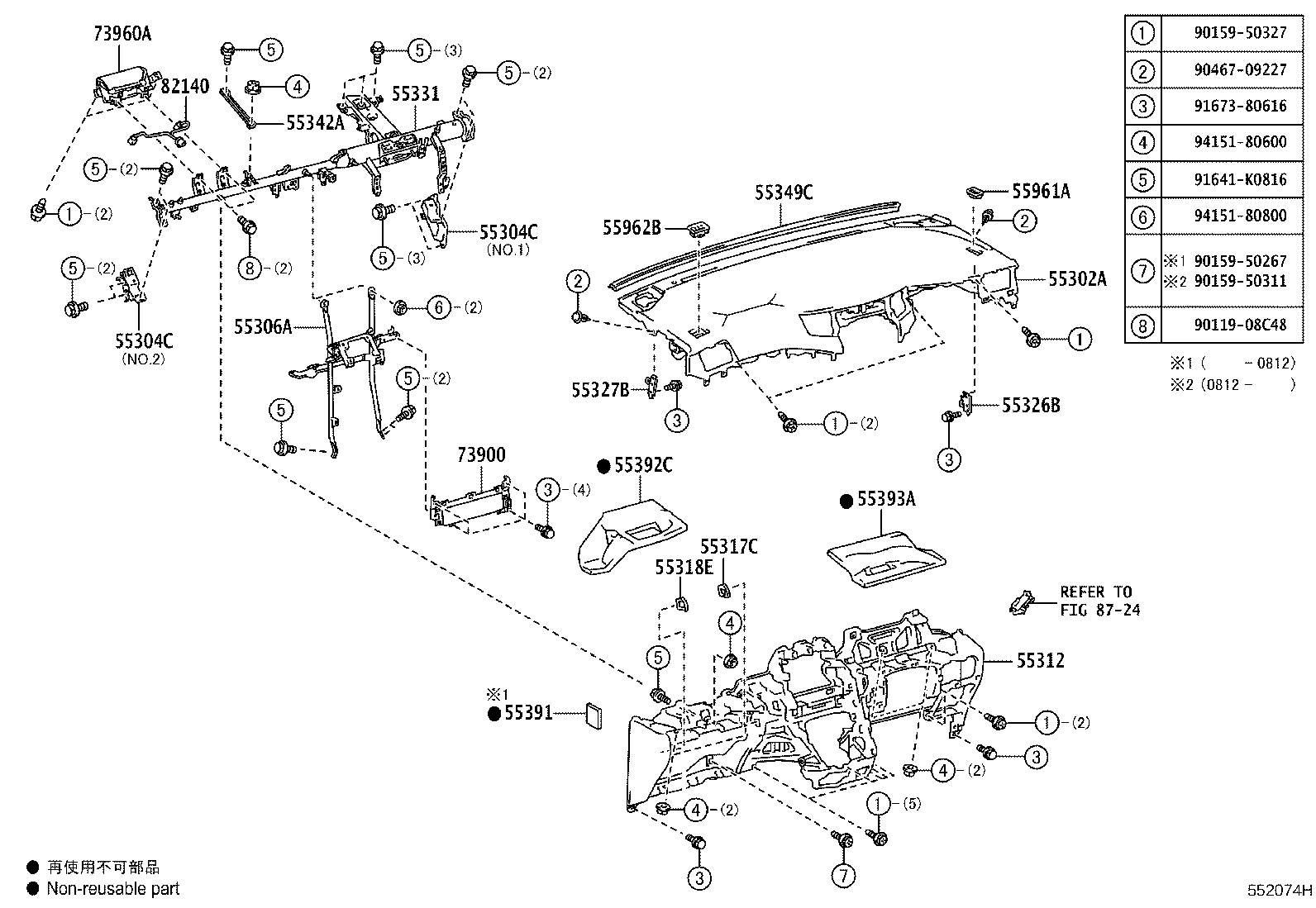

ILLUST NO. 1 OF 2(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-58060E0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,24V,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 55302-58050E0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,24V,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55302-58060E0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,24V,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-58010 |
ANH2#,GGH2#..CBU NO.1 |
1 | ||
| 55304-58020 |
ANH2#,GGH2#..CBU NO.2 |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-58010 |
ANH2#,GGH2#..CBU NO.1 |
1 | ||
| 55304-58020 |
ANH2#,GGH2#..CBU NO.2 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-58030A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55326B - STAY, INSTRUMENT PANEL, RH | ||||
| 55326-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55327B - STAY, INSTRUMENT PANEL, LH | ||||
| 55326-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-28040 |
ANH2#,GGH2#..CBU |
2 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 55393A - CUSHION, INSTRUMENT PANEL, LOWER NO.3 | ||||
| 55393-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-58020E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-58020E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-08C48 | ||||
| 90159-50267 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-09227 | ||||
| 91641-K0816 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8724 | ||||

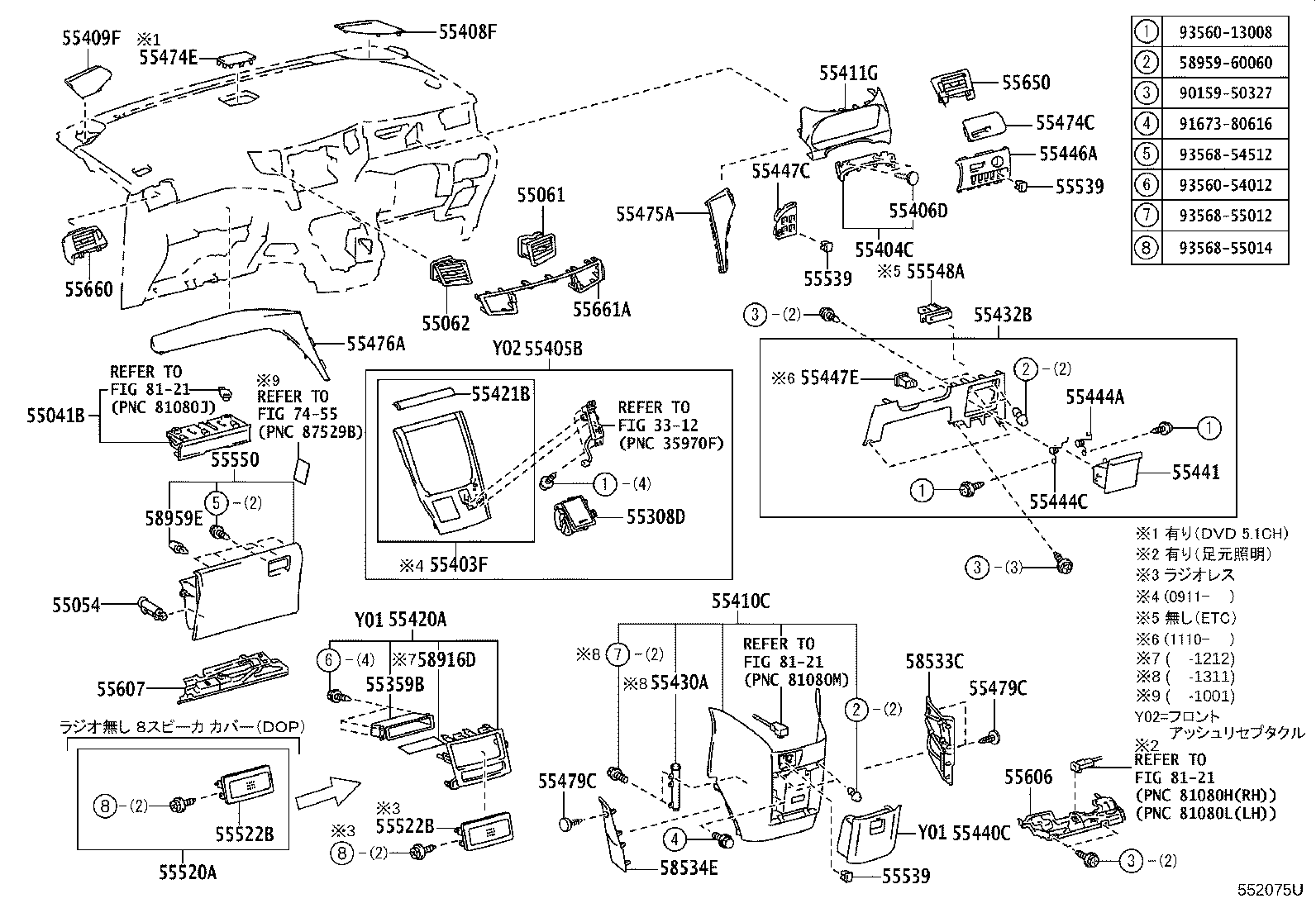

ILLUST NO. 2 OF 2(0804- )ANH2#,GGH2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-58030A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-22030 |
ANH2#,GGH2#..CBU |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55061-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 55359B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55359-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-58140 |
GGH2#..(350G,35V)..CBU |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-08186C0 |
ANH2#,GGH2#..CBU BLACK |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-58020E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-58010E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-58031A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55410-58030A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-58120 |
ANH2#,GGH2#..CBU |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-58030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55480-58031A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55441-58041A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-58060 |
ANH2#,GGH2#..CBU |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-58090 |
ANH2#,GGH2#..CBU |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-58050A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55446-58051A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55447-58021A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-58010 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55408-58010E0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 55408-58010E0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-58010 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-58020 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-06020A5 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-06020A5 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BLACK,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BLACK,TRIM0# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030A0 |
ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-58070E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-58070E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55663-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-B1010 |
ANH2#,GGH2#..CBU |
4 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90159-50327 | ||||
| 91673-80616 | ||||
| 93560-13008 | ||||
| 93560-54012 | ||||
| 93568-54512 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 7455 | ||||
| 8121 | ||||
